Isuzu WW
▶
TRUCKS
▶
CXH
▶
10883 - CXH LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#13981) — 25 parça
◀

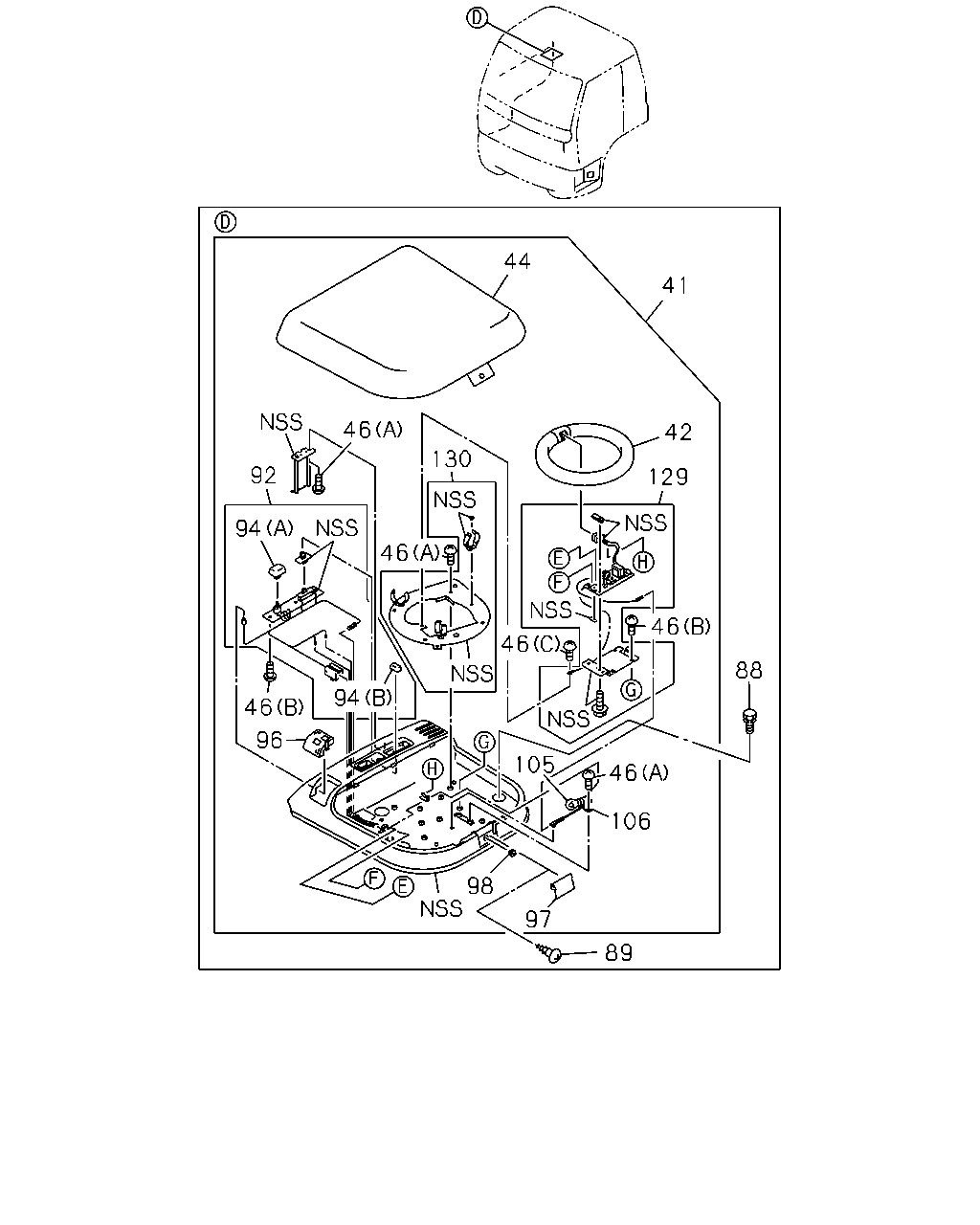

[805A] COMPONENT;FLUORESCENT (18 parça)
[805A] ROOM LAMP AND STEP LAMP COVER (7 parça)
▶
44
41
46
42
130
92
129
94
46
46
46
88
94
46
96
105
46
106
98
97
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG>
1-86830-315-2
01
1
0105-
42
LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG>
1-86830-094-1
01
1
0105-
44
LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-092-0
01
1
0105-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING
1-86830-095-0
08
1
0105-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12
1-86830-202-0
07
1
0105-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING
1-86830-336-0
01
1
0105-
88
BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0105-
89
SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING
9-07076-510-0
01
1
0105-
92
SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG>
1-86830-341-0
01
1
0105-
94
KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A)
1-86830-312-0
01
1
0105-
94
KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B)
1-86830-313-0
01
1
0105-
96
CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-337-0
01
1
0105-
97
CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG>
1-86830-311-0
01
1
0105-
98
GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG>
1-86830-102-0
01
1
0105-
105
BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W
1-86830-200-0
01
1
0105-
106
SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG>
1-86830-201-0
01
1
0105-
129
INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-338-0
01
1
0105-
130
PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-339-0
01
1
0105-
1
2
2
38
4
3
34
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
EXC. ROOM LAMP FLUORESCENT<NGG>
1-82140-050-1
01
1
0105-
2
BULB; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W
1-82195-001-0
02
1
0105-
3
LENS; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG>
1-82145-020-0
01
1
0105-
4
SCREW; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING
9-07066-520-0
03
1
0105-
34
COVER; STEP LAMP
1-71907-444-0
01
1
0105-
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74310-420-0
02
1
0105-
38
COVER; STEP LAMP,DOOR
1-74997-029-2
01
1
0105-
