3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#139805) — 37 parça

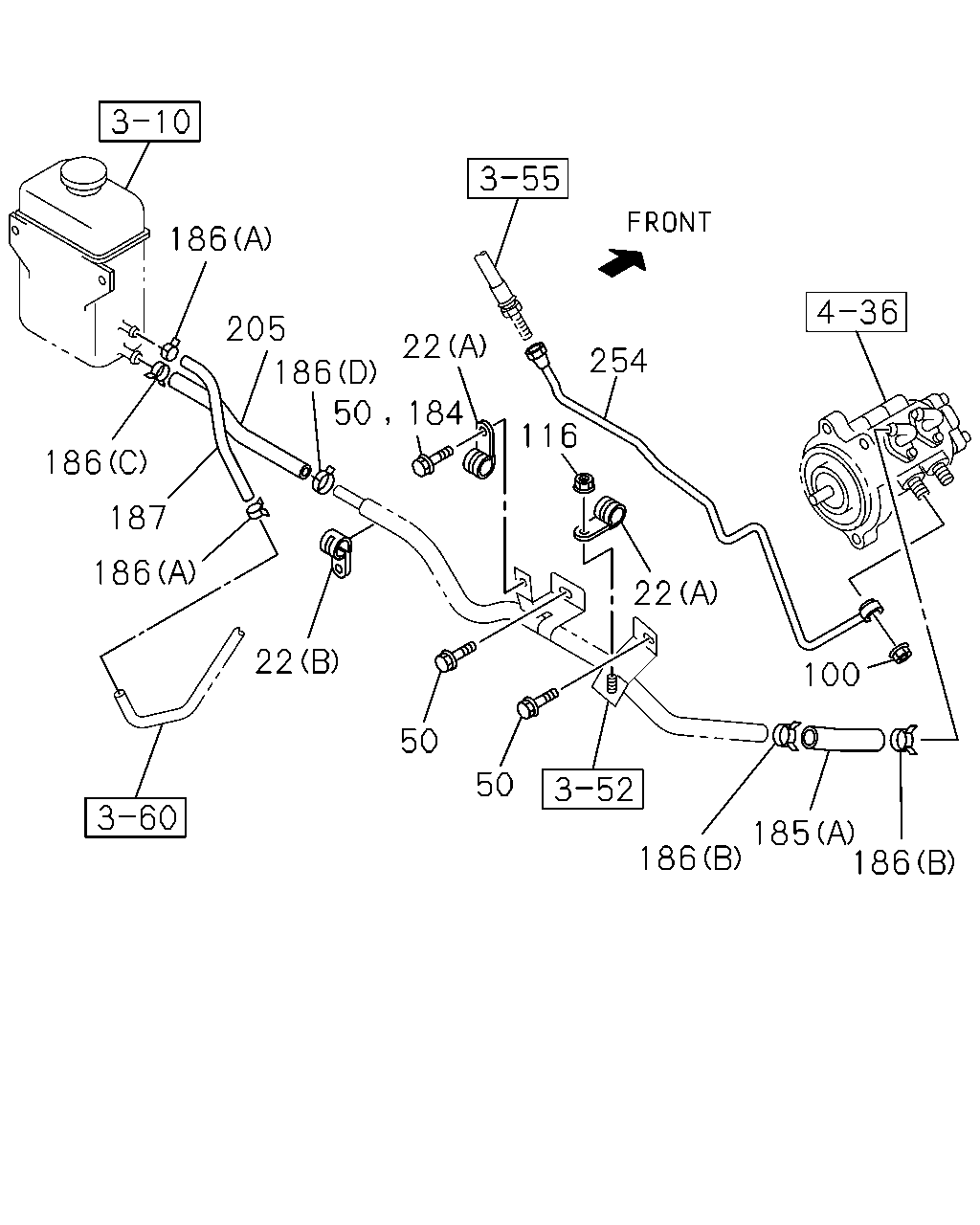

çizim 420853
186 205 50 184 254 116 22 50 50 22 186 186 187 186 22 186 186 185 100
BalonParca AdiParca NoAdetTipApplied Date
22 CLIP
(A) ID=10 L=16.5 		8-98082-034-0 02 1 1405-
22 CLIP
(B) ID=17 L=21 		8-98082-035-0 01 1 1405-
50 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 03 1 1405-
100 NUT; HYDRAULIC UNIT 8-97358-958-0 01 1 1405-
116 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1405-
184 BOLT; CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 1405-
185 HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98085-720-0 01 1 1405-
185 HOSE; RUBBER,SUCTION
(A) 		8-97330-513-0 01 1 1405-
186 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (C) ID=22 		8-97359-141-0 01 1 1405-
186 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1405-
186 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (D) ID=21 		8-98150-355-0 01 1 1405-
186 CLIP; HOSE
(B) ID=21 		8-94242-034-0 02 1 1405-
187 HOSE; RUBBER,OIL TANK
FRAME STRAIGHT TYPE<7KJ> L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1405-
205 HOSE; TANK TO PIPE
FRAME STRAIGHT TYPE<7KJ> SERVICED BY L=300 		0-09814-300-0 01 1 1405-
254 PIPE; BRAKE,2WAY
THA 		8-98036-161-0 01 1 1405-

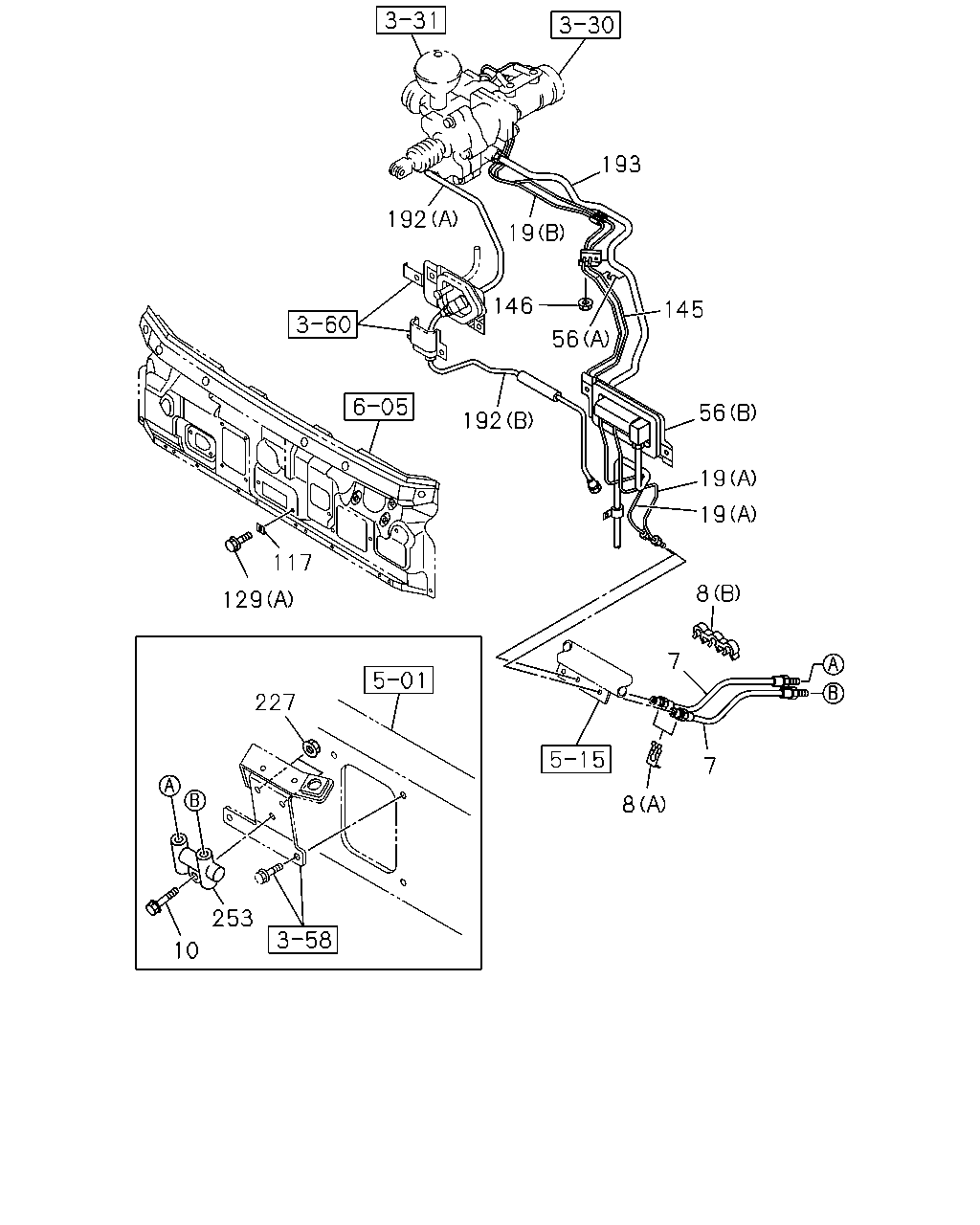

çizim 420942
193 145 56 19 8 19 7 7 8 56 19 192 146 192 117 227 253 10 129
BalonParca AdiParca NoAdetTipApplied Date
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 1405-
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 1405-
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1405-
10 BOLT; JOINT
FRAME STRAIGHT TYPE<7KJ> M6X40 FLANGE 		0-28650-640-0 01 1 1405-
19 PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98043-501-2 02 1 1405-
19 PIPE; BRK,M/CYL TO UNION
(B) THA 		8-98098-682-1 01 1 1405-
56 BRACKET; UNION,BRK
(A) 		8-98098-679-0 01 1 1405-
56 BRACKET; UNION,BRK
(B) 		8-98154-266-1 01 1 1405-
117 SEAL; UNION,BRK PIPE JOINT 8-97856-616-0 02 1 1405-
129 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M6X12 FLANGE THA 		0-28050-612-0 01 1 1405-
129 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1405-
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-98098-680-1 01 1 1405-
146 NUT; BRKT
M8 W/LK WASHER 		8-94279-050-0 01 1 1405-
192 PIPE; PRESSURE
(A) 		8-98127-262-0 01 1 1405-
192 PIPE; PRESSURE
(B) 		8-98193-137-0 01 1 1405-
193 PIPE; RETURN
THA 		8-98098-683-0 01 1 1405-
227 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 02 1 1405-
253 JOINT
FRAME STRAIGHT TYPE<7KJ> 		5-47456-009-1 01 1 1405-

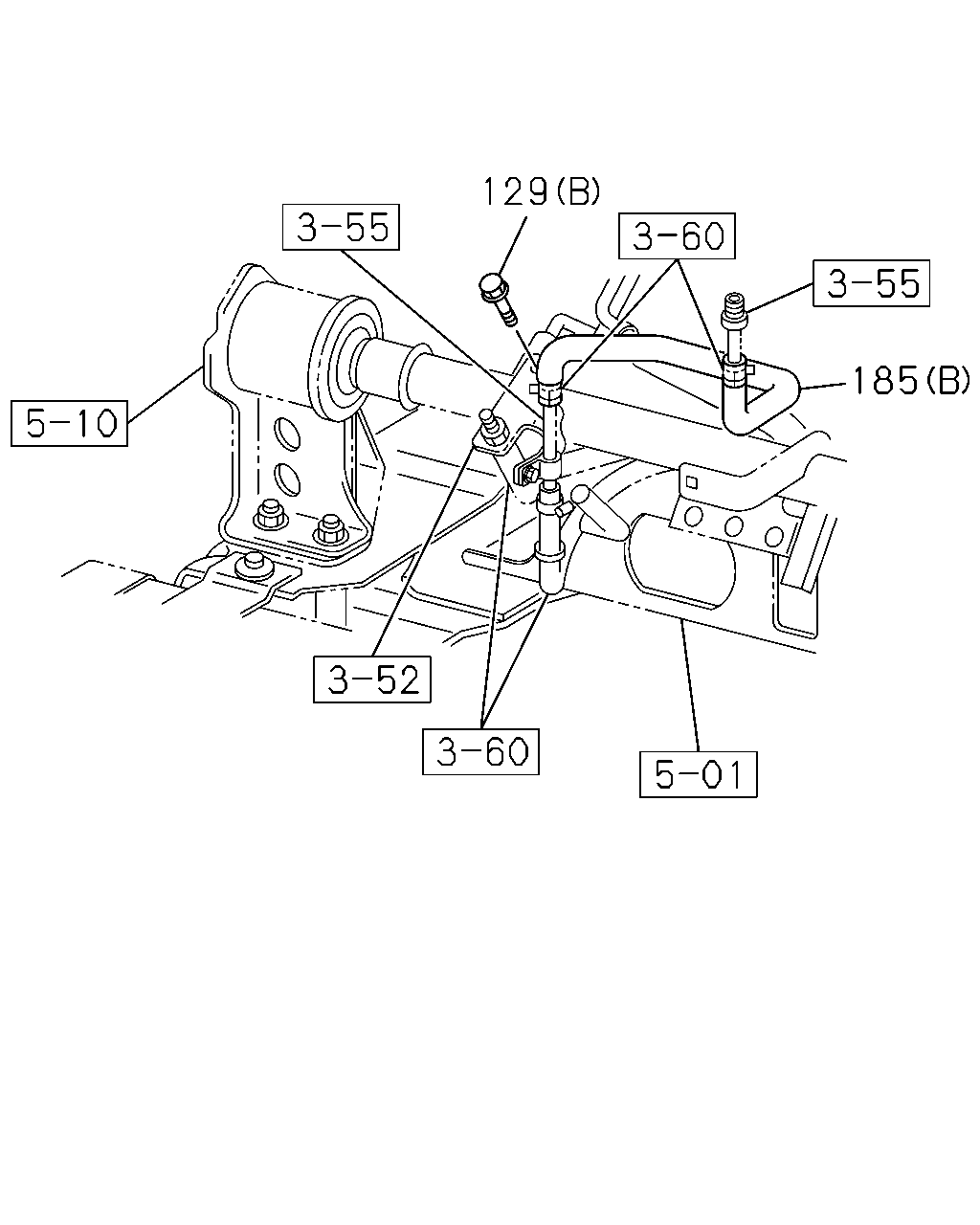

çizim 421373
129 185
BalonParca AdiParca NoAdetTipApplied Date
129 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M6X12 FLANGE THA 		0-28050-612-0 01 1 1405-
129 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1405-
185 HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98085-720-0 01 1 1405-
185 HOSE; RUBBER,SUCTION
(A) 		8-97330-513-0 01 1 1405-
