3-11 — PARKING BRAKE CONTROL
(#139802) — 50 parça
◀

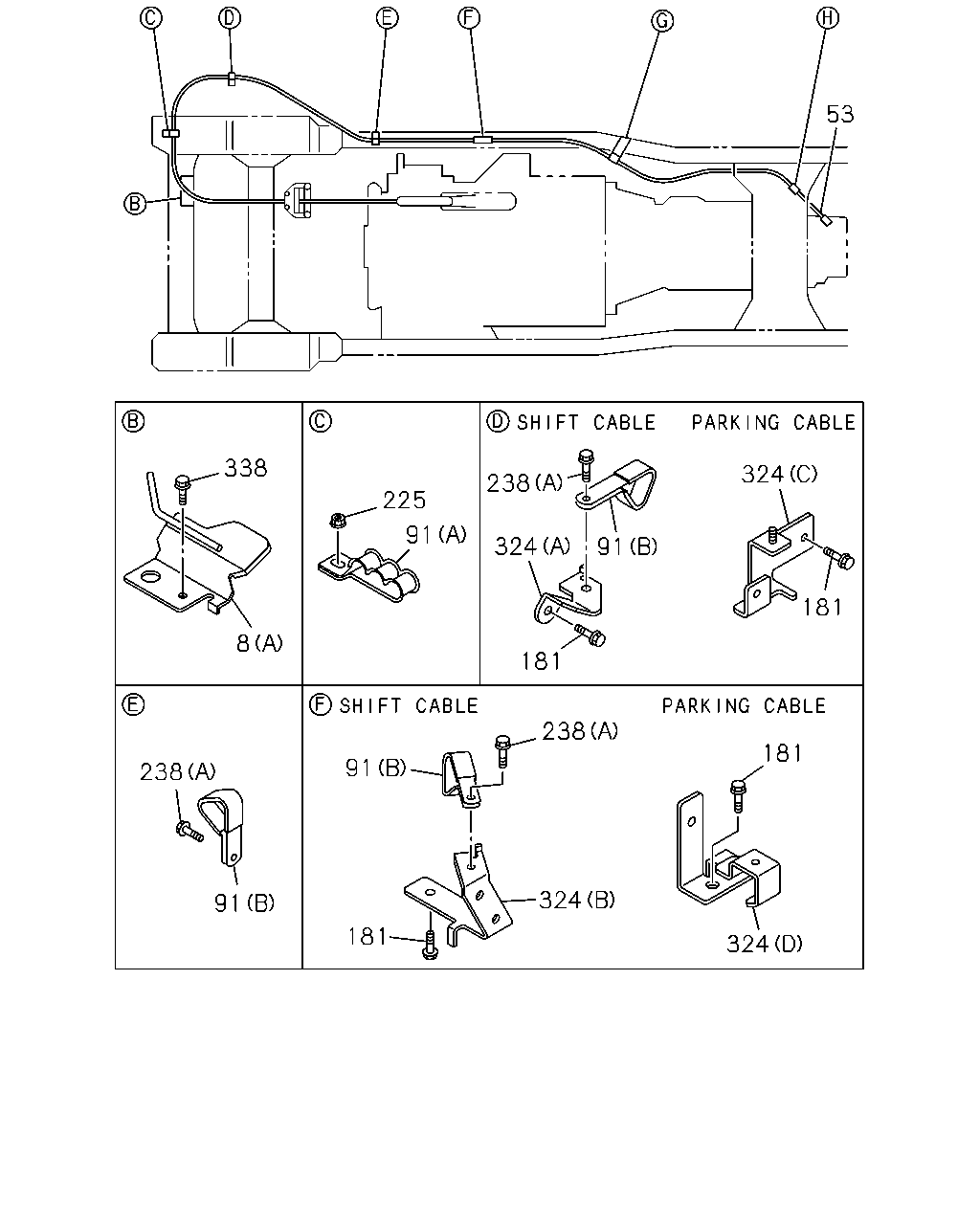

[311A] FIXING PARTS(NO.1) (19 parça)

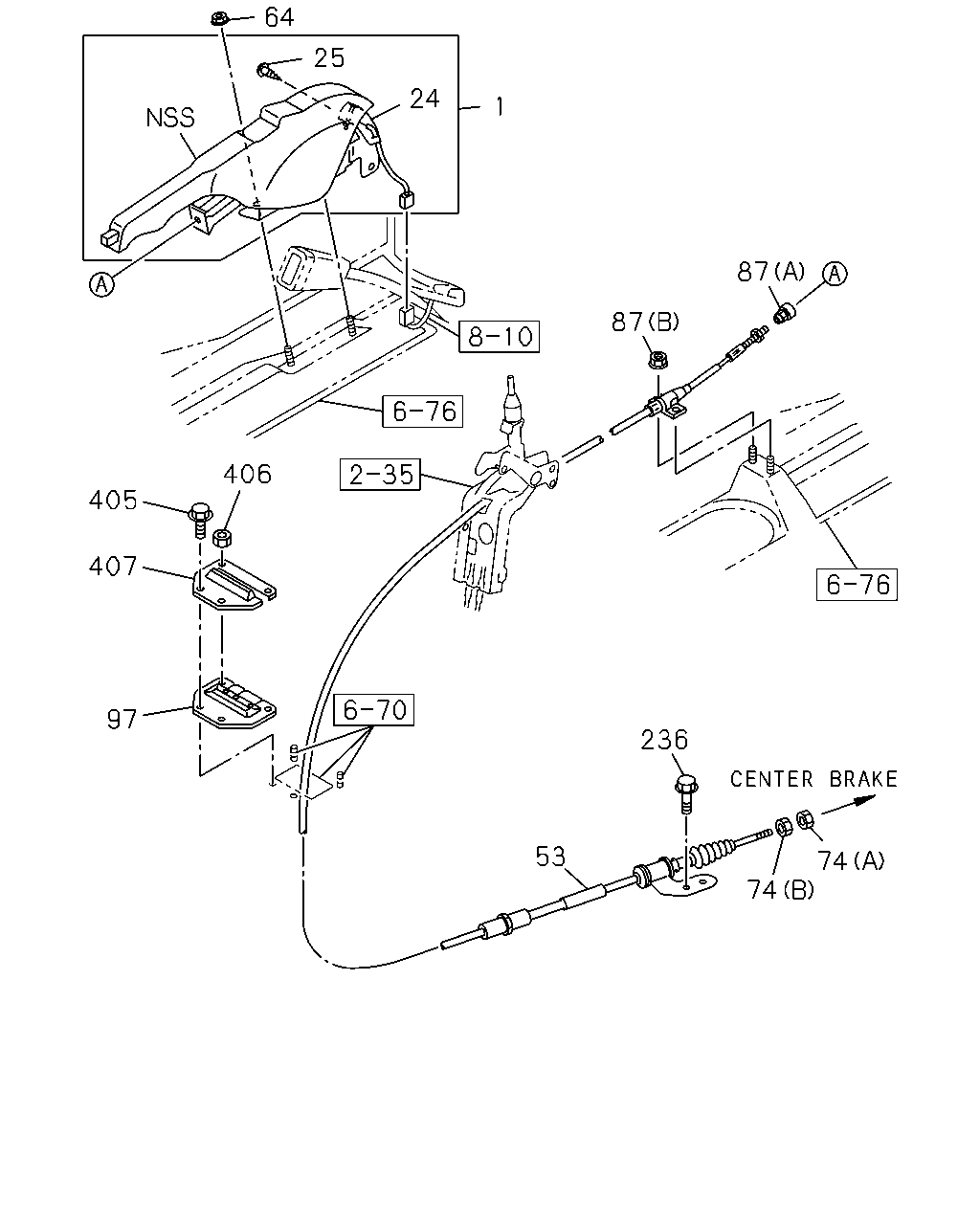

[311A] STEM AND CABLE (15 parça)
[311A] FIXING PARTS(NO.2) (16 parça)
▶
53
238
324
181
91
324
181
181
324
324
225
338
8
91
91
181
91
238
238
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (A)
8-98096-374-0
01
1
1405-
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B)
8-98110-964-0
01
1
1405-
53
CABLE; PARK BRK,FRT LWR
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> THA
8-98130-271-0
01
1
1405-
53
CABLE; PARK BRK,FRT LWR
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> THA
8-98062-232-3
01
1
1405-
91
CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (B)
8-97036-333-1
01
1
1405-
91
CLIP; PARKING BRK CABLE
(B)
8-97036-333-1
02
1
1405-
91
CLIP; PARKING BRK CABLE
(A)
8-98023-622-0
01
1
1405-
91
CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C)
8-97036-332-1
01
1
1405-
181
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
03
1
1405-
181
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1405-
225
NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
02
1
1405-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA
0-28650-825-0
03
1
1405-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA
0-28651-030-0
01
1
1405-
324
BRACKET
FRAME STRAIGHT TYPE<7KJ> (B)
8-98034-185-1
01
1
1405-
324
BRACKET
FRAME STRAIGHT TYPE<7KJ> (C)
8-98099-516-0
01
1
1405-
324
BRACKET
FRAME STRAIGHT TYPE<7KJ> (D)
8-98111-394-1
01
1
1405-
324
BRACKET
(A)
8-98034-115-0
01
1
1405-
338
SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X35 FLANGE
8-98046-876-0
01
1
1405-
64
25
24
1
406
405
407
97
236
53
74
74
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1405-
24
SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1405-
25
SCREW; SW,PARKING BRK
8-98152-463-0
01
1
1405-
53
CABLE; PARK BRK,FRT LWR
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> THA
8-98130-271-0
01
1
1405-
53
CABLE; PARK BRK,FRT LWR
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> THA
8-98062-232-3
01
1
1405-
64
NUT; PARKING BRK
M8 LOCK NUT FLANGE
0-91380-008-0
02
1
1405-
74
NUT; CONT WIRE
FRAME STRAIGHT TYPE<7KJ> (A) M8
0-91110-508-0
01
1
1405-
74
NUT; CONT WIRE
FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE
9-46259-016-0
01
1
1405-
87
NUT
FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA
0-91180-108-0
02
1
1405-
87
NUT
FRAME STRAIGHT TYPE<7KJ> (A) M6
8-98034-313-1
01
1
1405-
97
GROMMET; PARKING BRK CABLE
8-97065-212-1
01
1
1405-
236
BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA
0-28651-030-0
02
1
1405-
405
BOLT; GROMMET
M6X20 FLANGE
0-28450-620-0
02
1
1405-
406
NUT; GROMMET
M6 FLANGE THA
0-91180-106-0
02
1
1405-
407
RETAINER; GROMMET
1-33657-674-0
01
1
1405-
237
181
181
91
8
237
238
235
85
238
235
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (A)
8-98096-374-0
01
1
1405-
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B)
8-98110-964-0
01
1
1405-
85
CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=13 L=20
0-95235-236-0
01
1
1405-
91
CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (B)
8-97036-333-1
01
1
1405-
91
CLIP; PARKING BRK CABLE
(B)
8-97036-333-1
02
1
1405-
91
CLIP; PARKING BRK CABLE
(A)
8-98023-622-0
01
1
1405-
91
CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C)
8-97036-332-1
01
1
1405-
181
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
03
1
1405-
181
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1405-
235
BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B)
8-98033-907-0
01
1
1405-
235
BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A)
8-98074-995-0
01
1
1405-
237
NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA
0-91180-110-0
01
1
1405-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA
0-28650-825-0
03
1
1405-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA
0-28651-030-0
01
1
1405-
241
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
03
1
1405-
