2-26 — MANUAL TRANSMISSION GEAR (#139794) — 76 parça

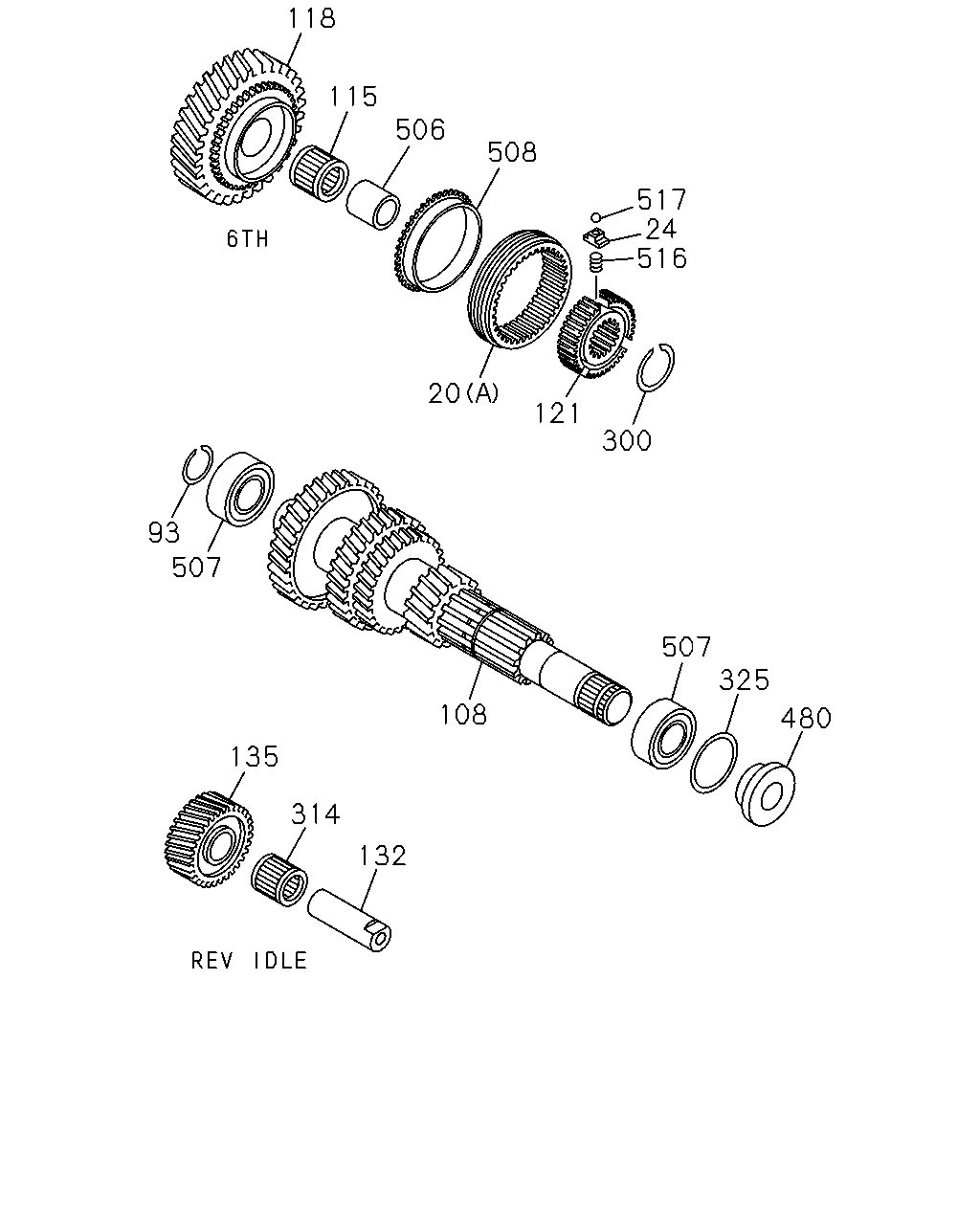

çizim 420037
118 115 508 517 24 516 300 121 20 93 507 108 135 314 132 480 325 507 506
BalonParca AdiParca NoAdetTipApplied Date
20 SLEEVE
(B) Z=54 		8-97241-295-2 02 1 1405-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1405-
24 BLOCK; INDEX,SYN 8-97241-313-1 12 1 1405-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1405-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1405-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1405-
108 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1405-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1405-
118 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 1405-
121 HUB; CLU,6TH 8-97241-301-2 01 1 1405-
132 SHAFT; REV 8-97252-655-0 01 1 1405-
135 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1405-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1405-
480 WASHER; THRUST,6TH 8-97253-122-1 01 1 1405-
506 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1405-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1405-
508 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1405-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 12 1 1405-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 12 1 1405-

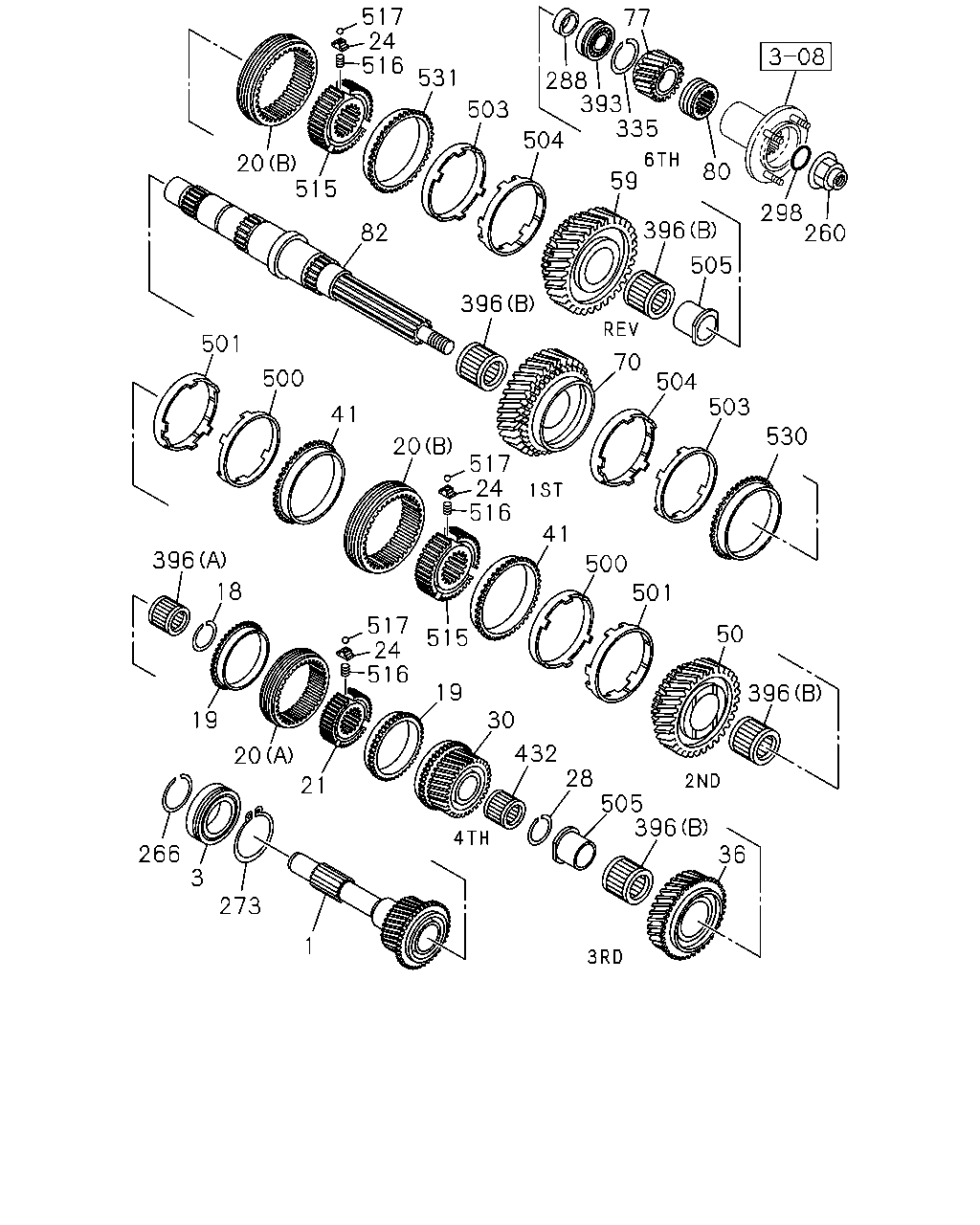

çizim 421299
77 288 393 335 59 80 298 260 505 396 504 503 531 516 24 517 20 515 82 396 70 504 503 530 501 500 41 20 517 24 516 41 500 501 50 396 36 396 505 28 432 30 515 19 517 24 516 21 18 19 20 266 273 3 1 396
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=25 		8-97371-090-0 01 1 1405-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1405-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1405-
19 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1405-
20 SLEEVE
(B) Z=54 		8-97241-295-2 02 1 1405-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1405-
21 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1405-
24 BLOCK; INDEX,SYN 8-97241-313-1 12 1 1405-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1405-
30 GEAR; 4TH,MAINSHAFT
Z=28 		8-97252-628-0 01 1 1405-
36 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 1405-
41 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1405-
50 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1405-
59 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 1405-
70 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 1405-
77 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 1405-
80 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1405-
82 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 1405-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 1405-
266 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1405-
273 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1405-
288 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1405-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 1405-
335 RING; SNAP,BEARING 8-97254-720-0 01 1 1405-
393 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1405-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1405-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1405-
432 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1405-
500 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1405-
501 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1405-
503 RING; OUTSIDE,LOW & REV 8-97241-307-1 02 1 1405-
504 RING; INSIDE,LOW & REV 8-97241-311-1 02 1 1405-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 1405-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 02 1 1405-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 12 1 1405-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 12 1 1405-
530 RING; BLOCK,LOW
Z=54 		8-97241-305-2 01 1 1405-
531 RING; BLOCK,REV
Z=54 		8-97241-305-2 01 1 1405-
