Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

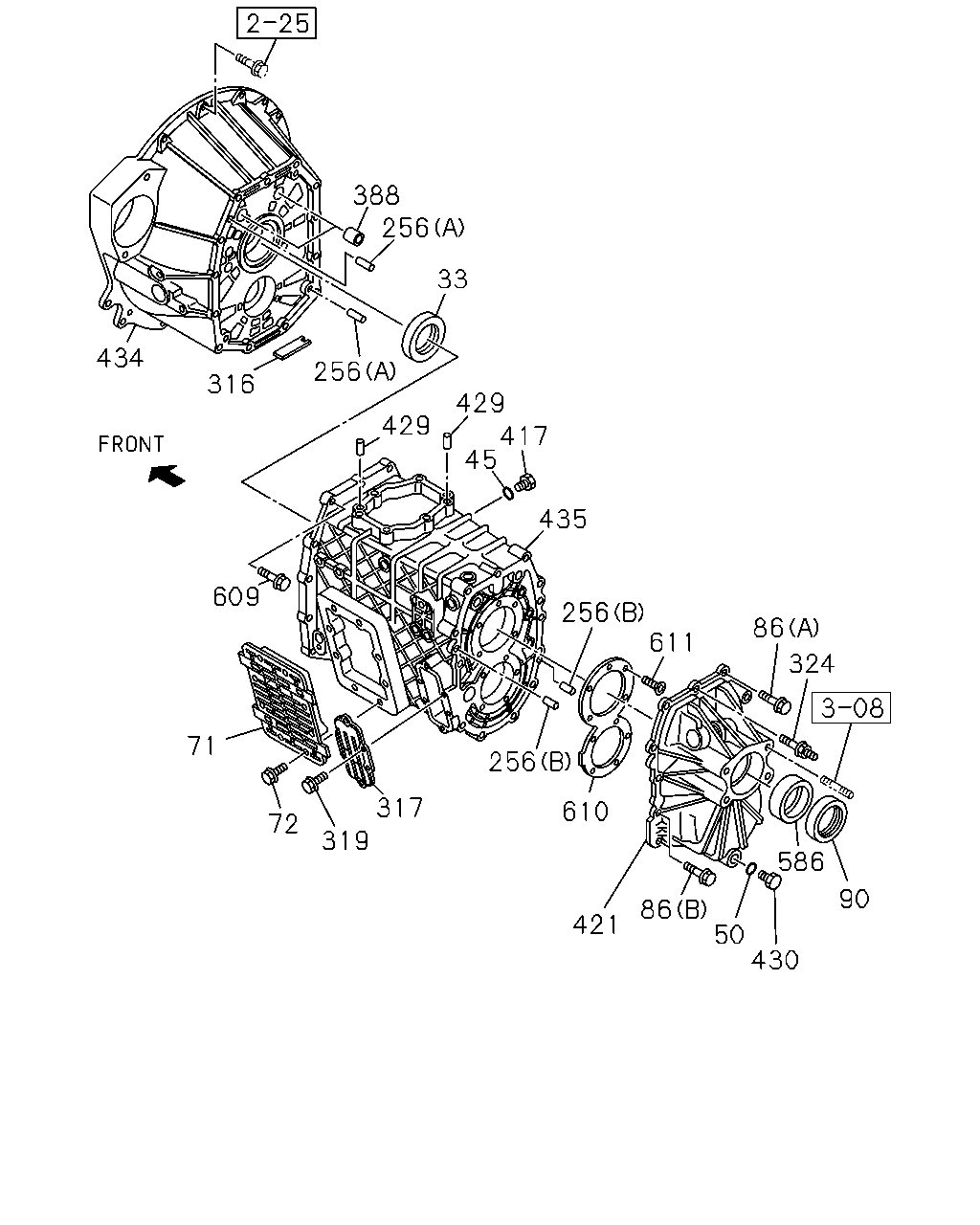

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#139792) — 26 parça
◀
[220A] NO.2 (25 parça)
[220A] NO.1 (1 parça)
▶
388
256
33
256
316
434
609
71
72
319
317
429
429
45
417
435
256
611
86
324
586
90
430
50
86
421
610
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97253-550-0
01
1
1405-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1405-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1405-
71
COVER; SIDE,TRANS CASE
8-97252-624-2
01
1
1405-
72
BOLT; SIDE COVER
M10X20 FLANGE
8-98014-142-0
08
1
1405-
86
BOLT; RR COVER
(A) M10X40 FLANGE
0-28151-040-0
10
1
1405-
86
BOLT; RR COVER
(B) M10X40 FLANGE
8-97365-377-0
02
1
1405-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97253-551-1
01
1
1405-
256
PIN; KNOCK
(A) OD=10 L=20
8-97135-423-0
02
1
1405-
256
PIN; KNOCK
(B) ID=6 L=12 THA
9-08160-612-0
02
1
1405-
316
MAGNET; TRANS CASE
8-94249-524-2
01
1
1405-
317
COVER; CASE
8-97252-626-0
01
1
1405-
319
BOLT; COVER
M8X20 FLANGE THA
0-28050-820-0
06
1
1405-
324
STUD; RR COVER
M10X15,M10X40 L=65
8-97365-379-0
01
1
1405-
388
BUSHING; CLU HSG
8-97241-326-2
02
1
1405-
417
PLUG; OIL FILLER,TRANS
8-97365-373-0
01
1
1405-
421
COVER; RR,TRANS
8-97238-934-5
01
1
1405-
429
PIN; STRAIGHT
OD=10 L=20
8-97135-423-0
02
1
1405-
430
PLUG; OIL DRAIN
8-97365-374-0
01
1
1405-
434
HOUSING; CLU
8-97238-930-4
01
1
1405-
435
CASE; TRANS
8-97382-868-1
01
1
1405-
586
BEARING; NEEDLE
8-97253-108-0
01
1
1405-
609
BOLT; HSG TO CASE
M10X40 FLANGE
0-28151-040-0
13
1
1405-
610
RETAINER; BRG
8-97241-314-2
01
1
1405-
611
SCREW
M10X27 TORQUES
8-97365-354-0
10
1
1405-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

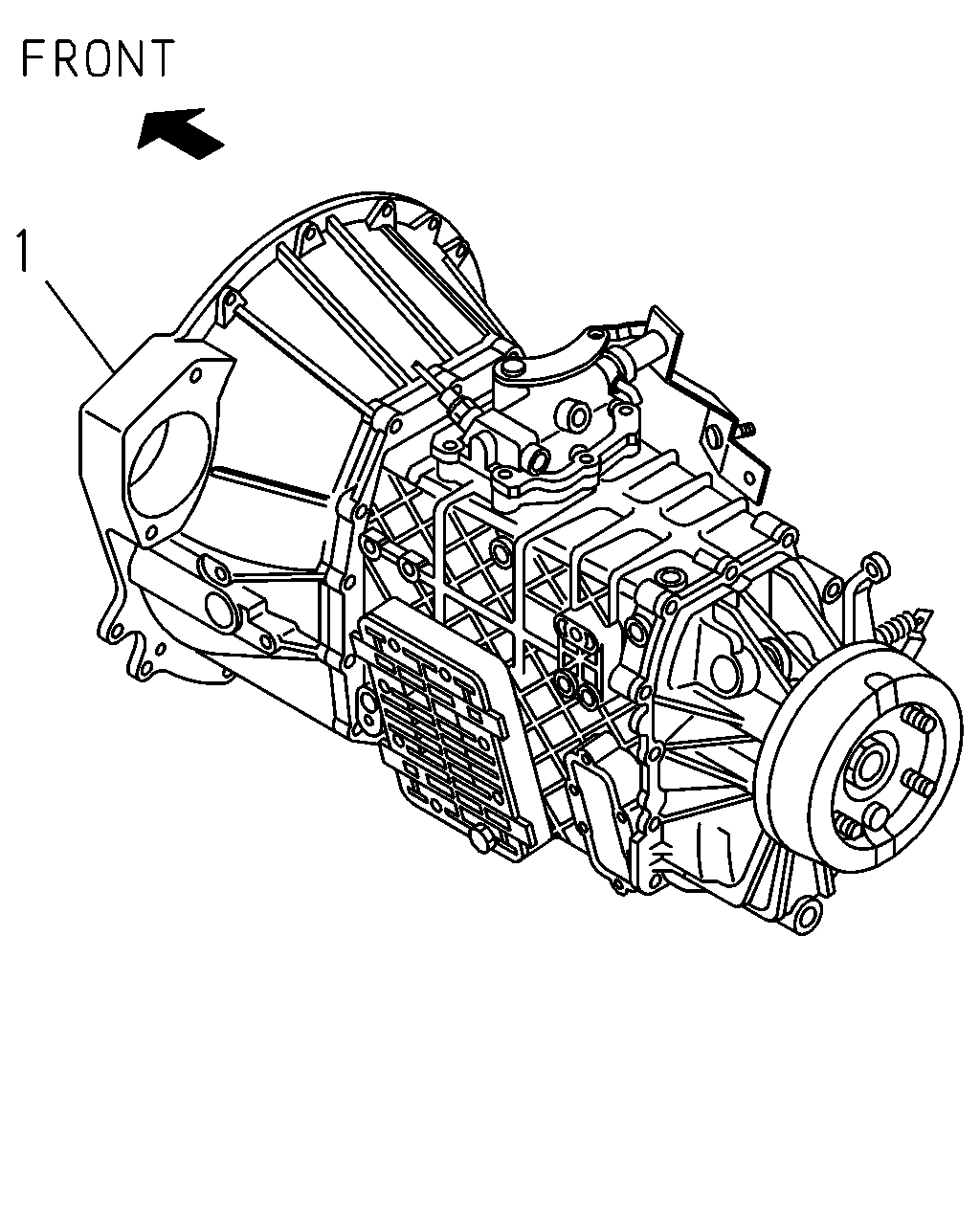

1
TRANSMISSION ASM; MANUAL
8-98066-931-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
