Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

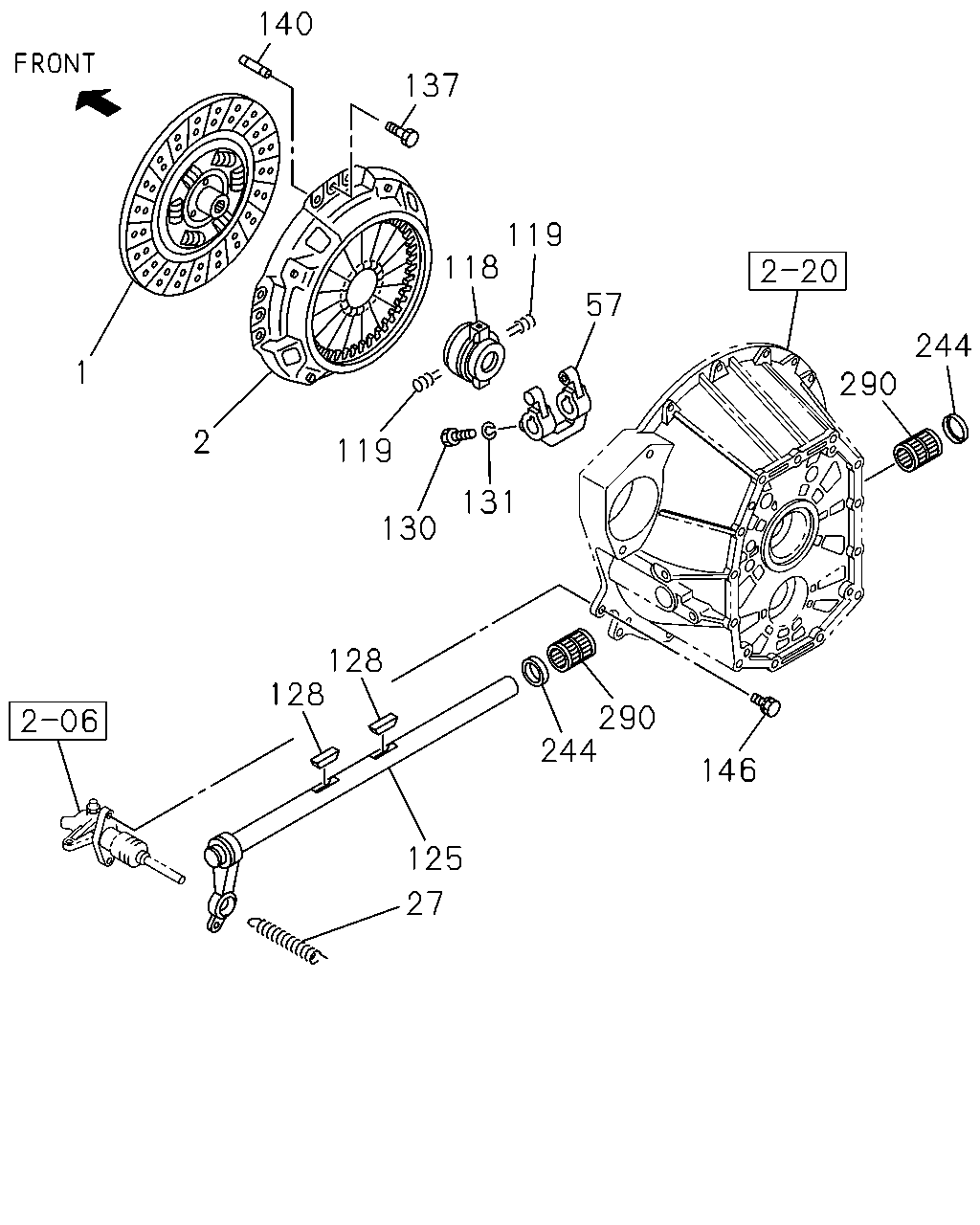

2-01 — CLUTCH
(#139786) — 20 parça
140
137
118
119
57
290
244
146
290
244
125
27
128
128
131
130
119
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
8-98164-917-1
01
1
1405-
1
DISC; CLUTCH
BEST VALUE PARTS THA
5-87610-092-0
01
1
1405-1501
2
PLATE ASM; PRESSURE,CLU
8-97351-794-0
01
1
1405-1405
2
PLATE ASM; PRESSURE,CLU
8-97038-831-2
01
1
1406-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
5-87610-081-0
01
1
1405-1405
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
5-87610-104-0
01
1
1406-
27
SPRING; RETURN,SHIFT FORK
8-98025-314-0
01
1
1405-
57
FORK; SHIFT,CLU
8-97310-456-1
01
1
1405-
118
BEARING; CLU RELEASE
1-31310-012-0
01
1
1405-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-110-0
01
1
1405-
119
SPRING; SHIFT FORK
1-31329-024-0
02
1
1405-
125
SHAFT; CLU
8-97310-435-0
01
1
1405-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1405-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1405-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1405-
137
BOLT; CLU COVER
M10X16 FLANGE THA
0-28051-016-0
10
1
1405-
140
PIN; STRAIGHT
L=25
8-94410-361-0
02
1
1405-
146
BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE THA
0-28650-830-0
02
1
1405-
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
1405-
290
BEARING; NEEDLE
NTN
1-09811-002-1
02
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
