7-70 — SEPARATER AND BED (#13978) — 116 parça

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73907-481-1	01	1	0105-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73907-480-1	01	1	0105-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	0105-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73907-483-1	01	1	0105-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73907-482-1	01	1	0105-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	0105-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73907-485-1	01	1	0105-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73907-484-1	01	1	0105-

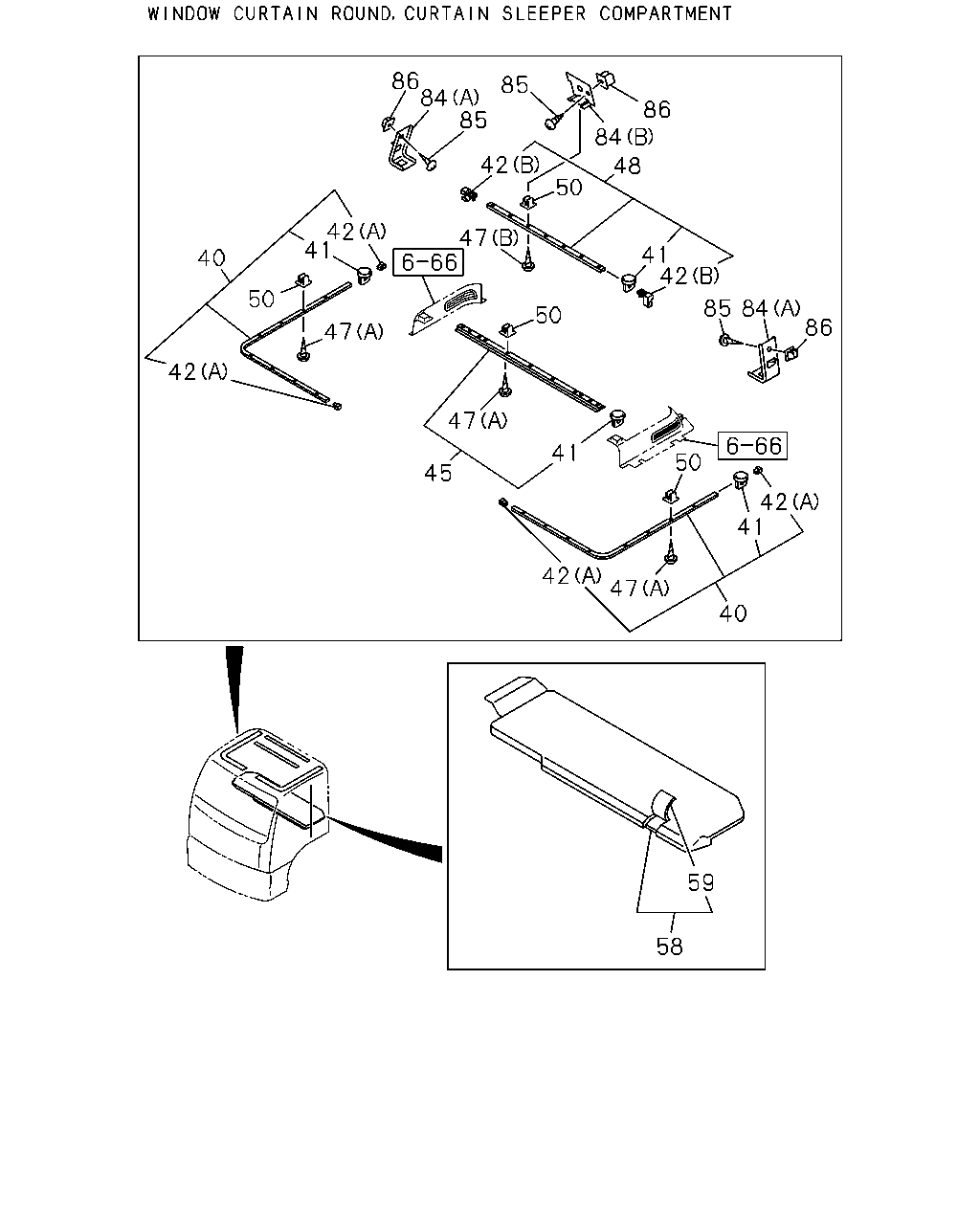

86 84 85 85 86 84 42 48 50 42 41 47 41 42 40 50 85 84 86 50 47 42 47 41 50 45 42 41 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-378-1	02	1	0212-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0105-0211
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC>	1-73907-536-0	01	1	0212-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0105-0211
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC>	1-73907-535-0	01	1	0212-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0105-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	16	1	0105-0107
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0108-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (B) M5X25	5-09981-093-0	08	1	0401-
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0212-0312
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	11	1	0401-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	34	1	0105-0205
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0206-0211
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	27	1	0212-
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC> (A) M5X20	5-09981-059-0	27	1	0212-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> D=8X8 L=7.5 M5	8-94279-078-0	11	1	0401-
50	GROMMET; SCREW,CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> D=8X8 L=13 M5	1-09983-159-0	08	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0206-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5	8-94279-078-0	27	1	0105-0211
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> D=8X8 L=7.5 M5	8-94279-078-0	27	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC> D=8X8 L=7.5 M5	8-94279-078-0	27	1	0212-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0105-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	09	1	0105-

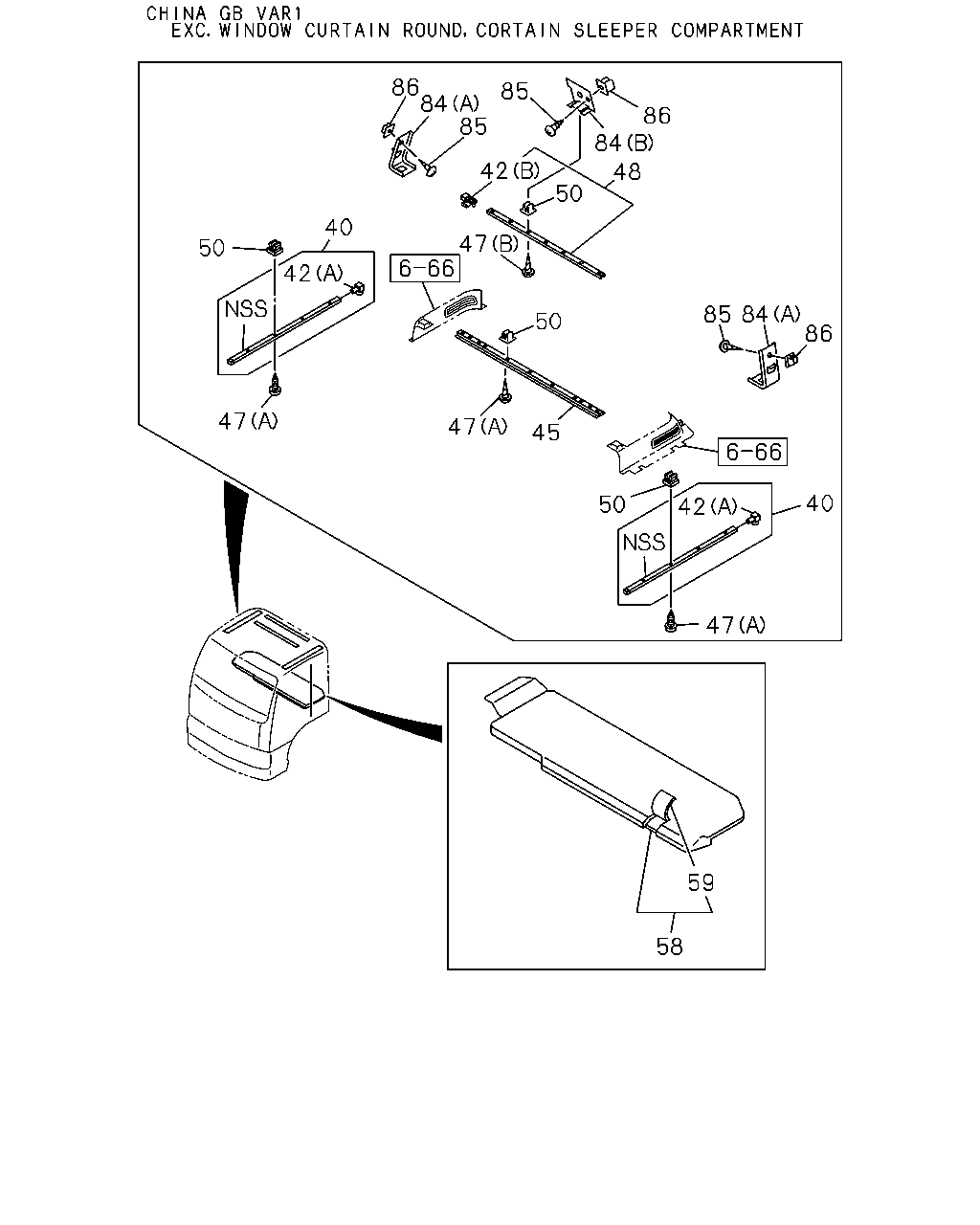

86 84 85 85 86 84 42 48 50 50 47 85 84 86 47 50 45 47 42 40 50 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-378-1	02	1	0212-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0105-0211
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC>	1-73907-536-0	01	1	0212-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0105-0211
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC>	1-73907-535-0	01	1	0212-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (B) M5X25	5-09981-093-0	08	1	0401-
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0212-0312
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	11	1	0401-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	34	1	0105-0205
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0206-0211
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	27	1	0212-
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC> (A) M5X20	5-09981-059-0	27	1	0212-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> D=8X8 L=7.5 M5	8-94279-078-0	11	1	0401-
50	GROMMET; SCREW,CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> D=8X8 L=13 M5	1-09983-159-0	08	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0206-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5	8-94279-078-0	27	1	0105-0211
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> D=8X8 L=7.5 M5	8-94279-078-0	27	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC> D=8X8 L=7.5 M5	8-94279-078-0	27	1	0212-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0105-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	09	1	0105-

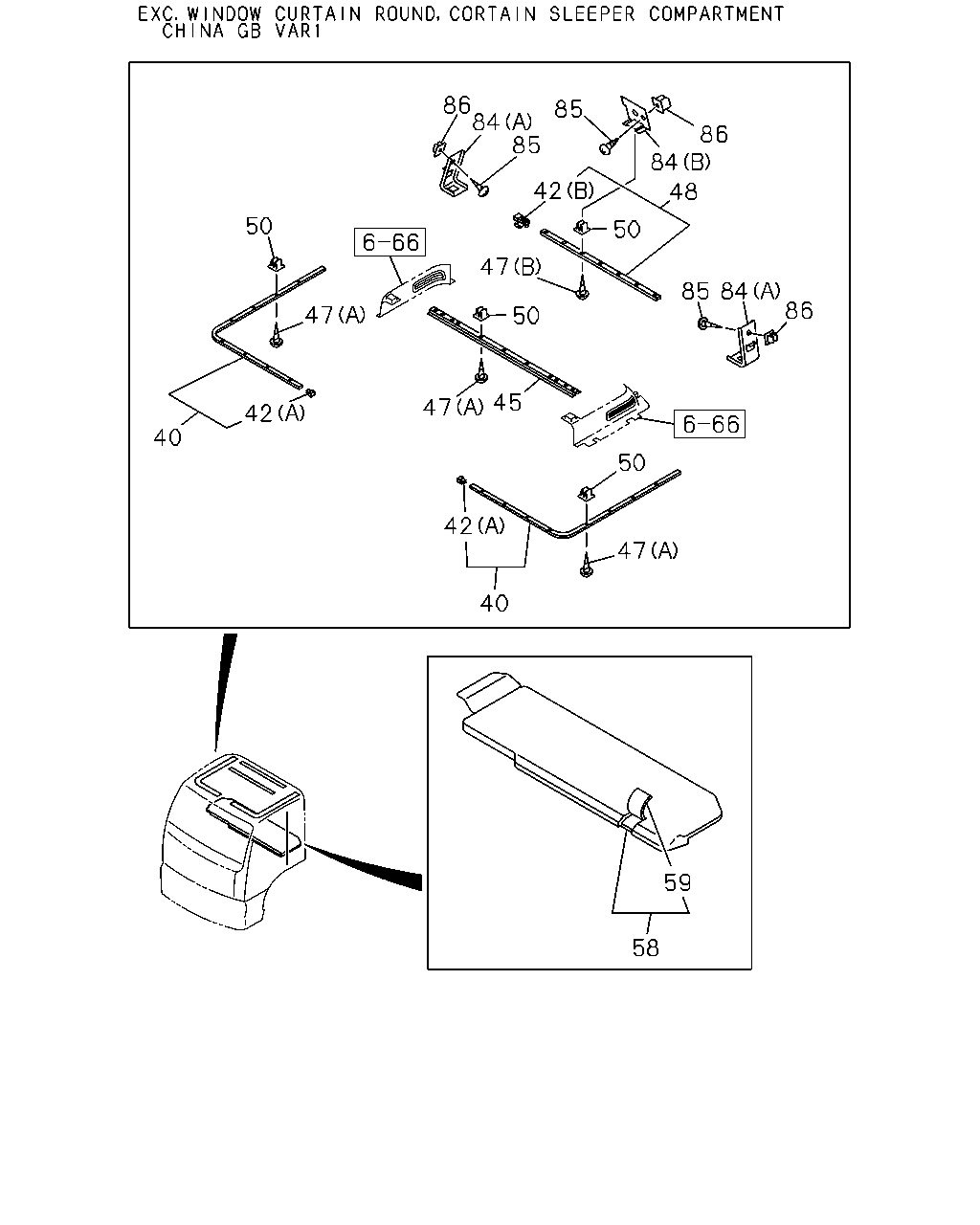

86 84 85 85 86 84 42 48 50 40 47 50 42 85 84 86 50 47 47 45 40 50 42 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-378-1	02	1	0212-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0105-0211
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC>	1-73907-536-0	01	1	0212-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0105-0211
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC>	1-73907-535-0	01	1	0212-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (B) M5X25	5-09981-093-0	08	1	0401-
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0212-0312
47	SCREW; CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	11	1	0401-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	34	1	0105-0205
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0206-0211
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	27	1	0212-
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC> (A) M5X20	5-09981-059-0	27	1	0212-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> D=8X8 L=7.5 M5	8-94279-078-0	11	1	0401-
50	GROMMET; SCREW,CURTAIN RAIL CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> D=8X8 L=13 M5	1-09983-159-0	08	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0206-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5	8-94279-078-0	27	1	0105-0211
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> D=8X8 L=7.5 M5	8-94279-078-0	27	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,CHINA GB VAR1<JAC> D=8X8 L=7.5 M5	8-94279-078-0	27	1	0212-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0105-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	09	1	0105-
