Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#139777) — 14 parça
◀

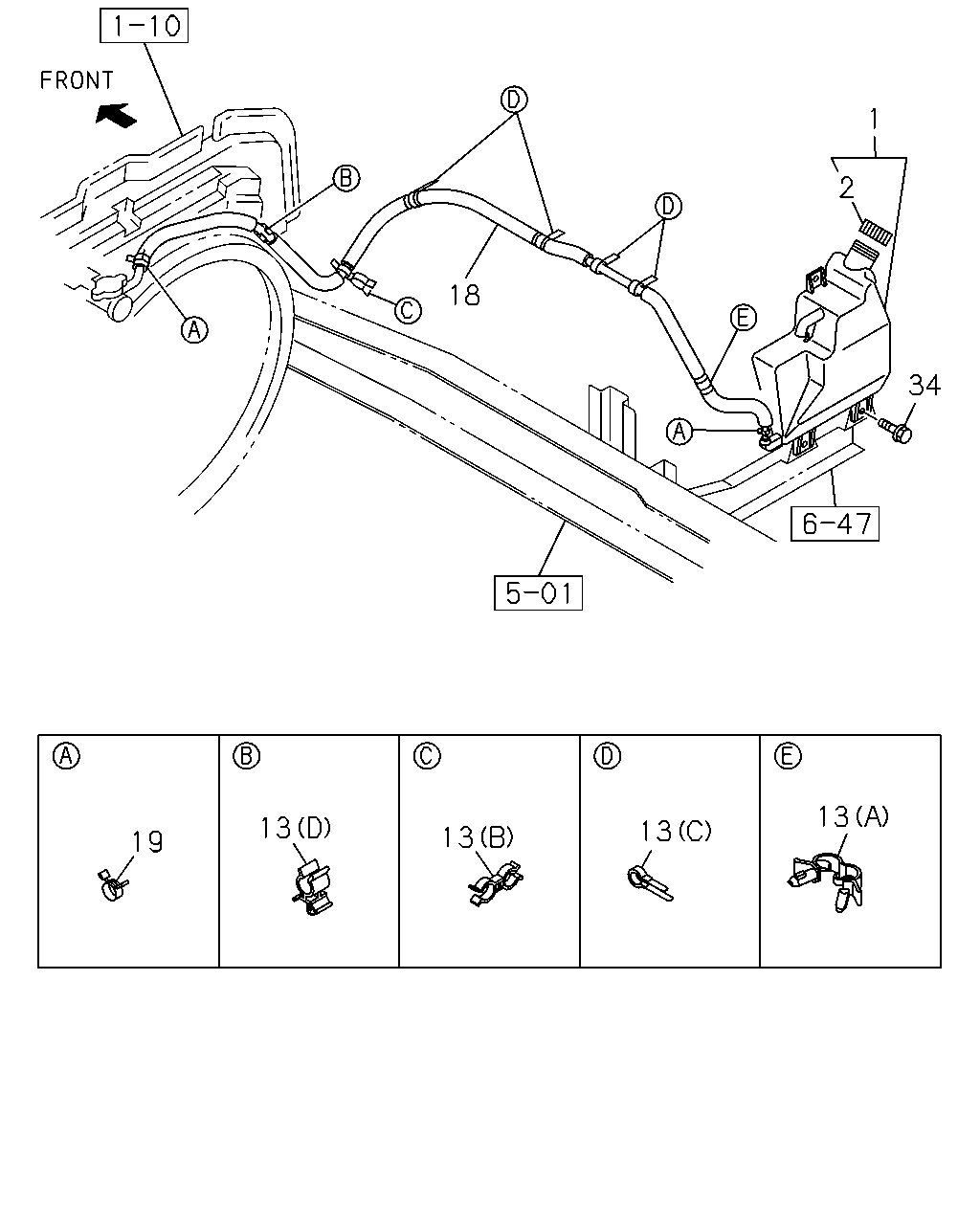

[111A] SURGE TANK AND HOSE (9 parça)

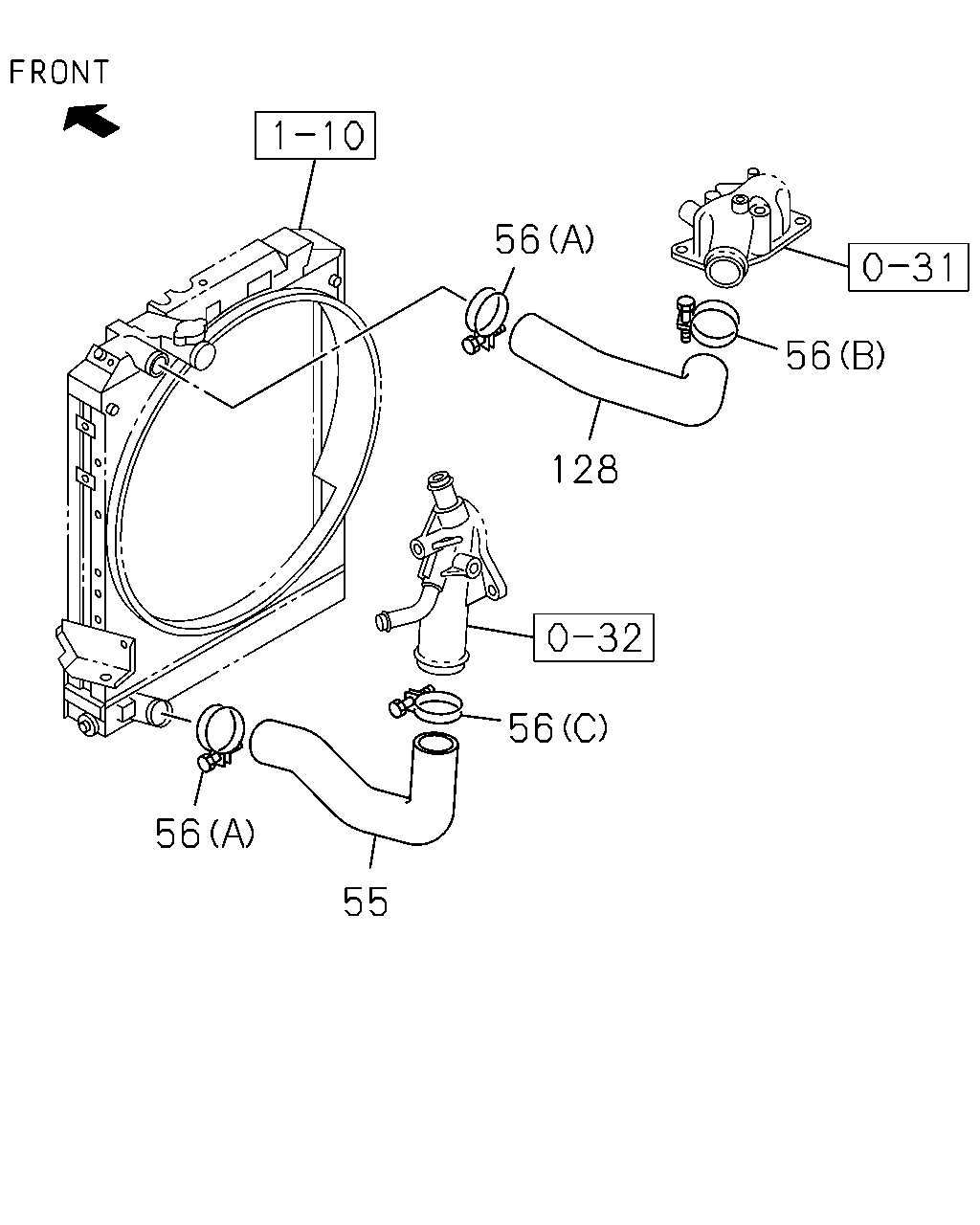

[111A] RADIATOR HOSE (5 parça)
▶
18
1
2
34
13
13
13
13
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98178-179-0
01
1
1405-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1405-
13
CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5
1-09709-290-0
01
1
1405-
13
CLIP; HOSE,SURGE TANK
(C) ID=14 L=47
5-09700-319-0
04
1
1405-
13
CLIP; HOSE,SURGE TANK
(B) ID=10 & 11
8-94438-996-0
01
1
1405-
13
CLIP; HOSE,SURGE TANK
(D) ID=12
8-98029-256-0
01
1
1405-
18
HOSE; RAD TO SURGE TANK
L=1690 THA
8-98006-525-0
01
1
1405-
19
CLIP; HOSE,SURGE TANK
ID=12
8-98150-358-0
02
1
1405-
34
BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
1405-
56
56
128
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
THA
8-97924-136-0
01
1
1405-
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1405-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1405-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1405-
128
HOSE; WATER,RAD INL
THA
8-98006-452-0
01
1
1405-
