Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

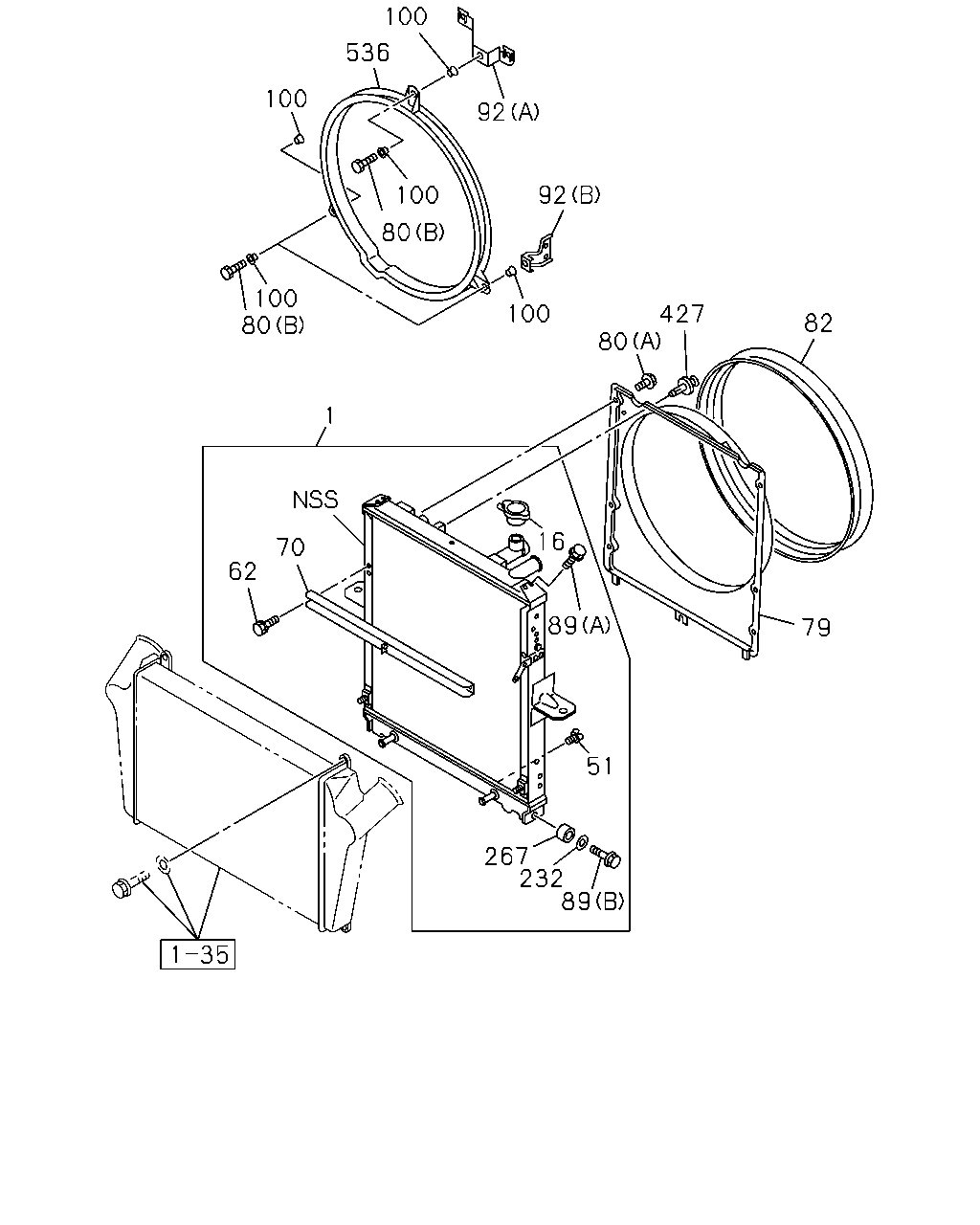

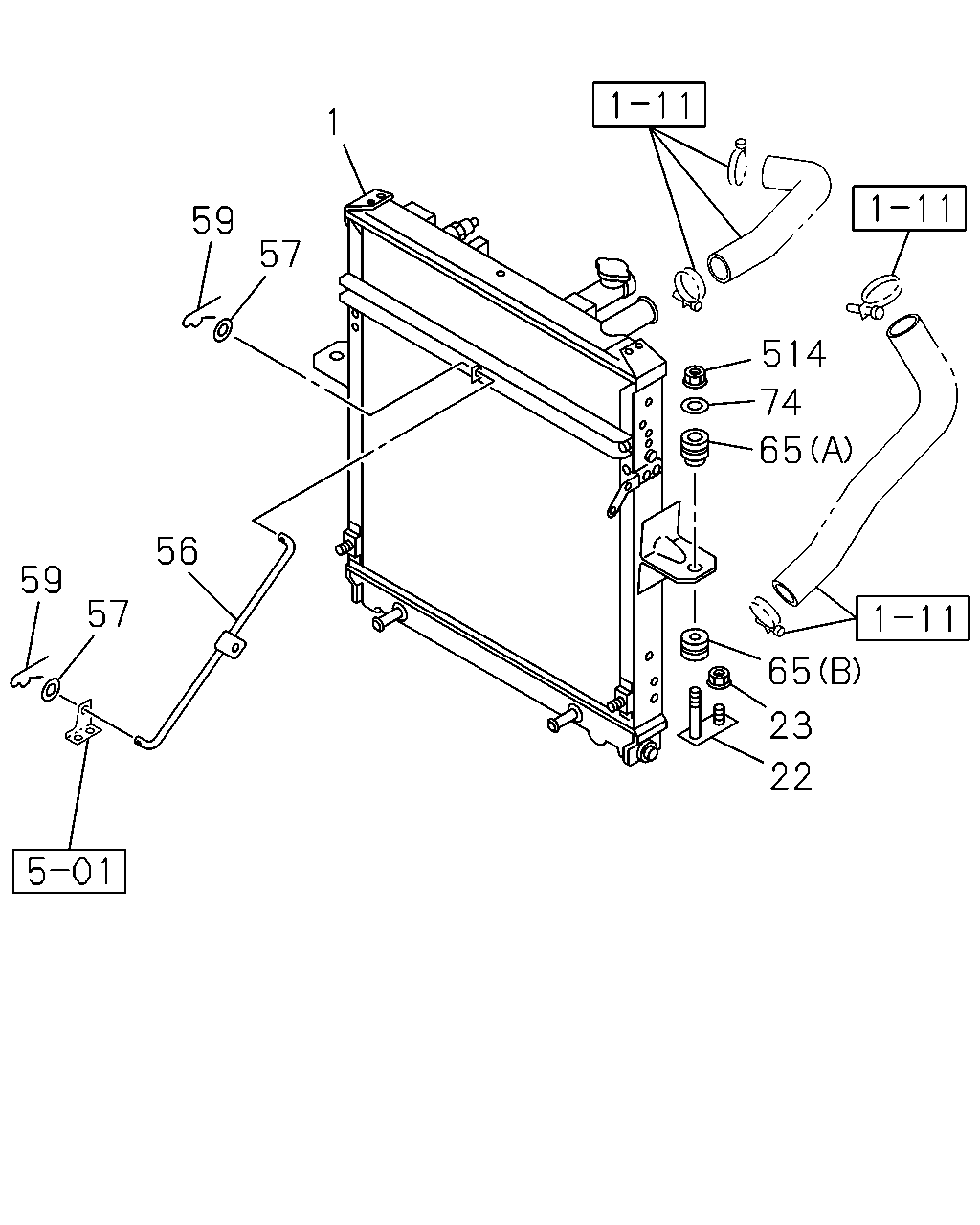

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#139776) — 36 parça
◀
[110A] FIXING (12 parça)
[110A] COMPONENT (24 parça)
▶
1
59
57
56
59
57
22
23
65
65
74
514
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
EXC. VIN MODEL YEAR 2011<VZB> THA
8-97948-953-0
01
1
1405-
1
RADIATOR ASM
VIN MODEL YEAR 2011<VZB> THA
8-98174-420-0
01
1
1405-1411
1
RADIATOR ASM
VIN MODEL YEAR 2011<VZB> THA
8-98301-164-0
01
1
1412-
22
BRACKET; RAD MTG
8-97330-527-1
02
1
1405-
23
NUT; RAD MTG
M8 FLANGE THA
0-91180-108-0
02
1
1405-
56
STAY; RAD
8-98049-051-0
01
1
1405-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1405-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1405-
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
1405-
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
1405-
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1405-
514
NUT; RAD
M8 FLANGE THA
0-91180-108-0
02
1
1405-
100
536
100
100
80
100
80
92
92
100
427
80
82
79
16
89
51
89
232
267
62
70
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
EXC. VIN MODEL YEAR 2011<VZB> THA
8-97948-953-0
01
1
1405-
1
RADIATOR ASM
VIN MODEL YEAR 2011<VZB> THA
8-98174-420-0
01
1
1405-1411
1
RADIATOR ASM
VIN MODEL YEAR 2011<VZB> THA
8-98301-164-0
01
1
1412-
16
CAP; RAD
VIN MODEL YEAR 2011<VZB> THA
8-98096-226-0
01
1
1405-
16
CAP; RAD
EXC. VIN MODEL YEAR 2011<VZB> THA
8-97239-187-0
01
1
1405-
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
1405-
62
BOLT; STAY
M8X12 FLANGE THA
0-28050-812-0
02
1
1405-
70
STAY; RAD
THA
8-98018-941-0
01
1
1405-
79
GUIDE; FAN,RAD
VIN MODEL YEAR 2011<VZB>
8-98172-924-0
01
1
1405-
79
GUIDE; FAN,RAD
EXC. VIN MODEL YEAR 2011<VZB>
8-98006-477-0
01
1
1405-
80
BOLT; FAN GUIDE
(A) M6X16 THA
1-21559-481-0
04
1
1405-
80
BOLT; FAN GUIDE
EXC. VIN MODEL YEAR 2011<VZB> (B) M8X30 FLANGE THA
0-28650-830-0
03
1
1405-
82
COVER; FAN,RAD
EXC. VIN MODEL YEAR 2011<VZB>
8-98006-478-0
01
1
1405-
89
BOLT
(A) M8X12 FLANGE THA
0-28050-812-0
02
1
1405-
89
BOLT
(B) M8X25 THA
1-21469-153-0
02
1
1405-
92
BRACKET; FAN GUIDE
(A)
8-97382-827-2
01
1
1405-
92
BRACKET; FAN GUIDE
EXC. VIN MODEL YEAR 2011<VZB> (B)
8-97386-233-0
01
1
1405-
100
RUBBER; MTG
EXC. VIN MODEL YEAR 2011<VZB>
1-09337-027-0
06
1
1405-
232
COLLAR; DIST,CUSHION RUBBER
EXC. VIN MODEL YEAR 2011<VZB> THA
8-98141-232-0
02
1
1405-1411
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
02
1
1412-
232
COLLAR; DIST,CUSHION RUBBER
VIN MODEL YEAR 2011<VZB> THA
1-87410-723-0
02
1
1405-1411
267
RUBBER; CUSHION
THA
1-21467-023-0
02
1
1405-
427
CLIP; FAN GUIDE
EXC. VIN MODEL YEAR 2011<VZB>
1-09470-009-0
01
1
1405-
536
SHROUD; FAN
EXC. VIN MODEL YEAR 2011<VZB>
8-97350-995-0
01
1
1405-
