Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶

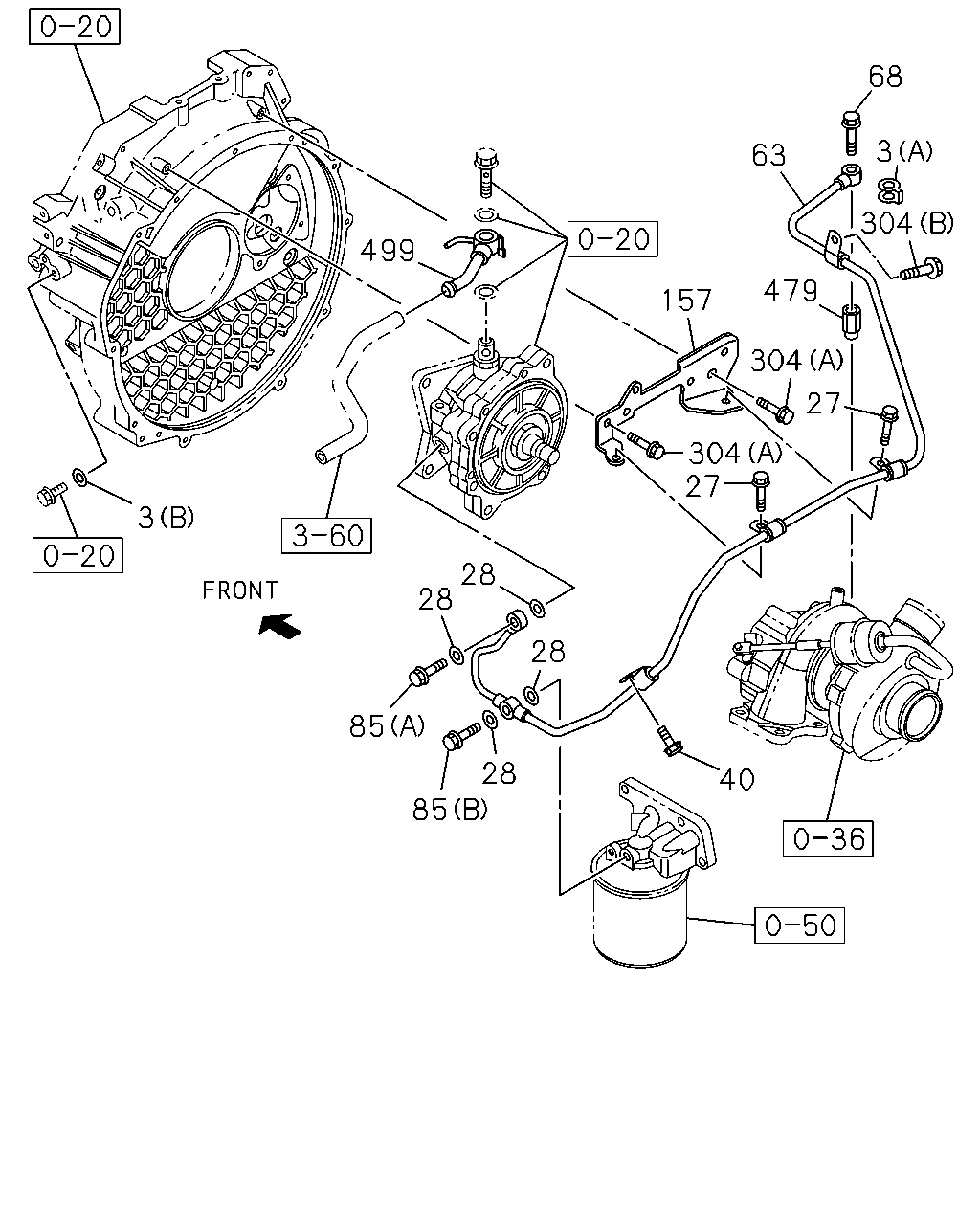

0-52 — OIL AND VACUUM PIPING; ENGINE
(#139766) — 14 parça
3
499
157
479
63
68
3
304
304
27
304
27
28
28
28
85
28
85
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2
1-09630-083-0
01
1
1405-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.6
8-97331-137-1
01
1
1405-
27
BOLT; OIL PIPE FIX
M8X16 FLANGE THA
0-28050-816-0
02
1
1405-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
04
1
1405-
40
BOLT; OIL PIPE
M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
63
PIPE; OIL,TURBOCHARGER FEED
8-98092-070-0
01
1
1405-
68
BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M12X28 FLANGE
8-97166-518-1
01
1
1405-
85
BOLT; EYE,OIL PIPE FIX
(A) M10X22
1-09675-028-0
01
1
1405-
85
BOLT; EYE,OIL PIPE FIX
(B) M10X28
8-98037-823-0
01
1
1405-
157
BRACKET; OIL PIPE
8-98077-403-0
01
1
1405-
304
BOLT; BRKT,OIL PIPE
(A) M10X16 FLANGE THA
0-28151-016-0
02
1
1405-
304
BOLT; BRKT,OIL PIPE
(B) M8X20 FLANGE THA
0-28650-820-0
01
1
1405-
479
ADAPTER
8-94436-891-0
01
1
1405-
499
PIPE; VACUUM
8-98075-832-0
01
1
1405-
