Sayfa 7-50 - Isuzu EPC

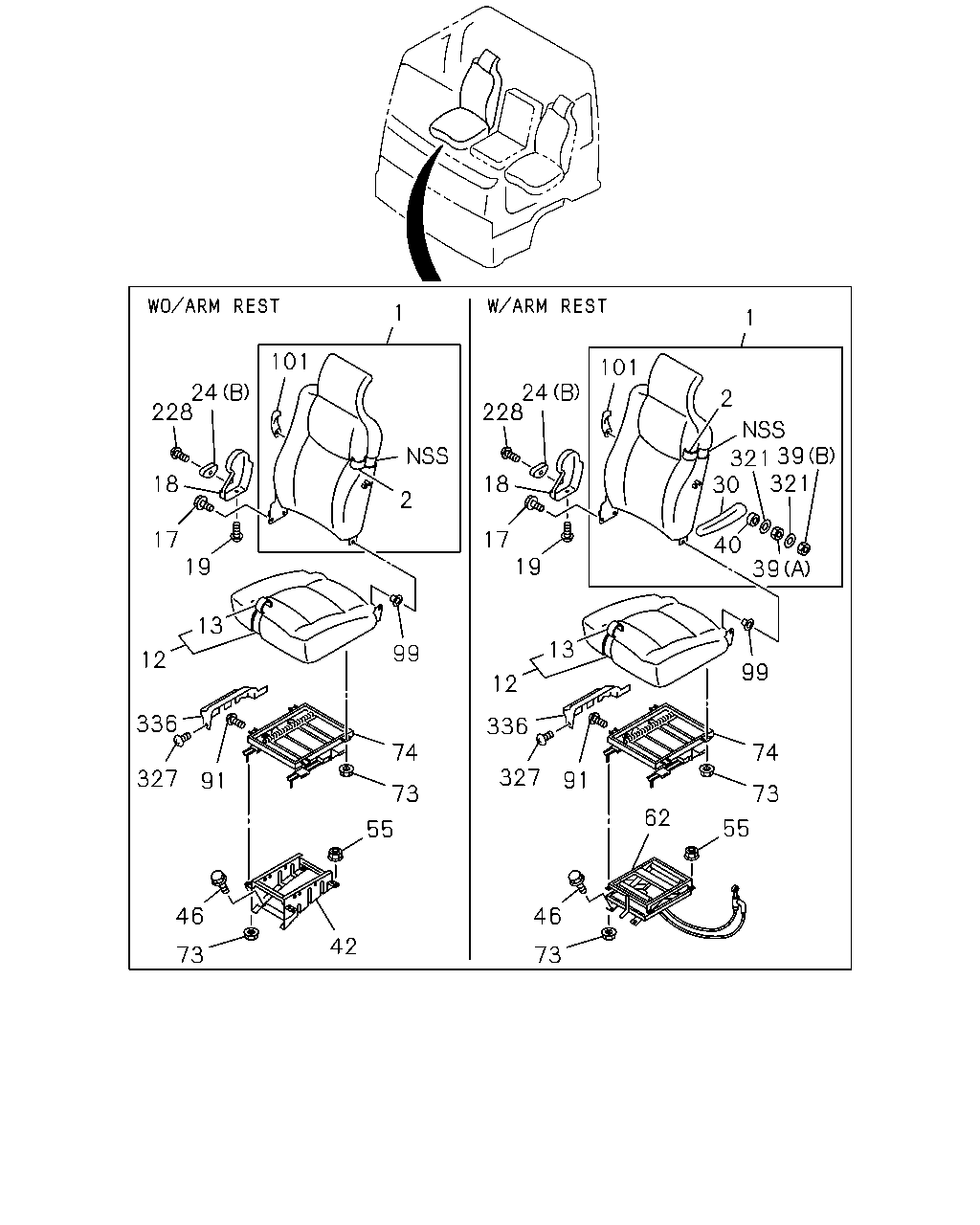

7-50 — FRONT SEAT (#13976) — 303 parça

1 1 101 101 24 228 24 228 2 321 39 18 18 2 17 19 17 19 40 39 13 13 99 12 99 12 336 336 74 74 327 327 91 91 73 73 62 55 55 46 46 42 73 73 30 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-660-1	01	1	0401-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-289-3	01	1	0105-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-291-3	01	1	0105-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-290-1	01	1	0105-0312
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-75207-290-3	01	1	0401-
2	COVER; TRIM,FRT SEAT,BACK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-176-0	01	1	0401-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-115-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-117-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-116-0	01	1	0105-0312
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-75127-116-1	01	1	0401-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75207-288-2	01	1	0105-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-006-2	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-114-1	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-104-1	01	1	0105-
17	BOLT; RECLINING FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0105-0312
17	BOLT; RECLINING EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0105-0312
17	BOLT; RECLINING FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	02	1	0401-
17	BOLT; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0401-
18	COVER; RECLINING FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97859-018-0	01	1	0105-0312
18	COVER; RECLINING EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97859-018-0	01	1	0105-0312
18	COVER; RECLINING FABRIC SEAT W/RECLINING(SFQ) DARK GRAY	8-97859-018-0	01	1	0401-
18	COVER; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97859-018-0	01	1	0401-
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-0312
19	SCREW; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-0312
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0401-
19	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0401-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0105-0312
24	KNOB; RECLINING,FRT,SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0105-0312
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY	8-97859-019-0	01	1	0401-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0401-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-120-1	01	1	0105-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0105-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0105-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0105-
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0105-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-

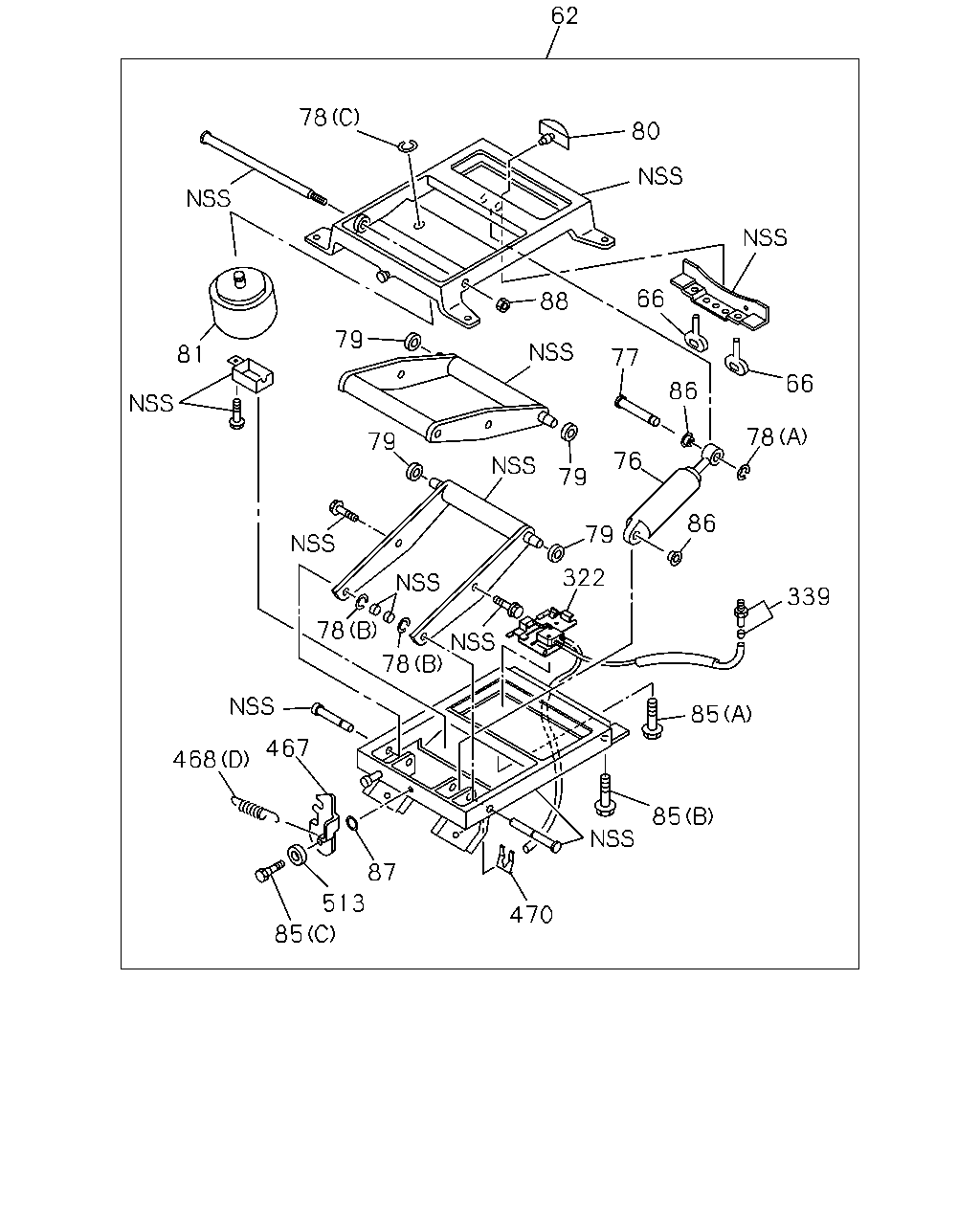

62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-0312
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-0312
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0401-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0401-

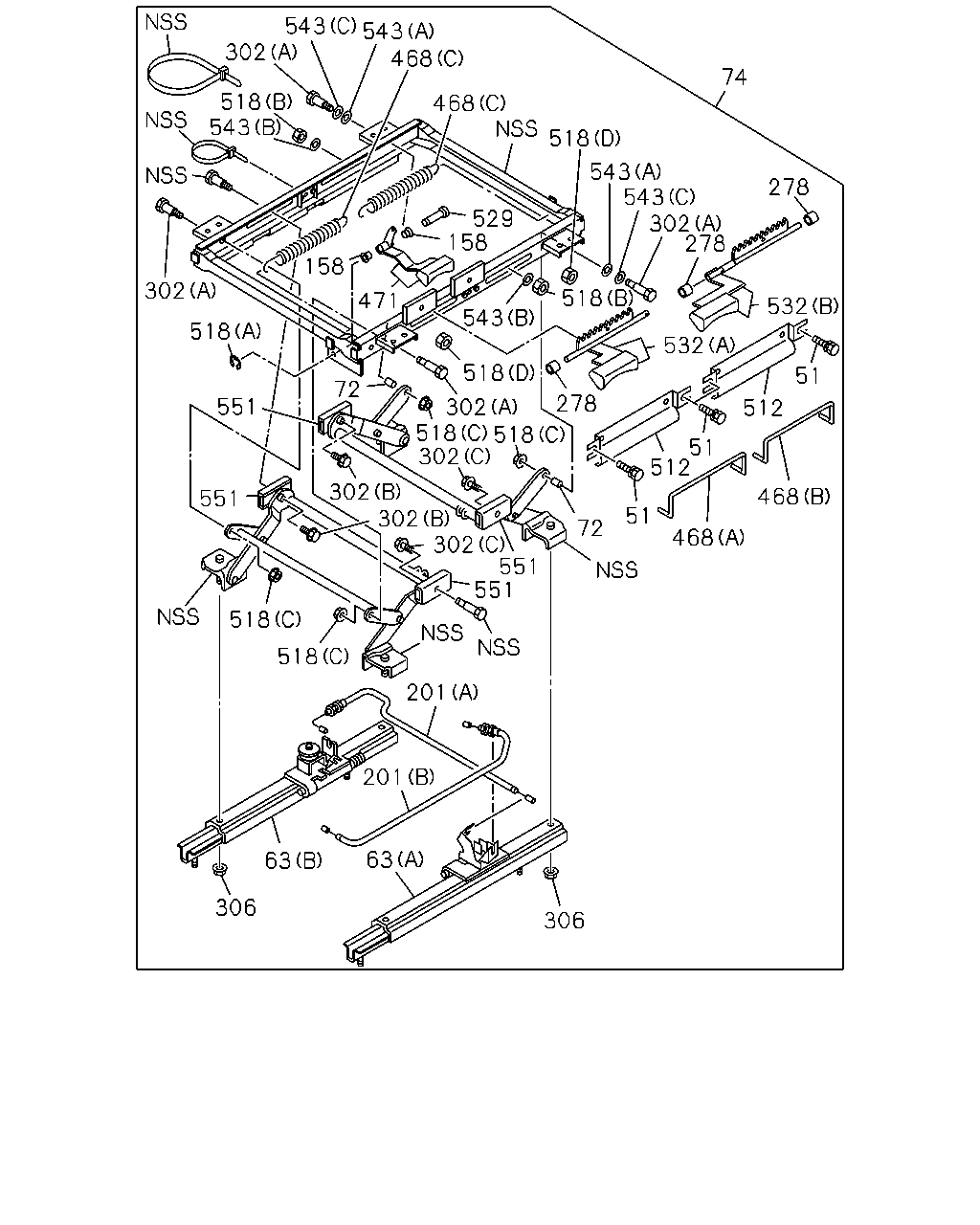

74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-0	01	1	0105-0312
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-0	01	1	0105-0312
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	1-75518-331-1	01	1	0401-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-1	01	1	0401-
91	SCREW; SEAT ADJ COVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-0312
91	SCREW; SEAT ADJ COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-0312
91	SCREW; SEAT ADJ COVER FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0401-
91	SCREW; SEAT ADJ COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0401-
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0105-0312
99	BUSHING; SEAT BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0105-0312
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING(SFQ)	8-97854-087-0	01	1	0401-
99	BUSHING; SEAT BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0401-
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0105-0312
101	LEVER ASM; LUMBAR EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0105-0312
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	5-75190-138-0	01	1	0401-
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ)	5-75190-138-0	01	1	0401-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0401-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0401-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0401-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0105-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0105-
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0105-0312
327	CLIP; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0105-0312
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ)	1-09987-273-0	01	1	0401-
327	CLIP; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0401-
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	0105-0312
336	COVER; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	0105-0312
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-313-0	01	1	0401-
336	COVER; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	0401-

543 543 302 468 74 518 543 468 518 543 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 551 551 468 551 51 72 468 518 518 201 201 63 63 306 306 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-0	04	1	0105-0312
51	SCREW; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-0	04	1	0105-0312
51	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-325-1	04	1	0401-
51	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	0401-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	0105-0312
63	ADJUSTER; SEAT SLIDE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	0105-0312
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-324-0	01	1	0401-
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	0401-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	0105-0312
63	ADJUSTER; SEAT SLIDE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	0105-0312
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-227-1	01	1	0401-
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	0401-
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-0	02	1	0105-0312
72	SPACER; SEAT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-0	02	1	0105-0312
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-334-1	02	1	0401-
72	SPACER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-1	02	1	0401-
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-0	01	1	0105-0312
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-0	01	1	0105-0312
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	1-75518-331-1	01	1	0401-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-1	01	1	0401-
158	BUSHING; LINK ARM FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0105-0312
158	BUSHING; LINK ARM EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0105-0312
158	BUSHING; LINK ARM FABRIC SEAT W/RECLINING(SFQ)	1-75518-209-0	02	1	0401-
158	BUSHING; LINK ARM EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0401-
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0105-0312
201	CABLE; ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0105-0312
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (A) L=667	1-75518-288-0	01	1	0401-
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0401-
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0105-0312
201	CABLE; ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0105-0312
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (B) L=605	1-75518-289-1	01	1	0401-
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0401-
278	COLLAR; FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0105-0312
278	COLLAR; FRT SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0105-0312
278	COLLAR; FRT SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-244-0	03	1	0401-
278	COLLAR; FRT SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0401-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-1	02	1	0105-0312
302	BOLT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-1	02	1	0105-0312
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-266-2	02	1	0401-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	0401-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-0	04	1	0105-0312
302	BOLT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-0	04	1	0105-0312
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-270-1	04	1	0401-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	0401-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-0	02	1	0105-0312
302	BOLT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-0	02	1	0105-0312
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-336-1	02	1	0401-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	0401-
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0105-0312
306	NUT; SEAT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0105-0312
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	06	1	0401-
306	NUT; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0401-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-0312
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-0312
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-206-0	01	1	0401-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0401-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-0312
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-0312
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-207-0	01	1	0401-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0401-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-0312
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-0312
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-208-0	02	1	0401-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0401-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0105-0312
471	LEVER; SEAT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0105-0312
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-290-0	01	1	0401-
471	LEVER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0401-
512	COVER; LEVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-1	02	1	0105-0312
512	COVER; LEVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-1	02	1	0105-0312
512	COVER; LEVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-245-1	02	1	0401-
512	COVER; LEVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-1	02	1	0401-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0105-0312
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0105-0312
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-263-0	01	1	0401-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0401-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	04	1	0105-0312
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	04	1	0105-0312
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-264-0	04	1	0401-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	04	1	0401-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	5-09984-020-0	02	1	0105-0312
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	5-09984-020-0	02	1	0105-0312
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (D)	5-09984-020-0	02	1	0401-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	5-09984-020-0	02	1	0401-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	04	1	0105-0312
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	04	1	0105-0312
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (C) M8 FLANGE	8-94152-886-0	04	1	0401-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	04	1	0401-
529	PIN; LINK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0105-0312
529	PIN; LINK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0105-0312
529	PIN; LINK FABRIC SEAT W/RECLINING(SFQ)	1-75518-262-0	01	1	0401-
529	PIN; LINK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0401-
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	0105-0312
532	LEVER ASM; TILT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	0105-0312
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-221-0	01	1	0401-
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	0401-
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	0105-0312
532	LEVER ASM; TILT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	0105-0312
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-222-1	01	1	0401-
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	0401-
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-335-0	02	1	0105-0312
543	WASHER; HEIGHT ADJUSTER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-335-0	02	1	0105-0312
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-335-0	02	1	0401-
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-335-0	02	1	0401-
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0105-0312
543	WASHER; HEIGHT ADJUSTER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0105-0312
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-75518-337-0	02	1	0401-0406
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-337-0	02	1	0401-0406
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0105-0312
543	WASHER; HEIGHT ADJUSTER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0105-0312
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (B) ID=6.4	9-09160-506-0	04	1	0401-
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0401-
551	SLIDER; HEIGHT ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0105-0312
551	SLIDER; HEIGHT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0105-0312
551	SLIDER; HEIGHT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-265-0	04	1	0401-
551	SLIDER; HEIGHT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0401-

506 360 175 176 188 16 189 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-258-2	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-856-2	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-078-1	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-710-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75127-073-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-127-1	01	1	0105-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-305-2	01	1	0105-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-009-2	01	1	0105-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0105-
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0105-
359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211
359	BOX; PARCEL	1-72538-275-3	01	1	0212-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-
360	SCREW; PARCEL (B)	0-70080-416-0	06	1	0105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0310
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0105-0312
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-
506	CAP; PARCEL BOX	1-09983-164-0	04	1	0105-0211
506	CAP; PARCEL BOX	1-09983-180-2	04	1	0212-

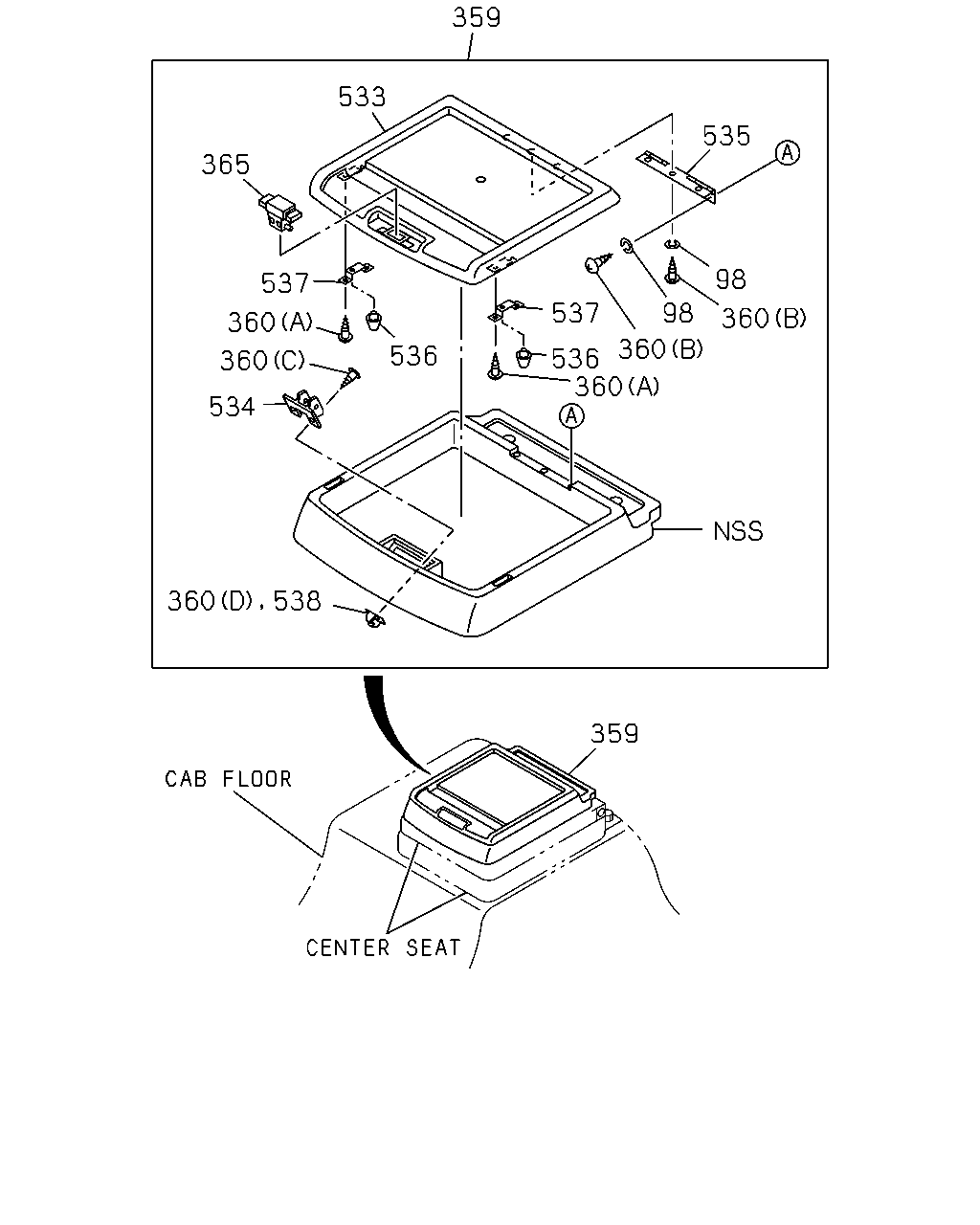

359 533 535 365 98 537 98 537 360 360 360 536 536 360 360 534 359 360 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0105-0211
359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211
359	BOX; PARCEL	1-72538-275-3	01	1	0212-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-
360	SCREW; PARCEL (B)	0-70080-416-0	06	1	0105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0310
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0105-
533	LID; PARCEL BOX	1-72538-194-2	01	1	0105-0211
533	LID; PARCEL BOX	1-72538-277-0	01	1	0212-
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	0105-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0105-
536	RUBBER; CUSHION	5-09983-002-1	02	1	0105-
537	BRACKET; RUBBER	1-72548-057-1	02	1	0105-
538	GROMMET; SCREW	1-09983-165-0	02	1	0311-

62 78 80 66 88 79 81 77 66 86 78 79 76 79 86 79 322 339 78 78 85 467 468 85 87 513 470 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0105-
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0105-
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0105-
77	PIN; DAMPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0105-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0105-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0105-0406
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0105-
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0105-
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0105-
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0105-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0105-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0105-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0105-
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0105-
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0105-
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	0105-
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	0105-
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0105-
467	LEVER; LOCK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0105-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-0312
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-0312
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-206-0	01	1	0401-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0401-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-0312
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-0312
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-207-0	01	1	0401-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0401-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-0312
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-0312
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-208-0	02	1	0401-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0401-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
470	CLIP; HOSE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0105-
513	SPACER; LEVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0105-

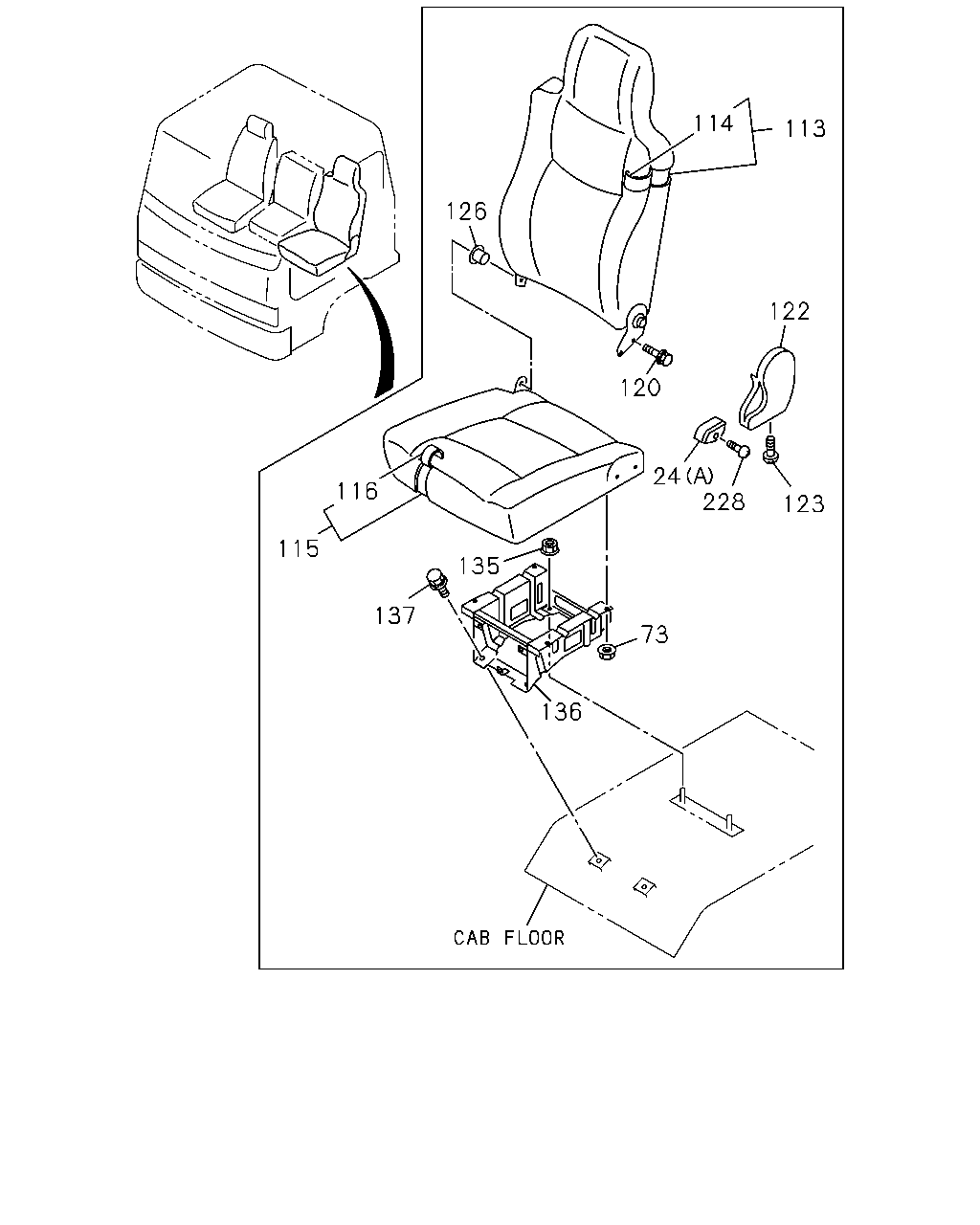

114 113 126 122 120 24 228 116 123 115 135 137 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0105-0312
24	KNOB; RECLINING,FRT,SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0105-0312
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY	8-97859-019-0	01	1	0401-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0401-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-0312
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-0312
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0401-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0401-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-301-4	01	1	0105-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-728-0	01	1	0105-0105
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75208-067-3	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-125-1	01	1	0105-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-702-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-298-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-367-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-122-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-133-1	01	1	0105-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0105-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0105-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0105-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0105-
136	STAND; PASSENGER SEAT	1-75557-493-1	01	1	0105-0212
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0301-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0401-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0401-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
