◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51511 - NPR BUS CHAS(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#139742) — 12 parça

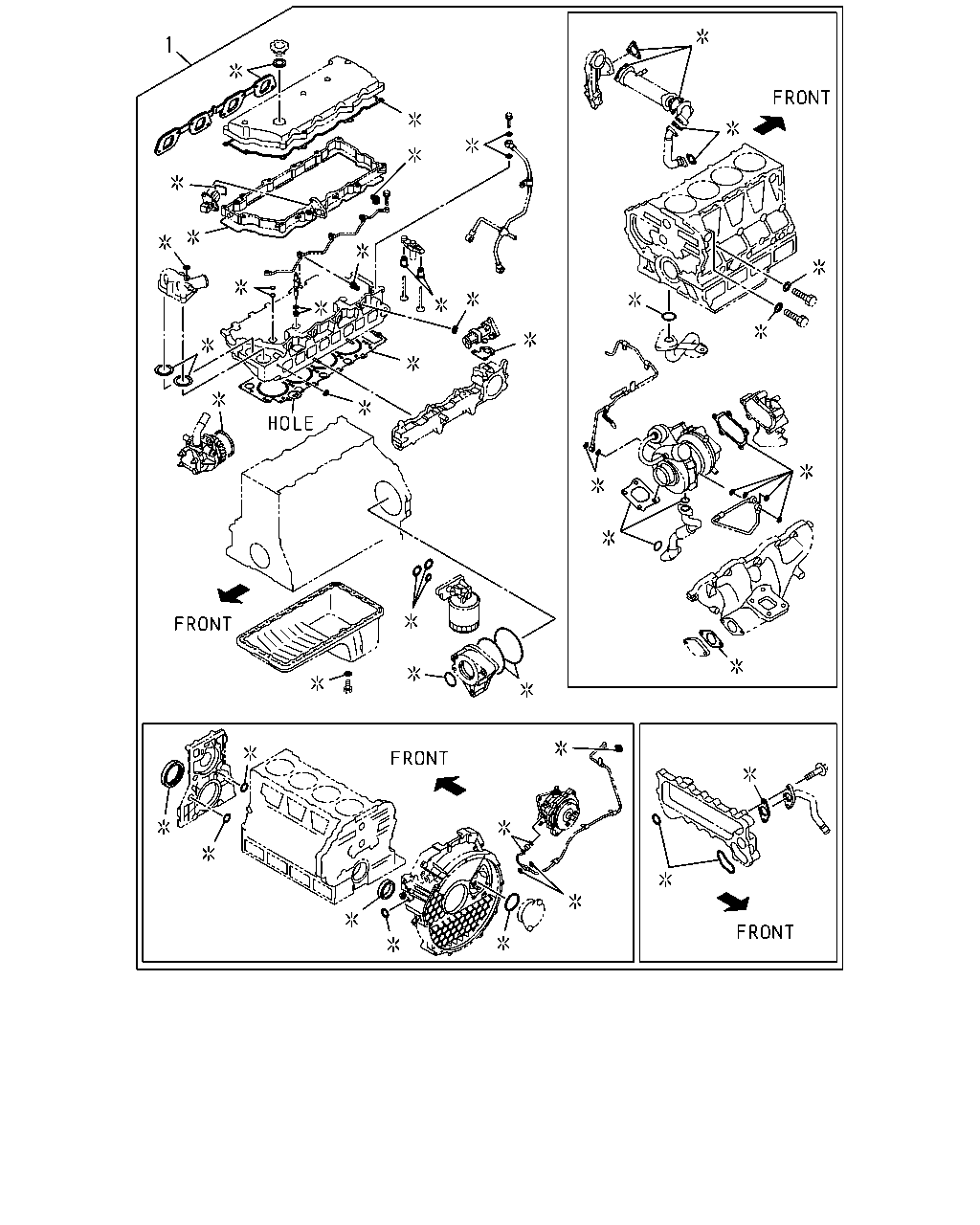

çizim 420072
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-024-0 01 1 1405-1501
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-735-0 01 1 1502-
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-025-0 01 1 1405-1501
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-736-0 01 1 1502-
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-026-0 01 1 1405-1501
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-737-0 01 1 1502-

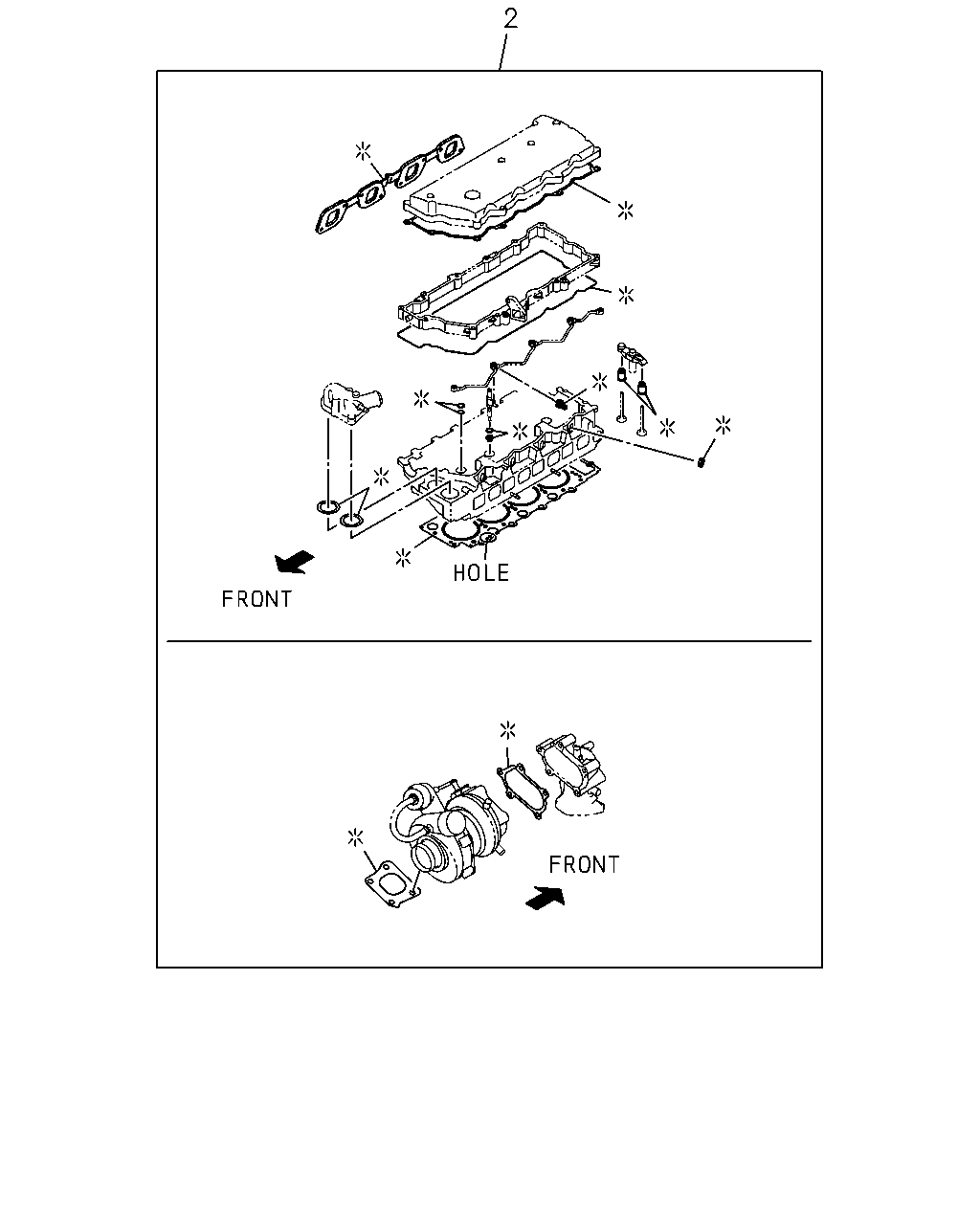

çizim 421370
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87816-080-0 01 1 1405-1501
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-738-0 01 1 1502-
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87816-081-0 01 1 1405-1501
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-739-0 01 1 1502-
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87816-082-0 01 1 1405-1501
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-740-0 01 1 1502-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
