Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
9 - Tools
▶
9-01 - TOOLS
▶

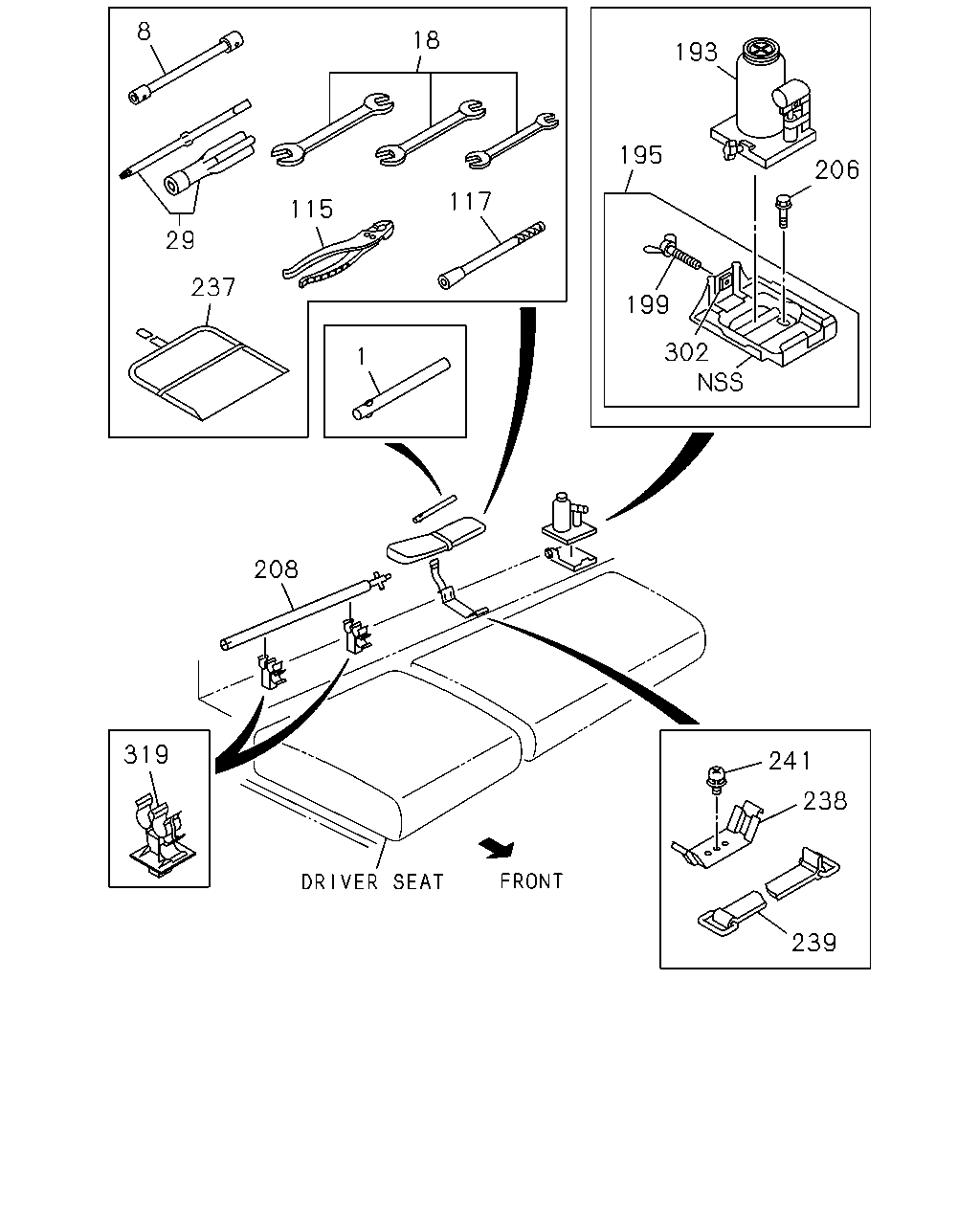

9-01 — TOOLS
(#139740) — 18 parça
8
29
237
115
117
18
195
199
302
206
193
208
319
241
238
239
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; SPARE TIRE CARRIER
L=280
8-98181-251-0
01
1
1405-
8
WRENCH; WHEEL
B=41X21 L=440
1-85113-015-1
01
1
1405-
18
WRENCH KIT
9-85161-902-0
01
1
1405-
29
DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
1405-
115
PLIER
5-85171-002-0
01
1
1405-1410
115
PLIER
THA
8-98282-845-0
01
1
1411-
117
WRENCH; VALVE CAP
9-85163-906-1
01
1
1405-
193
JACK ASM
5TON
8-98114-047-0
01
1
1405-
195
BRACKET; JACK
8-97589-376-2
01
1
1405-
199
BOLT; JACK
M8X30 WING
8-98005-536-0
01
1
1405-
206
SCREW; OIL JACK BRKT
M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
208
HANDLE; JACK
L=580
8-98181-249-0
01
1
1405-
237
BAG; TOOL
8-97130-903-1
01
1
1405-
238
SUPPORT; TOOL BAG
8-97994-977-0
01
1
1405-
239
BAND; TOOL BAG
L=100
5-73997-026-1
01
1
1405-
241
SCREW; TOOL BAG SUPPORT
M6X16
0-38050-616-0
01
1
1405-
302
NUT; JACK BRKT
8-98021-556-0
01
1
1405-
319
CLIP; TOOL BAR
8-97853-077-2
02
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
