7-43 — SUN VISOR AND ASSIST GRIP (#13974) — 117 parça

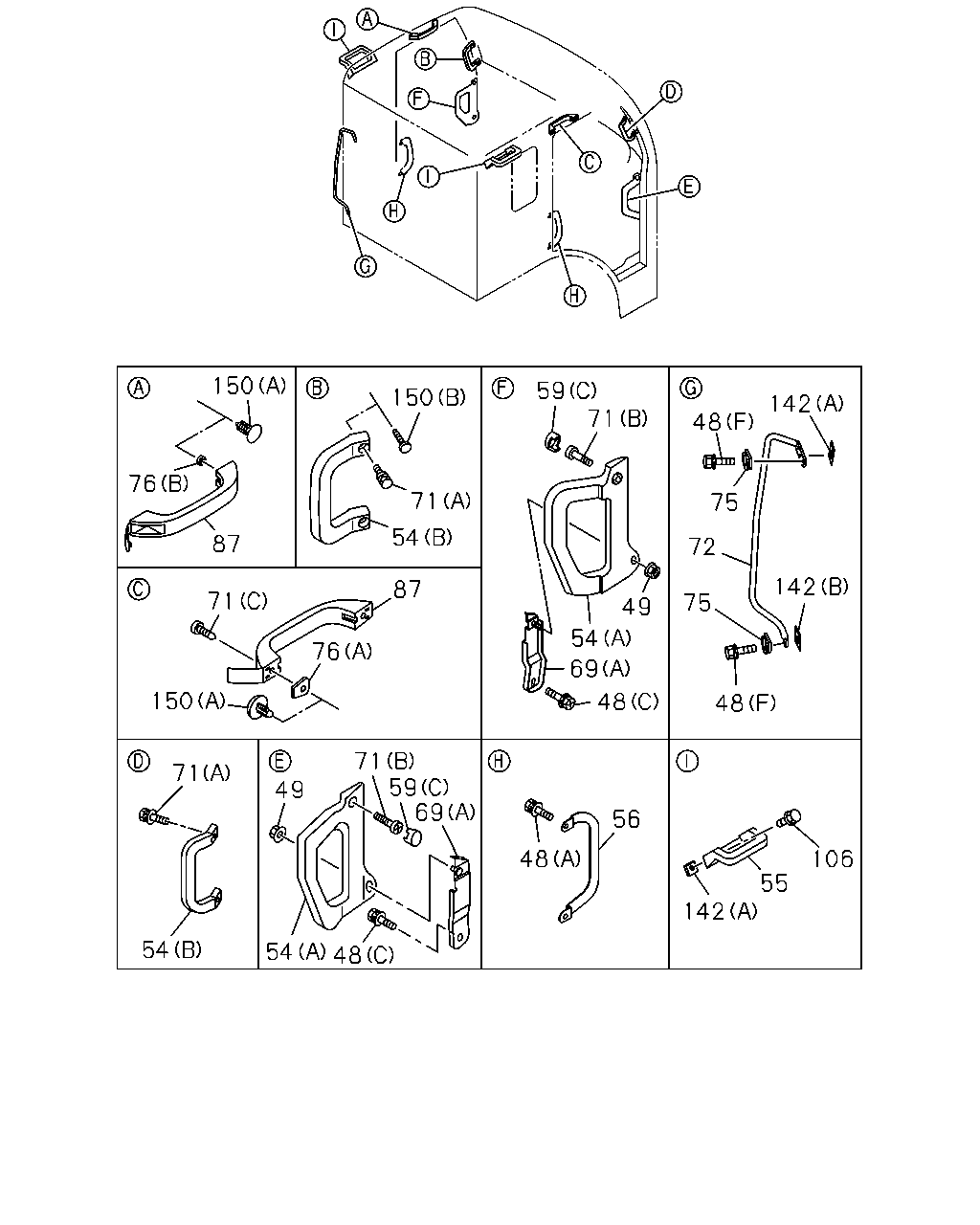

150 59 71 150 142 48 76 71 75 54 87 72 142 87 71 75 49 54 76 69 150 48 48 71 59 69 71 49 56 48 106 55 142 48 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-0110
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0105-0207
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	02	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0209-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	01	1	0105-0207
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	01	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0208-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0105-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0105-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0105-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0207
71	SCREW ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0208-0208
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0209-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0301
71	SCREW EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0302-0310
71	SCREW EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-0207
71	SCREW EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0208-0208
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0209-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	0105-0110
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0105-0110
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. CHINA GB VAR1<JAC> (B) OD=13 T=4.5	8-94230-464-1	02	1	0302-
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	0105-0301
76	SPACER; ASSIST GRIP EXC. CHINA GB VAR1<JAC> (A)	1-73618-180-0	02	1	0302-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	0105-0301
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC> ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	04	1	0302-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-0301
87	GRIP; ASSIST,CANT RAIL SIDE EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0302-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	0105-0110
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0105-0110
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0302-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-0301
150	CLIP; ASSIST GRIP HOLE CHINA GB VAR1<JAC> EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0302-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-0207
150	CLIP; ASSIST GRIP HOLE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0209-

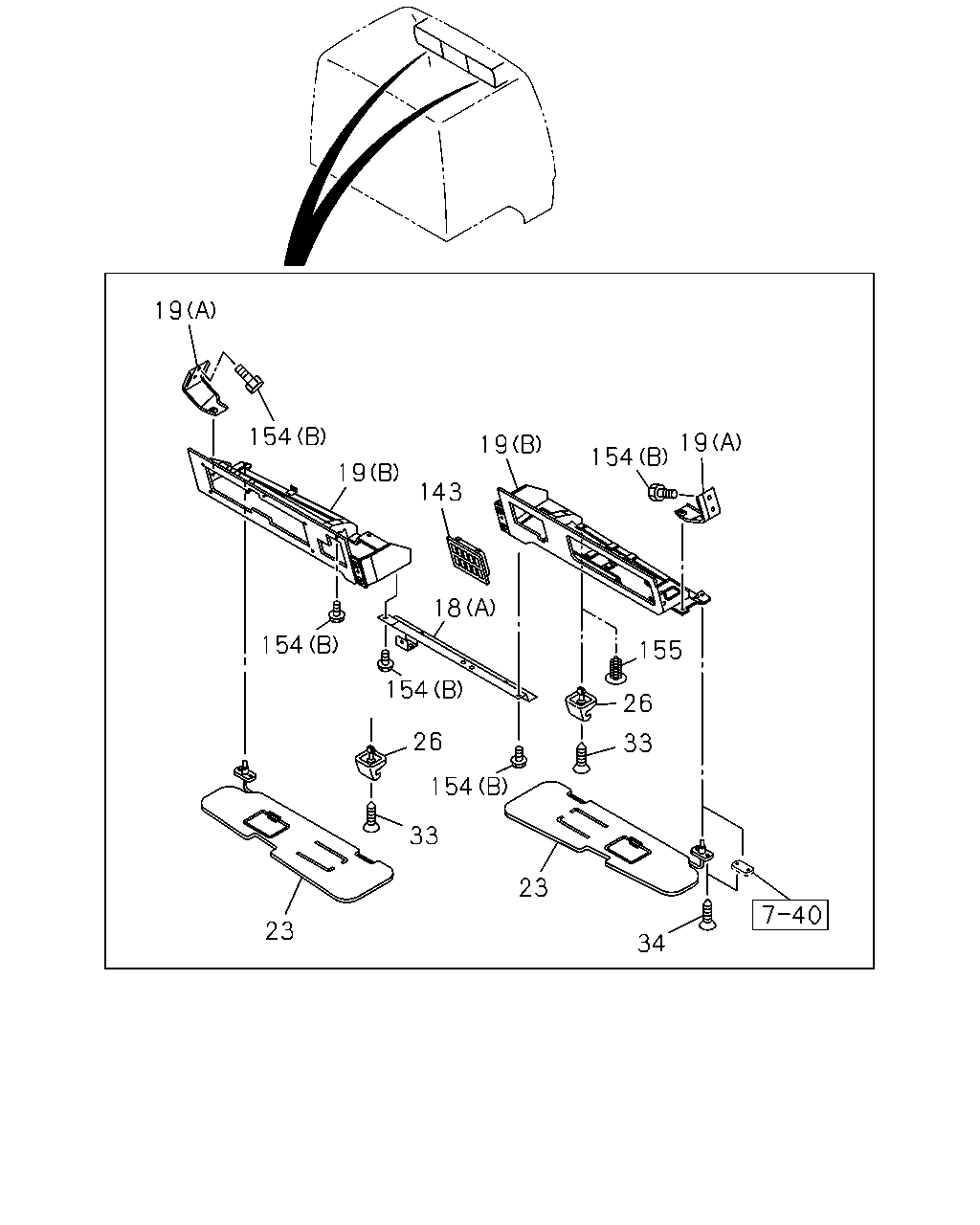

19 154 19 19 154 19 143 18 154 155 154 26 26 33 154 33 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0105-
23	SUN VISOR	1-73138-157-1	01	1	0105-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0105-
143	BEZEL	1-72447-768-2	01	1	0105-0211
143	BEZEL EXC. CHINA GB VAR1<JAC>	1-72447-768-2	01	1	0212-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0105-

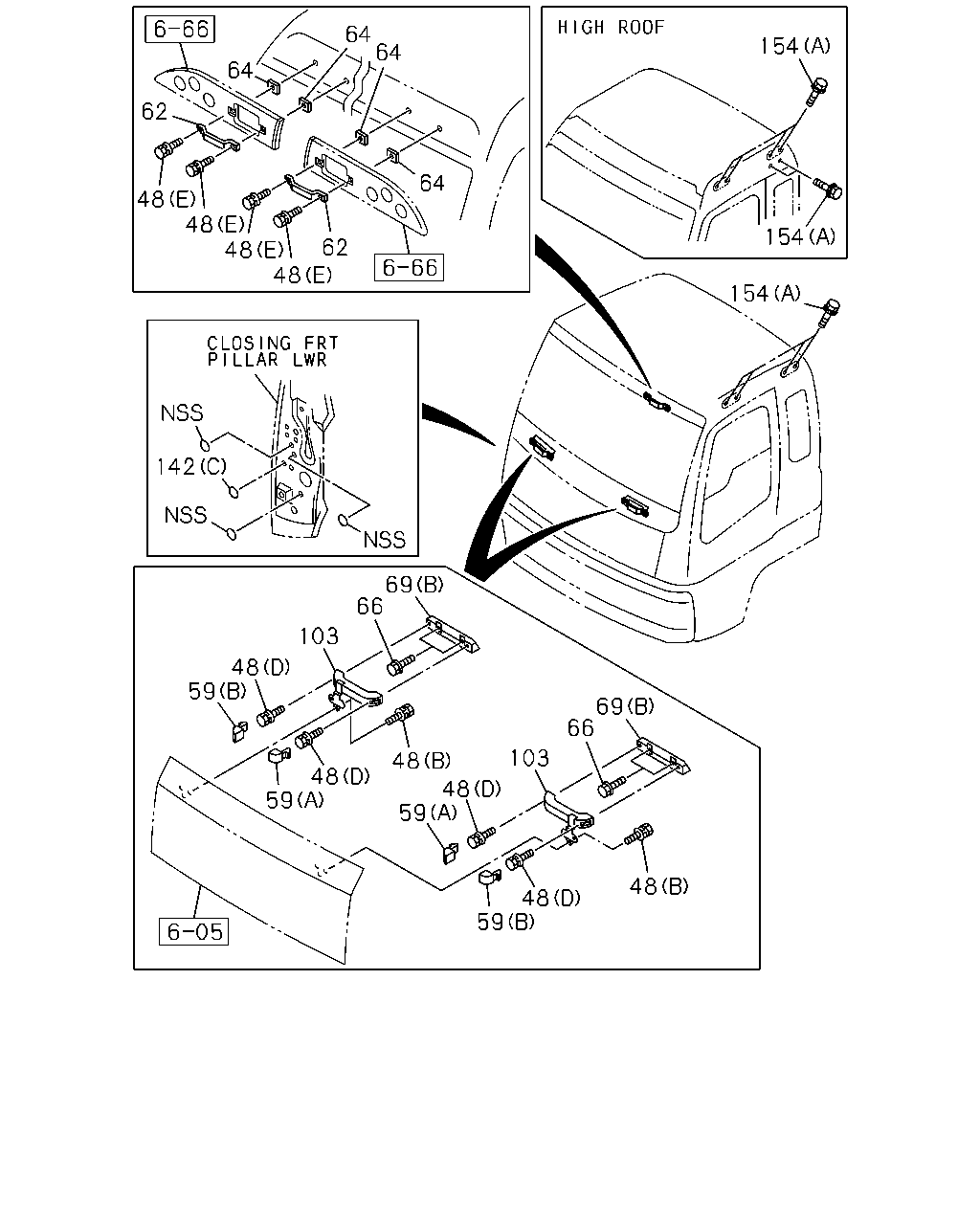

64 64 154 64 62 64 48 48 48 62 48 154 154 142 69 66 103 48 59 69 66 103 48 48 59 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-0110
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0105-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0105-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0105-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	0105-0110
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0105-0110
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-

18 12 154 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF	1-72447-758-3	01	1	0105-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
158	LOCK; HEADER SHELF	1-72538-180-0	01	1	0105-
