8-90 — RADIO AND TV (#139739) — 13 parça

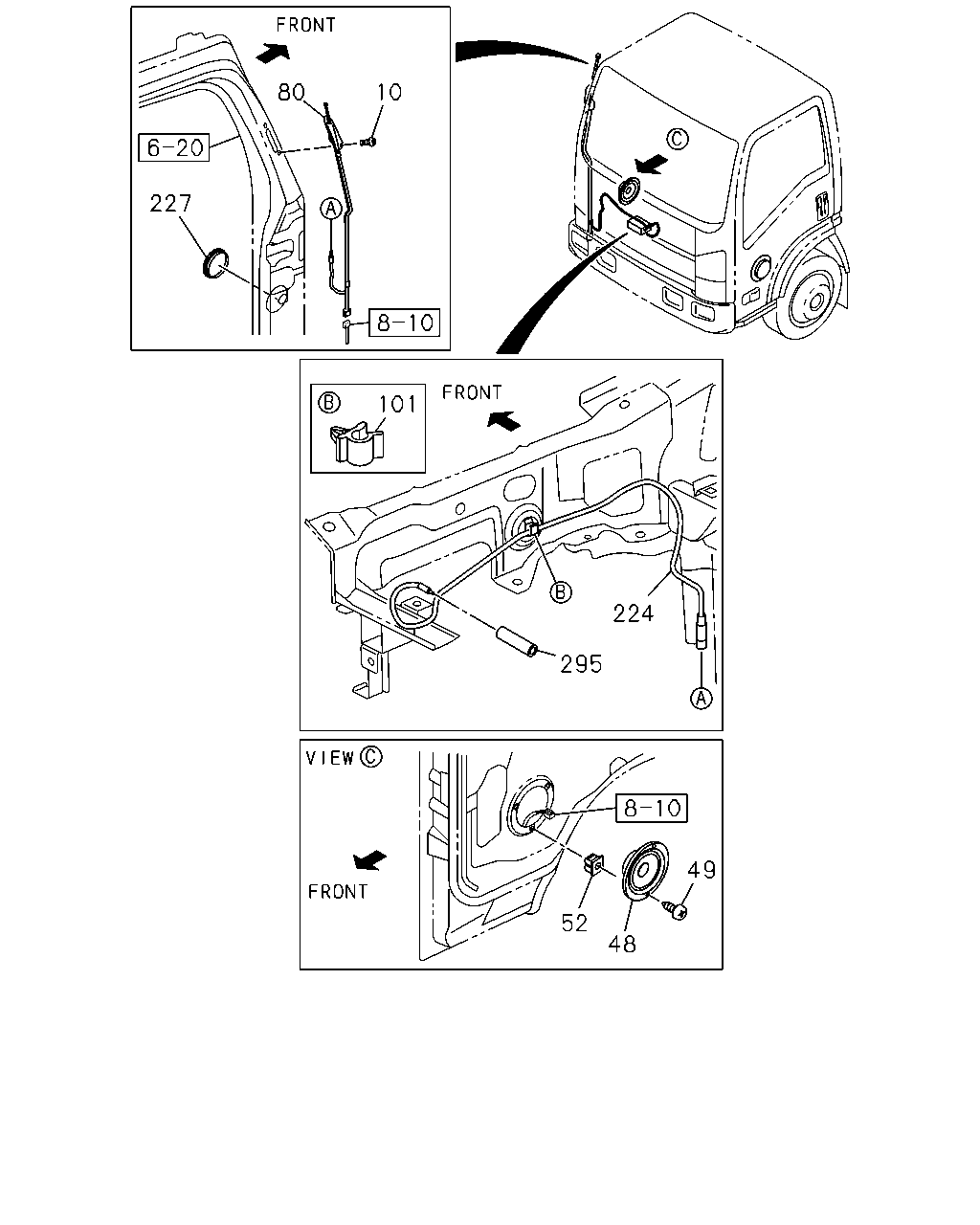

çizim 421738
227 80 10 101 295 224 52 48 49
BalonParca AdiParca NoAdetTipApplied Date
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1405-
48 SPEAKER; AUDIO 8-97317-001-1 02 1 1405-
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1405-
52 GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1405-
80 ANTENNA 8-97387-265-3 01 1 1405-
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 01 1 1405-
224 CABLE; EXT,FEEDER
THA 		8-98029-970-1 01 1 1405-
227 PROTECTOR; EDGE 8-98053-117-0 01 1 1405-
295 INSULATOR; ANTENNA 8-98095-617-1 01 1 1405-

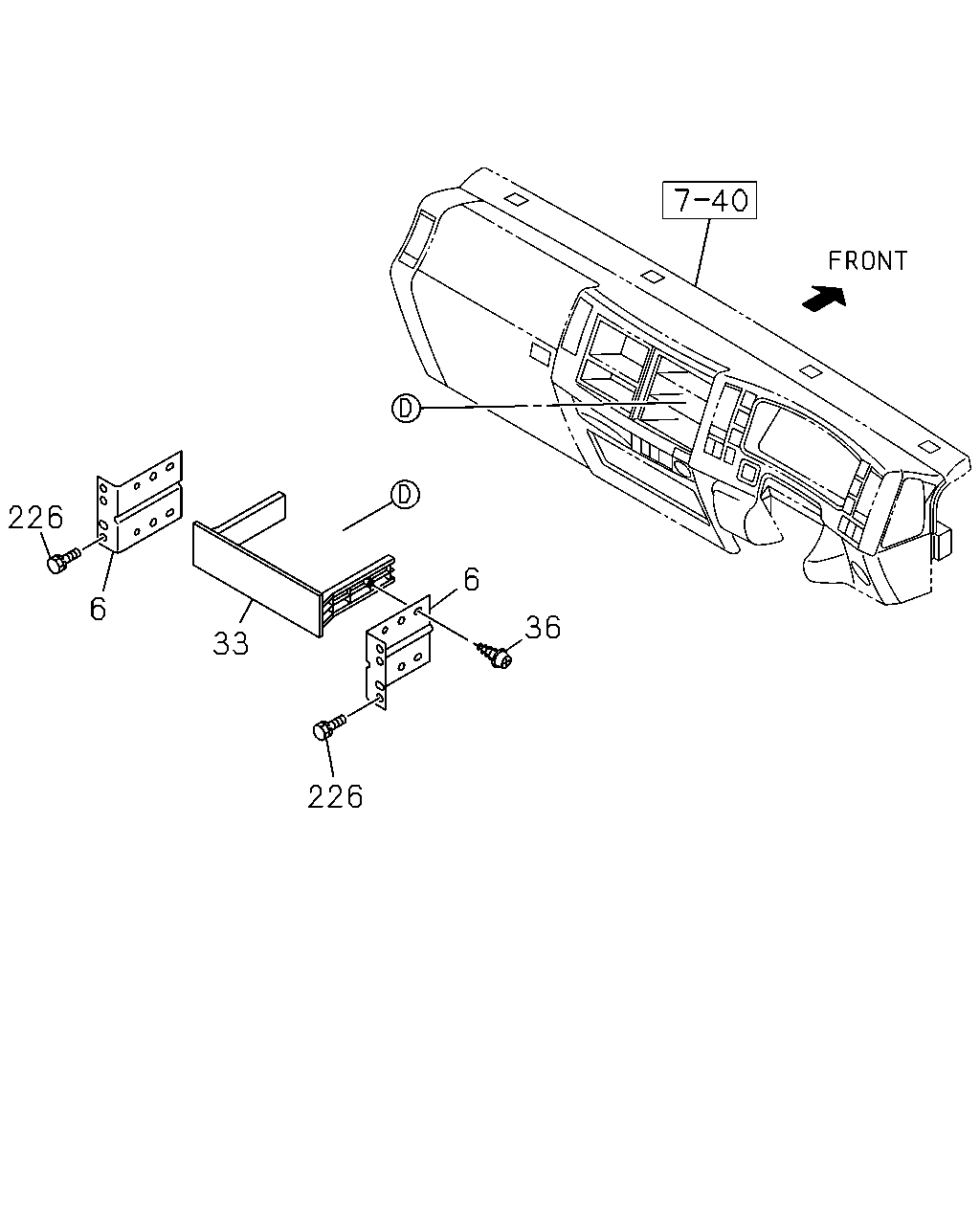

çizim 421778
6 36 226 33 6 226
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1405-
33 COVER; RADIO
THA 		8-97926-926-0 01 1 1405-
36 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1405-
226 BOLT; BRKT
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1405-
