Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

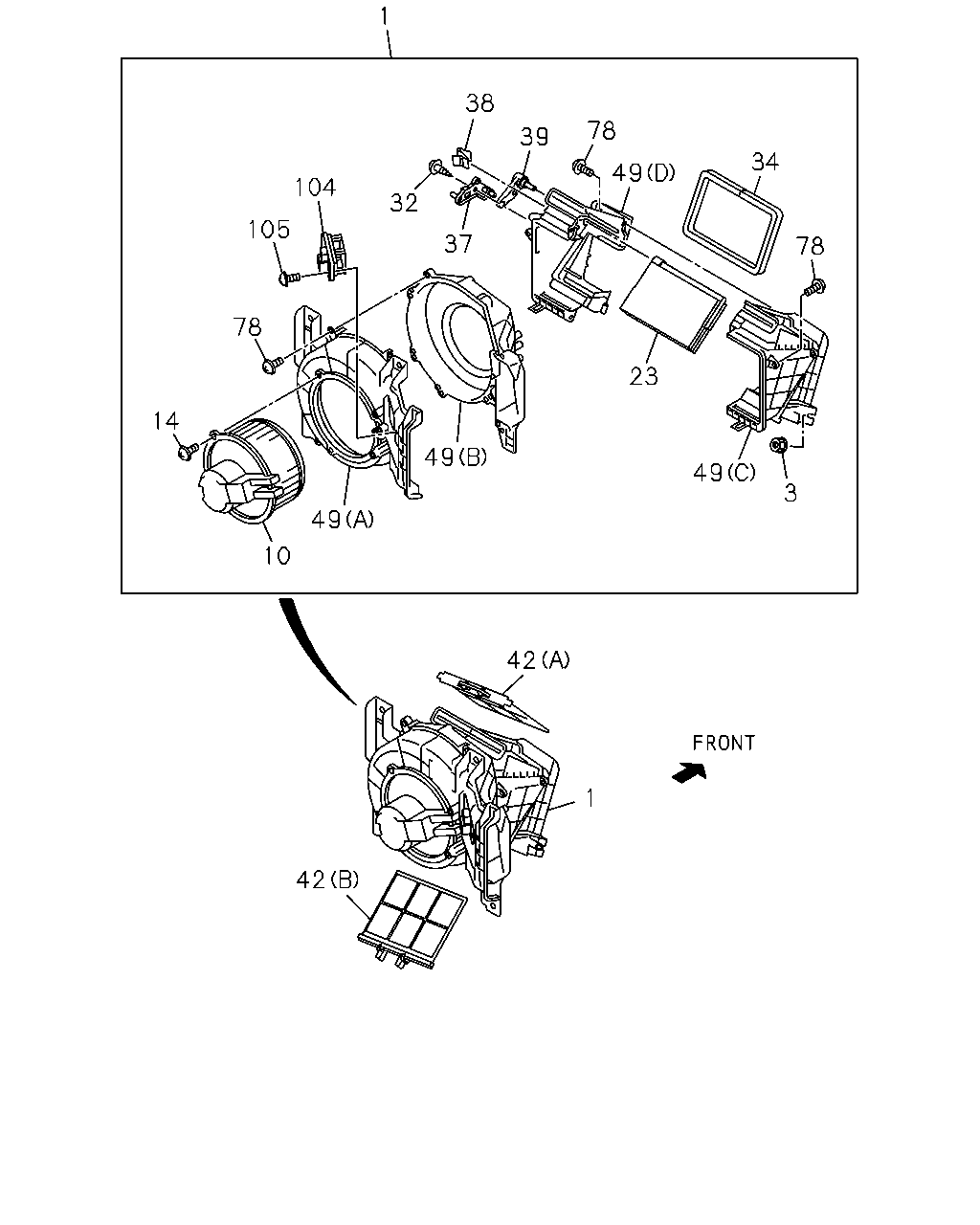

8-73 — BLOWER UNIT
(#139736) — 19 parça
1
38
78
34
78
49
39
104
105
78
14
10
49
49
42
1
42
49
23
3
37
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
COOLER WO/HEATER<C65>
8-98171-719-0
01
1
1405-
3
NUT; CASE
COOLER WO/HEATER<C65> M6 THA
1-83539-354-0
02
1
1405-
10
MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER<C65>
8-98183-924-0
01
1
1405-
14
SCREW; COVER TO CASE
COOLER WO/HEATER<C65> M5X16
8-98047-448-0
03
1
1405-
23
SHUTTER; BLOWER UNIT
COOLER WO/HEATER<C65>
8-98171-863-0
01
1
1405-
32
SCREW; LEVER
COOLER WO/HEATER<C65> M4X16
8-98047-416-0
01
1
1405-
34
LINING; BLOWER UNIT
COOLER WO/HEATER<C65>
8-98047-430-0
01
1
1405-
37
LEVER; MODE LEVER
COOLER WO/HEATER<C65>
8-98047-436-0
01
1
1405-
38
CLIP; BLOWER UNIT
COOLER WO/HEATER<C65>
8-98047-417-0
01
1
1405-
39
LEVER; SHUTTER,BLOWER UNIT
COOLER WO/HEATER<C65>
8-98047-435-0
01
1
1405-
42
FILTER; BLOWER UNIT
COOLER WO/HEATER<C65> (A)
8-97387-096-1
01
1
1405-
42
FILTER; BLOWER UNIT
COOLER WO/HEATER<C65> (B)
8-98025-006-1
01
1
1405-
49
CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (A)
8-98047-440-0
01
1
1405-
49
CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (B)
8-98047-441-0
01
1
1405-
49
CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (C)
8-98047-442-0
01
1
1405-
49
CASE; BLOWER UNIT
COOLER WO/HEATER<C65> (D)
8-98047-443-0
01
1
1405-
78
SCREW; CASE TO CASE
COOLER WO/HEATER<C65> M4X16 TAPPING
8-97957-708-0
15
1
1405-
104
RESISTOR; BLOWER UNIT
COOLER WO/HEATER<C65>
8-98074-113-0
01
1
1405-
105
SCREW; RESISTOR
COOLER WO/HEATER<C65> M4X16 TAPPING
8-97957-708-0
02
1
1405-
