◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51510 - NPR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#139733) — 28 parça

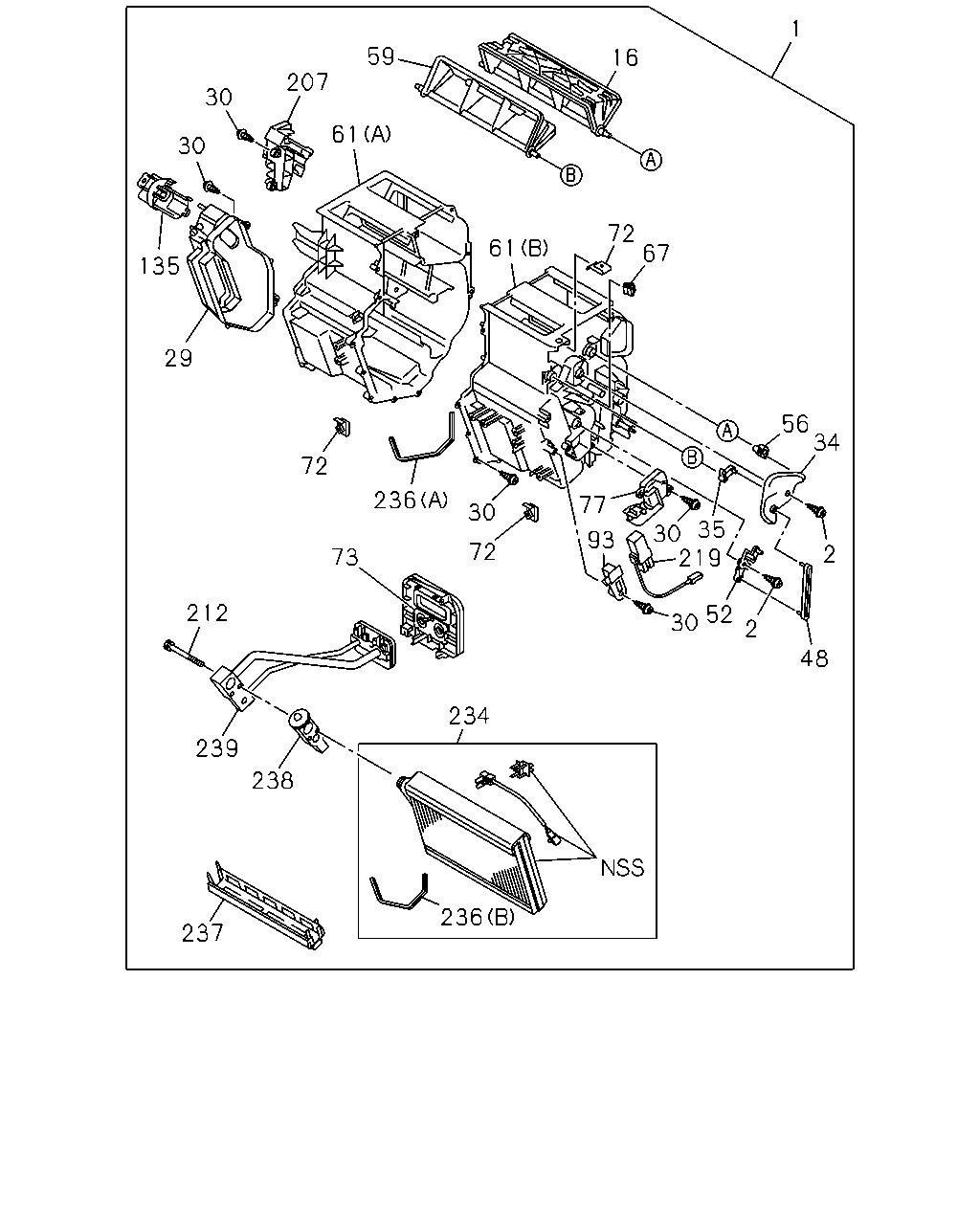

çizim 421197
1 16 67 72 56 34 2 48 2 52 30 219 30 35 77 93 30 72 234 236 237 238 239 212 73 236 72 29 135 30 30 207 61 61 59
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
COOLER WO/HEATER<C65> 		8-98057-980-2 01 1 1405-
2 SCREW; LEVER
COOLER WO/HEATER<C65> M4X16 		8-98047-416-0 02 1 1405-
16 SHUTTER; HTR UNIT,CENTER UPR
COOLER WO/HEATER<C65> 		8-98047-387-0 01 1 1405-
29 COVER; HTR UNIT
COOLER WO/HEATER<C65> 		8-98074-119-0 01 1 1405-
30 SCREW; HTR UNIT
COOLER WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1405-
34 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-389-0 01 1 1405-
35 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-392-0 01 1 1405-
48 LEVER; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-391-0 01 1 1405-
52 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-390-0 01 1 1405-
56 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-393-0 01 1 1405-
59 SHUTTER; HTR UNIT,SIDE
COOLER WO/HEATER<C65> 		8-98047-386-0 01 1 1405-
61 CASE; HTR UNIT
COOLER WO/HEATER<C65> (A) 		8-98077-422-0 01 1 1405-
61 CASE; HTR UNIT
COOLER WO/HEATER<C65> (B) 		8-98077-423-0 01 1 1405-
67 CLIP; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-417-0 01 1 1405-
72 NUT; CASE,HTR UNIT
COOLER WO/HEATER<C65> M6 		8-98047-428-0 03 1 1405-
73 PLATE; HTR UNIT
COOLER WO/HEATER<C65> 		8-98077-420-0 01 1 1405-
77 COVER; HTR CASE
COOLER WO/HEATER<C65> 		8-98047-414-0 01 1 1405-
93 PLATE; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-427-0 01 1 1405-
135 COVER; HTR
COOLER WO/HEATER<C65> 		8-98047-384-0 01 1 1405-
207 CLAMP; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-379-0 01 1 1405-
212 BOLT; HTR UNIT
COOLER WO/HEATER<C65> M5X61 		8-98047-415-0 02 1 1405-
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER<C65> 		8-98064-733-0 01 1 1405-
234 EVAPORATOR ASM; HEATER
COOLER WO/HEATER<C65> 		8-98074-116-1 01 1 1405-
236 GASKET; HEATER
COOLER WO/HEATER<C65> (A) 		8-98047-420-0 01 1 1405-
236 GASKET; HEATER
COOLER WO/HEATER<C65> (B) 		8-98047-421-0 01 1 1405-
237 INSULATOR; EVAPORATOR
COOLER WO/HEATER<C65> 		8-98047-382-0 01 1 1405-
238 VALVE; EXPANSION
COOLER WO/HEATER<C65> 		8-98047-383-0 01 1 1405-
239 TUBE ASM; HEATER
COOLER WO/HEATER<C65> 		8-98074-115-0 01 1 1405-
