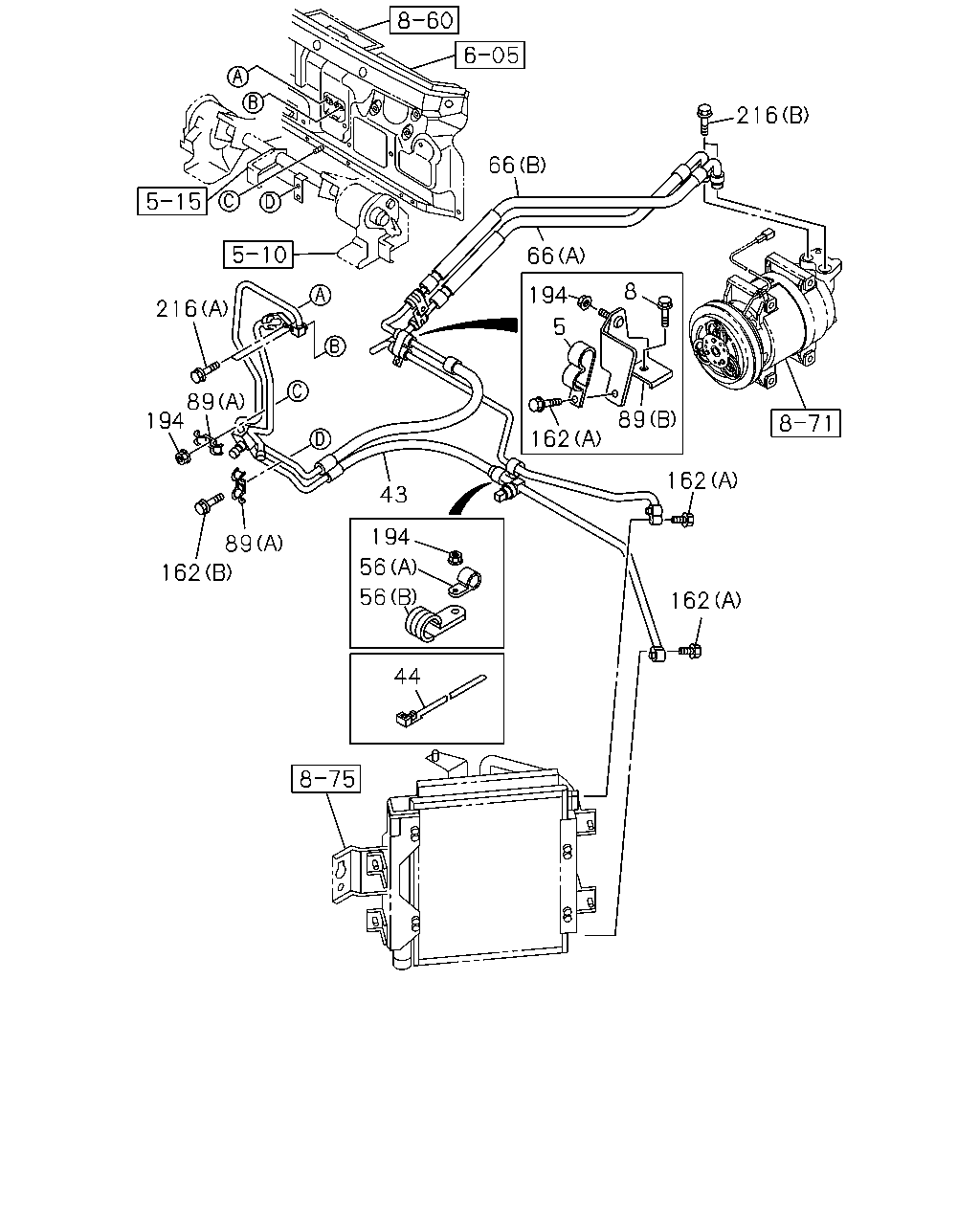

8-52 — PIPING; AIR CONDITIONING (#139732) — 27 parça

162 162 56 56 194 89 162 194 89 216 66 216 194 66 5 162 89 8 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; FLEX HOSE,A/C COOLER WO/HEATER<C65>	8-98052-857-0	01	1	1405-
8	BOLT; CLIP COOLER WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	01	1	1405-
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE	8-98179-006-0	01	1	1405-
44	CLIP; FLEX HOSE COOLER WO/HEATER<C65> L=250	5-09707-030-1	01	1	1405-
56	CLIP; PIPE,A/C COOLER WO/HEATER<C65> (A) ID=13 L=20	0-95235-232-0	01	1	1405-
56	CLIP; PIPE,A/C COOLER WO/HEATER<C65> (B)	8-98032-641-0	01	1	1405-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (B)	8-98100-100-1	01	1	1405-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A)	8-98159-630-2	01	1	1405-
89	BRACKET; A/C PIPE COOLER WO/HEATER<C65> (B)	8-98002-365-2	01	1	1405-
89	BRACKET; A/C PIPE COOLER WO/HEATER<C65> (A)	8-98151-264-0	02	1	1405-
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	1405-
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (A) M6X25 FLANGE THA	0-28650-625-0	03	1	1405-
194	NUT; HOSE COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	03	1	1405-
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> (A) M6X30 FLANGE THA	0-28650-630-0	02	1	1405-
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1405-

43 147 148 50 202 50 67 67 66 66 67 67 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE	8-98179-006-0	01	1	1405-
50	GASKET; FLEX HOSE,A/C COOLER WO/HEATER<C65> ID=7.5	1-83539-316-0	02	1	1405-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (B)	8-98100-100-1	01	1	1405-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A)	8-98159-630-2	01	1	1405-
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (A) ID=11.7 THA	8-97095-907-0	02	1	1405-
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (B) ID=14.5 THA	8-97095-908-0	01	1	1405-
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (C) ID=17.6 THA	8-98036-895-0	01	1	1405-
147	CAP; FLEX HOSE COOLER WO/HEATER<C65> (A) CAP MARK L THA	1-83539-331-0	01	1	1405-
147	CAP; FLEX HOSE COOLER WO/HEATER<C65> (B) CAP MARK H THA	8-97095-911-0	01	1	1405-
148	VALVE; FLEX HOSE COOLER WO/HEATER<C65> (A) THA	8-97095-909-0	01	1	1405-
148	VALVE; FLEX HOSE COOLER WO/HEATER<C65> (B)	8-98031-629-0	01	1	1405-
202	SWITCH; PRESSURE COOLER WO/HEATER<C65>	1-83564-392-1	01	1	1405-
