8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#139727) — 16 parça
çizim 421093
672 437 328
BalonParca AdiParca NoAdetTipApplied Date
328 NUT
M6 FLANGE THA 		0-91180-106-0 04 1 1405-
437 CONVERTER; DC 8-97254-654-0 01 1 1405-
672 BRACKET; CONV 8-98058-179-1 01 1 1405-
çizim 421114
67 68 67 69
BalonParca AdiParca NoAdetTipApplied Date
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405-
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1405-
68 BOLT; BRKT
M6X12 FLANGE THA 		0-28450-612-0 01 1 1405-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1405-

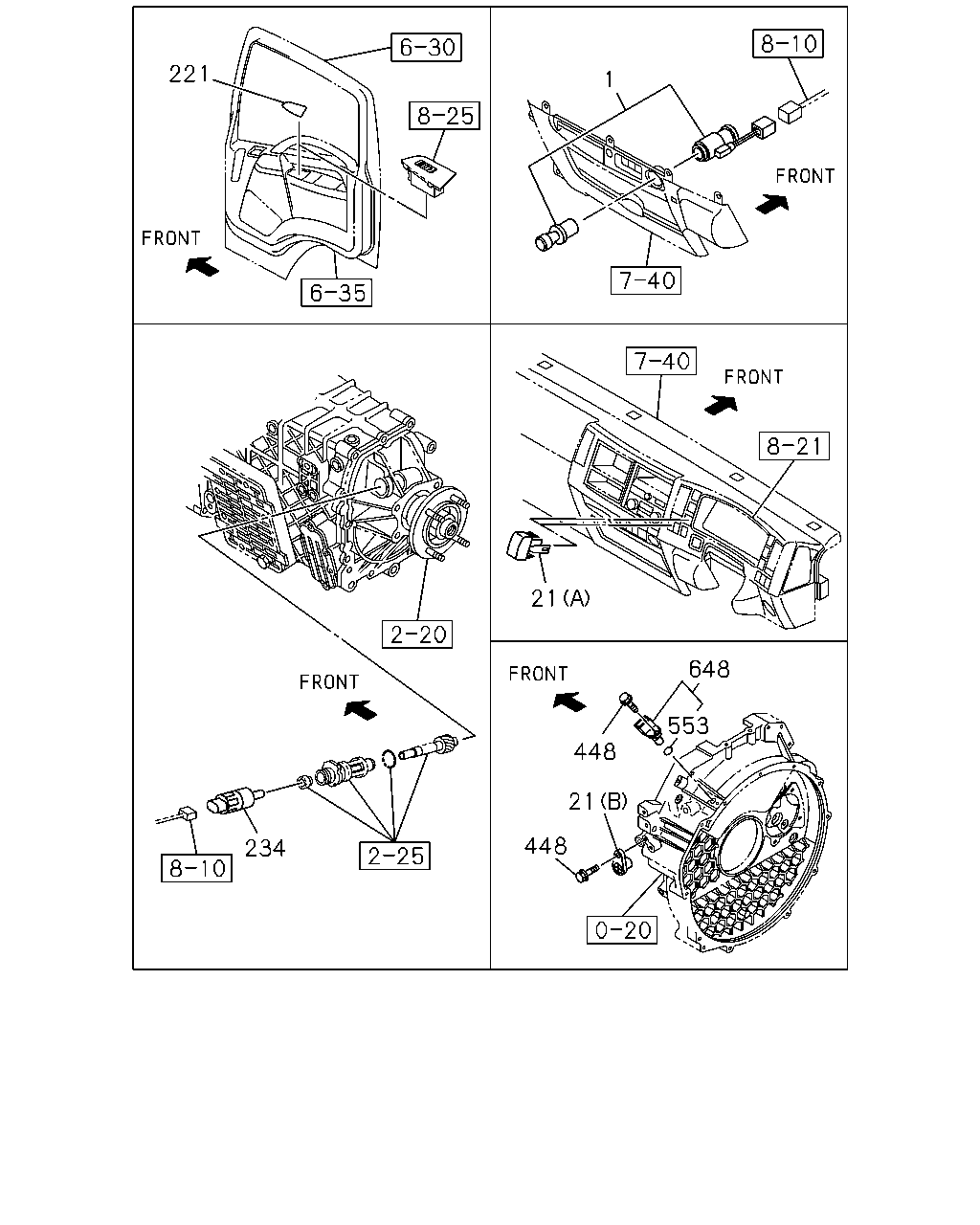

çizim 421650
221 1 21 234 448 648 553 21 448
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1405-
21 COVER; HOLE
(B) 		8-97101-974-0 01 1 1405-
21 COVER; HOLE
(A) 		8-98025-954-1 02 1 1405-
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1405-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1405-
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1405-
448 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 02 1 1405-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1405-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1405-
