Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#139726) — 34 parça
◀

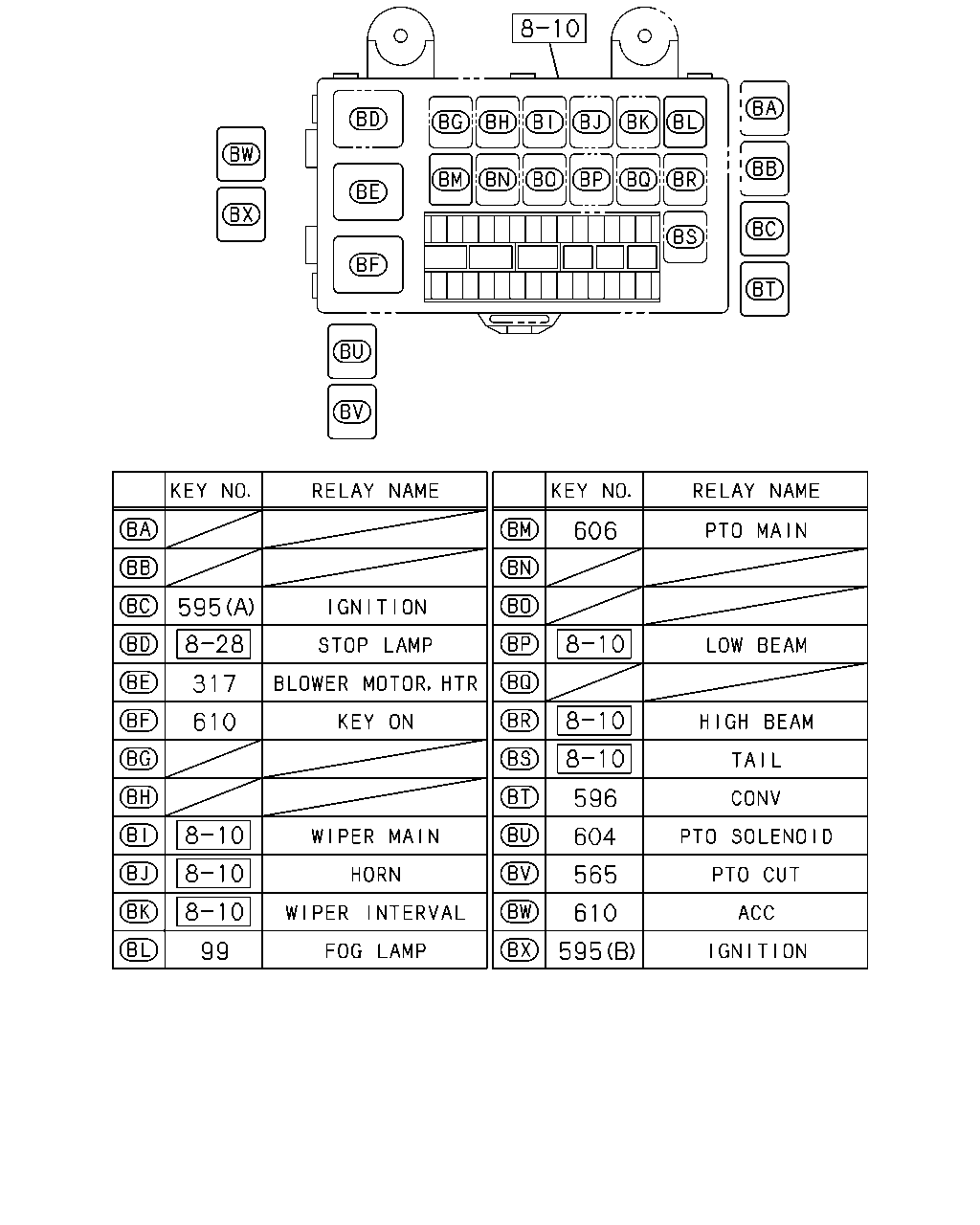

[825A] RELAY;FRAME HARNESS (5 parça)
[825A] RELAY;CAB HARNESS (10 parça)

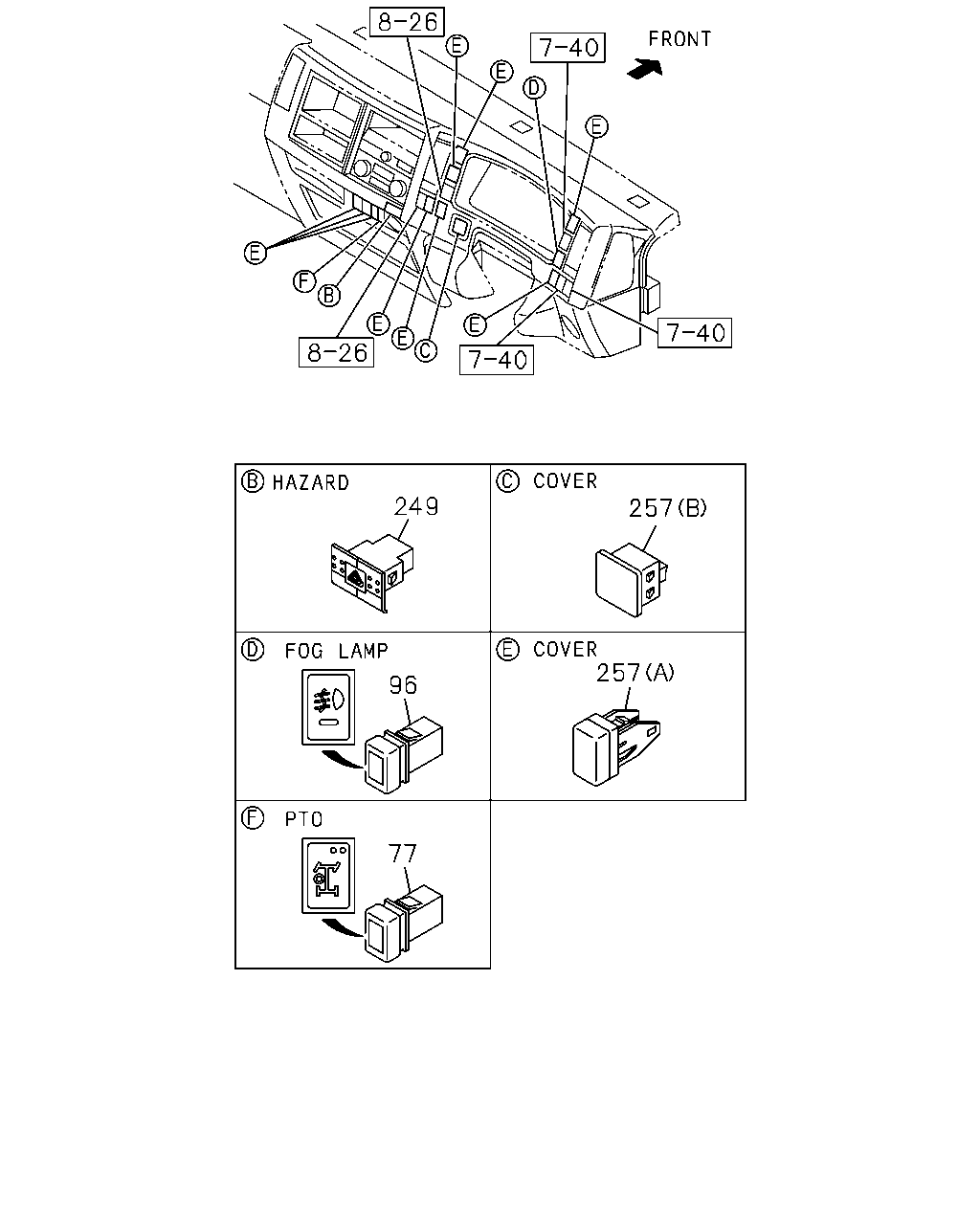

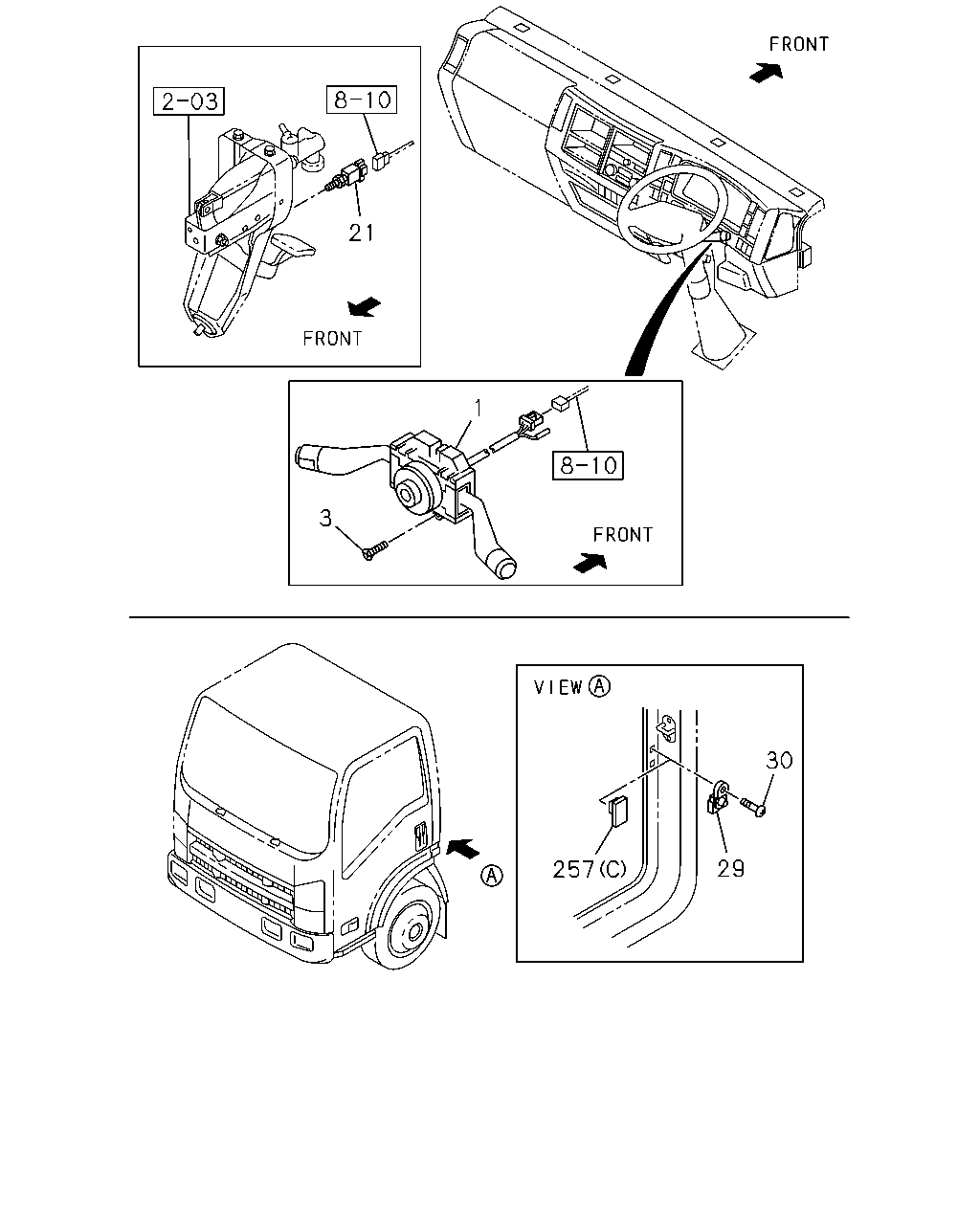

[825A] SWITCH(NO.1) (11 parça)
[825A] SWITCH(NO.2) (8 parça)
▶
593
693
151
154
575
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
151
RELAY; HTR & A/C
COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1405-
154
RELAY; CONDENSER FAN
COOLER WO/HEATER<C65> 24V 10A PANASONIC
8-97173-035-1
01
1
1405-
575
RELAY; GAS VLV
24V 10A
8-98167-173-0
01
1
1405-
593
RELAY; GAS CUT
24V 10A PANASONIC
8-97173-035-1
01
1
1405-
693
RELAY; A/C.COMP.CUT
COOLER WO/HEATER<C65> 24V 10A PANASONIC
8-97173-035-1
01
1
1405-
595
317
610
99
606
596
604
565
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
99
RELAY; FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1405-
317
RELAY; BLOWER MOTOR,HTR
COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1405-
565
RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC<7GR> 24V 10A PANASONIC
8-97173-035-1
01
1
1405-
595
RELAY; IGNITION
(A) 24V 10A PANASONIC
8-97173-035-1
01
1
1405-
595
RELAY; IGNITION
(B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1405-
596
RELAY; CONVERTOR
24V 10A PANASONIC
8-97173-035-1
01
1
1405-
604
RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC<7GR> 24V 10A PANASONIC
8-97173-035-1
01
1
1405-
606
RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC<7GR> 24V 10A PANASONIC
8-97173-035-1
01
1
1405-
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1405-
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1405-
1
21
257
29
30
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98243-729-0
01
1
1405-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1405-
21
SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC<7GR>
8-94109-863-0
01
1
1405-
21
SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC<7GR>
8-97358-248-0
01
1
1405-
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1405-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1405-
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
1405-
257
COVER; HOLE,SW
(A)
8-98025-954-1
07
1
1405-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1405-
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
1405-
257
COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE<V66>,POWER TAKE OFF CONTROL ELECTRIC<7GR> (A)
8-98025-954-1
01
1
1405-
249
257
257
96
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR>
8-97386-993-4
01
1
1405-
96
SWITCH; FOG LAMP
THA
8-97387-031-4
01
1
1405-
249
SWITCH; HAZARD
THA
8-97948-258-0
01
1
1405-
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
1405-
257
COVER; HOLE,SW
(A)
8-98025-954-1
07
1
1405-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1405-
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
1405-
257
COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE<V66>,POWER TAKE OFF CONTROL ELECTRIC<7GR> (A)
8-98025-954-1
01
1
1405-
