Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶
8-15 — FIXING PARTS; WIRING HARNESS
(#139724) — 102 parça
◀
[815A] FIXING;BRACKET(NO.3) (6 parça)
[815A] FIXING;BRACKET(NO.4) (15 parça)
[815A] BOLT,NUT AND SCREW (27 parça)
[815A] CLIP (20 parça)
[815A] OTHER PARTS (8 parça)
[815A] FIXING;BRACKET(NO.1) (16 parça)
[815A] FIXING;BRACKET(NO.2) (10 parça)
▶

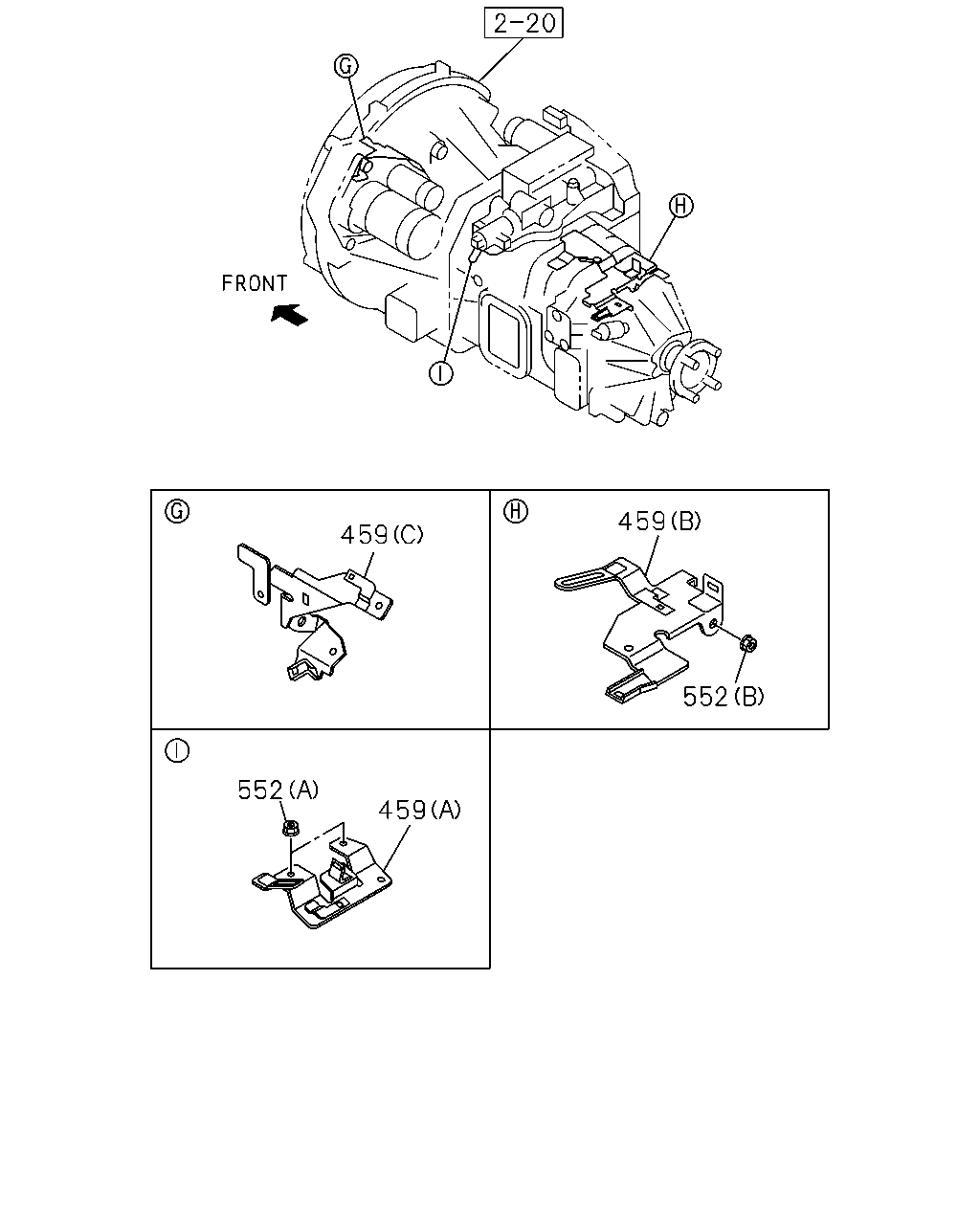

459
459
552
552
459
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
459
BRACKET; SUPPORT,HARNESS
(A)
8-98020-227-3
01
1
1405-
459
BRACKET; SUPPORT,HARNESS
(C)
8-98081-708-0
01
1
1405-
459
BRACKET; SUPPORT,HARNESS
(B)
8-98196-974-0
01
1
1405-
552
NUT; BRKT,HARNESS
(A) M8 FLANGE THA
0-91180-108-0
02
1
1405-
552
NUT; BRKT,HARNESS
(B) M10 FLANGE THA
0-91180-110-0
01
1
1405-
552
NUT; BRKT,HARNESS
(B) M10 FLANGE THA
0-91180-110-0
01
1
1405-

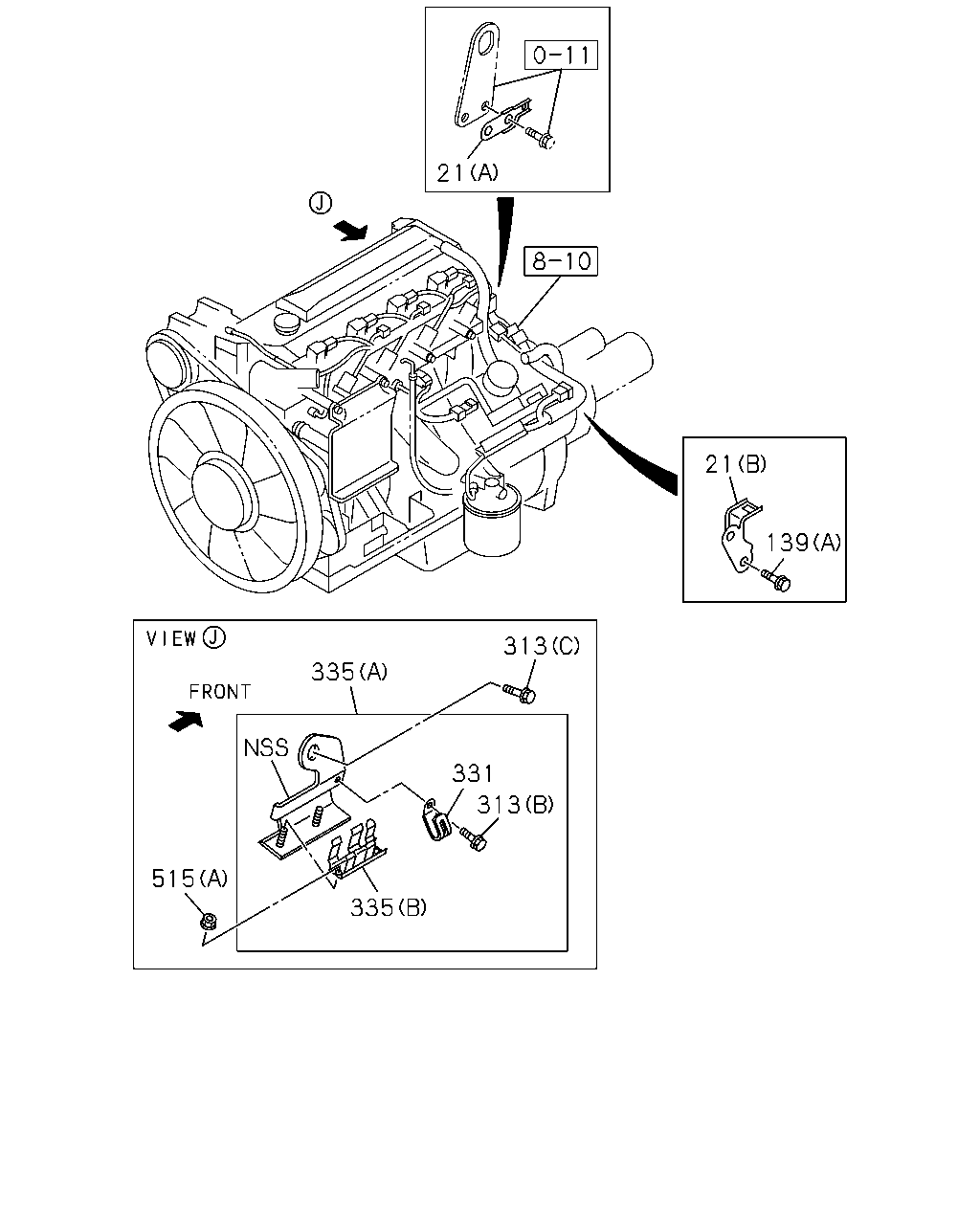

21
21
139
313
331
313
335
515
335
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; ENG HARNESS
(A)
8-97383-683-0
01
1
1405-
21
BRACKET; ENG HARNESS
(B)
8-97383-684-0
01
1
1405-
139
BOLT; BRKT
(A) M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
139
BOLT; BRKT
(A) M8X12 FLANGE THA
0-28050-812-0
02
1
1405-
139
BOLT; BRKT
EXC. COOLER WO/HEATER<C65> (B) SCREW T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
313
BOLT; BRKT
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
313
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28450-616-0
01
1
1405-
313
BOLT; BRKT
(C) M14X20 FLANGE
0-28851-420-0
01
1
1405-
331
CLIP; HARNESS BRKT
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1405-
335
BRACKET; CONNECTOR
(B)
8-97262-725-0
01
1
1405-
335
BRACKET; CONNECTOR
(A)
8-97262-726-0
01
1
1405-
515
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA
0-91180-110-0
01
1
1405-
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
01
1
1405-
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
02
1
1405-
515
NUT; BRKT
(B) M8 FLANGE
8-98040-024-0
01
1
1405-
516
38
313
38
139
150
304
313
529
313
377
377
386
386
139
24
294
515
577
515
525
552
515
552
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
NUT; HARNESS
M6 FLANGE THA
0-91180-106-0
01
1
1405-
38
BOLT; CLIP,HARNESS
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
38
BOLT; CLIP,HARNESS
(B) M6X12 FLANGE
0-28250-612-0
01
1
1405-
139
BOLT; BRKT
(A) M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
139
BOLT; BRKT
(A) M8X12 FLANGE THA
0-28050-812-0
02
1
1405-
139
BOLT; BRKT
EXC. COOLER WO/HEATER<C65> (B) SCREW T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
150
BOLT; CLIP
M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
294
NUT
M6 W/LK WASHER
8-94424-179-0
01
1
1405-
304
BOLT; ENG HARNESS CLIP
M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
313
BOLT; BRKT
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
313
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28450-616-0
01
1
1405-
313
BOLT; BRKT
(C) M14X20 FLANGE
0-28851-420-0
01
1
1405-
377
BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER
8-98141-255-0
03
1
1405-
377
BOLT; CAB EARTH
(A) M6X14 W/PL WASHER
8-98164-836-0
01
1
1405-
386
BOLT; GRAND HARNESS
(A) M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1405-
386
BOLT; GRAND HARNESS
(B) M8X24 W/PL WASHER
8-98141-256-1
01
1
1405-
515
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA
0-91180-110-0
01
1
1405-
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
01
1
1405-
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
02
1
1405-
515
NUT; BRKT
(B) M8 FLANGE
8-98040-024-0
01
1
1405-
516
BOLT; HARNESS
M5X7 HEXALOBULAR SOCKET
8-98063-767-0
01
1
1405-
525
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1405-
529
BOLT; RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-094-0
03
1
1405-
552
NUT; BRKT,HARNESS
(A) M8 FLANGE THA
0-91180-108-0
02
1
1405-
552
NUT; BRKT,HARNESS
(B) M10 FLANGE THA
0-91180-110-0
01
1
1405-
552
NUT; BRKT,HARNESS
(B) M10 FLANGE THA
0-91180-110-0
01
1
1405-
577
NUT; FUSE BOX
M6 FLANGE THA
0-91180-106-0
02
1
1405-
22
48
570
22
570
488
48
16
22
331
483
570
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; HARNESS
(G) ID=12 B=13 ID=6.5
5-09700-348-0
01
1
1405-
16
CLIP; HARNESS
(F) L=22 ID=10.5 THA
8-94327-574-0
01
1
1405-
16
CLIP; HARNESS
(D) ID=10 & 16
8-94413-325-0
01
1
1405-
16
CLIP; HARNESS
(B) ID=6 & 10-13
8-97069-515-0
02
1
1405-
16
CLIP; HARNESS
(A) L=155 THA
8-97173-307-0
14
1
1405-
16
CLIP; HARNESS
(E) L=40.6 THA
8-97229-357-0
02
1
1405-
16
CLIP; HARNESS
(C) THA
8-98052-679-0
02
1
1405-
22
CLIP; ENG HARNESS
(B) L=170.3 THA
1-09987-182-0
03
1
1405-
22
CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE
8-97367-984-1
02
1
1405-
22
CLIP; ENG HARNESS
(A) L=140 THA
8-97920-656-0
01
1
1405-
48
CLIP; FRAME HARNESS
(A) L=250
5-09707-030-1
01
1
1405-
48
CLIP; FRAME HARNESS
POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) L=250
5-09707-030-1
01
1
1405-
48
CLIP; FRAME HARNESS
(B) ID=14 L=47
5-09700-319-0
01
1
1405-
48
CLIP; FRAME HARNESS
(B) ID=14 L=47
5-09700-319-0
05
1
1405-
331
CLIP; HARNESS BRKT
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1405-
483
CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
05
1
1405-
488
CLIP; CABLE,TRAILER
L=250
5-09707-030-1
01
1
1405-
570
CLIP; HARNESS,PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) L=140
5-09707-031-1
02
1
1405-
570
CLIP; HARNESS,PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1405-
570
CLIP; HARNESS,PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (C) T=4.5 & 9
8-97371-947-0
01
1
1405-
16
16
16
16
530
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; HARNESS
(G) ID=12 B=13 ID=6.5
5-09700-348-0
01
1
1405-
16
CLIP; HARNESS
(F) L=22 ID=10.5 THA
8-94327-574-0
01
1
1405-
16
CLIP; HARNESS
(D) ID=10 & 16
8-94413-325-0
01
1
1405-
16
CLIP; HARNESS
(B) ID=6 & 10-13
8-97069-515-0
02
1
1405-
16
CLIP; HARNESS
(A) L=155 THA
8-97173-307-0
14
1
1405-
16
CLIP; HARNESS
(E) L=40.6 THA
8-97229-357-0
02
1
1405-
16
CLIP; HARNESS
(C) THA
8-98052-679-0
02
1
1405-
530
SEAL; HARNESS
OD=32 BLACK
8-98031-126-0
01
1
1405-

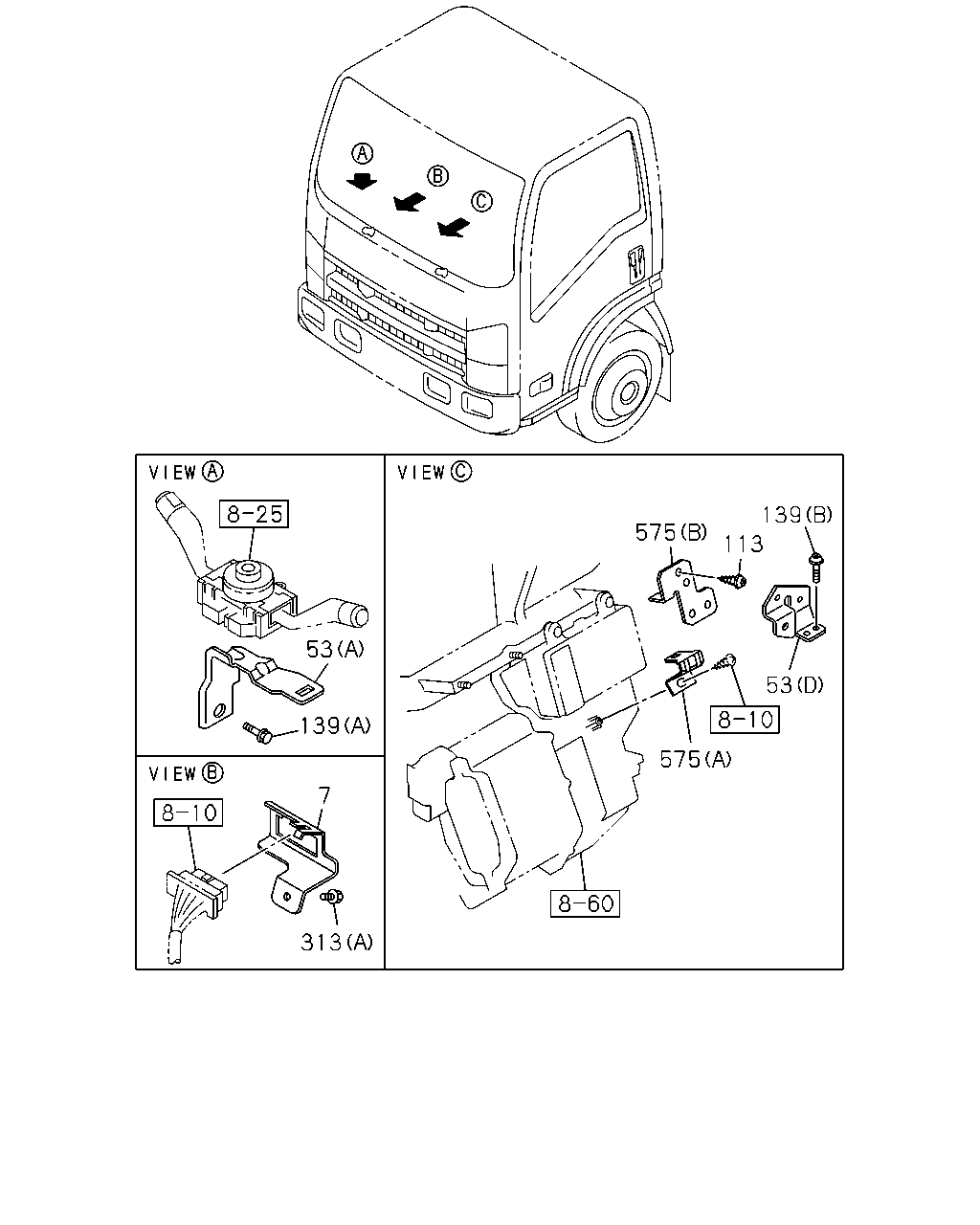

53
139
7
313
575
53
575
139
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
BRACKET; CONNECTOR
8-98043-070-1
01
1
1405-
53
BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B)
8-98077-503-1
01
1
1405-
53
BRACKET; HARNESS
(C)
8-98018-900-2
01
1
1405-
53
BRACKET; HARNESS
(E)
8-98051-457-0
01
1
1405-
53
BRACKET; HARNESS
(A)
8-98052-458-0
01
1
1405-
53
BRACKET; HARNESS
(F)
8-98058-646-2
01
1
1405-
53
BRACKET; HARNESS
EXC. COOLER WO/HEATER<C65> (D)
8-98084-590-0
01
1
1405-
113
SCREW; HARNESS CONNECTOR
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
139
BOLT; BRKT
(A) M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
139
BOLT; BRKT
(A) M8X12 FLANGE THA
0-28050-812-0
02
1
1405-
139
BOLT; BRKT
EXC. COOLER WO/HEATER<C65> (B) SCREW T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
313
BOLT; BRKT
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
1405-
313
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28450-616-0
01
1
1405-
313
BOLT; BRKT
(C) M14X20 FLANGE
0-28851-420-0
01
1
1405-
575
BRACKET; FUSE BOX
COOLER WO/HEATER<C65> (B) THA
1-82698-128-2
01
1
1405-
575
BRACKET; FUSE BOX
(A)
8-98042-656-2
01
1
1405-

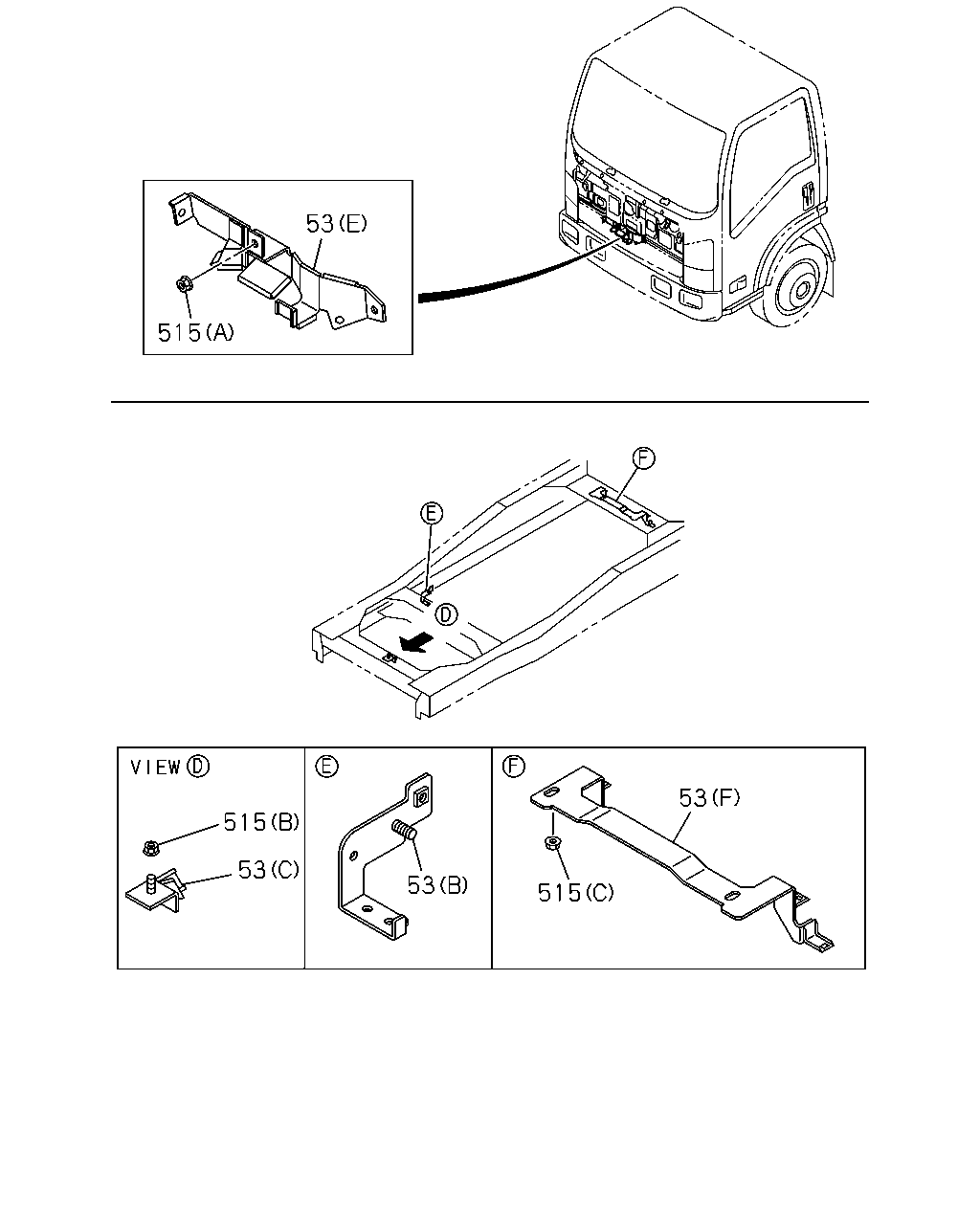

53
515
515
53
53
515
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B)
8-98077-503-1
01
1
1405-
53
BRACKET; HARNESS
(C)
8-98018-900-2
01
1
1405-
53
BRACKET; HARNESS
(E)
8-98051-457-0
01
1
1405-
53
BRACKET; HARNESS
(A)
8-98052-458-0
01
1
1405-
53
BRACKET; HARNESS
(F)
8-98058-646-2
01
1
1405-
53
BRACKET; HARNESS
EXC. COOLER WO/HEATER<C65> (D)
8-98084-590-0
01
1
1405-
515
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA
0-91180-110-0
01
1
1405-
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
01
1
1405-
515
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
02
1
1405-
515
NUT; BRKT
(B) M8 FLANGE
8-98040-024-0
01
1
1405-
