Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

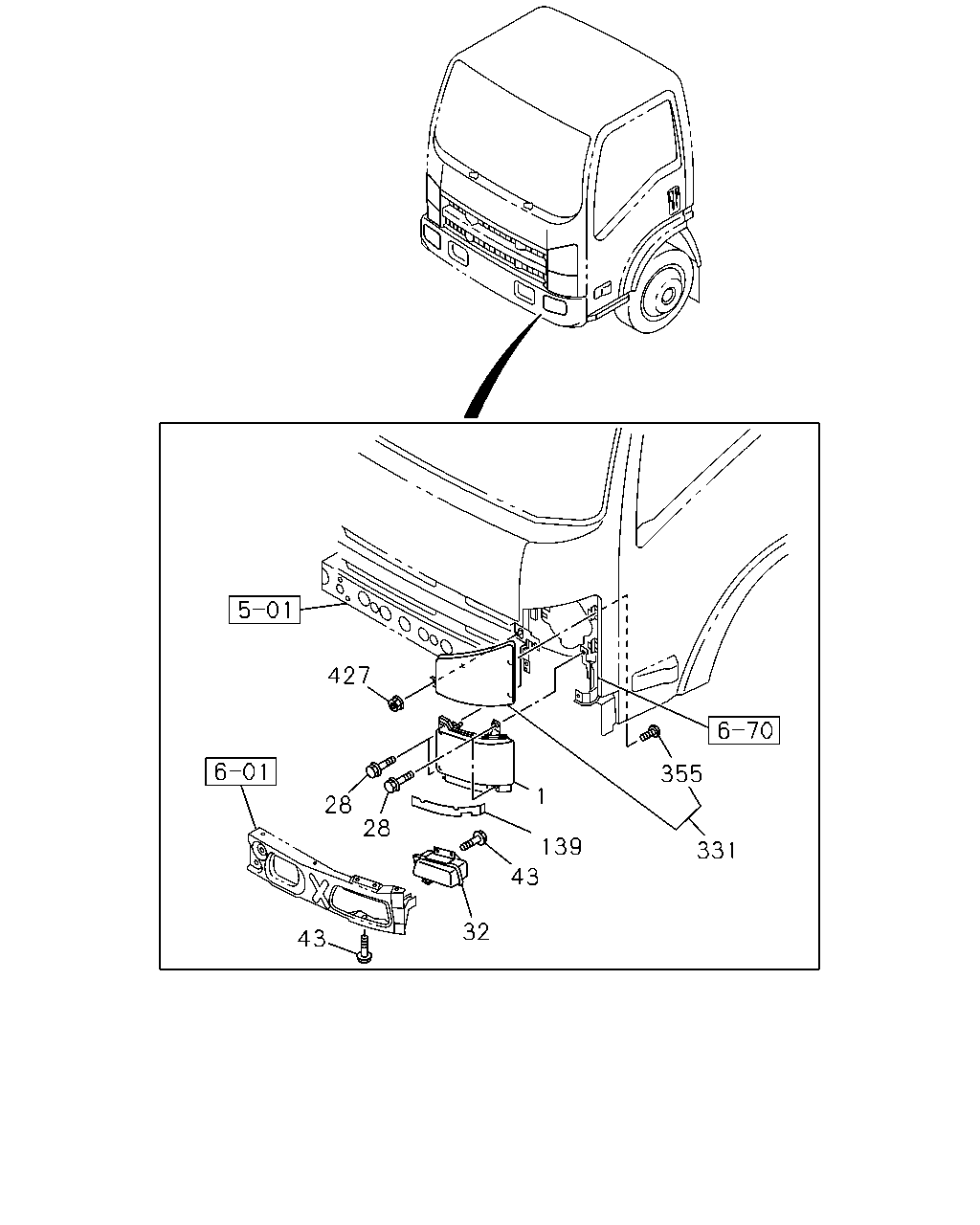

8-01 — LAMP; FRONT AND FRONT SIDE
(#139720) — 46 parça
◀
[801A] FIXING;FRONT LAMP (11 parça)
[801A] COMPONENT;SIDE TURN SIGNAL AND HEADLAMP (18 parça)
[801A] COMPONENT;FRT TURN SIGNAL AND FOG LAMP (17 parça)
▶
427
28
28
43
32
43
139
331
355
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
THA
8-97948-524-0
01
1
1405-
1
LAMP ASM; HEAD
THA
8-97948-525-0
01
1
1405-
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1405-
32
LAMP ASM; FOG
THA
8-97926-945-0
01
1
1405-
32
LAMP ASM; FOG
THA
8-97926-946-0
01
1
1405-
43
BOLT; FOG LAMP
M6X20 W/LK&PL WASHER THA
0-50640-620-0
06
1
1405-
139
COVER; HEADLAMP
8-98034-056-1
02
1
1405-
331
LAMP; TURN SIGNAL
THA
8-97926-948-0
01
1
1405-
331
LAMP; TURN SIGNAL
THA
8-97926-949-0
01
1
1405-
355
SCREW; TURN SIGNAL
THA
8-98051-428-0
04
1
1405-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE THA
0-91180-106-0
02
1
1405-
7
327
437
91
428
1
4
20
408
23
420
5
457
382
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
THA
8-97948-524-0
01
1
1405-
1
LAMP ASM; HEAD
THA
8-97948-525-0
01
1
1405-
4
HEADLAMP UNIT
THA
8-97948-942-0
01
1
1405-
4
HEADLAMP UNIT
THA
8-97948-943-0
01
1
1405-
5
BULB; HEADLAMP
(B) 24V 5W THA
1-82194-042-0
02
1
1405-
5
BULB; HEADLAMP
(A) 24V 75/70W THA
1-82194-063-0
02
1
1405-
7
NUT; FRT COMB LAMP
M6 FLANGE THA
0-91180-106-0
02
1
1405-
20
SCREW; HEADLAMP
THA
8-97378-871-0
06
1
1405-
23
COVER; BULB,HEADLAMP
THA
8-97232-491-0
02
1
1405-
91
BULB; SIDE TURN SIGNAL
24V 21W THA
8-98051-495-0
02
1
1405-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97926-954-0
01
1
1405-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97926-955-0
01
1
1405-
382
PLUG; SOCKET,HEADLAMP
THA
8-98225-685-0
02
1
1405-
408
CAP; BREATHER,HEADLAMP
THA
8-97378-874-0
02
1
1405-
420
SPRING; BULB,HEADLAMP
THA
8-98218-601-0
02
1
1405-
428
GROMMET; SIDE COMB LAMP
8-94430-184-1
02
1
1405-
437
SOCKET; SIDE,TURN
THA
8-98051-390-0
02
1
1405-
457
GRIP; HEADLAMP
THA
8-98241-354-0
02
1
1405-
331
431
357
399
355
432
32
49
47
15
448
36
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BULB; FOG LAMP
24V 70W THA
1-82194-106-0
02
1
1405-
32
LAMP ASM; FOG
THA
8-97926-945-0
01
1
1405-
32
LAMP ASM; FOG
THA
8-97926-946-0
01
1
1405-
36
CORD; FOG LAMP
THA
1-82118-015-0
01
1
1405-
36
CORD; FOG LAMP
THA
1-82118-016-0
01
1
1405-
44
NUT; FOG LAMP
THA
8-97927-101-0
02
1
1405-
47
WASHER; PL,FOG LAMP
THA
8-97927-102-0
02
1
1405-
49
BRACKET; LAMP
THA
8-97927-103-0
01
1
1405-
49
BRACKET; LAMP
THA
8-97927-104-0
01
1
1405-
331
LAMP; TURN SIGNAL
THA
8-97926-948-0
01
1
1405-
331
LAMP; TURN SIGNAL
THA
8-97926-949-0
01
1
1405-
355
SCREW; TURN SIGNAL
THA
8-98051-428-0
04
1
1405-
357
BULB; TURN SIGNAL
24V 21W AMBER THA
8-97323-806-0
02
1
1405-
399
SOCKET; TURN SIGNAL
THA
8-98051-387-0
02
1
1405-
431
CAP; TURN SIGNAL,LAMP
THA
8-97378-874-0
02
1
1405-
432
FASTENER; TURN SIGNAL,LAMP
THA
8-98051-431-0
04
1
1405-
448
CAP ASM; LAMP
THA
8-97378-874-0
02
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
