Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

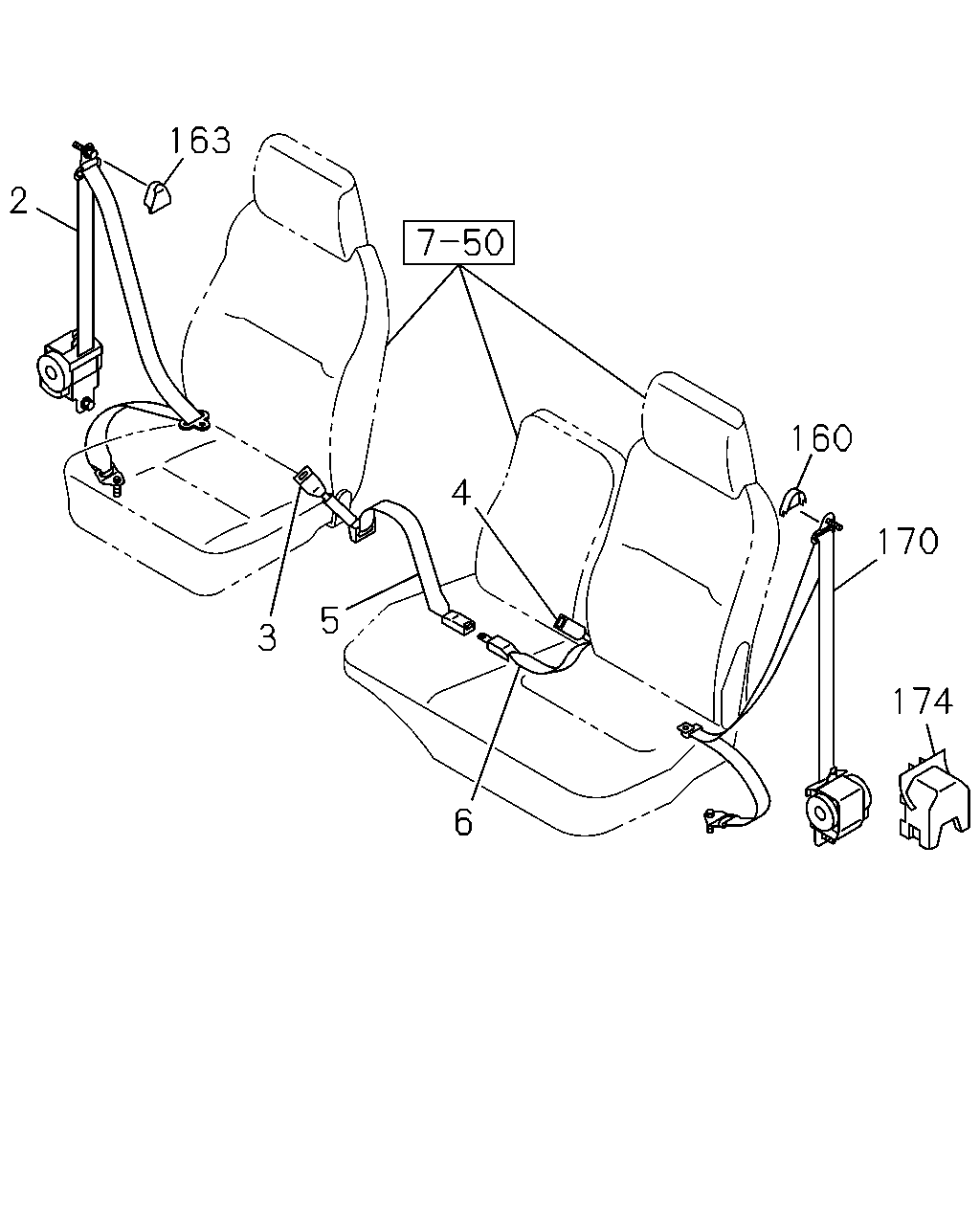

7-60 — SEAT BELT
(#139719) — 10 parça
◀
[760A] SEAT BELT ANCHOR (1 parça)
[760A] SEAT BELT (9 parça)
▶
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
166
BOLT; SEAT BELT ANCHOR
M8X20 FLANGE THA
0-28050-820-0
02
1
1405-
174
170
160
6
3
4
5
163
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
GRAY THA
8-97423-503-0
01
1
1405-
3
BELT; SEAT,BUCKLE SIDE
GRAY THA
8-97417-606-0
01
1
1405-
4
BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY THA
8-97417-610-0
01
1
1405-
5
BELT; CENTER SEAT,BUCKLE SIDE
GRAY THA
8-97417-608-0
01
1
1405-
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY THA
8-97423-504-0
01
1
1405-
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1405-
163
COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
1405-
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA
8-97423-503-0
01
1
1405-
174
COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
