◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51510 - NPR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

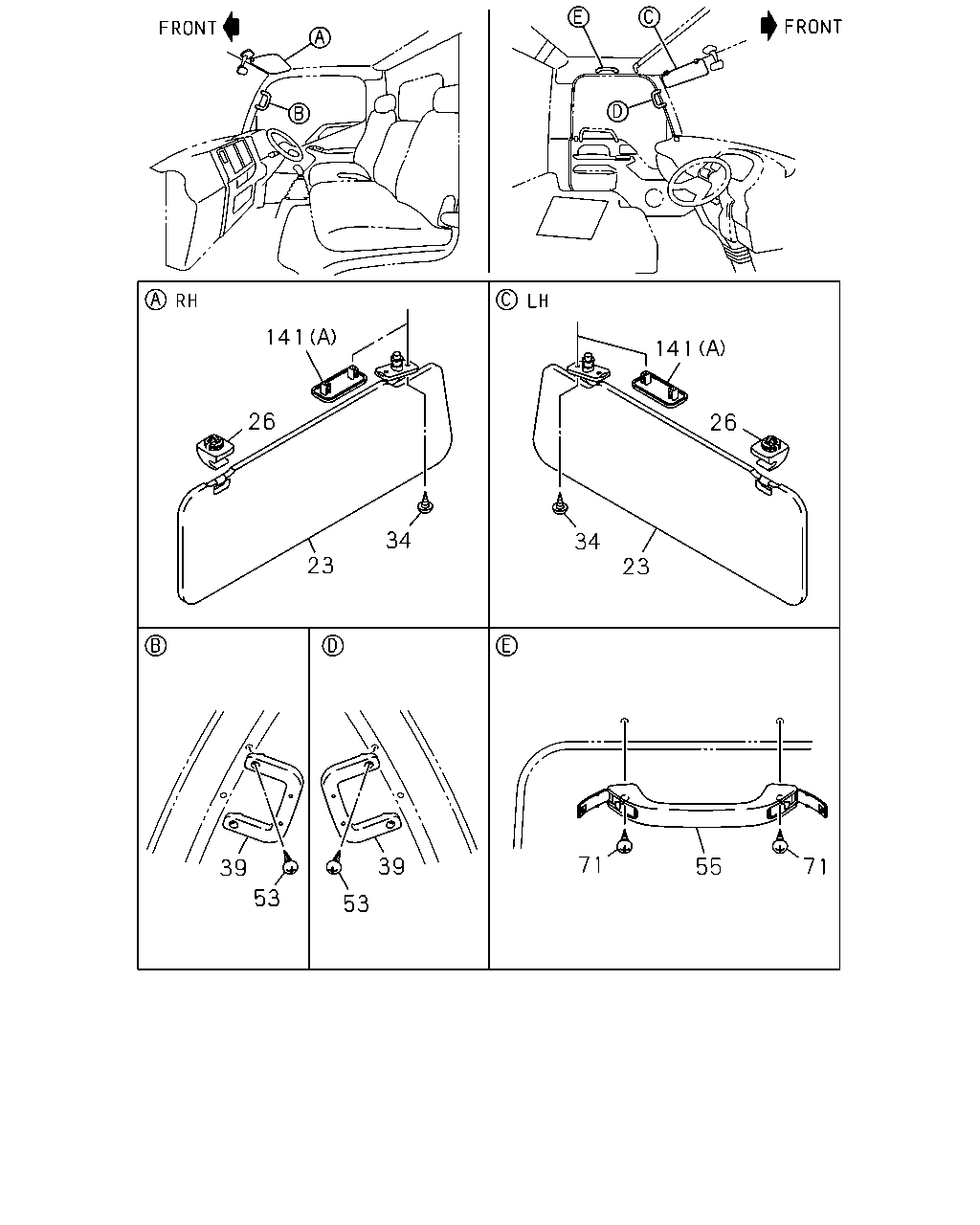

7-43 — SUN VISOR AND ASSIST GRIP (#139716) — 42 parça

141 26 23 34 141 26 23 34 39 53 53 39 71 55 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-97923-767-2	01	1	1405-
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-169-1	01	1	1405-
23	SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-97923-766-2	01	1	1405-
26	HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1405-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1405-
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1405-
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1405-
34	SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1405-
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	02	1	1405-
53	SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1405-
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1405-
71	SCREW M6X28	8-98004-344-0	02	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1405-
141	COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1405-

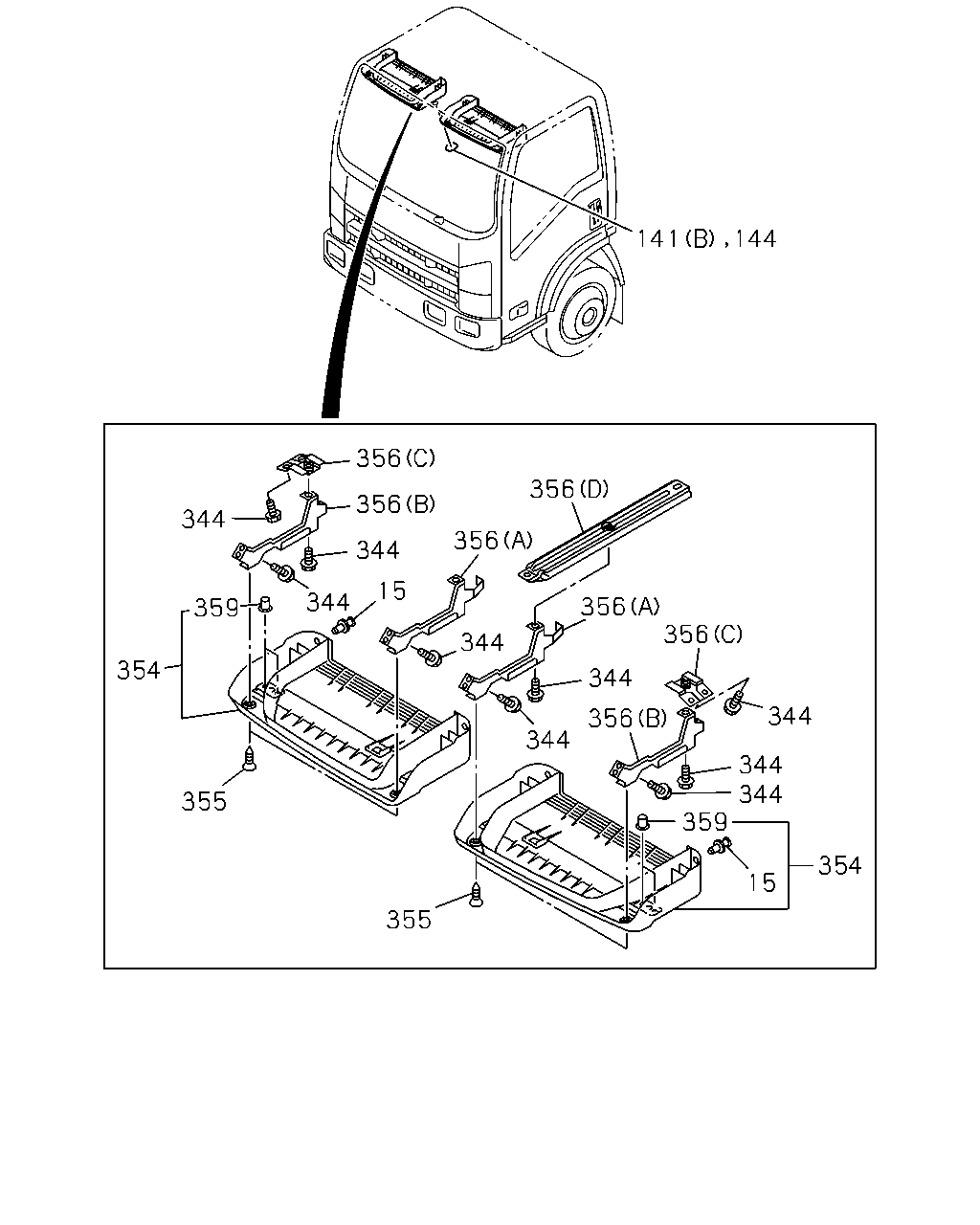

141 144 356 356 344 356 356 344 344 344 344 15 354 359 356 344 355 355 354 344 359 356 356 344 344 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1405-
15	FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1405-
141	COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1405-
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1405-
144	SEAL; LOCATION HOLE EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1405-
144	SEAL; LOCATION HOLE HEADER TRAY DRIVER<W56> OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1405-
344	BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE	8-97108-669-0	08	1	1405-
344	BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE	8-97108-669-0	08	1	1405-
354	TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-064-2	01	1	1405-
354	TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-065-2	01	1	1405-
355	SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1405-
355	SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-022-4	01	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-023-4	01	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-97585-577-1	01	1	1405-
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-97585-577-1	01	1	1405-
359	HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1405-
359	HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1405-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
