Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

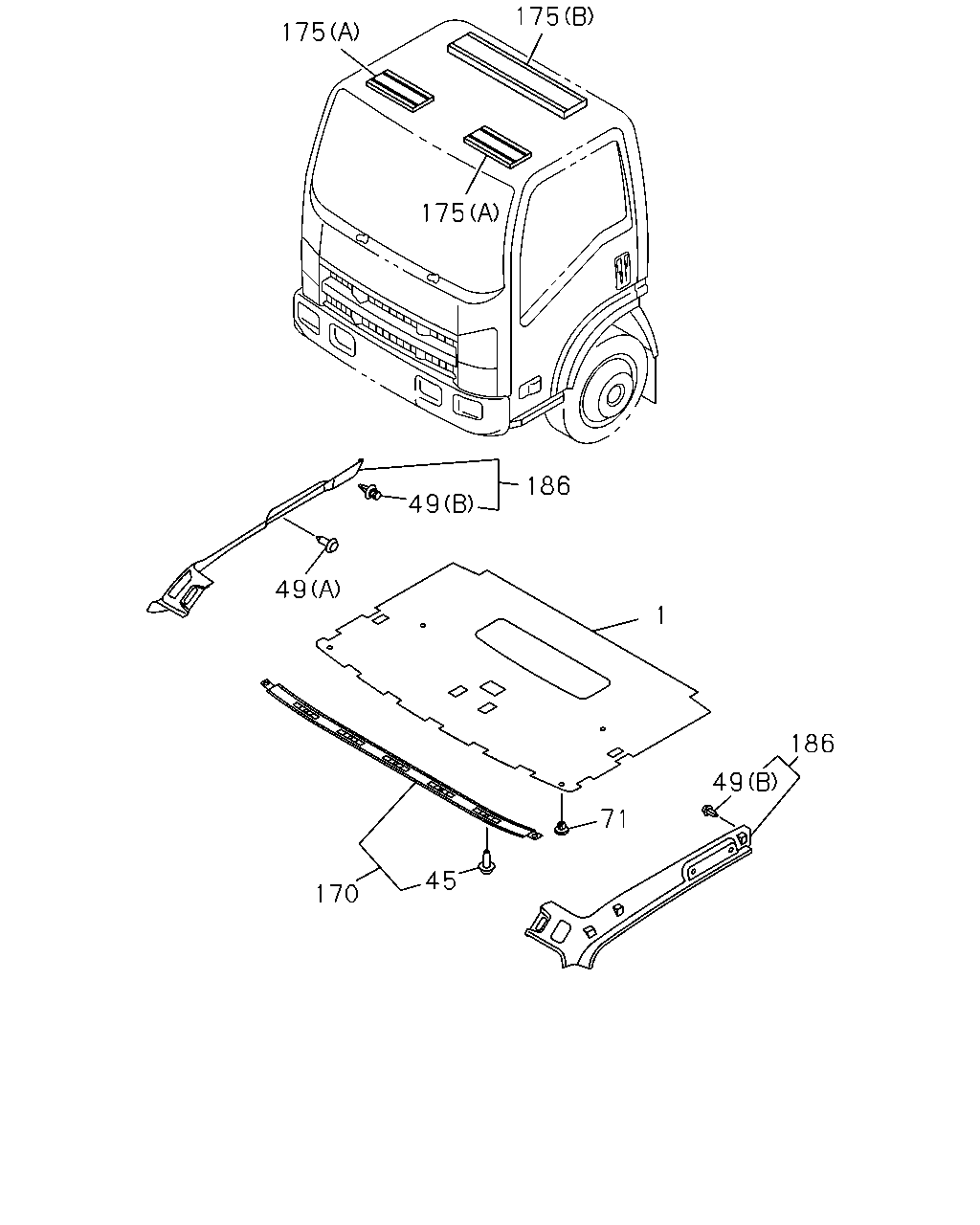

6-66 — HEAD LINING AND TRIM
(#139701) — 15 parça
175
175
175
186
49
49
1
186
49
71
45
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER TRAY DRIVER<W56> DARK GRAY
8-97405-272-8
01
1
1405-
1
LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> THA
8-97926-921-0
01
1
1405-
45
CLIP; FINISHER
8-98035-592-1
03
1
1405-
49
CLIP; TRIM COVER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B)
8-98059-610-0
03
1
1405-1410
49
CLIP; TRIM COVER
(B)
8-98059-610-0
03
1
1405-1410
49
CLIP; TRIM COVER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B)
8-98059-610-0
02
1
1411-
49
CLIP; TRIM COVER
(B)
8-98059-610-0
02
1
1411-
49
CLIP; TRIM COVER
(A) DARK GRAY
8-97407-768-0
02
1
1405-
71
FASTENER; HD LINING
D=8.7X16.5 DARK GRAY
8-97405-282-0
06
1
1405-
170
FINISHER; HEAD LINING
DARK GRAY
8-97405-281-5
01
1
1405-
175
CUSHION; HEAD LINING
(A) THA
8-98037-299-3
02
1
1405-
175
CUSHION; HEAD LINING
(B) THA
8-98037-300-3
01
1
1405-
186
TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-250-3
01
1
1405-
186
TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-252-3
01
1
1405-
186
TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-263-3
01
1
1405-
