0-50 — OIL COOLER AND OIL FILTER (#1397) — 72 parça

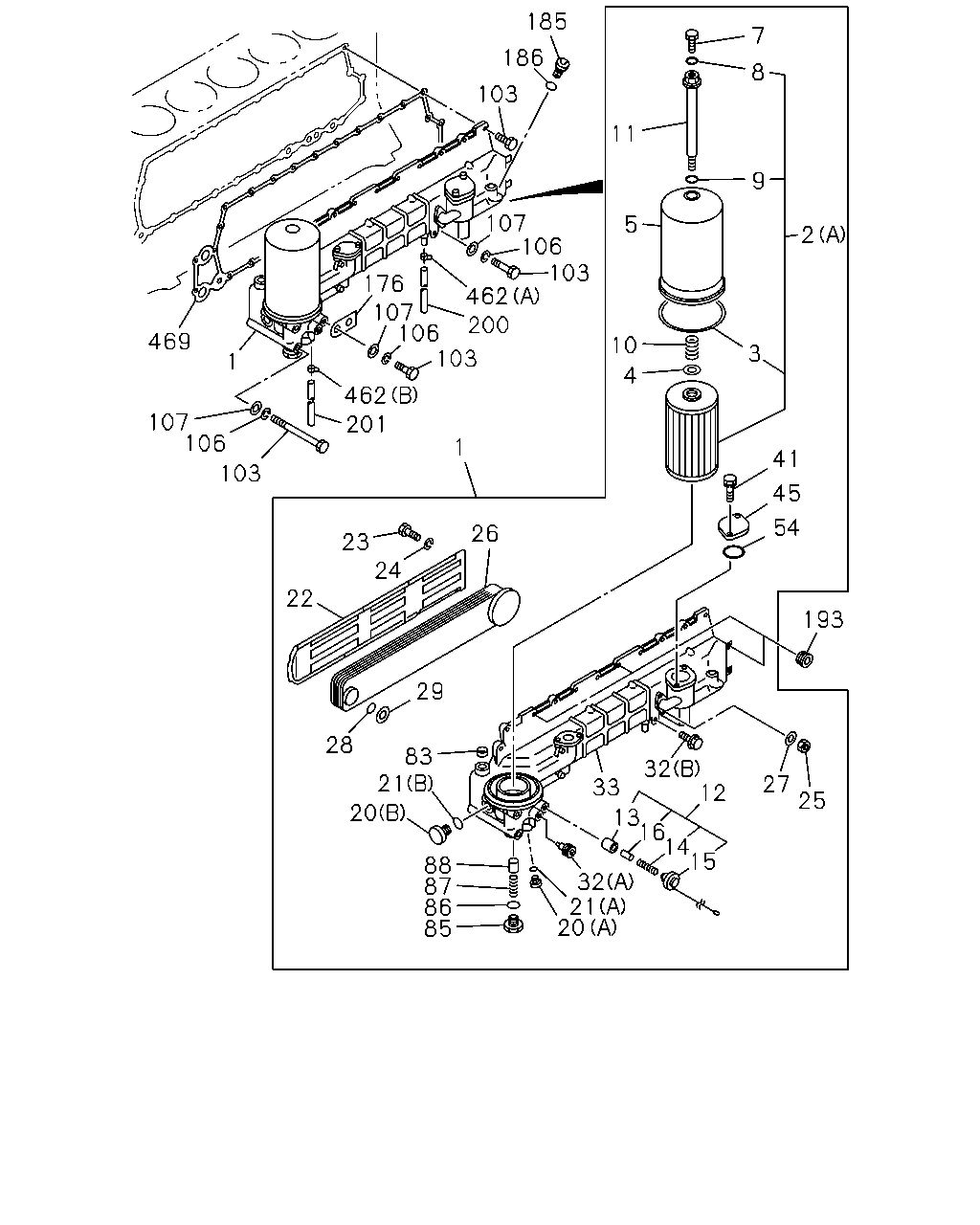

çizim 29910
185 7 186 8 103 11 9 107 106 103 5 2 176 107 106 103 462 200 469 10 3 1 4 462 107 106 201 1 41 103 45 54 26 23 24 22 193 29 28 83 21 32 12 27 25 33 20 13 16 14 15 88 87 86 85 32 21 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER & COOLER ASM; OIL 1-13200-904-0 01 1 9203- ● ●
2 ELEMENT; OIL FILTER
(B) 		1-13240-077-1 01 1 9203- ●
2 ELEMENT; OIL FILTER
(A) 		1-87810-075-2 01 1 9203- ● ●
3 GASKET 9-09920-311-0 01 1 9203- ● ●
4 WASHER; ELEMENT 1-13219-173-0 01 1 9203- ● ●
5 CASE; OIL FILTER 1-13211-125-1 01 1 9203- ● ●
7 PLUG; CENTER BOLT
M10 		1-09000-105-0 01 1 9203- ● ●
8 GASKET; PLUG
ID=9.8 		1-09623-055-0 01 1 9203- ● ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5 		9-09920-694-0 01 1 9203- ● ●
10 SPRING; ELEMENT 9-09941-283-0 01 1 9203- ● ●
11 BOLT; CENTER 1-13231-047-0 01 1 9203- ● ●
12 VALVE ASM; BYPASS 1-13260-070-0 01 1 9203- ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9203- ● ●
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 9203- ● ●
15 PLUG; RELIEF VLV 1-13265-021-0 01 1 9203- ● ●
16 VALVE ASM; RELIEF 1-13269-002-0 01 1 9203- ● ●
20 PLUG; COOLER BODY
(A) M20 		1-13219-152-0 03 1 9203- ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 02 1 9203- ● ●
21 GASKET; PLUG
(A) M20 		1-13219-158-0 03 1 9203- ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 02 1 9203- ● ●
22 GUIDE; WATER 1-13219-155-1 01 1 9203- ● ●
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 9203- ● ●
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 9203- ● ●
25 NUT; CORE TO BODY 1-21729-074-0 04 1 9203- ● ●
26 CORE ASM; OIL COOLER 1-21723-039-0 01 1 9203- ● ●
27 WASHER; PL,CORE TO BODY 1-21729-075-0 04 1 9203- ● ●
28 GASKET; CORE TO BODY 1-21729-076-0 02 1 9203- ● ●
29 GASKET; CORE TO BODY 1-21729-077-0 02 1 9203- ● ●
32 PLUG; DRAIN
(A) 		1-13219-151-0 01 1 9203- ● ●
32 PLUG; DRAIN
(B) 		1-13219-295-0 01 1 9203- ● ●
33 HOUSING ASM; COOLER 1-13211-176-2 01 1 9203- ● ●
41 BOLT; COVER FIX 1-13219-161-0 02 1 9203- ● ●
45 COVER; OIL PORT 1-13219-172-0 01 1 9203- ● ●
54 GASKET; OIL PIPE 1-13219-162-0 01 1 9203- ● ●
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 9203- ● ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9203- ● ●
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 9203- ● ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9203- ● ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9203- ● ●
103 BOLT; OIL COOLER
M8X28 W/LK&PL WASHER 		0-50140-828-0 24 1 9203- ● ●
103 BOLT; OIL COOLER
M8X138 		5-09000-031-1 02 1 9203- ● ●
103 BOLT; OIL COOLER
M8X155 		9-09801-275-0 02 1 9203- ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 9203- ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 9203- ● ●
176 BRACKET; HARNESS CLIP 1-82699-182-0 01 1 9203- ● ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 9203- ● ●
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 9203- ● ●
193 PLUG; TAPER
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9203- ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03157-300-0 01 1 9203- ● ●
201 PIPE; VINYL,OIL DRAIN
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 9203- ● ●
462 CLIP; HOSE,DRAIN
(A) 		1-09704-100-0 01 1 9203- ● ●
462 CLIP; HOSE,DRAIN
(B) ID=13.5 		8-97015-754-0 01 1 9203- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11219-159-0 01 1 9203- ● ●
çizim 96508
339 339 338 338 390 390 391 340 340 282 341 341 293 292 2 280 291 284 290 132
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER
(B) 		1-13240-077-1 01 1 9203- ●
2 ELEMENT; OIL FILTER
(A) 		1-87810-075-2 01 1 9203- ● ●
132 PLUG; PARTIAL OIL FILTER
M10 		1-09000-105-0 01 1 9203- ●
280 CASE ASM; OIL FILTER 1-13212-150-0 01 1 9203- ●
282 GASKET; BODY TO CASE
ID=27.7 		1-09623-170-0 01 1 9203- ●
284 BOLT; CENTER,OIL FILTER 1-13212-064-1 01 1 9203- ●
290 GASKET; PLUG,OIL DRAIN
ID=9.8 		1-09623-055-0 01 1 9203- ●
291 GASKET; OIL DRAIN,CENTER BOLT
ID=15.5 		9-09920-694-0 01 1 9203- ●
292 SPRING; ELEMENT 9-09941-283-0 01 1 9203- ●
293 SEAT; SPR 1-13219-173-0 01 1 9203- ●
338 FILTER ASM; OIL PARTIAL 1-13200-704-1 01 1 9203- ●
338 FILTER ASM; OIL PARTIAL 1-13200-744-0 01 1 9203- ●
339 BRACKET; PARTIAL OIL FILTER 1-19755-062-1 01 1 9203- ● ●
340 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 9203- ● ●
341 BOLT; OIL FILTER,PARTIAL
M10X35 W/LK&PL WASHER 		0-50141-035-0 03 1 9203- ● ●
390 BODY; OIL FILTER,PARTIAL 1-13212-141-0 01 1 9203- ●
390 BODY; OIL FILTER,PARTIAL 1-13212-089-2 01 1 9203- ●
391 CARTRIDGE; OIL FILTER,PARTIAL 1-13240-103-0 01 1 9203-9302 ●
391 CARTRIDGE; OIL FILTER,PARTIAL 1-13240-163-2 01 1 9303- ●
