Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

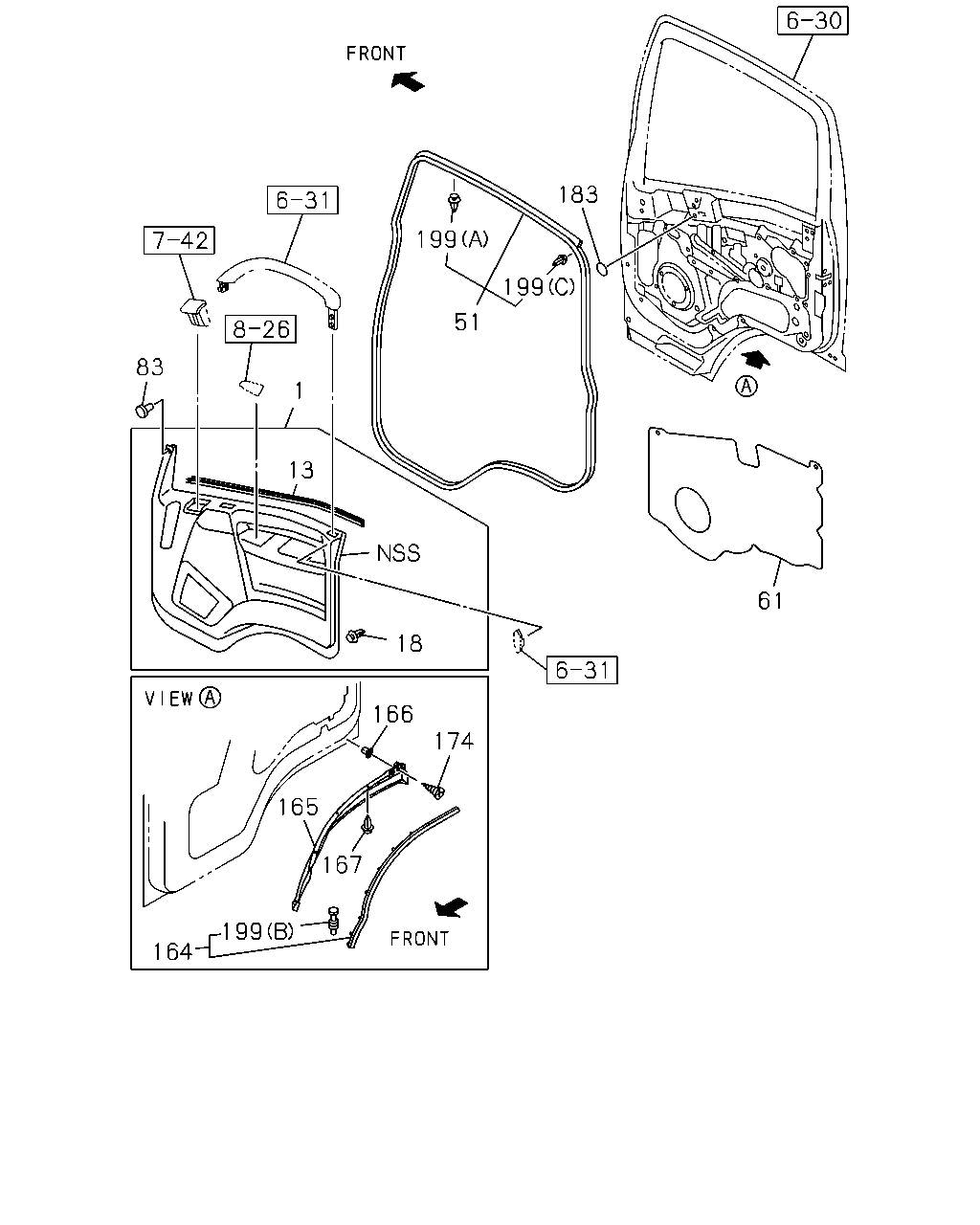

6-35 — FRONT DOOR TRIM
(#139697) — 20 parça
61
51
183
199
83
1
18
13
166
174
165
167
199
164
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
THA
8-97923-889-1
01
1
1405-
1
PAD; TRIM,FRT DOOR
THA
8-97923-890-1
01
1
1405-
13
SEAL; DOOR TRIM
THA
8-97923-891-0
01
1
1405-
13
SEAL; DOOR TRIM
THA
8-97923-892-0
01
1
1405-
18
CLIP; DOOR PAD
8-98004-025-0
14
1
1405-
51
WEATHERSTRIP; FRONT DOOR
THA
8-97926-952-0
01
1
1405-
51
WEATHERSTRIP; FRONT DOOR
THA
8-97927-014-0
01
1
1405-
61
SEAL; WATER,DOOR PAD
THA
8-97948-264-0
01
1
1405-
61
SEAL; WATER,DOOR PAD
THA
8-97948-265-0
01
1
1405-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
1405-
164
SEAL; SUB,SILL SIDE
8-98022-741-1
02
1
1405-
165
LINER; DOOR LWR
8-98022-738-1
01
1
1405-
165
LINER; DOOR LWR
8-98022-739-1
01
1
1405-
166
PLUG; HOLE
D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1405-
167
CLIP; LINER
D6X16 PUSH RIVET
1-09983-105-0
06
1
1405-
174
SCREW; LINER
T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
04
1
1405-
183
SEAL; LOCATION HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1405-
199
CLIP; SEAL
(B) NATURAL
8-98027-457-0
20
1
1405-
199
CLIP; SEAL
(A) NATURAL THA
8-98062-270-0
80
1
1405-
199
CLIP; SEAL
(C) RED THA
8-98062-271-0
02
1
1405-
