5-01 — FRAME AND OTHER PARTS
(#139684) — 63 parça
◀
[501A] FRAME ASM (2 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (12 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (12 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (18 parça)
[501A] RIVET,BOLT,NUT (19 parça)
▶

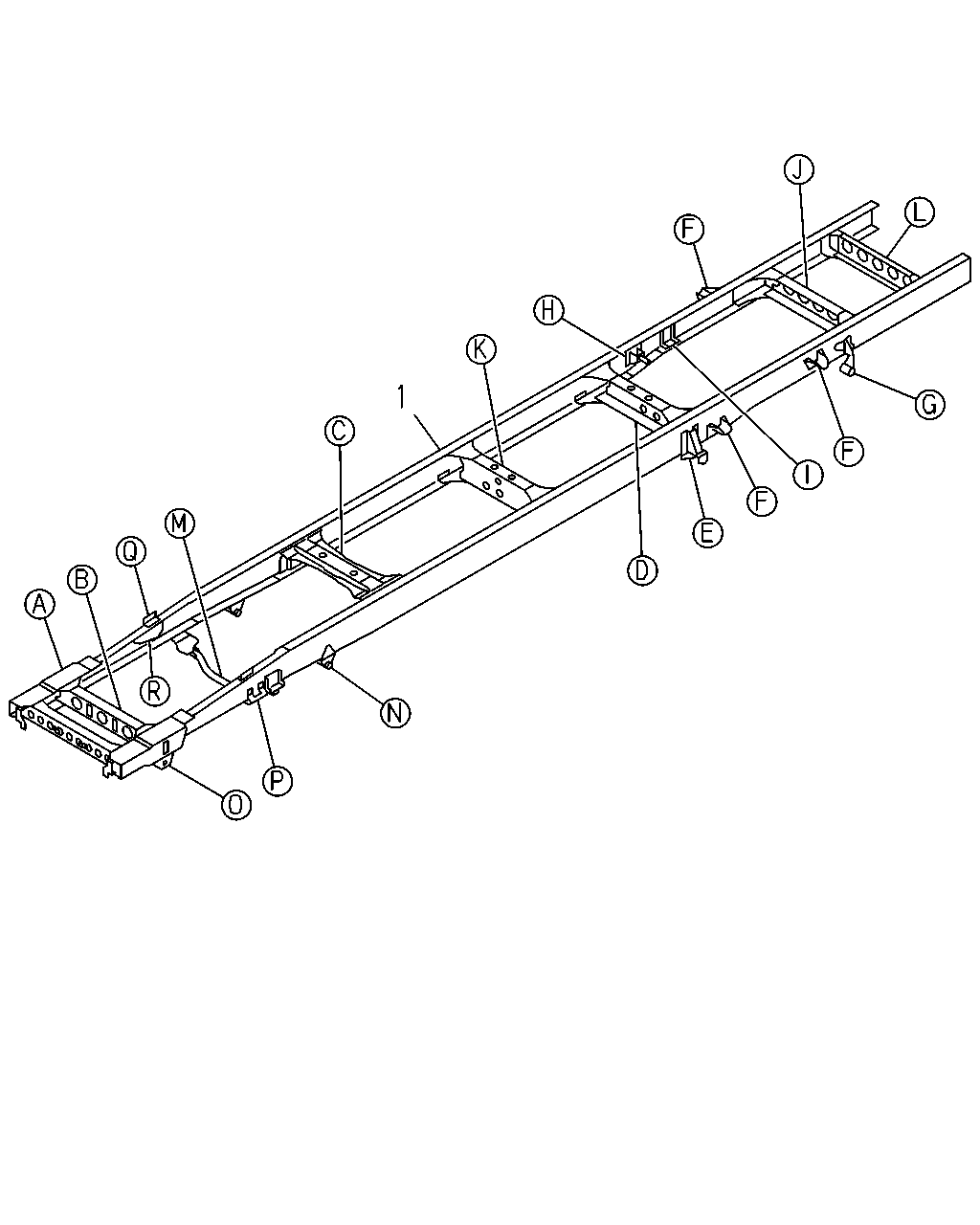

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME ASM
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> THA
8-97926-848-1
01
1
1405-
1
FRAME ASM
WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> THA
8-97926-849-1
01
1
1405-
140
198
139
198
217
201
130
201
344
74
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
GUSSET; 4TH C/MBR
4TH RH-UPPER,LH-LOWER THA
8-97924-484-0
02
1
1405-
74
GUSSET; 4TH C/MBR
4TH RH-LOWER,LH-UPPER THA
8-97924-485-0
02
1
1405-
74
GUSSET; 4TH C/MBR
5TH RH-LOWER,LH-UPPER THA
8-97924-484-0
02
1
1405-
74
GUSSET; 4TH C/MBR
5TH RH-UPPER,LH-LOWER THA
8-97924-485-0
02
1
1405-
130
MEMBER; CROSS,END
THA
8-97924-337-0
01
1
1405-
139
MEMBER; CROSS,6TH
THA
8-97924-335-0
01
1
1405-
140
BRACKET; S/ABS,RR
(A)
8-97080-884-1
02
1
1405-
140
BRACKET; S/ABS,RR
(B) THA
8-97302-511-0
02
1
1405-
198
GUSSET; 6TH C/MBR
THA
8-97924-336-0
02
1
1405-
201
GUSSET; C/MBR
THA
8-97924-338-0
02
1
1405-
217
BRACKET; HELPER RUBBER,RR SPRING
THA
8-97202-417-0
02
1
1405-
344
MEMBER; CROSS,4TH
THA
8-97924-330-0
01
1
1405-
423
423
42
51
51
31
31
39
103
141
141
140
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; FRT SPR,FRT
8-98015-274-0
02
1
1405-
31
BUSHING; FRT SPR,RR
THA
8-97184-699-1
04
1
1405-
39
BRACKET; FRT SPR,RR
8-98014-125-0
02
1
1405-
42
MEMBER; CROSS,ENG MTG
THA
8-97924-327-1
01
1
1405-
51
BRACKET; ENG SUPPORT,OUTER
8-98034-961-0
02
1
1405-
103
STOPPER; SUB SPR
(B)
8-97079-659-1
02
1
1405-
103
STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
1405-
140
BRACKET; S/ABS,RR
(A)
8-97080-884-1
02
1
1405-
140
BRACKET; S/ABS,RR
(B) THA
8-97302-511-0
02
1
1405-
141
STIFFENER
8-98064-354-1
01
1
1405-
141
STIFFENER
8-98064-355-1
01
1
1405-
423
PATCH
THA
8-97924-496-0
02
1
1405-
74
74
345
215
105
215
147
103
101
34
325
2
325
165

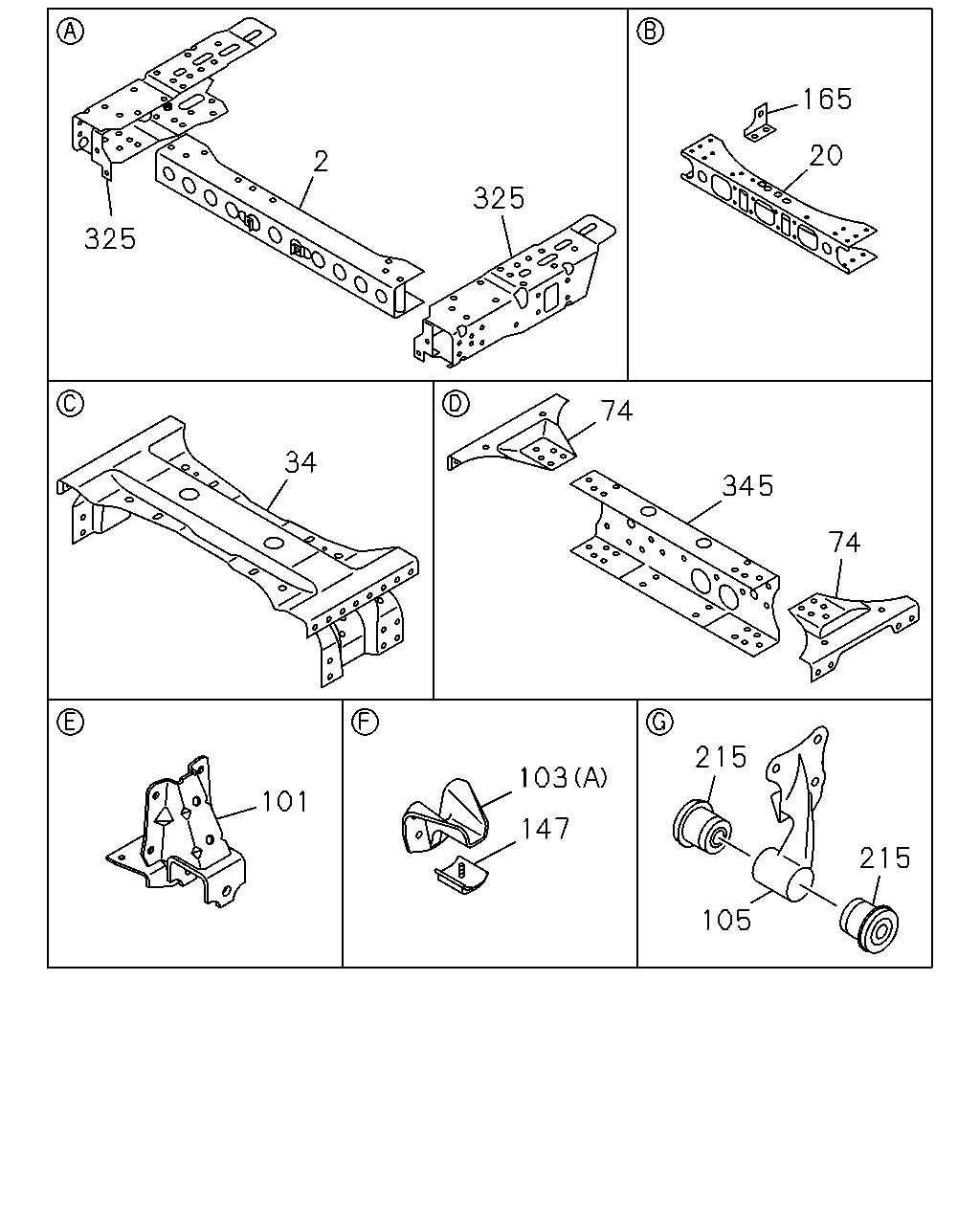

20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
THA
8-97925-349-0
01
1
1405-
20
MEMBER; CROSS,2ND
THA
8-97925-350-0
01
1
1405-
34
MEMBER; CROSS,3RD
THA
8-97924-328-2
01
1
1405-
74
GUSSET; 4TH C/MBR
4TH RH-UPPER,LH-LOWER THA
8-97924-484-0
02
1
1405-
74
GUSSET; 4TH C/MBR
4TH RH-LOWER,LH-UPPER THA
8-97924-485-0
02
1
1405-
74
GUSSET; 4TH C/MBR
5TH RH-LOWER,LH-UPPER THA
8-97924-484-0
02
1
1405-
74
GUSSET; 4TH C/MBR
5TH RH-UPPER,LH-LOWER THA
8-97924-485-0
02
1
1405-
101
BRACKET; RR SPR,FRT
8-97042-245-1
02
1
1405-
103
STOPPER; SUB SPR
(B)
8-97079-659-1
02
1
1405-
103
STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
1405-
105
BRACKET; RR SPR,RR
8-98032-488-0
01
1
1405-
105
BRACKET; RR SPR,RR
8-98032-489-0
01
1
1405-
147
RUBBER; SUB SPRING
8-97254-387-0
04
1
1405-
165
BRACKET; RAD STAY
8-98000-886-0
01
1
1405-
215
BUSHING; BRKT,RR SPRING
THA
8-97184-699-1
04
1
1405-
325
EXTENSION; FRAME
8-98073-344-1
01
1
1405-
325
EXTENSION; FRAME
8-98073-345-0
01
1
1405-
345
MEMBER; CROSS,5TH
THA
8-97924-330-0
01
1
1405-
376
376
376
376
376
376
376
376
376
376
376
221
176
316
296
317
67
222
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
NUT; C/MBR
M10 FLANGE THA
0-91180-210-0
18
1
1405-
118
NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
02
1
1405-
176
BOLT; C/MBR,ENG MTG
M10X30 FLANGE
0-28051-030-0
08
1
1405-
221
BOLT; RAD MTG BRKT,FRAME
M8X25 FLANGE THA
0-28650-825-0
02
1
1405-
222
NUT; RAD MTG BRKT,FRAME
M8 FLANGE THA
0-91180-208-0
02
1
1405-
296
BOLT; 3RD C/MBR
M10X30 FLANGE THA
0-28651-030-0
16
1
1405-
316
BOLT; STIFFENER
M12X35 W/LK WASHER
0-50541-235-0
16
1
1405-
317
NUT; STIFFENER
M12 FLANGE THA
0-91180-212-0
16
1
1405-
376
RIVET; FRAME
(A) D8X24 TAPER END
9-06750-824-0
AR
1
1405-
376
RIVET; FRAME
(B) D10X24 TAPER END
9-06751-024-0
AR
1
1405-
376
RIVET; FRAME
(C) D10X26 TAPER END
9-06751-026-0
AR
1
1405-
376
RIVET; FRAME
(D) D10X28 TAPER END
9-06751-028-0
AR
1
1405-
376
RIVET; FRAME
(E) D10X32 TAPER END
9-06751-032-0
AR
1
1405-
376
RIVET; FRAME
(F) D10X36 TAPER END
9-06751-036-0
AR
1
1405-
376
RIVET; FRAME
(G) D11X26 TAPER END
9-06751-126-0
AR
1
1405-
376
RIVET; FRAME
(H) D11X30 TAPER END
9-06751-130-0
AR
1
1405-
376
RIVET; FRAME
(I) D12X30 TAPER END
9-06751-230-0
AR
1
1405-
376
RIVET; FRAME
(J) D12X36 TAPER END
9-06751-236-0
AR
1
1405-
376
RIVET; FRAME
(K) D12X40 TAPER END
9-06751-240-0
AR
1
1405-
