4-65 — REAR LEAF SPRING (#139682) — 23 parça

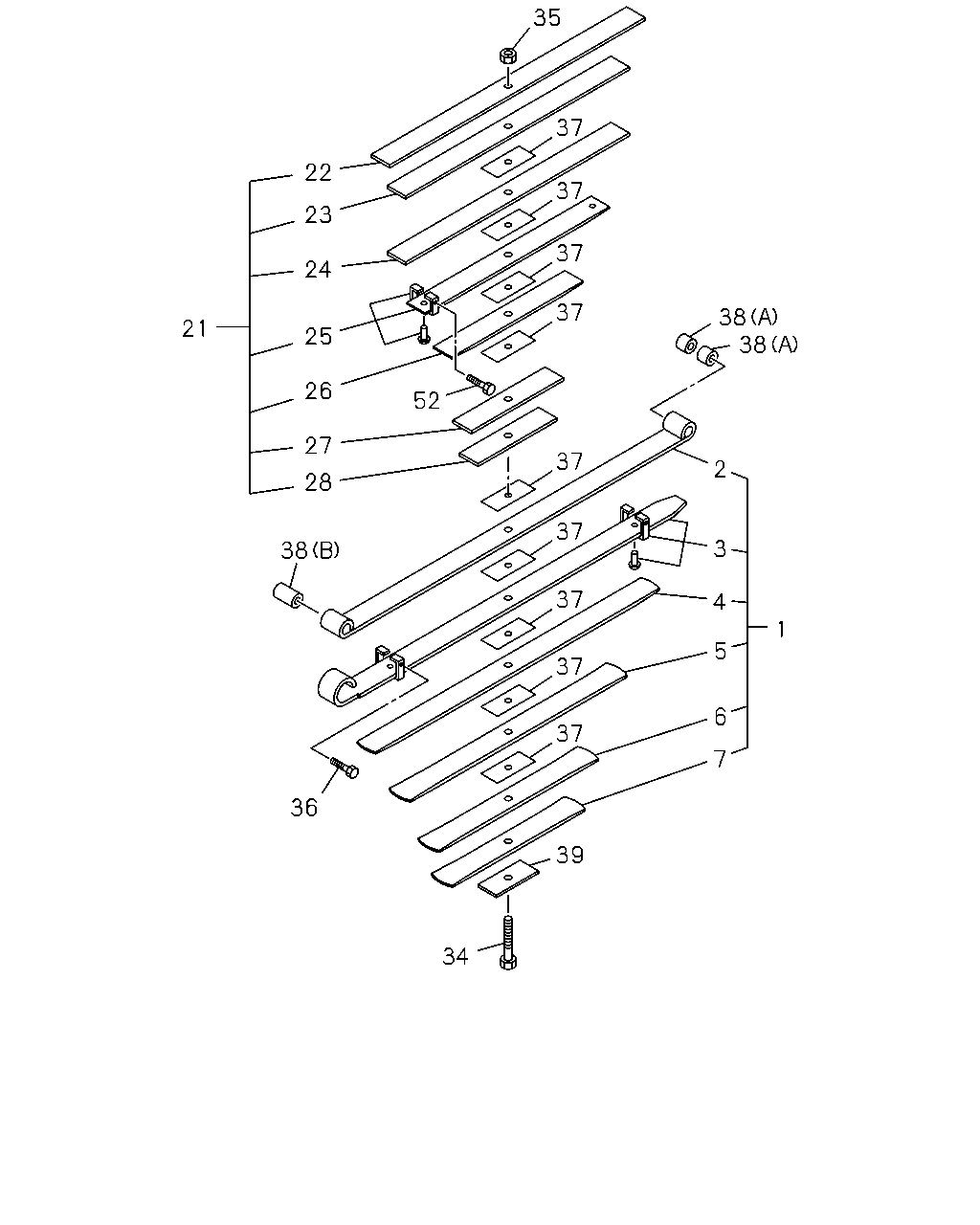

çizim 421463
21 22 23 24 25 26 27 28 38 36 52 35 37 37 37 37 38 38 37 37 37 37 37 39 2 3 4 5 6 7 1 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97924-380-0 		8-97924-552-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97924-380-0 		8-98094-384-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97924-380-0 		8-97924-437-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97924-380-0 		8-98094-386-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-97924-380-0 		8-98094-387-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-97924-380-0 		8-98094-388-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 8-97924-380-0 		8-98094-389-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-97924-553-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-98094-391-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-98094-392-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-98094-393-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-97924-438-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-98094-395-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-98094-396-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-98094-397-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=165, THA ASM PART: A = 8-97924-380-0 		8-98040-310-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97924-380-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
THA ASM PART: A = 8-97924-380-0 		8-98040-332-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1, THA ASM PART: A = 8-97924-380-0 		8-97084-102-0 09 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=40 L=43.7 ASM PART: A = 8-97924-380-0 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97924-380-0 		8-97074-826-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=8, THA ASM PART: A = 8-97924-380-0 		8-98040-779-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
THA ASM PART: A = 8-97924-380-0 		8-98040-332-0 01 1 -
