Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

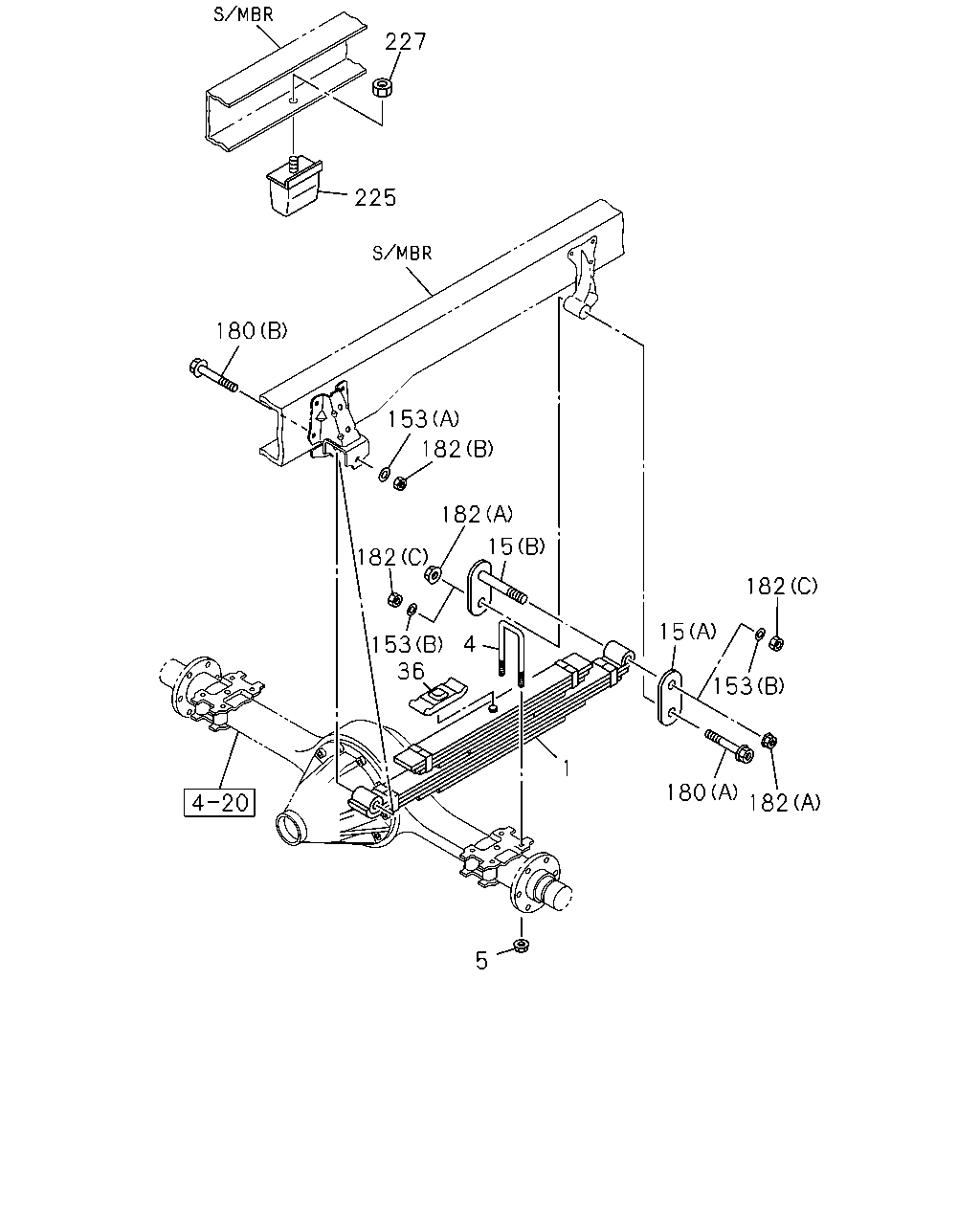

4-60 — REAR SUSPENSION
(#139680) — 17 parça
227
225
180
153
182
182
15
182
153
36
4
15
182
153
180
182
1
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 13-LEAF THA
8-97924-380-0
02
1
1405-
4
U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ> L=345 THA
8-97948-473-0
04
1
1405-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
1405-
15
SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
1405-
15
SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
1405-
36
SEAT; HELPER RUBBER,RR SPR
1-51372-059-0
02
1
1405-
153
WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5
8-98011-489-0
04
1
1405-
153
WASHER; PL,SPRING PIN
(A) ID=19
8-97360-119-0
02
1
1405-
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122
8-98011-487-0
02
1
1405-
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130
8-98011-488-0
02
1
1405-
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE
8-97360-110-0
02
1
1405-
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97360-112-0
02
1
1405-
182
NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 THA
0-91110-516-0
04
1
1405-
182
NUT; PIN,RR SPR
(B) M18 THA
0-91110-518-0
02
1
1405-
182
NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE
8-97360-125-0
04
1
1405-
225
RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ>
8-98187-342-0
02
1
1405-
227
NUT; CUSHION RUBBER
M12 FLANGE THA
0-91180-112-0
02
1
1405-
