4-42 — POWER STEERING OIL PUMP (#139677) — 14 parça
çizim 421085
1 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-98165-116-2 		8-98058-096-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98165-116-2 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98165-116-2 		8-97075-581-0 01 1 -

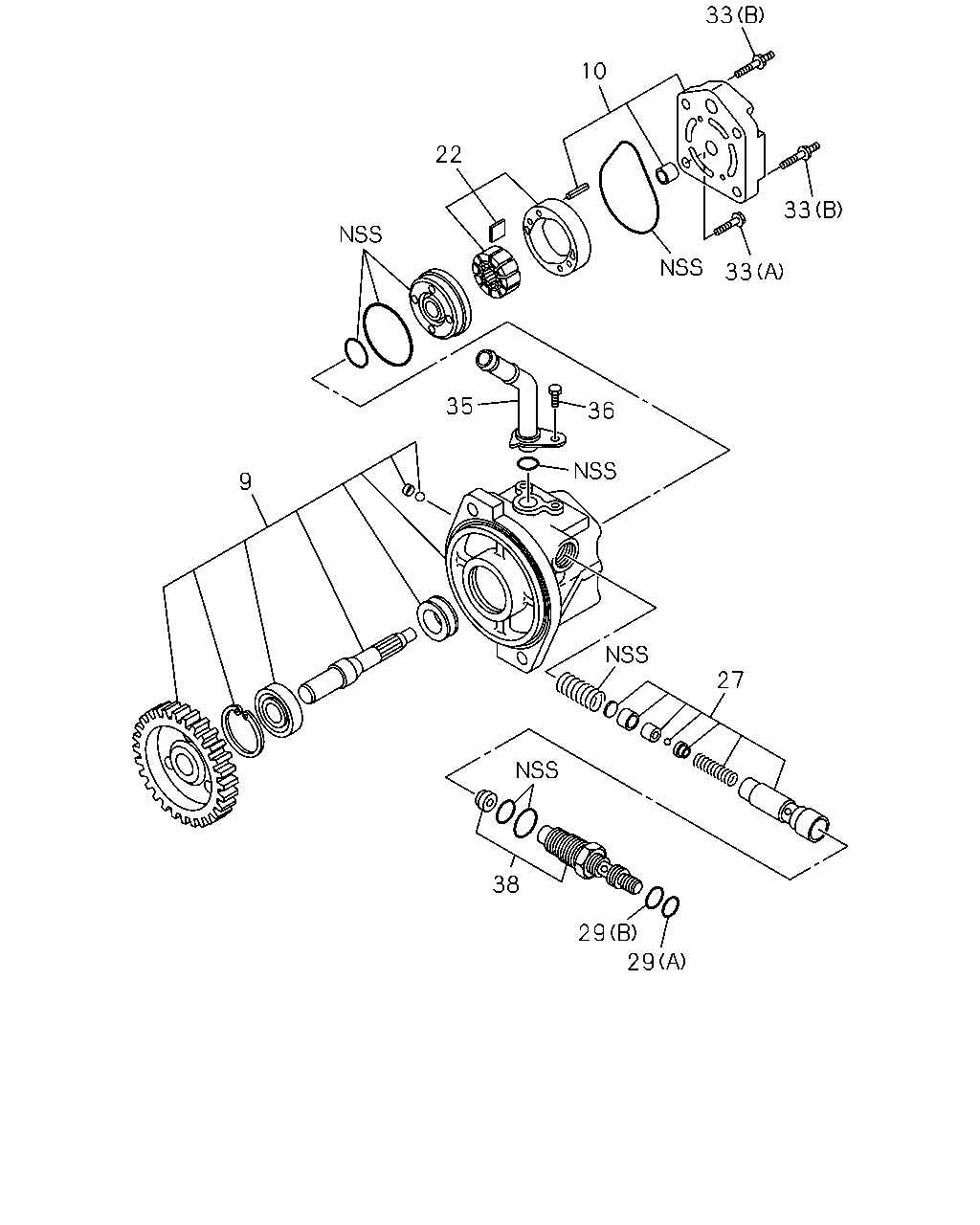

çizim 421453
33 33 33 10 22 9 35 36 27 29 29 38
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98165-116-2 		8-98058-097-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98165-116-2 		8-98116-059-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98165-116-2 		8-98216-517-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-98165-116-2 		8-98058-091-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98165-116-2 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98165-116-2 		8-97075-581-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 8-98165-116-2 		8-97184-761-0 02 1 -
33 BOLT; COVER
(B) ASM PART: A = 8-98165-116-2 		8-97184-762-0 02 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98165-116-2 		8-98078-235-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 8-98165-116-2 		8-97184-763-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 8-98165-116-2 		8-97093-504-0 01 1 -
