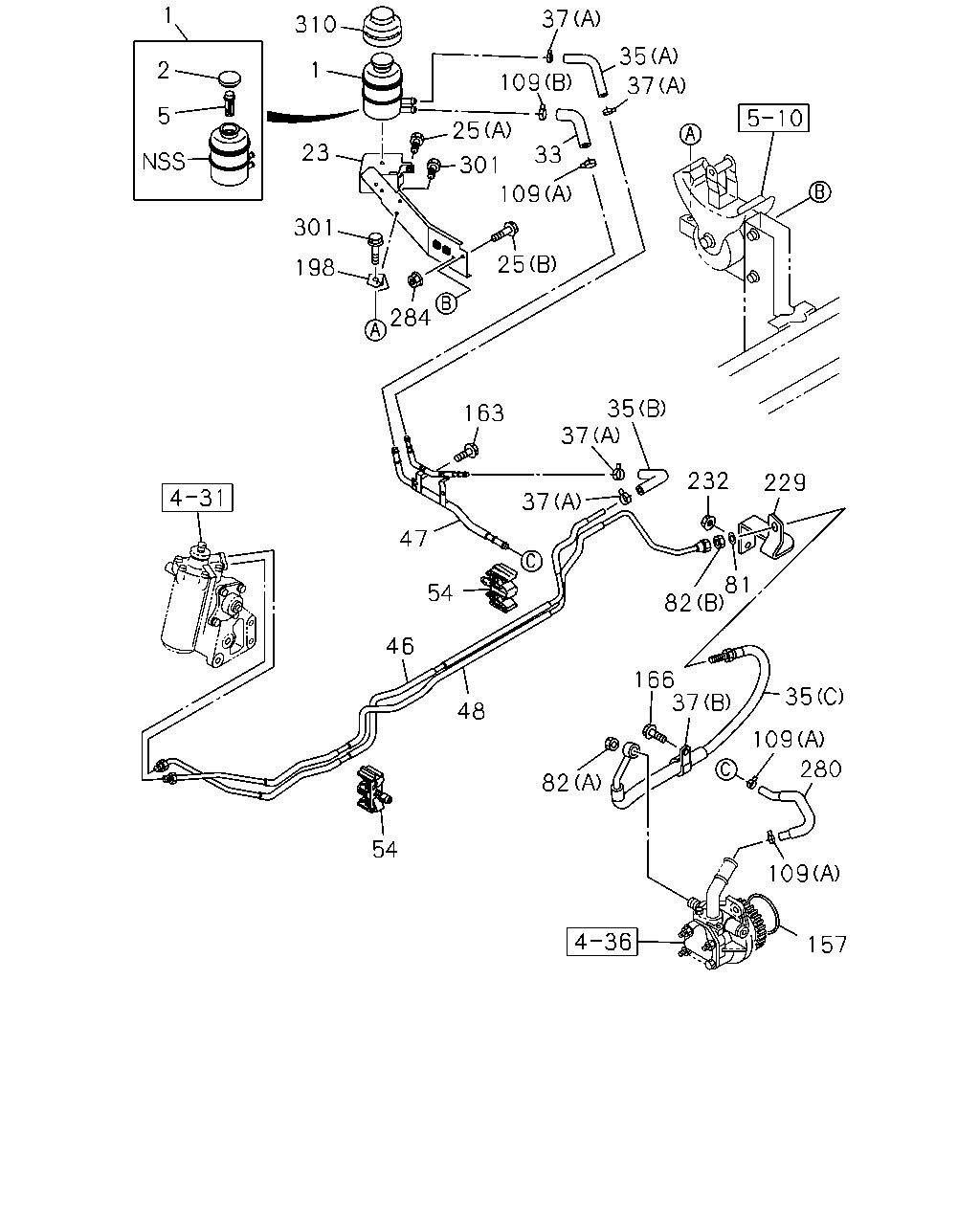

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#139674) — 31 parça

1 2 23 1 310 37 109 25 109 33 301 35 163 47 37 37 35 232 229 81 82 166 82 37 35 109 280 109 157 48 54 46 54 284 198 301 37 25 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1405-
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1405-
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1405-
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1405-
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1405-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1405-
33	HOSE; RUBBER,POWER STRG THA	8-97389-811-0	01	1	1405-
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1405-
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1405-
35	HOSE; RETURN,P/S TANK (C) THA	8-97948-691-0	01	1	1405-
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1405-
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1405-
46	PIPE; OIL,P/S UNIT TO OIL TANK THA	8-98041-184-3	01	1	1405-
47	PIPE; RETURN THA	8-98083-166-1	01	1	1405-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT THA	8-98041-185-4	01	1	1405-
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	1405-
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1405-
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1405-
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1405-
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1405-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	03	1	1405-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1405-
163	BOLT; OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1405-
166	BOLT; CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	1405-
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1405-
229	BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1405-
232	NUT; BRKT M10 FLANGE THA	0-91180-110-0	01	1	1405-
280	HOSE; P/S OIL PUMP,INL	8-98111-786-0	01	1	1405-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	01	1	1405-
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	1405-
310	COVER; OIL TANK	8-97103-394-0	01	1	1405-
