◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51510 - NPR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#139665) — 24 parça

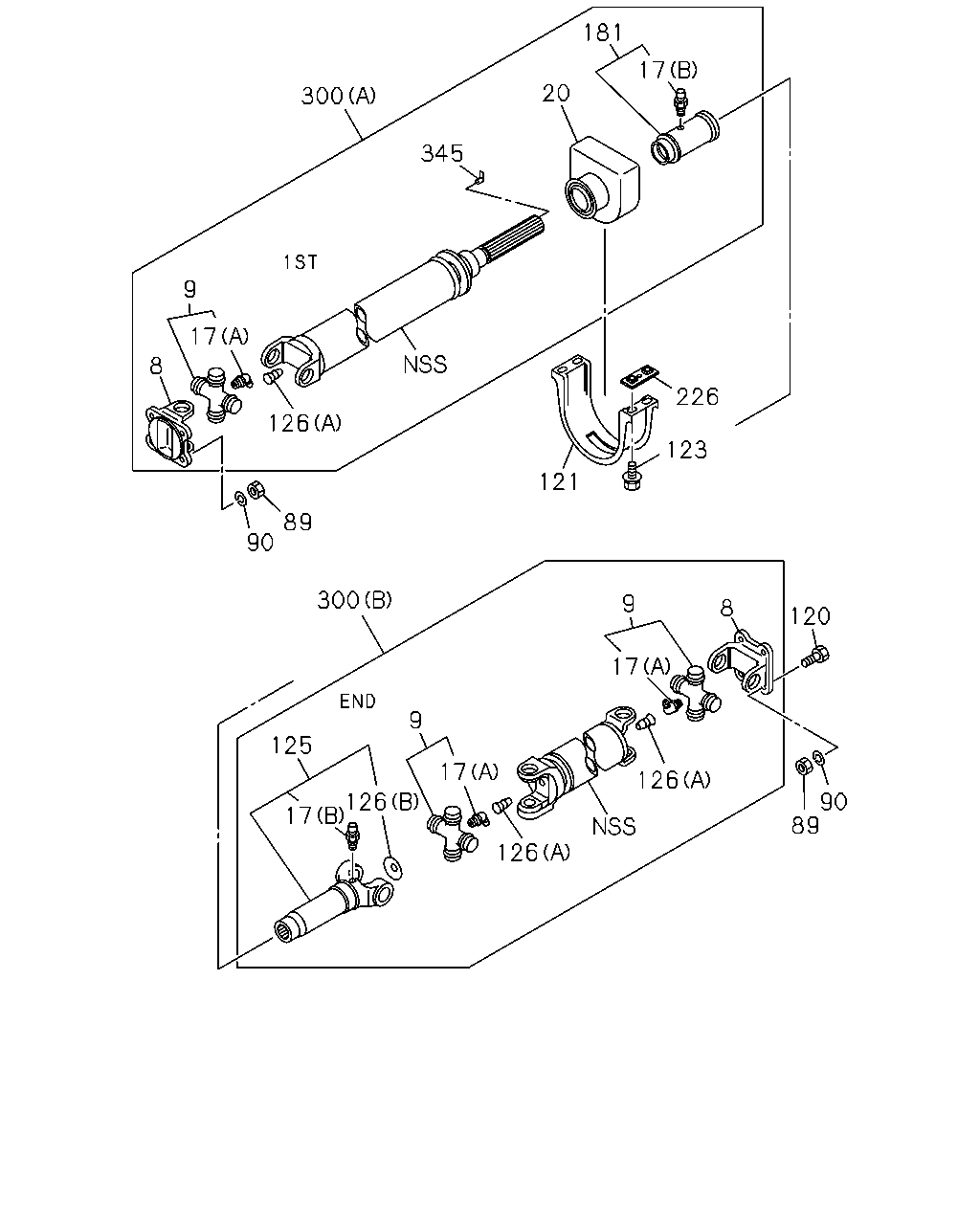

çizim 421571
300 181 17 20 345 9 8 126 17 90 226 123 121 300 89 125 17 126 17 9 126 126 17 9 8 120 90 89
BalonParca AdiParca NoAdetTipApplied Date
8 YOKE; FLANGE,PROP SHAFT
THA 		8-97322-663-0 01 1 1405-
8 YOKE; FLANGE,PROP SHAFT
THA 		8-97322-663-0 01 1 1405-
9 JOURNAL ASM; PROP SHAFT
THA 		8-98033-605-1 01 1 1405-
9 JOURNAL ASM; PROP SHAFT
THA 		8-98033-605-1 02 1 1405-
17 NIPPLE; GREASE,PROP SHAFT
(B) M6 STRAIGHT THA 		0-90301-406-0 02 1 1405-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 1405-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 02 1 1405-
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98033-936-0 01 1 1405-
89 NUT; YOKE TO RR AXLE
M12 		8-97365-450-1 08 1 1405-
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 		0-91510-812-0 08 1 1405-
120 BOLT; YOKE TO RR AXLE
M12X35 		8-97365-451-1 04 1 1405-
121 RETAINER; CUSHION RUBBER 8-97035-623-1 01 1 1405-
123 BOLT; RET
M10X25 W/LK&PL WASHER 		0-50641-025-0 04 1 1405-
125 YOKE ASM; SPLINED,PROP SHAFT
L=183 THA 		8-98033-647-2 01 1 1405-
126 PLUG; SPLINED YOKE
(A) THA 		1-09600-023-0 01 1 1405-
126 PLUG; SPLINED YOKE
(A) THA 		1-09600-023-0 02 1 1405-
126 PLUG; SPLINED YOKE
(B) THA 		8-94366-900-0 01 1 1405-
181 COVER; BRG,PROP SHAFT
THA 		8-98046-526-0 01 1 1405-
226 PLATE; LK,CENTER BRG 8-97371-572-0 02 1 1405-
300 SHAFT ASM; PROP,RR
WHEEL BASE 3400MM<34W> (A) L=745 THA 		8-98113-042-1 01 1 1405-
300 SHAFT ASM; PROP,RR
WHEEL BASE 3400MM<34W> (B) L=1026 THA 		8-98113-045-2 01 1 1405-
300 SHAFT ASM; PROP,RR
WHEEL BASE 3800MM<38W> (B) L=1036 THA 		8-98107-140-2 01 1 1405-
300 SHAFT ASM; PROP,RR
WHEEL BASE 3800MM<38W> (A) L=1185 THA 		8-98113-043-1 01 1 1405-
345 PLUG; PROP SHAFT
THA 		8-98042-692-0 01 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
