51510 - NPR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

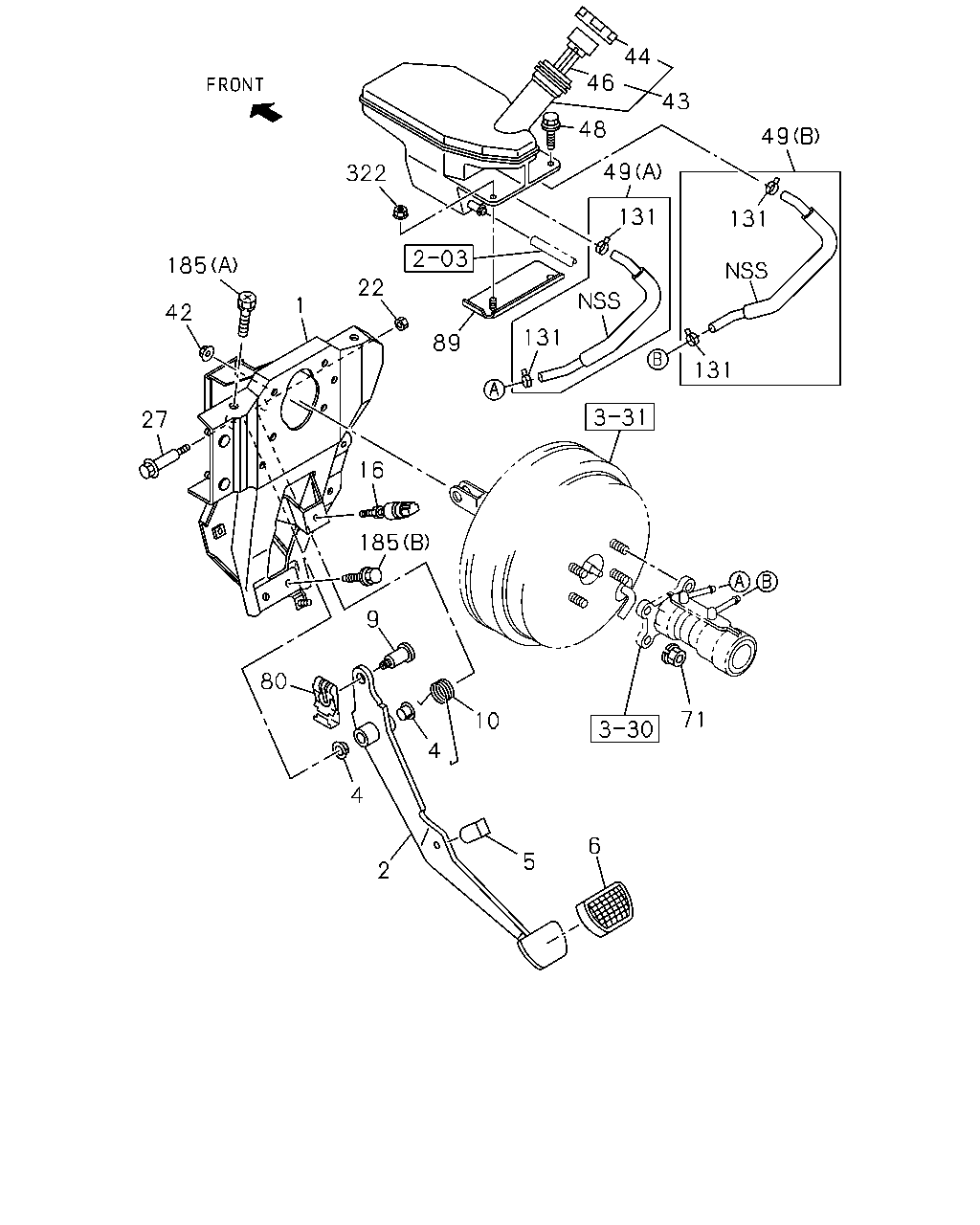

3-10 — BRAKE PEDAL AND CONTROL
(#139655) — 24 parça
22
322
48
46
44
49
131
131
16
185
185
42
27
80
4
4
2
10
5
71
6
89
131
131
43
49
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-98029-185-1
01
1
1405-
2
PEDAL; BRK
8-98003-157-0
01
1
1405-
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
1405-
5
STOPPER; BRK PEDAL
8-98029-187-0
01
1
1405-
6
COVER; BRK PEDAL
8-97853-413-2
01
1
1405-
9
PIN; JAW JOINT
8-98147-657-0
01
1
1405-
10
SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
1405-
16
SWITCH; STOP LAMP
8-98000-028-0
01
1
1405-
22
NUT; SHAFT
M10 LOCK NUT FLANGE THA
0-91380-010-0
01
1
1405-
27
SHAFT; BRK PEDAL
8-97866-667-0
01
1
1405-
42
NUT; BRK PEDAL
M8 W/LK WASHER
8-94279-050-0
04
1
1405-
43
TANK ASM; OIL
8-97387-217-3
01
1
1405-
44
CAP; OIL TANK
8-98022-268-0
01
1
1405-
46
FILTER; RESERVOIR,BRK
8-98022-269-0
01
1
1405-
48
BOLT; OIL TANK TO BRKT
M6X20 W/PL WASHER THA
8-97370-668-0
01
1
1405-
49
HOSE; OIL TANK TO BRK M/CYL
(A)
8-97387-666-1
01
1
1405-
49
HOSE; OIL TANK TO BRK M/CYL
(B)
8-97387-667-1
01
1
1405-
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
04
1
1405-
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
1405-
89
BRACKET; M/CYL
8-98014-337-1
01
1
1405-
131
CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
8-98031-178-0
04
1
1405-
185
BOLT; BRKT
(A) M10X25 FLANGE THA
0-28661-025-0
02
1
1405-
185
BOLT; BRKT
(B) M10X22 W/PL WASHER
8-97313-188-0
02
1
1405-
322
NUT; OIL TANK
M6 FLANGE THA
0-91180-106-0
01
1
1405-
