2-26 — MANUAL TRANSMISSION GEAR (#139647) — 84 parça
çizim 420035
118 115 506 508 423 528 527 408 529 300 408 268 408 510 93 507 511 135 314 132 108 480 325 507
BalonParca AdiParca NoAdetTipApplied Date
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1405-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1405-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1405-
108 SHAFT; COUNTER
Z=47-39-33-20 		8-97380-627-1 01 1 1405-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1405-
118 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 1405-
132 SHAFT; REV 8-97252-655-0 01 1 1405-
135 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1405-
268 PLATE; ANTI LASH,COUNTER 8-97252-684-1 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.8 		8-97254-728-0 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 1405-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 1405-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1405-
408 SPRING
(B) 		8-94148-196-0 03 1 1405-
408 SPRING
(A) 		8-97366-040-1 04 1 1405-
423 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 1405-
480 WASHER; THRUST,6TH 8-97253-123-1 01 1 1405-
506 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 1405-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1405-
508 RING; BLOCK,6TH
Z=45 		8-97309-532-0 01 1 1405-
510 PIN; STRAIGHT,ANTI LASH 9-08160-825-0 03 1 1405-
511 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1405-
527 INSERT; 6TH 8-94448-202-2 03 1 1405-
528 SLEEVE; 6TH
Z=45 		8-94421-871-1 01 1 1405-
529 PLATE; STOPPER,6TH 8-97248-952-0 01 1 1405-

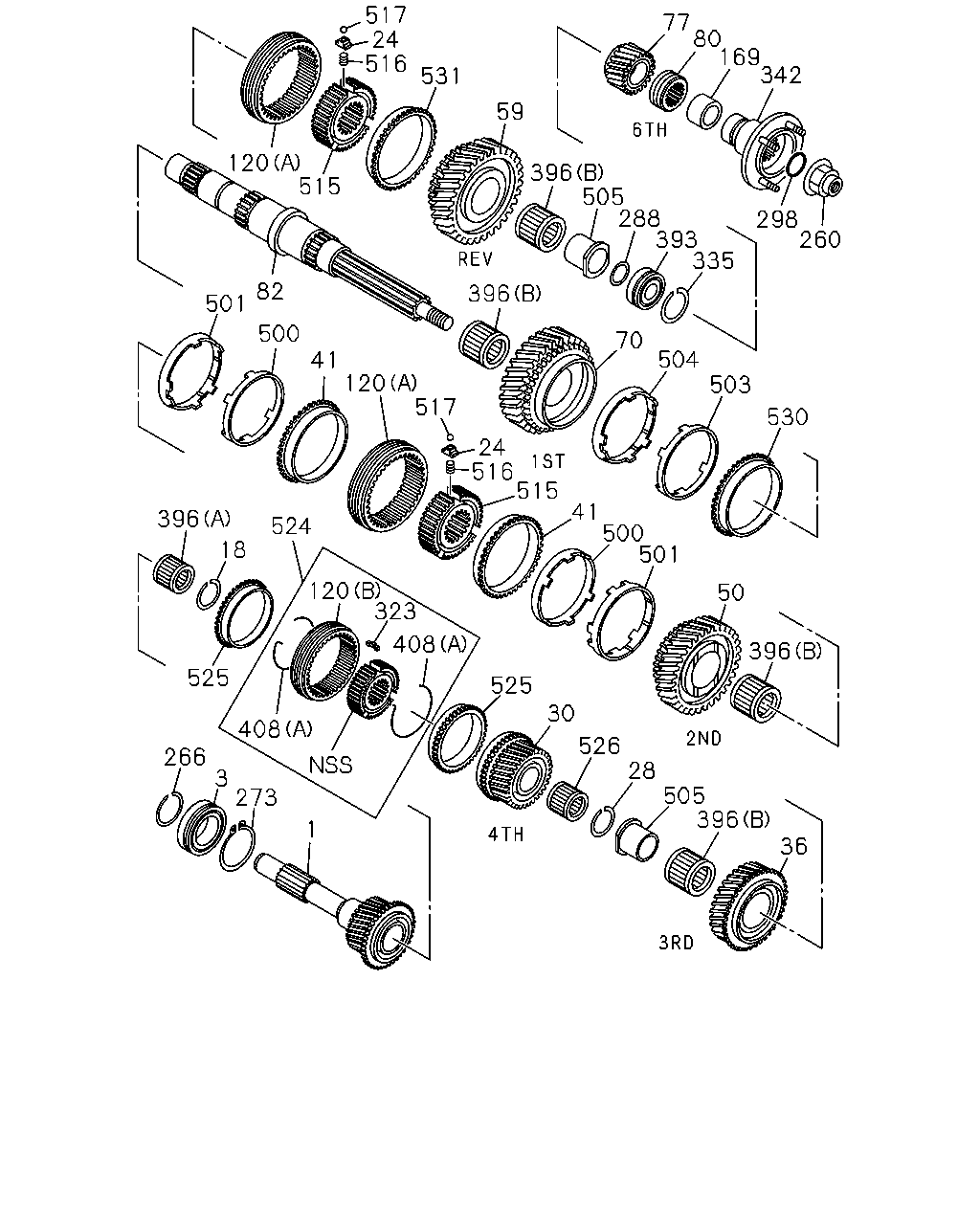

çizim 421277
36 396 505 28 526 30 525 408 323 120 525 408 1 273 3 266 18 524 396 501 82 500 41 120 120 515 517 24 516 531 59 396 396 517 24 516 515 41 500 501 50 396 530 503 504 70 335 393 288 505 77 80 169 342 260 298
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=26 		8-98021-266-0 01 1 1405-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1405-
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1405-
24 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1405-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1405-
30 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 1405-
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1405-
41 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1405-
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1405-
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1405-
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1405-
77 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 1405-
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1405-
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 1405-
120 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1405-
120 SLEEVE
(B) Z=45 		8-94421-871-1 01 1 1405-
169 COLLAR; MAINSHAFT 8-97252-937-1 01 1 1405-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 1405-
266 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1405-
273 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1405-
288 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1405-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1405-
323 INSERT 8-94448-202-2 03 1 1405-
335 RING; SNAP,BEARING 8-97254-722-0 01 1 1405-
342 FLANGE; OUTPUT 8-98031-640-0 01 1 1405-
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1405-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1405-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1405-
408 SPRING
(B) 		8-94148-196-0 03 1 1405-
408 SPRING
(A) 		8-97366-040-1 04 1 1405-
500 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1405-
501 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1405-
503 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1405-
504 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1405-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 1405-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1405-
516 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1405-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1405-
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1405-
525 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1405-
526 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1405-
530 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1405-
531 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1405-
