2-05 — CLUTCH PIPING (#139641) — 12 parça

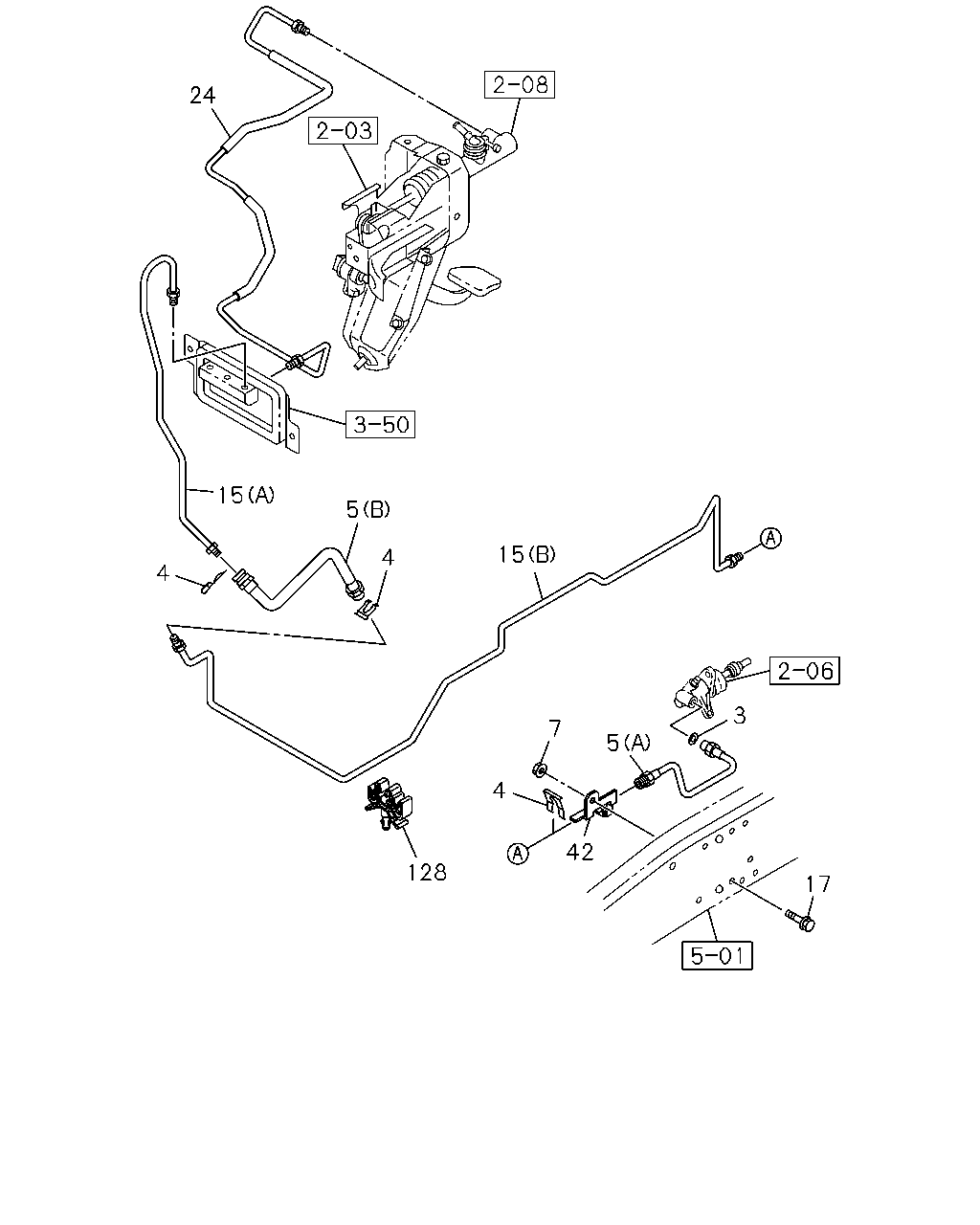

çizim 420878
24 15 5 4 4 128 4 7 5 42 3 17 15
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 1405-
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 01 1 1405-
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 1405-
5 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 1405-
5 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1405-
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 01 1 1405-
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98100-236-0 01 1 1405-
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98250-269-0 01 1 1405-
17 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1405-
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-98077-617-0 01 1 1405-
42 BRACKET; FLEX HOSE,CLU CONT 8-98102-893-0 01 1 1405-
128 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1405-
