2-03 — CLUTCH PEDAL AND CONTROL (#139640) — 20 parça

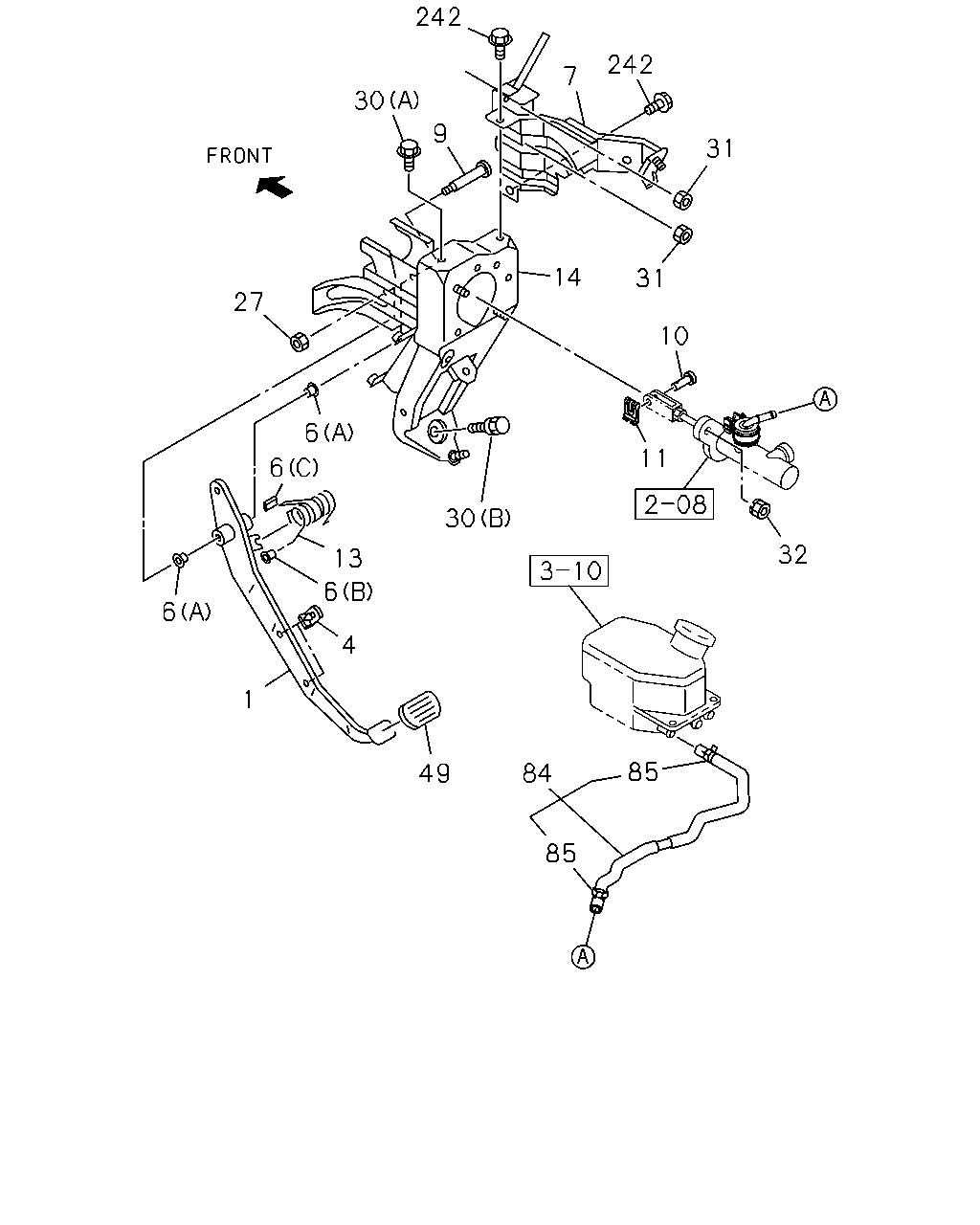

çizim 420797
242 30 9 27 6 6 13 6 4 1 6 49 84 85 85 32 11 10 31 31 14 30 7 242
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU 8-98034-754-0 01 1 1405-
4 STOPPER; CLU PEDAL
THA 		8-97853-534-1 02 1 1405-
6 BUSHING; CLU PEDAL
(A) 		8-94238-596-0 02 1 1405-
6 BUSHING; CLU PEDAL
(B) 		8-97853-619-0 02 1 1405-
6 BUSHING; CLU PEDAL
(C) 		8-97853-620-0 01 1 1405-
7 BRACKET; CLU PEDAL 8-98029-186-4 01 1 1405-
9 PIN; CLU PEDAL 8-97866-667-0 01 1 1405-
10 PIN; CLU PEDAL 8-98147-657-0 01 1 1405-
11 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1405-
13 SPRING; ASSIST,CLU PEDAL 8-98034-014-0 01 1 1405-
14 BRACKET ASM; CLU PEDAL MTG 8-98034-750-0 01 1 1405-
27 NUT; FULCRUM PIN
M10 LOCK NUT FLANGE THA 		0-91380-010-0 01 1 1405-
30 BOLT; CLU MTG BRKT
(A) M10X25 FLANGE THA 		0-28661-025-0 01 1 1405-
30 BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1405-
31 NUT; MTG BRKT TO BODY
M8 W/LK WASHER 		8-94279-050-0 02 1 1405-
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1405-
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1405-
84 HOSE; RUBBER,CLU LINE 8-98218-207-0 01 1 1405-
85 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1405-
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28450-816-0 02 1 1405-
