Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#139634) — 130 parça
◀

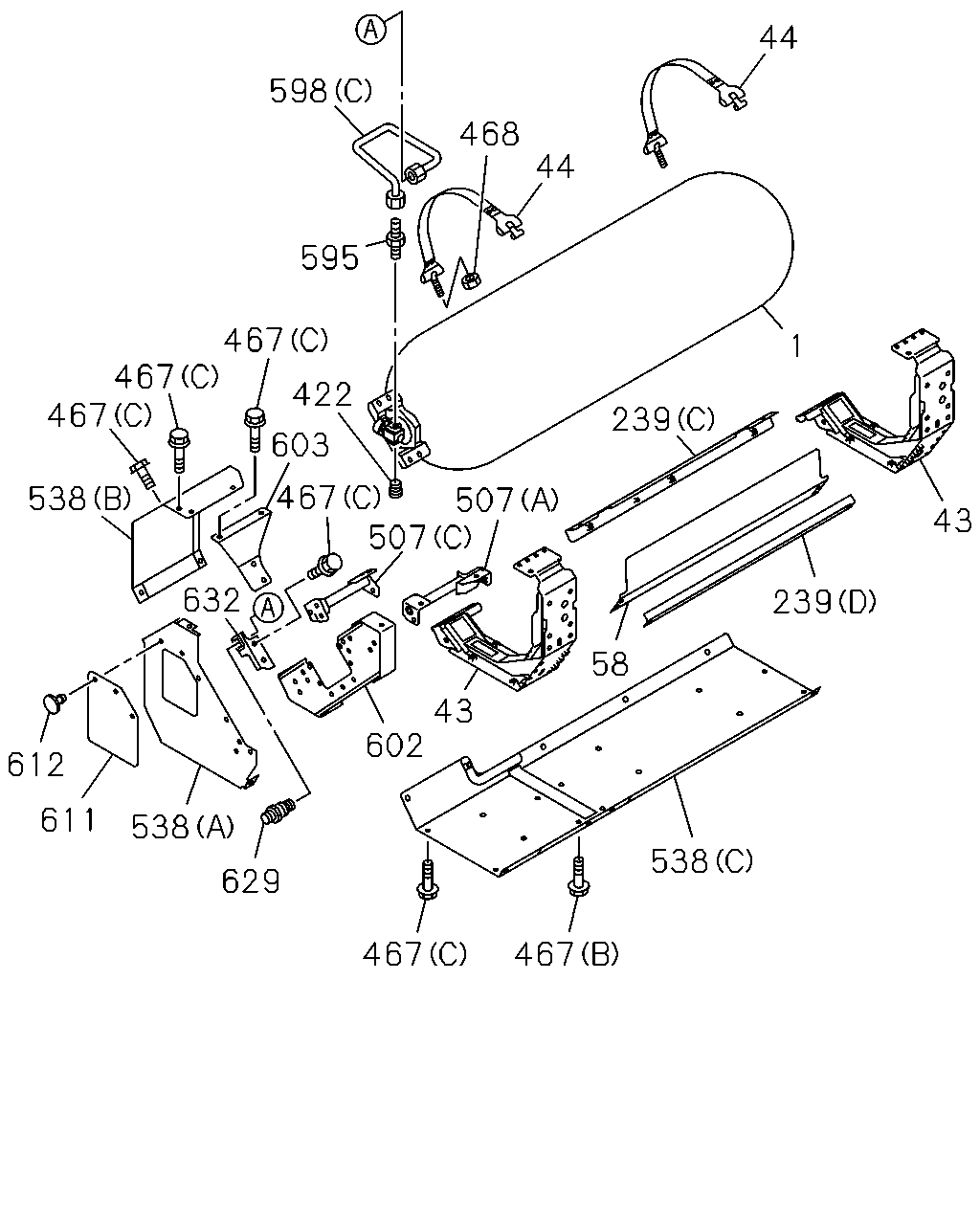

[140A] RH TANK (45 parça)

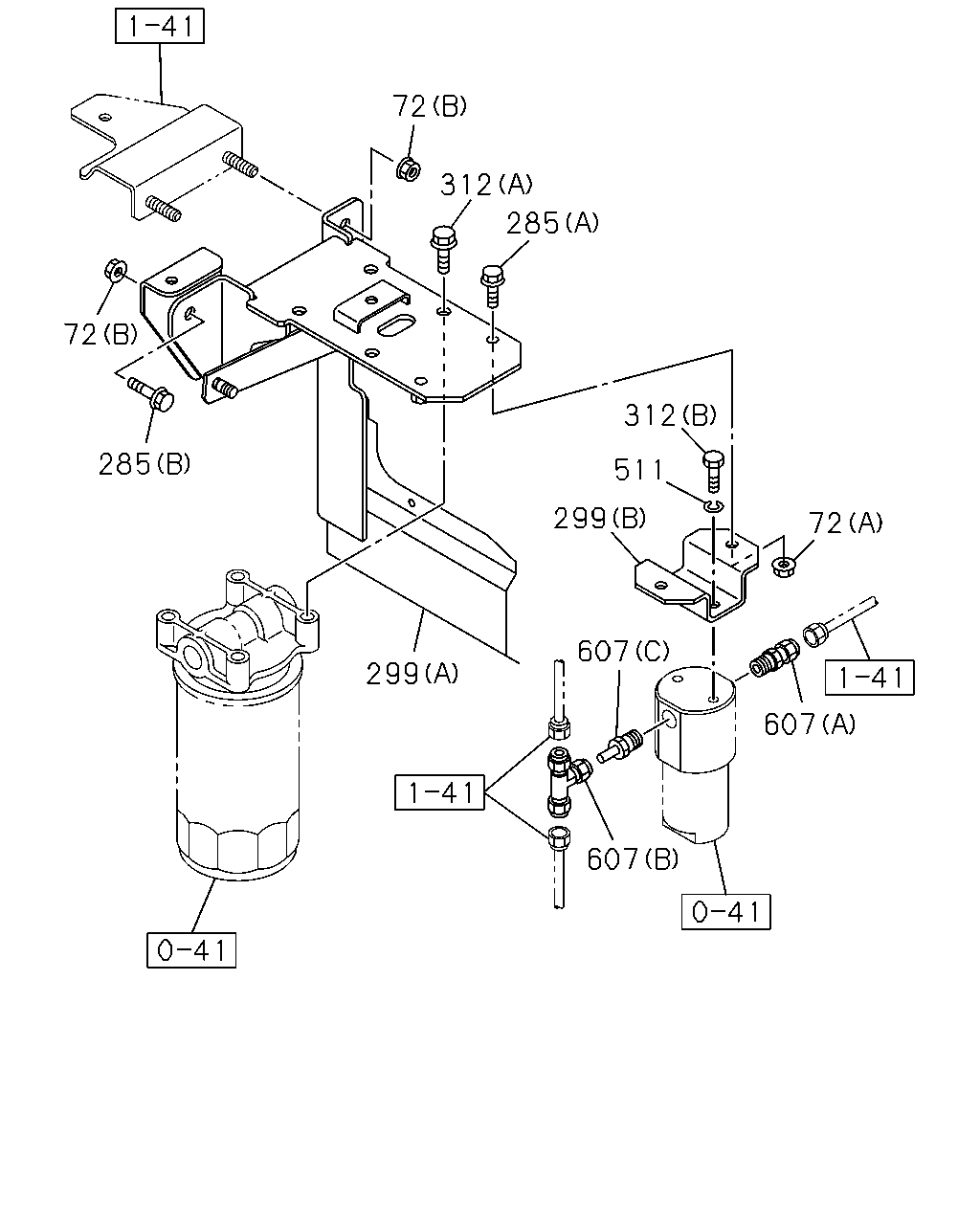

[140A] FUEL FILTER BRACKET (13 parça)

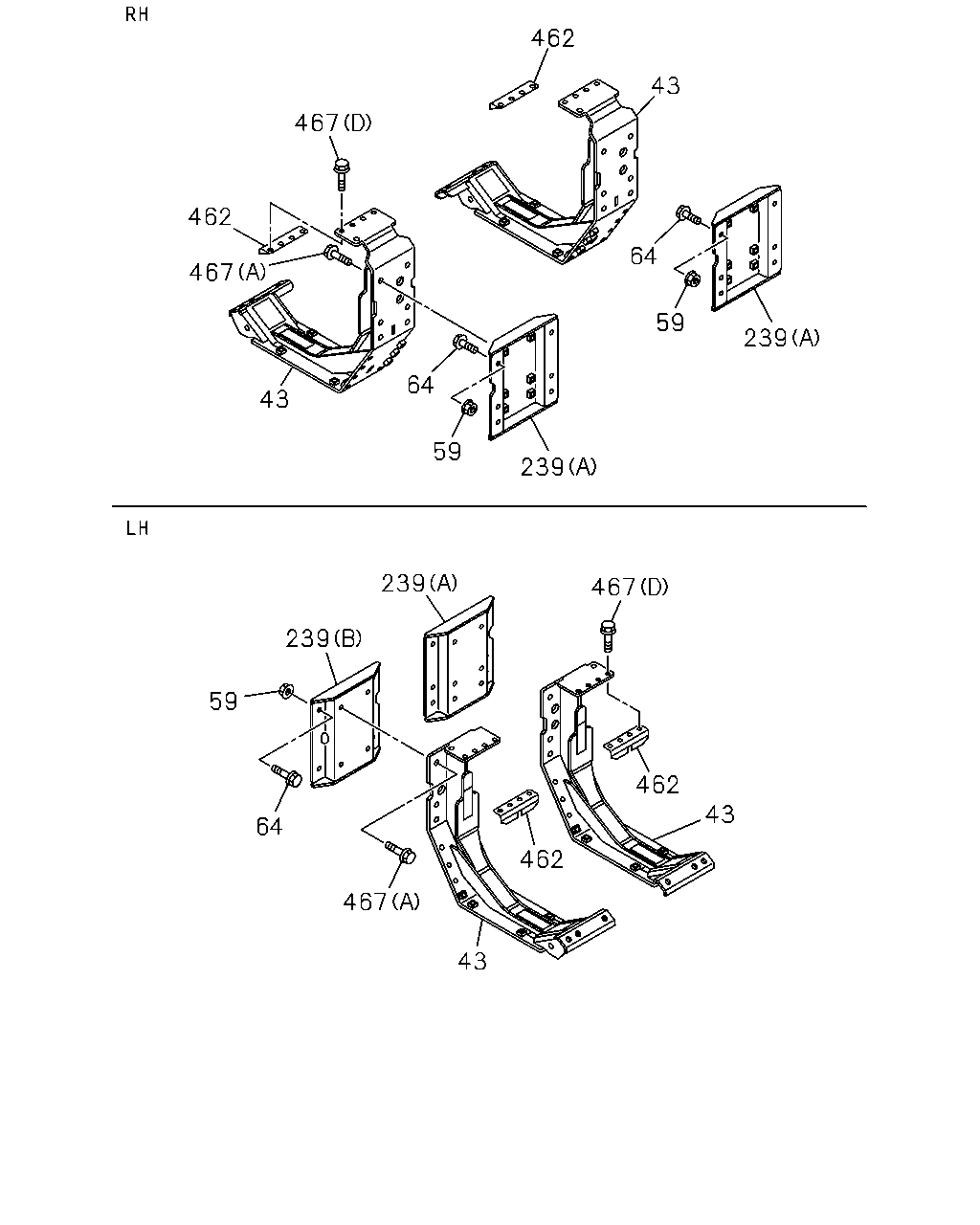

[140A] FUEL TANK BRACKET (20 parça)

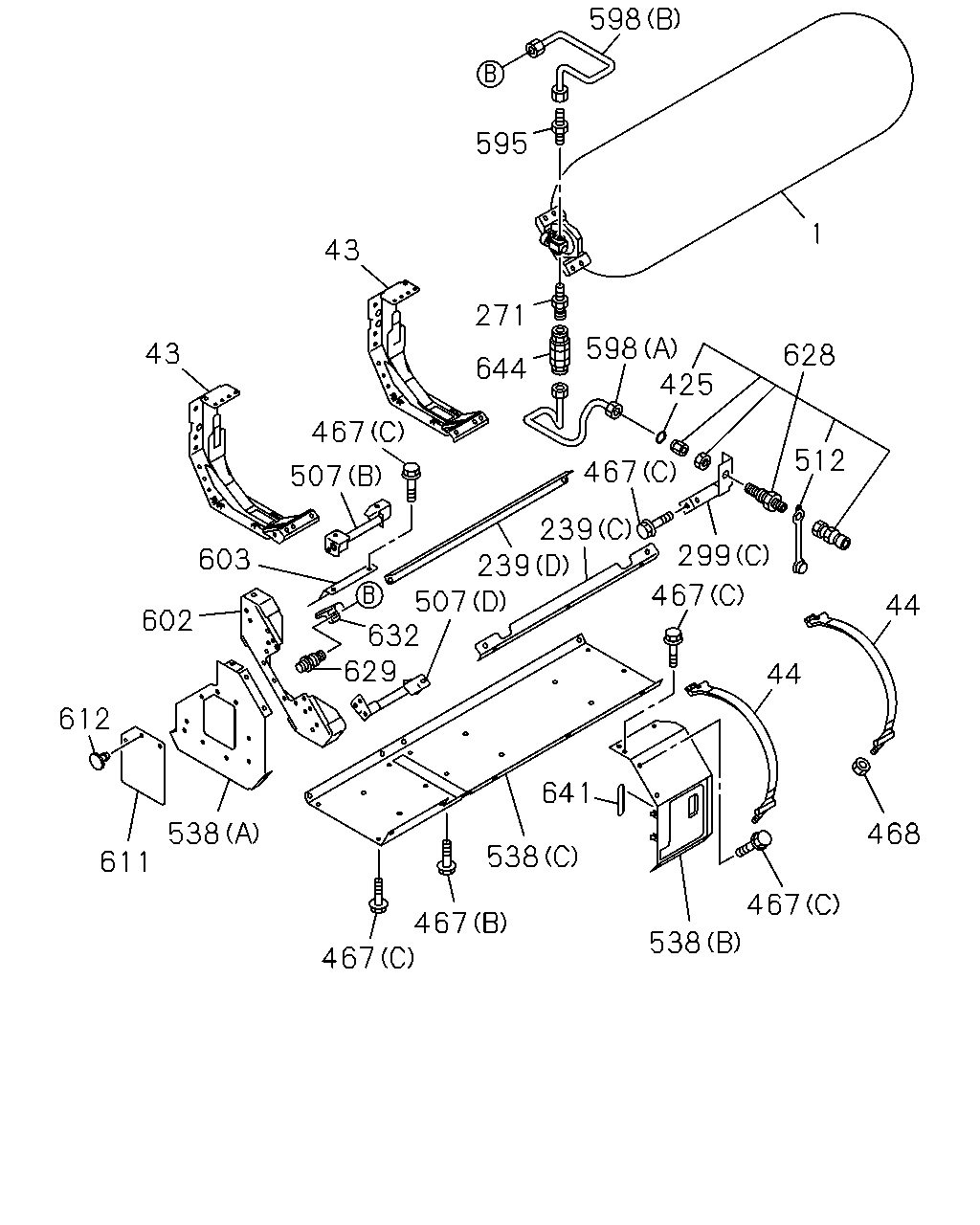

[140A] LH TANK (52 parça)
▶
44
1
43
239
538
467
467
629
538
611
612
632
538
467
467
467
598
595
468
44
239
507
507
467
603
422
58
43
602
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
OD=404X1440 150L THA
8-97948-417-0
02
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR
8-98046-451-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> FRONT
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR
8-98046-445-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR
8-98114-213-0
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> FRONT
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> FRONT
8-98114-212-0
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> FRONT
8-98114-212-0
01
1
1405-
44
BAND; FUEL TANK
THA
8-97925-213-1
04
1
1405-
58
PROTECTOR; HEAT,FUEL TANK
8-98046-471-0
01
1
1405-
239
SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (A)
8-98147-290-0
03
1
1405-
239
SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (B) THA
8-98237-429-0
01
1
1405-
239
SUPPORT; FUEL TANK
(C) THA
8-97925-216-0
02
1
1405-
239
SUPPORT; FUEL TANK
(D)
8-98046-486-0
02
1
1405-
422
PLUG; FUEL TANK
PT3/8
5-09605-005-0
01
1
1405-
467
BOLT
WHEEL BASE 3400MM<34W> (A) M10X30 FLANGE THA
0-28661-030-0
44
1
1405-
467
BOLT
WHEEL BASE 3800MM<38W> (A) M10X30 FLANGE THA
0-28661-030-0
24
1
1405-
467
BOLT
(B) M8X16 FLANGE THA
0-28050-816-0
12
1
1405-
467
BOLT
(C) M8X20 FLANGE THA
0-28650-820-0
58
1
1405-
467
BOLT
(D) M8X25 FLANGE THA
0-28650-825-0
18
1
1405-
468
NUT
M10 LOCK NUT FLANGE THA
0-91380-010-0
04
1
1405-
507
ROD
(A) THA
8-98239-717-0
01
1
1405-
507
ROD
(B) THA
8-98239-718-0
01
1
1405-
507
ROD
(C) THA
8-98239-719-0
01
1
1405-
507
ROD
(D) THA
8-98239-720-0
01
1
1405-
538
COVER; FUEL TANK
(A) THA
8-97925-223-0
01
1
1405-
538
COVER; FUEL TANK
(A) THA
8-97925-224-0
01
1
1405-
538
COVER; FUEL TANK
(C) THA
8-97925-226-2
01
1
1405-
538
COVER; FUEL TANK
(C) THA
8-97925-227-2
01
1
1405-
538
COVER; FUEL TANK
(B) THA
8-97925-228-1
01
1
1405-
538
COVER; FUEL TANK
(B) THA
8-97925-229-1
01
1
1405-
595
UNION; 2WAY
1-22427-144-0
02
1
1405-
598
PIPE; FUEL,CNG
(C) THA
8-97927-115-0
01
1
1405-
598
PIPE; FUEL,CNG
(B) THA
8-97927-116-0
01
1
1405-
598
PIPE; FUEL,CNG
(A) THA
8-98200-242-0
01
1
1405-
602
PLATET; STOPPER
8-98135-892-0
01
1
1405-
602
PLATET; STOPPER
8-98135-893-0
01
1
1405-
603
STAY; COVER
THA
8-97925-221-1
01
1
1405-
603
STAY; COVER
THA
8-97925-222-1
01
1
1405-
611
RUBBER; SHUTTER
1-53449-093-0
02
1
1405-
612
FASTENER
8-97372-006-0
06
1
1405-
629
UNION; FUEL,CNG
1-22427-077-0
02
1
1405-
632
BRACKET; UNION
THA
8-97926-995-0
01
1
1405-
632
BRACKET; UNION
THA
8-97926-996-0
01
1
1405-
72
312
285
72
285
299
312
511
299
607
607
607
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
NUT; BRKT
(A) M8 FLANGE THA
0-91180-108-0
02
1
1405-
72
NUT; BRKT
(B) M10 FLANGE THA
0-91180-210-0
02
1
1405-
285
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
1405-
285
BOLT; BRKT
(B) M10X30 FLANGE THA
0-28661-030-0
01
1
1405-
299
BRACKET; FUEL FILTER
(C) THA
8-98200-240-0
01
1
1405-
299
BRACKET; FUEL FILTER
(A) THA
8-98237-381-0
01
1
1405-
299
BRACKET; FUEL FILTER
(B) THA
8-98237-385-0
01
1
1405-
312
BOLT; FUEL FILTER CLAMP
(A) M10X25 FLANGE THA
0-28751-025-0
04
1
1405-
312
BOLT; FUEL FILTER CLAMP
(B) THA
8-98249-137-0
02
1
1405-
511
WASHER
ID=8.2 THA
0-91510-808-0
02
1
1405-
607
CLIP; PIPE
(A)
1-22427-009-0
01
1
1405-
607
CLIP; PIPE
(B)
1-22427-125-0
01
1
1405-
607
CLIP; PIPE
(C)
8-98249-172-0
01
1
1405-
462
43
64
59
239
239
59
64
43
467
462
467
239
467
462
43
462
43
467
64
59
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR
8-98046-451-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> FRONT
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR
8-98046-445-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR
8-98114-213-0
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> FRONT
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> FRONT
8-98114-212-0
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> FRONT
8-98114-212-0
01
1
1405-
59
NUT; FUEL TANK
M10 FLANGE THA
0-91180-210-0
20
1
1405-
64
BOLT; FUEL TANK
M10X35 FLANGE THA
0-28661-035-0
20
1
1405-
239
SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (A)
8-98147-290-0
03
1
1405-
239
SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (B) THA
8-98237-429-0
01
1
1405-
239
SUPPORT; FUEL TANK
(C) THA
8-97925-216-0
02
1
1405-
239
SUPPORT; FUEL TANK
(D)
8-98046-486-0
02
1
1405-
462
BRACKET; COCK,PREHEATER
8-98046-535-0
04
1
1405-
467
BOLT
WHEEL BASE 3400MM<34W> (A) M10X30 FLANGE THA
0-28661-030-0
44
1
1405-
467
BOLT
WHEEL BASE 3800MM<38W> (A) M10X30 FLANGE THA
0-28661-030-0
24
1
1405-
467
BOLT
(B) M8X16 FLANGE THA
0-28050-816-0
12
1
1405-
467
BOLT
(C) M8X20 FLANGE THA
0-28650-820-0
58
1
1405-
467
BOLT
(D) M8X25 FLANGE THA
0-28650-825-0
18
1
1405-
598
595
1
628
512
44
44
468
467
538
538
467
467
641
538
611
612
602
603
43
43
467
507
271
644
598
425
467
299
467
239
239
507
632
629
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
OD=404X1440 150L THA
8-97948-417-0
02
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR
8-98046-451-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> FRONT
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR
8-98046-445-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR
8-98114-213-0
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> FRONT
8-98046-443-3
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> FRONT
8-98114-212-0
01
1
1405-
43
BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> FRONT
8-98114-212-0
01
1
1405-
44
BAND; FUEL TANK
THA
8-97925-213-1
04
1
1405-
239
SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (A)
8-98147-290-0
03
1
1405-
239
SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (B) THA
8-98237-429-0
01
1
1405-
239
SUPPORT; FUEL TANK
(C) THA
8-97925-216-0
02
1
1405-
239
SUPPORT; FUEL TANK
(D)
8-98046-486-0
02
1
1405-
271
CONNECTOR; 2 WAY,FUEL HOSE
8-98120-764-0
01
1
1405-
299
BRACKET; FUEL FILTER
(C) THA
8-98200-240-0
01
1
1405-
299
BRACKET; FUEL FILTER
(A) THA
8-98237-381-0
01
1
1405-
299
BRACKET; FUEL FILTER
(B) THA
8-98237-385-0
01
1
1405-
425
GASKET; ADAPTER
THA
8-97948-385-0
01
1
1405-
467
BOLT
WHEEL BASE 3400MM<34W> (A) M10X30 FLANGE THA
0-28661-030-0
44
1
1405-
467
BOLT
WHEEL BASE 3800MM<38W> (A) M10X30 FLANGE THA
0-28661-030-0
24
1
1405-
467
BOLT
(B) M8X16 FLANGE THA
0-28050-816-0
12
1
1405-
467
BOLT
(C) M8X20 FLANGE THA
0-28650-820-0
58
1
1405-
467
BOLT
(D) M8X25 FLANGE THA
0-28650-825-0
18
1
1405-
468
NUT
M10 LOCK NUT FLANGE THA
0-91380-010-0
04
1
1405-
507
ROD
(A) THA
8-98239-717-0
01
1
1405-
507
ROD
(B) THA
8-98239-718-0
01
1
1405-
507
ROD
(C) THA
8-98239-719-0
01
1
1405-
507
ROD
(D) THA
8-98239-720-0
01
1
1405-
512
CAP; CONNECTOR
THA
8-97948-386-0
01
1
1405-
538
COVER; FUEL TANK
(A) THA
8-97925-223-0
01
1
1405-
538
COVER; FUEL TANK
(A) THA
8-97925-224-0
01
1
1405-
538
COVER; FUEL TANK
(C) THA
8-97925-226-2
01
1
1405-
538
COVER; FUEL TANK
(C) THA
8-97925-227-2
01
1
1405-
538
COVER; FUEL TANK
(B) THA
8-97925-228-1
01
1
1405-
538
COVER; FUEL TANK
(B) THA
8-97925-229-1
01
1
1405-
595
UNION; 2WAY
1-22427-144-0
02
1
1405-
598
PIPE; FUEL,CNG
(C) THA
8-97927-115-0
01
1
1405-
598
PIPE; FUEL,CNG
(B) THA
8-97927-116-0
01
1
1405-
598
PIPE; FUEL,CNG
(A) THA
8-98200-242-0
01
1
1405-
602
PLATET; STOPPER
8-98135-892-0
01
1
1405-
602
PLATET; STOPPER
8-98135-893-0
01
1
1405-
603
STAY; COVER
THA
8-97925-221-1
01
1
1405-
603
STAY; COVER
THA
8-97925-222-1
01
1
1405-
611
RUBBER; SHUTTER
1-53449-093-0
02
1
1405-
612
FASTENER
8-97372-006-0
06
1
1405-
628
COUPLER; FUEL TANK
THA
8-97948-435-0
01
1
1405-
629
UNION; FUEL,CNG
1-22427-077-0
02
1
1405-
632
BRACKET; UNION
THA
8-97926-995-0
01
1
1405-
632
BRACKET; UNION
THA
8-97926-996-0
01
1
1405-
641
SEAL; COVER,TANK
8-98090-873-1
01
1
1405-
644
VALVE; CHECK
8-98120-763-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
