◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51510 - NPR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#139631) — 13 parça

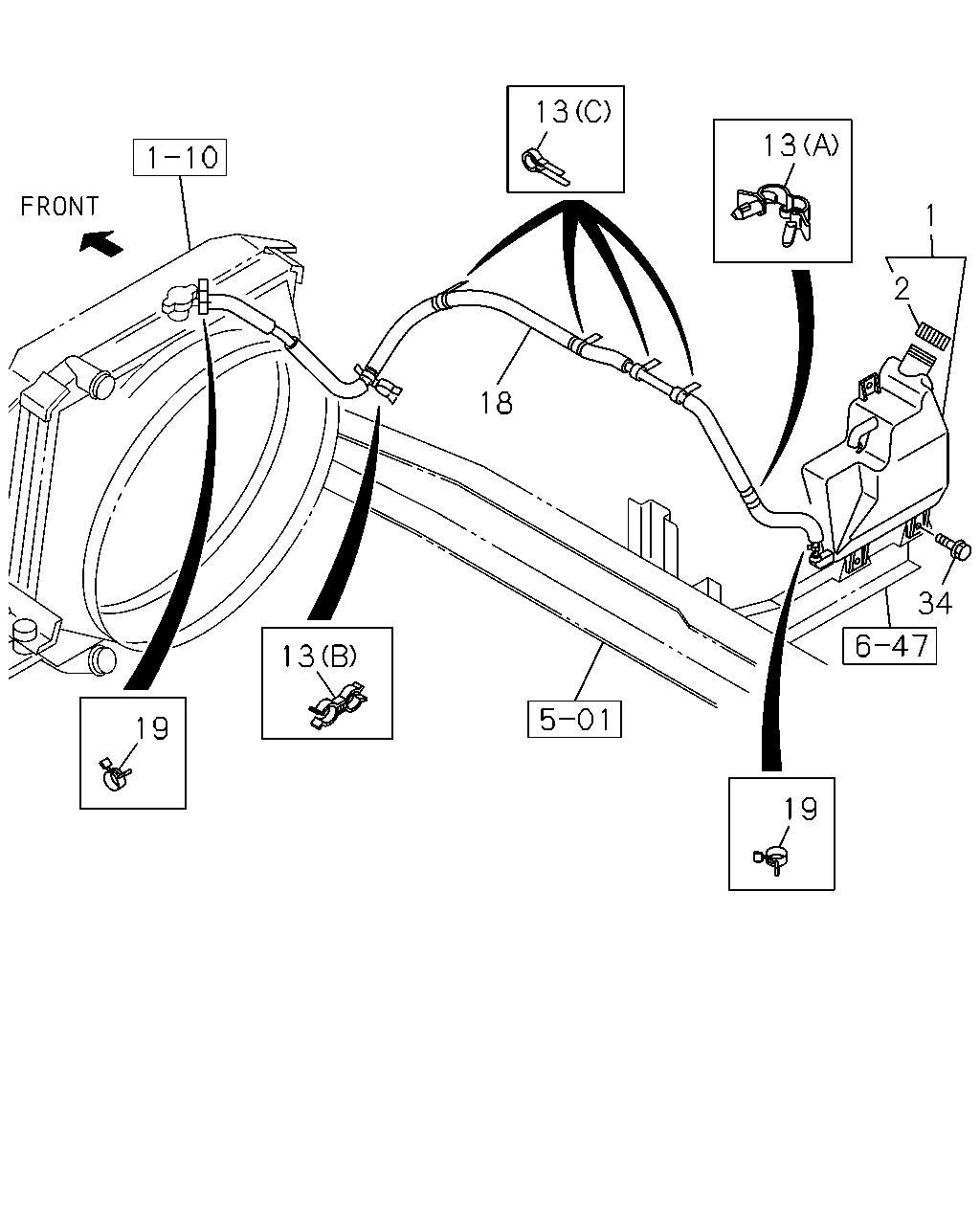

çizim 420006
13 13 1 2 34 19 13 19 18
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD 8-98178-179-0 01 1 1405-
2 CAP; SURGE TANK 8-98178-074-0 01 1 1405-
13 CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1405-
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 04 1 1405-
13 CLIP; HOSE,SURGE TANK
(B) ID=10 & 11 		8-94438-996-0 01 1 1405-
18 HOSE; RAD TO SURGE TANK 8-98112-746-0 01 1 1405-
19 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1405-
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 1405-

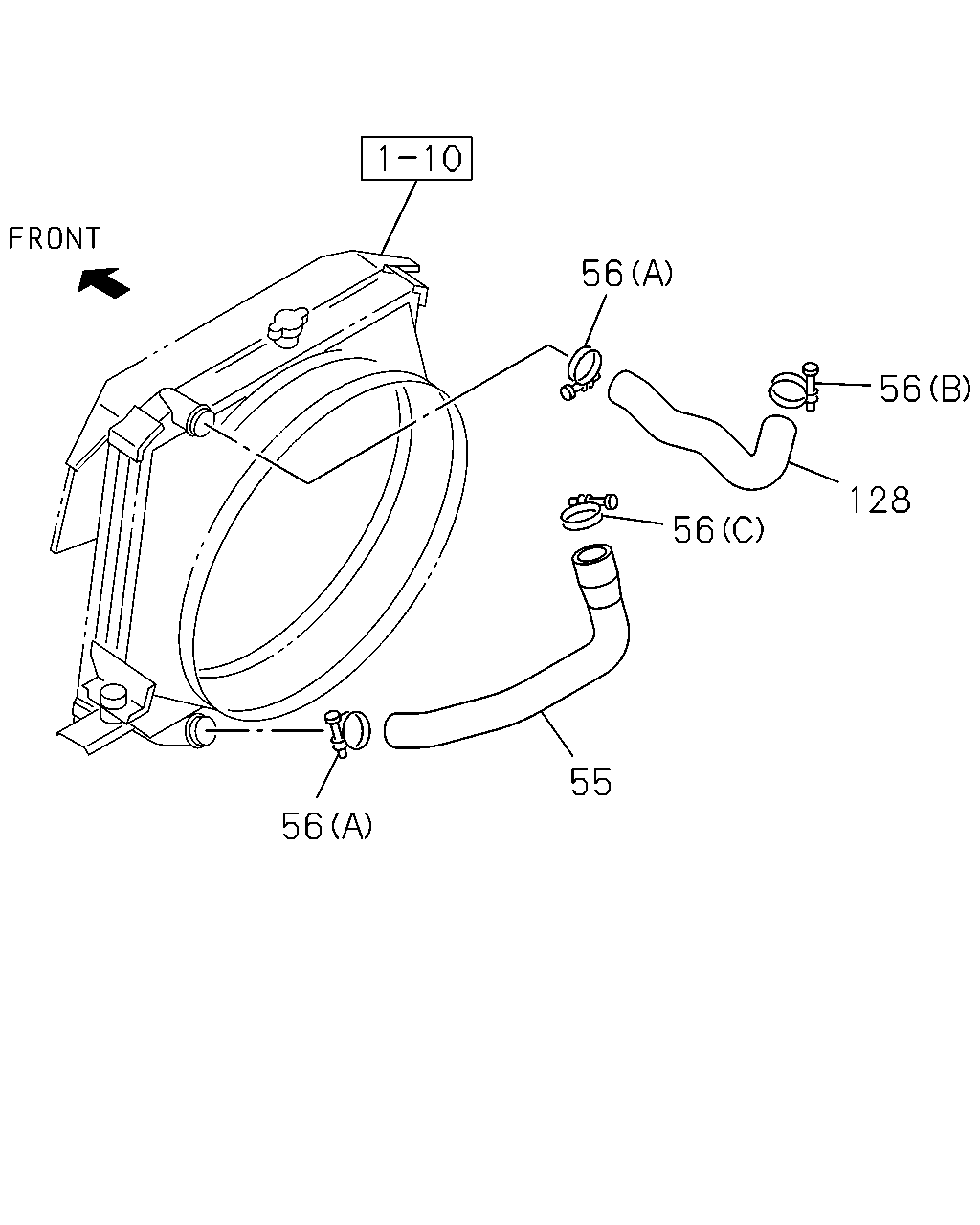

çizim 421091
56 56 128 56 55 56
BalonParca AdiParca NoAdetTipApplied Date
55 HOSE; WATER,RAD OUTLET
THA 		8-97177-372-0 01 1 1405-
56 CLIP; WATER HOSE,RAD
(B) ID=52 		1-09704-057-0 01 1 1405-
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 1405-
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 1405-
128 HOSE; WATER,RAD INL 8-98058-629-1 01 1 1405-
