1-10 — RADIATOR
(#139630) — 22 parça
◀

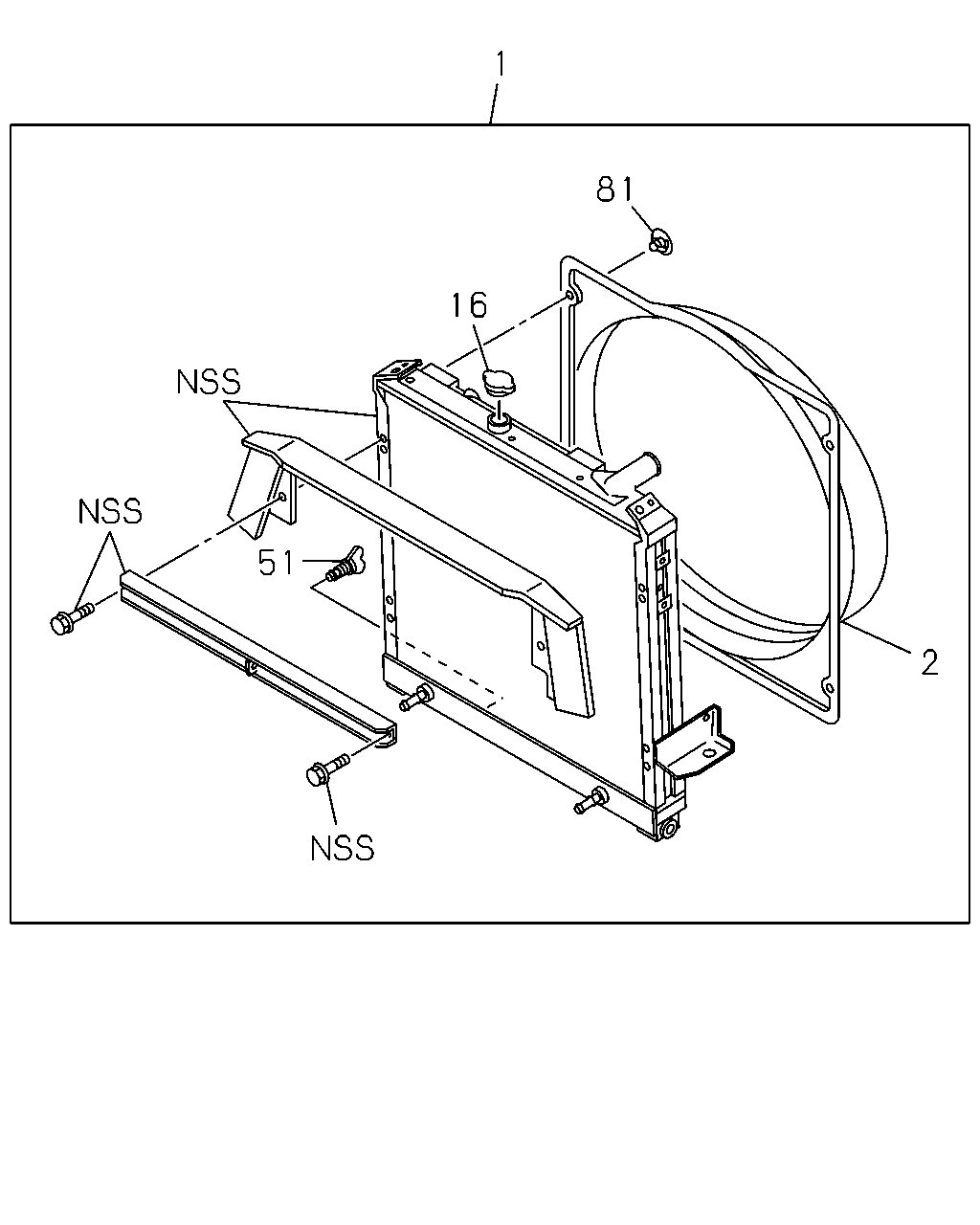

[110A] COMPONENT (6 parça)
[110A] FIXING (16 parça)
▶
1
81
16
51
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-98249-364-1
01
1
1405-
2
GUIDE; FAN
8-98089-894-0
01
1
1405-
16
CAP; RAD
THA
8-97948-937-0
01
1
1405-
51
PLUG; DRAIN
THA
8-97948-936-0
01
1
1405-
81
SCREW; FAN GUIDE,RAD
8-97088-810-0
04
1
1405-1405
81
SCREW; FAN GUIDE,RAD
8-97088-810-0
02
1
1406-
1
65
65
74
514
205
204
57
59
57
59
56
514
74
65
22
65
23
25
74
75
1
23
22
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-98249-364-1
01
1
1405-
22
BRACKET; RAD MTG
8-98112-736-2
01
1
1405-
22
BRACKET; RAD MTG
8-98112-737-2
01
1
1405-
23
NUT; RAD MTG
M10 FLANGE THA
0-91180-110-0
04
1
1405-
25
BOLT; BRKT
M10X30 FLANGE THA
0-28651-030-0
04
1
1405-
56
STAY; RAD
8-98112-740-0
01
1
1405-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1405-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1405-
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
1405-
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
1405-
74
WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
1405-
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1405-
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63
8-94249-446-0
01
1
1405-
204
GUIDE ASM; AIR
8-98081-417-1
01
1
1405-
205
BOLT; AIR GUIDE
M6X12 FLANGE THA
0-28050-612-0
02
1
1405-
514
NUT; RAD
M8 FLANGE THA
0-91180-108-0
02
1
1405-
