Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

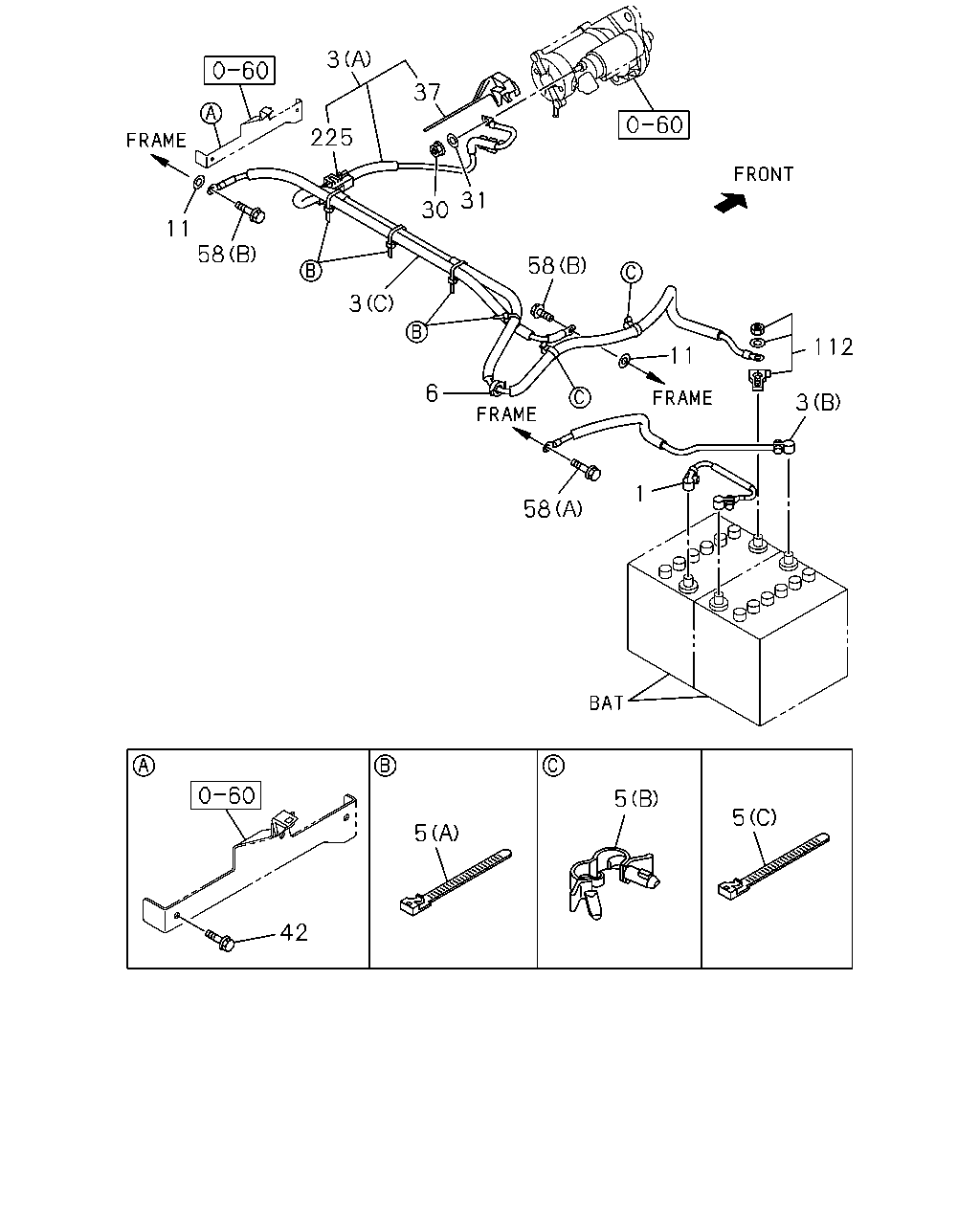

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#139624) — 17 parça
5
5
5
1
58
11
112
3
6
58
3
30
31
37
225
3
11
58
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280 THA
8-97922-383-0
01
1
1405-
3
HARNESS; CABLE,BATTERY TO STARTER
(B) THA
8-97924-803-0
01
1
1405-
3
HARNESS; CABLE,BATTERY TO STARTER
(C) THA
8-97924-847-0
01
1
1405-
3
HARNESS; CABLE,BATTERY TO STARTER
(A) THA
8-97926-986-0
01
1
1405-
5
CLIP; BATTERY CABLE TO BODY
(B) ID=13-18 L=18
1-09709-291-0
02
1
1405-
5
CLIP; BATTERY CABLE TO BODY
(A) L=250
5-09707-030-1
04
1
1405-
5
CLIP; BATTERY CABLE TO BODY
(C) L=140 THA
8-97920-656-0
01
1
1405-
6
GROMMET; BATTERY CABLE
ID=17
8-94128-319-2
01
1
1405-
11
WASHER; BATTERY CABLE EARTH
8-98099-007-0
02
1
1405-
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1405-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA
0-91510-808-0
01
1
1405-
37
CAP; TERMINAL,BATTERY CABLE
THA
8-97927-023-1
01
1
1405-
42
BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE
8-97329-599-0
01
1
1405-
58
BOLT; CABLE,BATTERY
(B) M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1405-
58
BOLT; CABLE,BATTERY
(A) M8X24 W/PL WASHER
8-98141-256-1
01
1
1405-
112
TERMINAL; BATTERY
8-97365-770-0
01
1
1405-
225
BLOCK; TERMINAL
THA
8-98029-689-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
