Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#139604) — 59 parça
◀

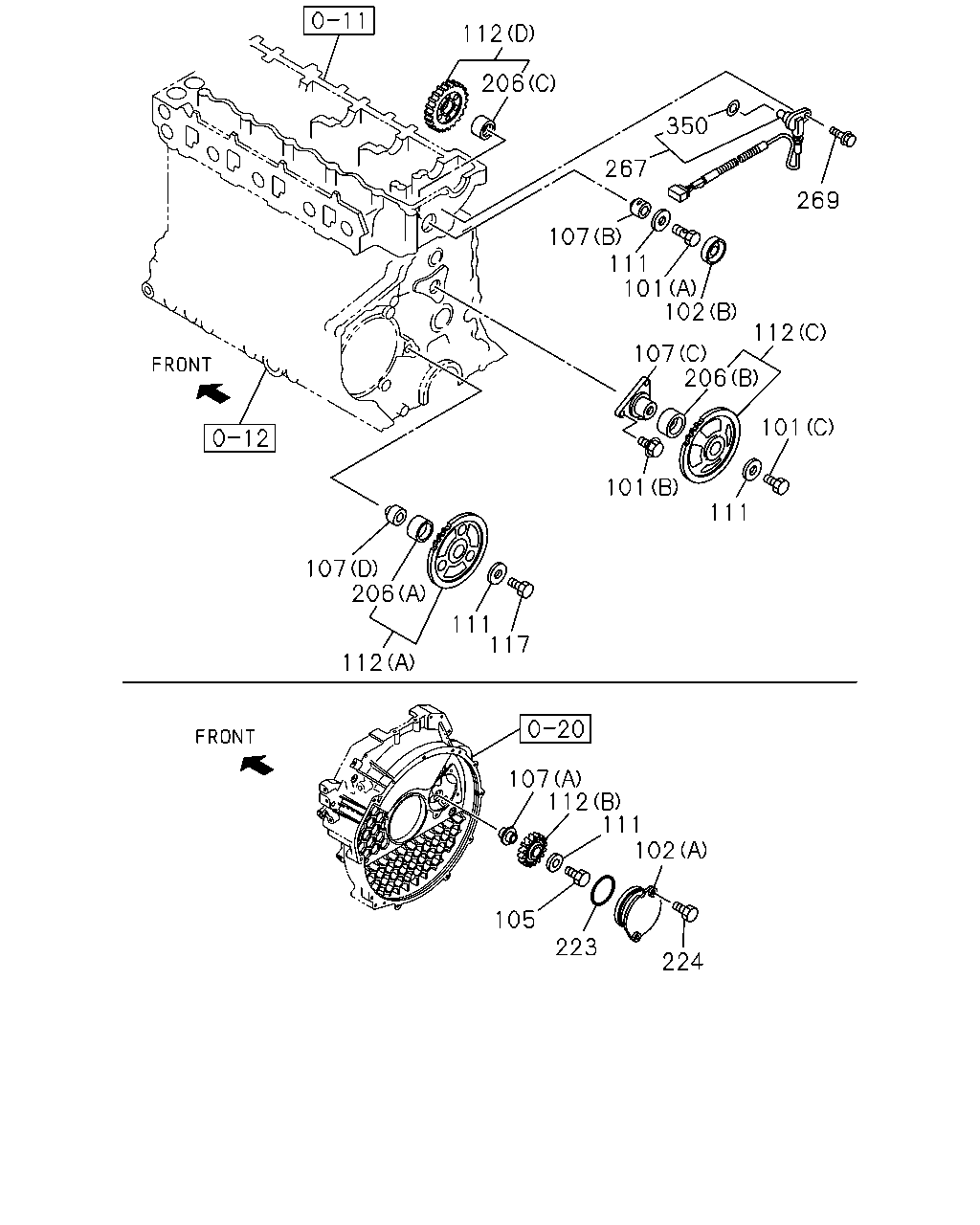

[014A] IDLE GEAR (24 parça)

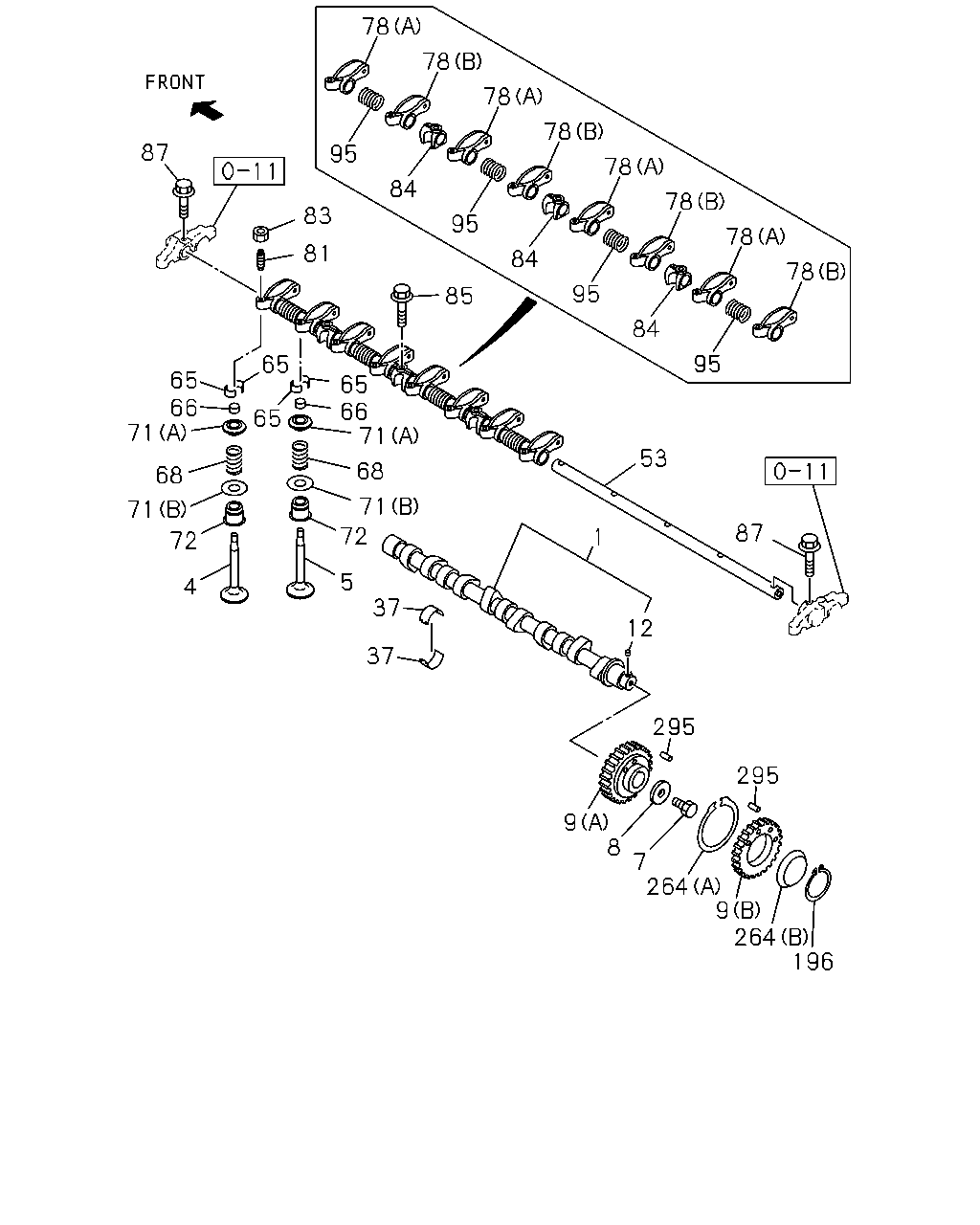

[014A] CAMSHAFT,ROCKER ARM AND VALVE (35 parça)
▶
112
206
350
269
267
107
111
101
102
112
107
206
101
111
101
107
206
112
111
117
107
112
111
102
224
223
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(C) M14X25
0-23951-425-0
01
1
1405-
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1405-
101
BOLT; THRUST COLLAR
(A) M14X36.5
8-94372-221-1
01
1
1405-
102
COVER; IDLE GEAR
(A)
8-94334-681-1
01
1
1405-
102
COVER; IDLE GEAR
(B) OD=51
8-97096-826-0
01
1
1405-
105
BOLT; IDLE GEAR SHAFT
M14X60
0-16956-460-0
01
1
1405-
107
SHAFT; IDLE GEAR
(A)
8-94334-682-1
01
1
1405-
107
SHAFT; IDLE GEAR
(B)
8-97186-398-1
01
1
1405-
107
SHAFT; IDLE GEAR
(C)
8-97350-021-0
01
1
1405-
107
SHAFT; IDLE GEAR
(D)
8-98060-780-0
01
1
1405-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
04
1
1405-
112
GEAR; IDLE
(C) Z=61
8-94393-439-4
01
1
1405-
112
GEAR; IDLE
(B) Z=34
8-97120-005-1
01
1
1405-
112
GEAR; IDLE
(A) Z=72-30
8-97223-189-0
01
1
1405-
112
GEAR; IDLE
(D) Z=41
8-97606-929-0
01
1
1405-
117
BOLT; FLANGE
M14X65 FLANGE
8-97113-167-0
01
1
1405-
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
1-12528-006-0
01
1
1405-
206
BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT.
8-97606-768-0
01
1
1405-
206
BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT.
8-97606-770-0
01
1
1405-
223
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
1405-
224
BOLT; COVER
M8X16 FLANGE THA
0-28050-816-0
02
1
1405-
267
SENSOR; CAM ANGLE
8-97324-479-1
01
1
1405-
269
BOLT; SENSOR
M6X16 FLANGE THA
0-28650-616-0
01
1
1405-
350
GASKET; SENSOR,CAM ANGLE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97387-194-0
01
1
1405-
87
83
81
84
95
95
84
95
84
95
53
87
12
295
37
37
5
72
71
68
71
66
65
85
1
295
196
264
9
264
8
9
7
4
72
71
68
71
66
65
65
65
78
78
78
78
78
78
78
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97077-829-0
01
1
1405-
4
VALVE; INL
8-97136-435-1
04
1
1405-
5
VALVE; EXH
8-98223-771-0
04
1
1405-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1405-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
1405-
9
GEAR; CM/SHF
(B) Z=35
8-97300-972-2
01
1
1405-
9
GEAR; CM/SHF
(A) Z=35
8-97309-327-2
01
1
1405-
12
KEY; CAM GEAR SET
8-94399-487-0
01
1
1405-
37
METAL; CM/SHF
B=16
8-97386-189-0
10
1
1405-
53
SHAFT; ROCKER ARM
JBK
8-97074-617-1
01
1
1405-
53
SHAFT; ROCKER ARM
KEIHIN SEIMITSU
8-97174-567-0
01
1
1405-
65
COLLAR; SPLIT
5-12565-006-0
16
1
1405-
66
CAP; VLV STEM END
8-94396-015-2
08
1
1405-
68
SPRING; VLV
ID=28.5
8-97023-559-0
08
1
1405-
71
SEAT; SPR
(A) UPPER OD=38
8-94385-029-2
08
1
1405-
71
SEAT; SPR
(B) LOWER ID=14.3 OD=40
8-94399-526-1
08
1
1405-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-609-2
08
1
1405-1405
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98231-534-0
08
1
1406-
78
ARM; ROCKER
(B) EXHAUST JBK
8-97014-258-2
04
1
1405-
78
ARM; ROCKER
(A) INLET JBK
8-97074-614-1
04
1
1405-
78
ARM; ROCKER
(A) INLET KEIHIN SEIMITSU
8-97174-562-0
04
1
1405-
78
ARM; ROCKER
(B) EXHAUST KEIHIN SEIMITSU
8-97174-565-0
04
1
1405-
81
SCREW; ADJ,ROCKER ARM
8-94367-526-2
08
1
1405-
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
08
1
1405-
84
BRACKET; ROCKER SHAFT,INTER
JBK
8-94388-109-3
03
1
1405-
84
BRACKET; ROCKER SHAFT,INTER
KEIHIN SEIMITSU
8-97174-568-0
03
1
1405-
85
BOLT; BRKT
JBK M10X62 FLANGE
8-94393-131-0
03
1
1405-
85
BOLT; BRKT
KEIHIN SEIMITSU M10X62 FLANGE
8-97174-650-0
03
1
1405-
87
BOLT; ROCKER SHAFT
M8X35 FLANGE THA
0-28050-835-0
04
1
1405-
95
SPRING; ROCKER SHAFT
JBK
8-94397-263-0
04
1
1405-
95
SPRING; ROCKER SHAFT
KEIHIN SEIMITSU
8-97174-654-0
04
1
1405-
196
RING; SNAP
ID=50.8
9-09180-055-0
01
1
1405-
264
SPRING; GEAR
(A)
8-97190-117-1
01
1
1405-
264
SPRING; GEAR
(B)
8-97190-118-1
01
1
1405-
295
PIN; CM/SHF GEAR
OD=4 L=8.0
8-97213-454-0
02
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
