Isuzu WW
▶
TRUCKS
▶
NPR
▶
51510 - NPR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶
0-12 — CYLINDER BLOCK
(#139602) — 30 parça
◀

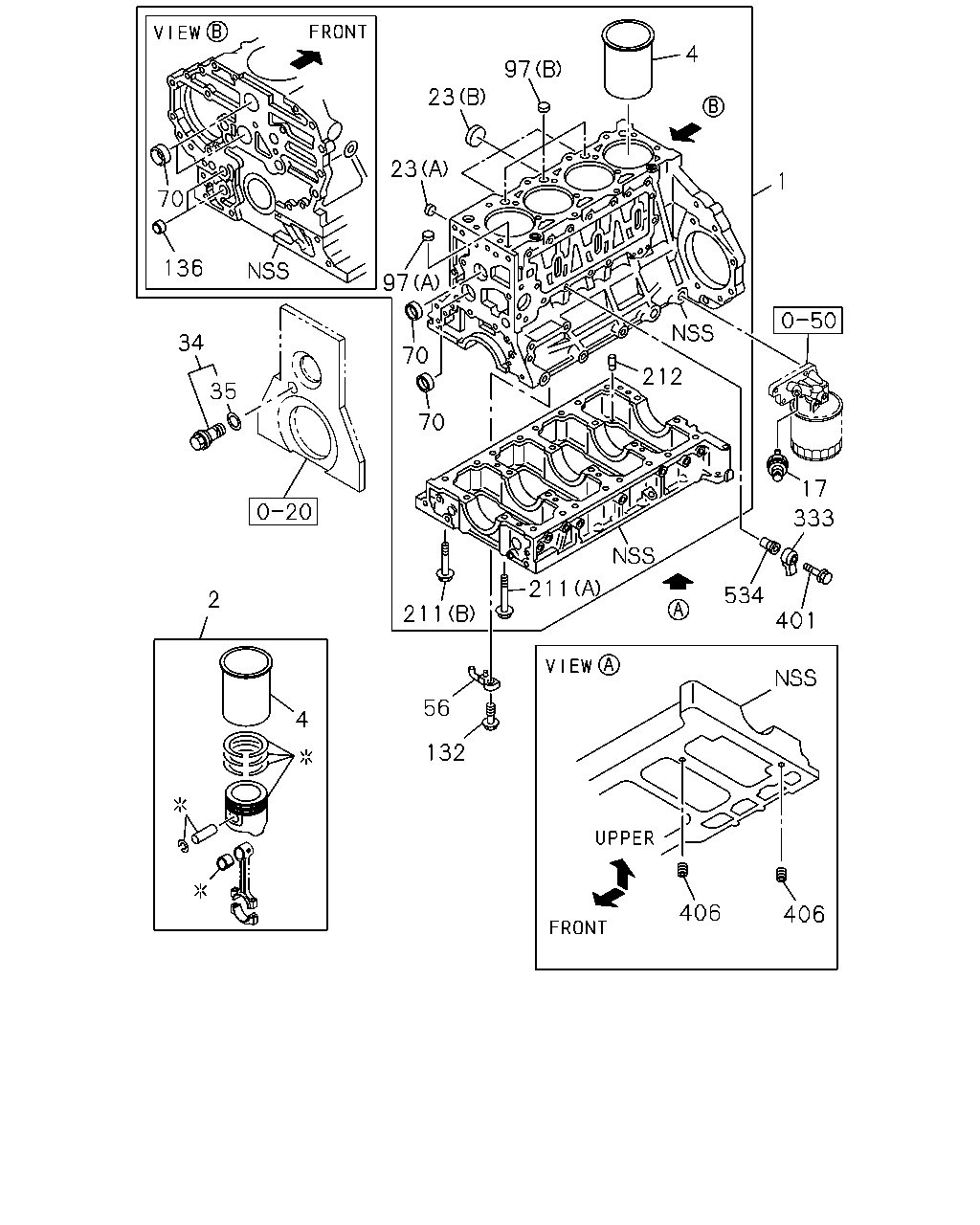

[012A] NO.1 (23 parça)

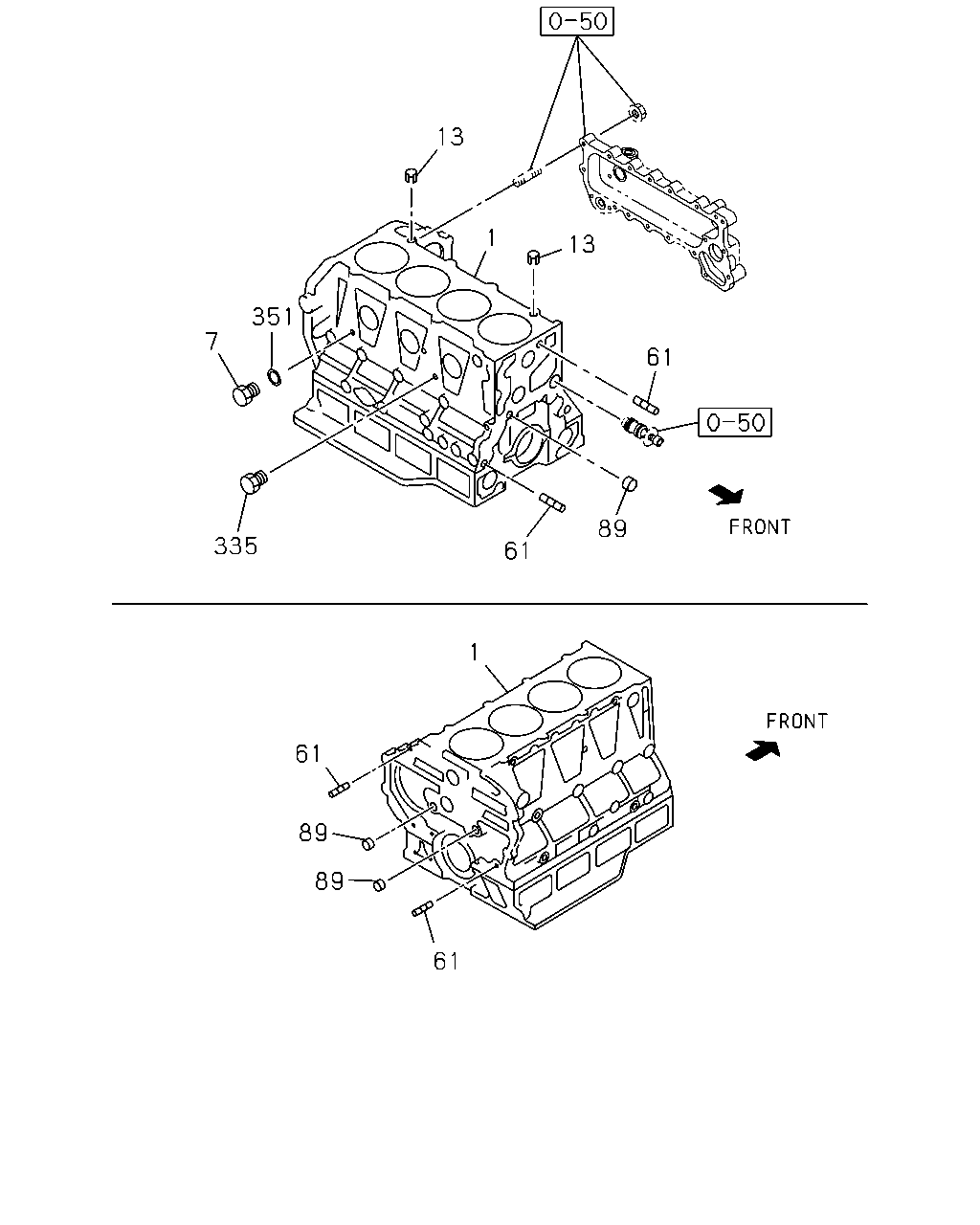

[012A] NO.2 (7 parça)
▶
4
1
17
333
534
401
406
406
212
211
211
56
132
70
70
97
23
23
97
35
34
136
70
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-98204-535-0
01
1
1405-
2
LINER SET; ENG CYL
GRADE=1X
5-87816-796-0
04
1
1405-
2
LINER SET; ENG CYL
GRADE=3X
5-87816-797-0
04
1
1405-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON
8-98014-048-1
04
1
1405-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON
8-98014-049-1
04
1
1405-
17
SWITCH; OIL PRESSURE
8-97176-230-0
01
1
1405-
23
CUP; SEALING,C/BL FRT & RR
(A) OD=25
1-09600-016-0
01
1
1405-
23
CUP; SEALING,C/BL FRT & RR
(B) OD=45
8-97036-550-1
03
1
1405-
34
VALVE; OIL RELIEF
8-97328-859-0
01
1
1405-
35
GASKET; RELIEF VLV
ID=23.3
8-94173-412-0
01
1
1405-
56
JET; OIL,PISTON COOLING
8-94370-579-1
04
1
1405-
70
CUP; SEALING,FRT & RR
OD=40
8-97096-824-0
04
1
1405-
97
CUP; SEALING
(A) OD=16
5-11129-006-0
01
1
1405-
97
CUP; SEALING
(B) OD=22
8-97209-609-0
03
1
1405-
132
VALVE; CHECK,OIL
M10X18.5
8-97329-618-0
04
1
1405-
136
BUSHING; DRIVE SHAFT,OIL PUMP
8-98091-566-0
02
1
1405-
211
BOLT; CRANKCASE
(B) M10X82
8-94399-553-2
17
1
1405-
211
BOLT; CRANKCASE
(A) M14X115 W/FLANGE
8-97077-638-0
10
1
1405-
212
PIN; CRANKCASE
OD=10 L=20
8-97135-423-0
02
1
1405-
333
SENSOR; KNOCK
8-97315-414-0
01
1
1405-
401
BOLT; SENSOR
M8X60 FLANGE THA
0-28050-860-0
01
1
1405-
406
PLUG; CRANK CASE
PT3/8
5-09605-005-0
02
1
1405-
534
ADAPTER; SENSOR
8-98126-430-0
01
1
1405-
61
89
89
61
1
61
89
61
13
1
13
351
7
335
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-98204-535-0
01
1
1405-
7
PLUG; WATER DRAIN
M10X10
8-97352-537-0
01
1
1405-
13
DOWEL; C/BL TO HD
OD=18.15
8-94399-688-1
02
1
1405-
61
PIN; STRAIGHT
L=22
8-94483-674-0
04
1
1405-
89
CUP; SEALING,OIL GALLERY
OD=20
9-11129-128-0
03
1
1405-
335
PLUG; C/BL,SIDE
M14X16.5
8-97329-617-0
01
1
1405-
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
