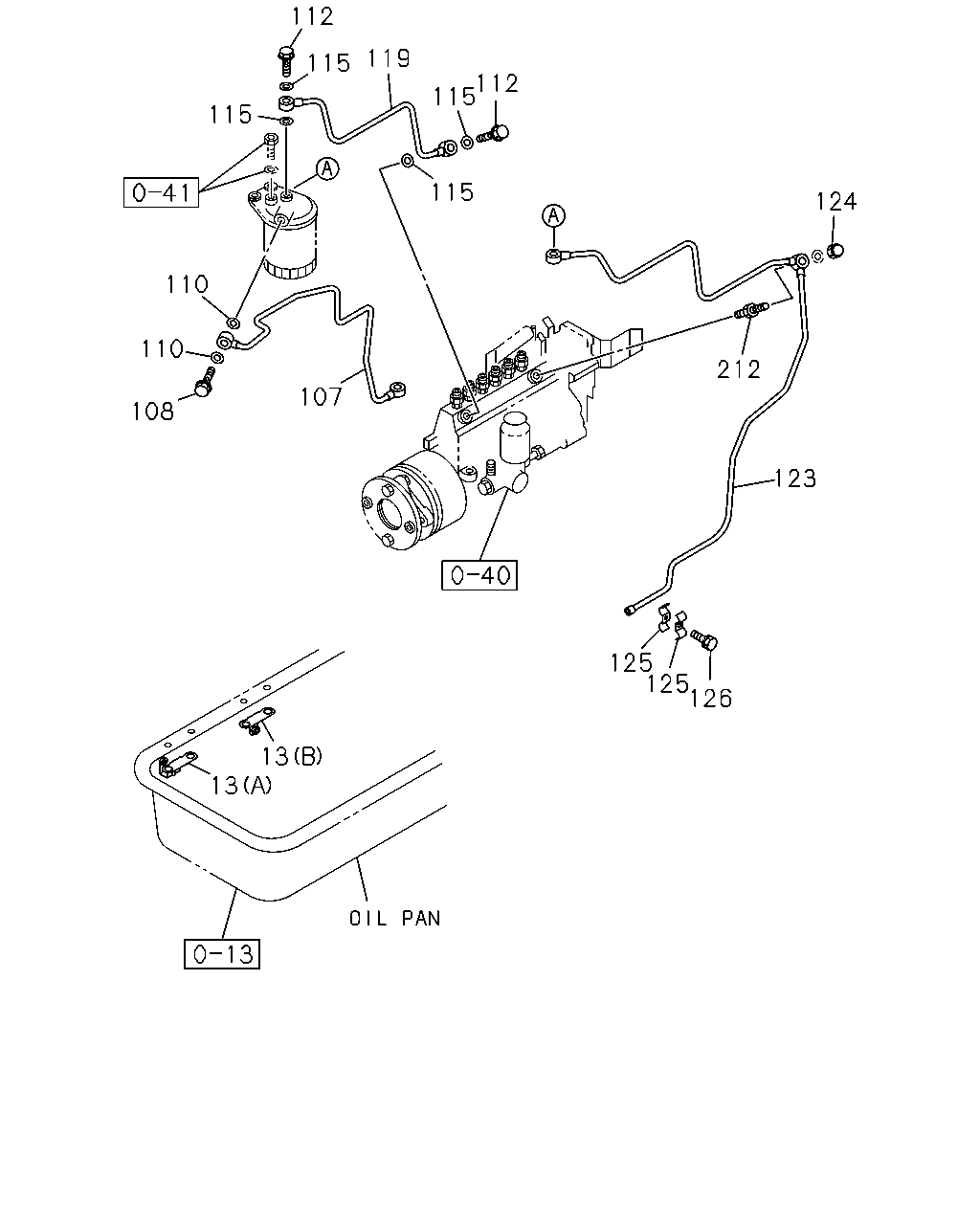

0-42 — FUEL PUMP AND PIPE
(#1396) — 16 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
112
119
115
112
115
115
115
124
110
110
212
107
108
123
125
125
126
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
STAY; FUEL PIPE CLIP
(B)
1-15419-088-0
01
1
9203-
●
●
13
STAY; FUEL PIPE CLIP
(A)
1-15419-164-0
01
1
9203-
●
●
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15414-916-0
01
1
9203-
●
●
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9203-
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9203-
●
●
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
9203-
●
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
04
1
9203-
●
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15414-183-0
01
1
9203-
●
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15415-161-1
01
1
9203-
●
●
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
9203-
●
●
125
CLIP; FUEL PIPE
WO/NUT ID=10 & 10
1-09700-163-0
07
1
9203-9411
●
●
125
CLIP; FUEL PIPE
ID=10 & 10 L=25
9-09716-114-0
07
1
9412-
●
●
125
CLIP; FUEL PIPE
W/NUT ID=10 & 10
1-09700-164-0
03
1
9203-9411
●
●
125
CLIP; FUEL PIPE
ID=10 & 10 L=25 W/NUT
9-09716-124-0
03
1
9412-
●
●
126
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
05
1
9203-
●
●
212
VALVE; OVERFLOW
1-13260-001-1
01
1
9203-
●
●
