9-01 — TOOLS (#139597) — 25 parça

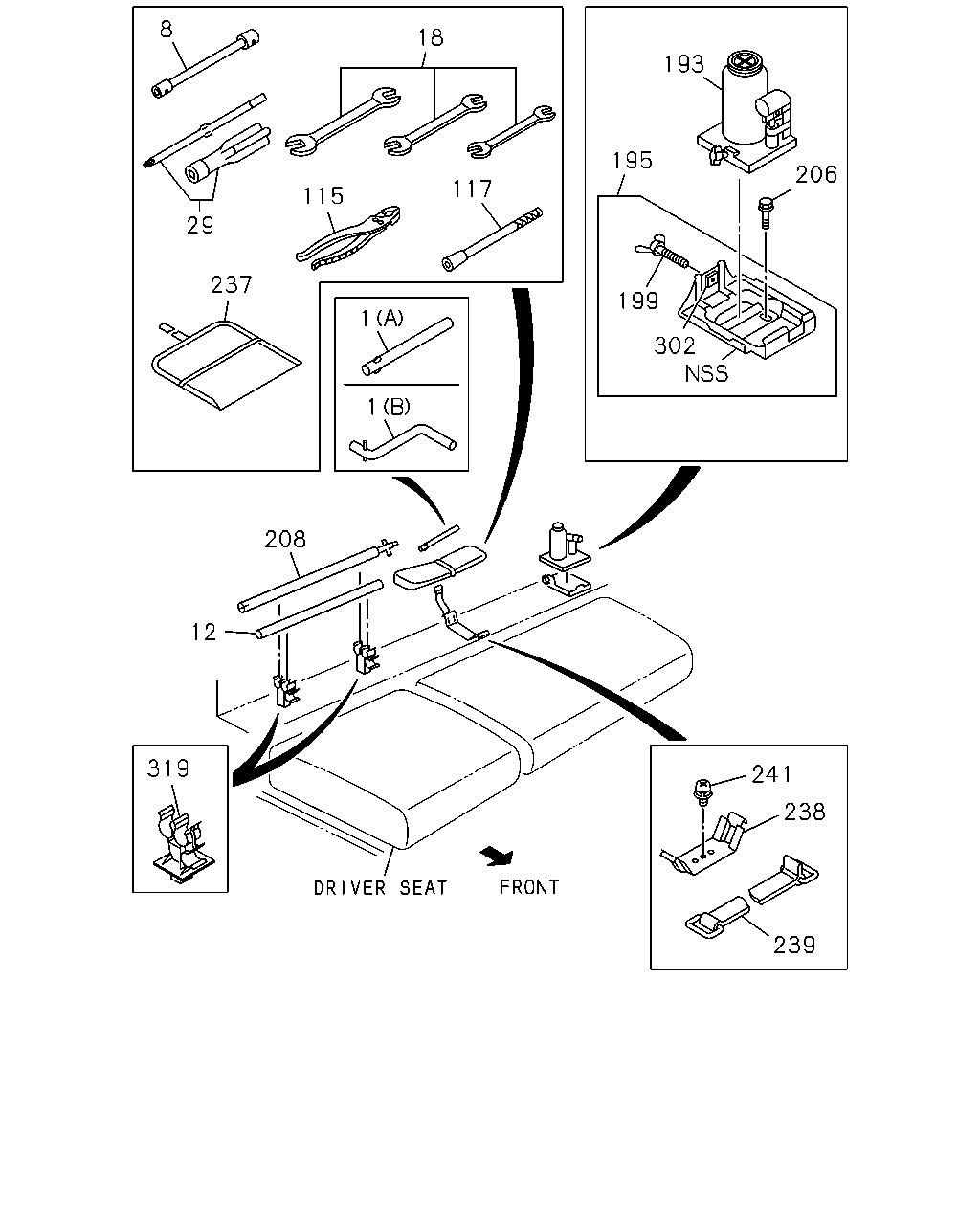

çizim 421821
8 29 237 115 117 18 1 1 302 199 195 193 206 208 12 319 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (A) L=280 		8-98181-251-0 01 1 1405- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3400MM<34W> (A) L=280 		8-98181-251-0 01 1 1405- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM<41W> (B) 		8-97218-985-0 01 1 1405- ●
8 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1405- ● ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM<41W> OD=25 L=480 		1-85116-011-0 01 1 1405-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM<41W> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
18 WRENCH KIT 9-85161-902-0 01 1 1405- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1405- ● ●
115 PLIER 5-85171-002-0 01 1 1405-1410 ● ●
115 PLIER
THA 		8-98282-845-0 01 1 1411- ● ●
117 WRENCH; VALVE CAP 9-85163-906-1 01 1 1405- ● ●
193 JACK ASM
FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 5TON 		8-98114-047-0 01 1 1405- ●
193 JACK ASM
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> 5TON 		8-98114-045-0 01 1 1405- ●
195 BRACKET; JACK 8-97589-376-2 01 1 1405- ● ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1405- ● ●
206 SCREW; OIL JACK BRKT
BOLT M8X25 FLANGE THA 		0-28650-825-0 01 1 1405- ● ●
208 HANDLE; JACK
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> L=580 		8-98181-249-0 01 1 1405- ●
208 HANDLE; JACK
WHEEL BASE 3400MM<34W> L=580 		8-98181-249-0 01 1 1405- ●
208 HANDLE; JACK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> L=642 		8-98181-477-0 01 1 1405- ●
237 BAG; TOOL 8-97130-903-1 01 1 1405- ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1405- ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1405- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 1405- ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 1405- ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 1405- ● ●
