Isuzu WW
▶
TRUCKS
▶
NPR
▶
51509 - NPR/NQR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#139586) — 56 parça
Tümü
A - NPR5SN
B - NPR5SS
◀
[840A] DUCT;EXC.COOLER WO/HEATER (21 parça)
[840A] OTHER PARTS (7 parça)
[840A] DUCT;COOLER WO/HEATER (28 parça)
▶

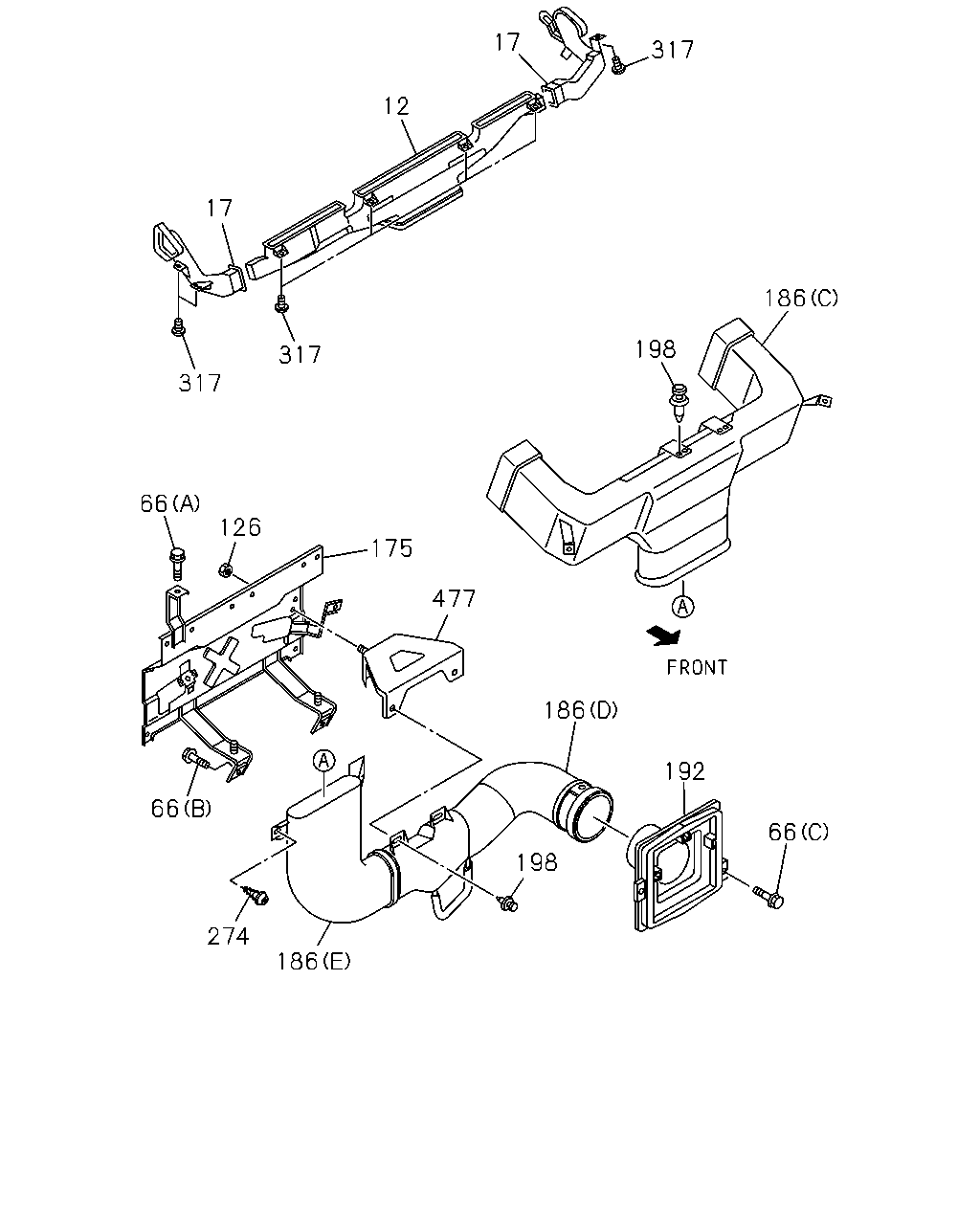

317
17
12
17
317
317
66
126
66
274
175
477
186
186
198
192
66
198
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
NOZZLE; DEFROSTER
8-97585-480-4
01
1
1405-
●
●
17
NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65>
8-97585-469-1
01
1
1405-
●
●
17
NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65>
8-97585-475-5
01
1
1405-
●
●
66
BOLT; DUCT
EXC. COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA
0-28650-616-0
02
1
1405-
●
●
66
BOLT; DUCT
EXC. COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1405-
●
●
66
BOLT; DUCT
EXC. COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1405-
●
●
126
NUT; BRKT
EXC. COOLER WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
01
1
1405-
●
●
175
BRACKET; HTR DUCT
EXC. COOLER WO/HEATER<C65>
8-98221-688-0
01
1
1405-
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (A)
8-97585-466-7
01
1
1405-1410
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (A)
8-98285-582-0
01
1
1411-
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (B)
8-97585-486-6
01
1
1405-1410
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (B)
8-98285-585-0
01
1
1411-
●
●
186
DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (C)
8-98054-363-0
01
1
1405-
●
●
186
DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (E)
8-98054-371-0
01
1
1405-
●
●
186
DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (D)
8-98054-379-2
01
1
1405-
●
●
192
DUCT; RAM AIR
EXC. COOLER WO/HEATER<C65>
8-98054-386-4
01
1
1405-
●
●
198
CLIP; DUCT
EXC. COOLER WO/HEATER<C65>
1-09987-144-0
05
1
1405-
●
●
274
SCREW; VENT DUCT
EXC. COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1405-
●
●
317
SCREW; DEFROSTER NOZZLE
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1405-
●
●
317
SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1405-
●
●
477
BRACKET; DUCT
EXC. COOLER WO/HEATER<C65>
8-98091-304-0
01
1
1405-
●
●

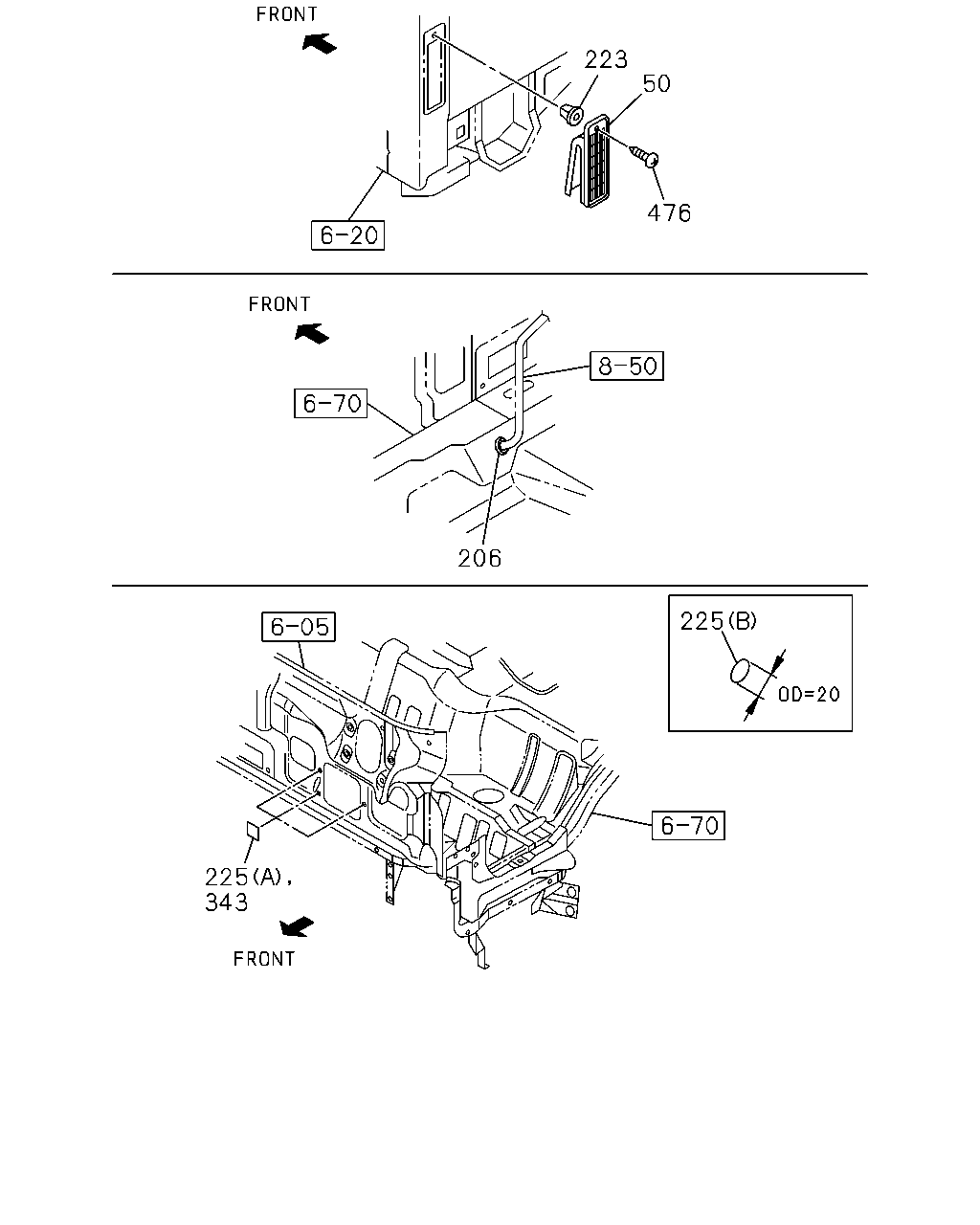

223
476
206
225
343
225
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
VALVE ASM; HTR
THA
8-97925-112-0
01
1
1405-
●
●
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1405-
●
●
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1405-
●
●
225
SEAL; WATER
COOLER WO/HEATER<C65> (A)
8-97856-616-0
03
1
1405-
●
●
225
SEAL; WATER
EXC. COOLER WO/HEATER<C65> (B) OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1405-
●
●
343
SEAL; AIR DUCT
EXC. COOLER WO/HEATER<C65>
8-97856-616-0
02
1
1405-
●
●
476
SCREW; VALVE
T25 M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1405-
●
●

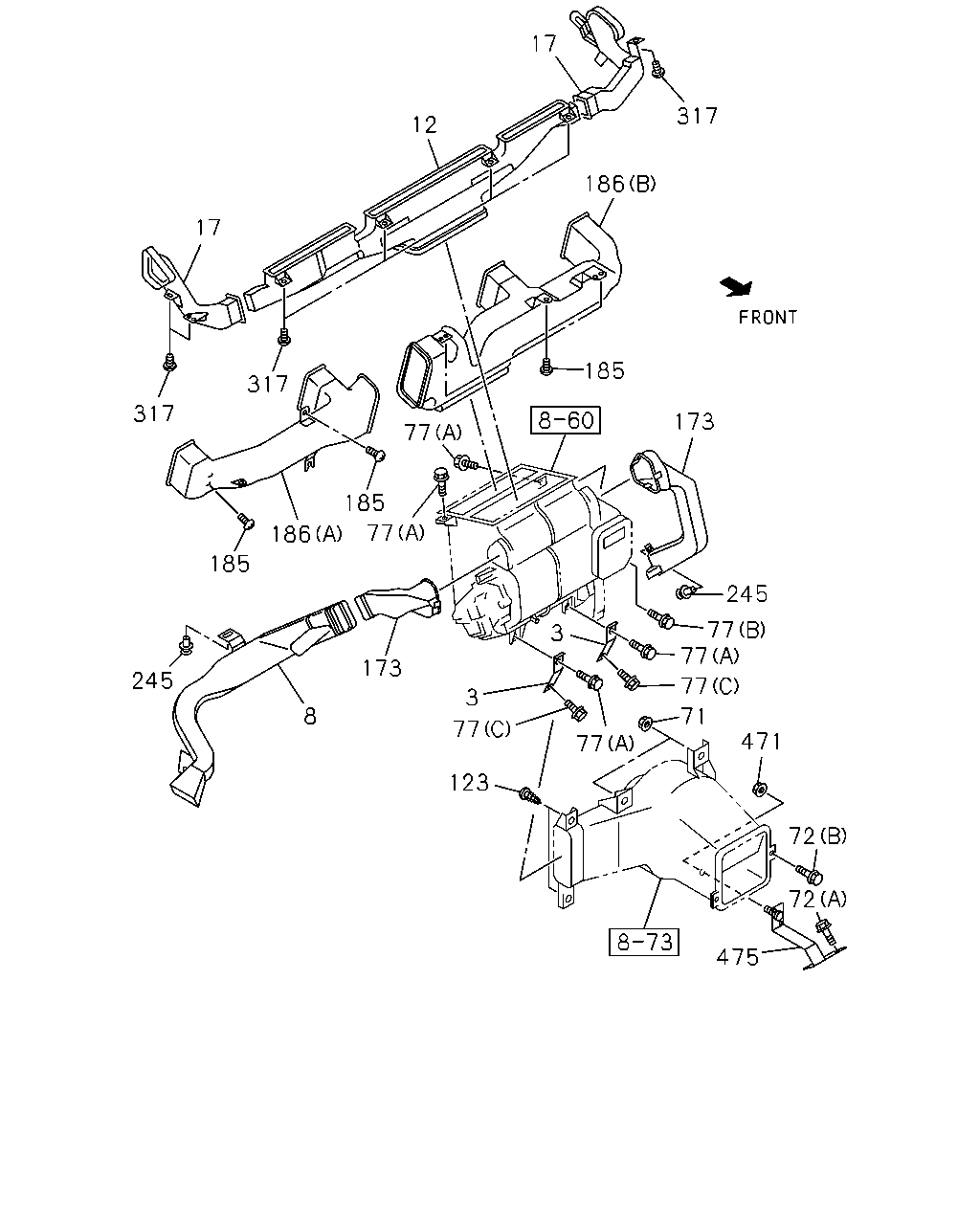

17
12
17
317
186
185
77
185
186
185
245
8
173
77
123
3
317
317
77
77
3
173
245
77
77
77
71
471
72
72
475
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BRACKET; HTR UNIT
COOLER WO/HEATER<C65>
8-98082-473-1
02
1
1405-
●
●
8
DUCT; HTR AIR,DRIVER FOOT
COOLER WO/HEATER<C65>
8-98084-146-0
01
1
1405-
●
●
12
NOZZLE; DEFROSTER
8-97585-480-4
01
1
1405-
●
●
17
NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65>
8-97585-469-1
01
1
1405-
●
●
17
NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65>
8-97585-475-5
01
1
1405-
●
●
71
NUT; BLOWER UNIT TO DASH
COOLER WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
02
1
1405-
●
●
72
BOLT; BLOWER UNIT
COOLER WO/HEATER<C65> (A) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
1405-
●
●
72
BOLT; BLOWER UNIT
COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1405-
●
●
77
BOLT; HTR UNIT
COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA
0-28650-616-0
04
1
1405-
●
●
77
BOLT; HTR UNIT
COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER
8-98081-030-0
01
1
1405-
●
●
77
BOLT; HTR UNIT
COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1405-
●
●
123
SCREW; DUCT
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1405-
●
●
173
DUCT; FOOT,HTR
COOLER WO/HEATER<C65>
8-97585-504-3
01
1
1405-
●
●
173
DUCT; FOOT,HTR
COOLER WO/HEATER<C65>
8-98084-145-0
01
1
1405-1411
●
●
173
DUCT; FOOT,HTR
COOLER WO/HEATER<C65>
8-98246-555-0
01
1
1412-
●
●
185
SCREW; VENT DUCT
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1405-
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (A)
8-97585-466-7
01
1
1405-1410
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (A)
8-98285-582-0
01
1
1411-
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (B)
8-97585-486-6
01
1
1405-1410
●
●
186
DUCT; VENTILATOR
COOLER WO/HEATER<C65> (B)
8-98285-585-0
01
1
1411-
●
●
186
DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (C)
8-98054-363-0
01
1
1405-
●
●
186
DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (E)
8-98054-371-0
01
1
1405-
●
●
186
DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (D)
8-98054-379-2
01
1
1405-
●
●
245
CLIP; FOOT DUCT
COOLER WO/HEATER<C65>
1-09987-144-0
02
1
1405-
●
●
317
SCREW; DEFROSTER NOZZLE
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1405-
●
●
317
SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1405-
●
●
471
NUT; BLOWER
COOLER WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
01
1
1405-
●
●
475
BRACKET; BLOWER
COOLER WO/HEATER<C65>
8-97387-092-2
01
1
1405-
●
●
