◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#139584) — 15 parça

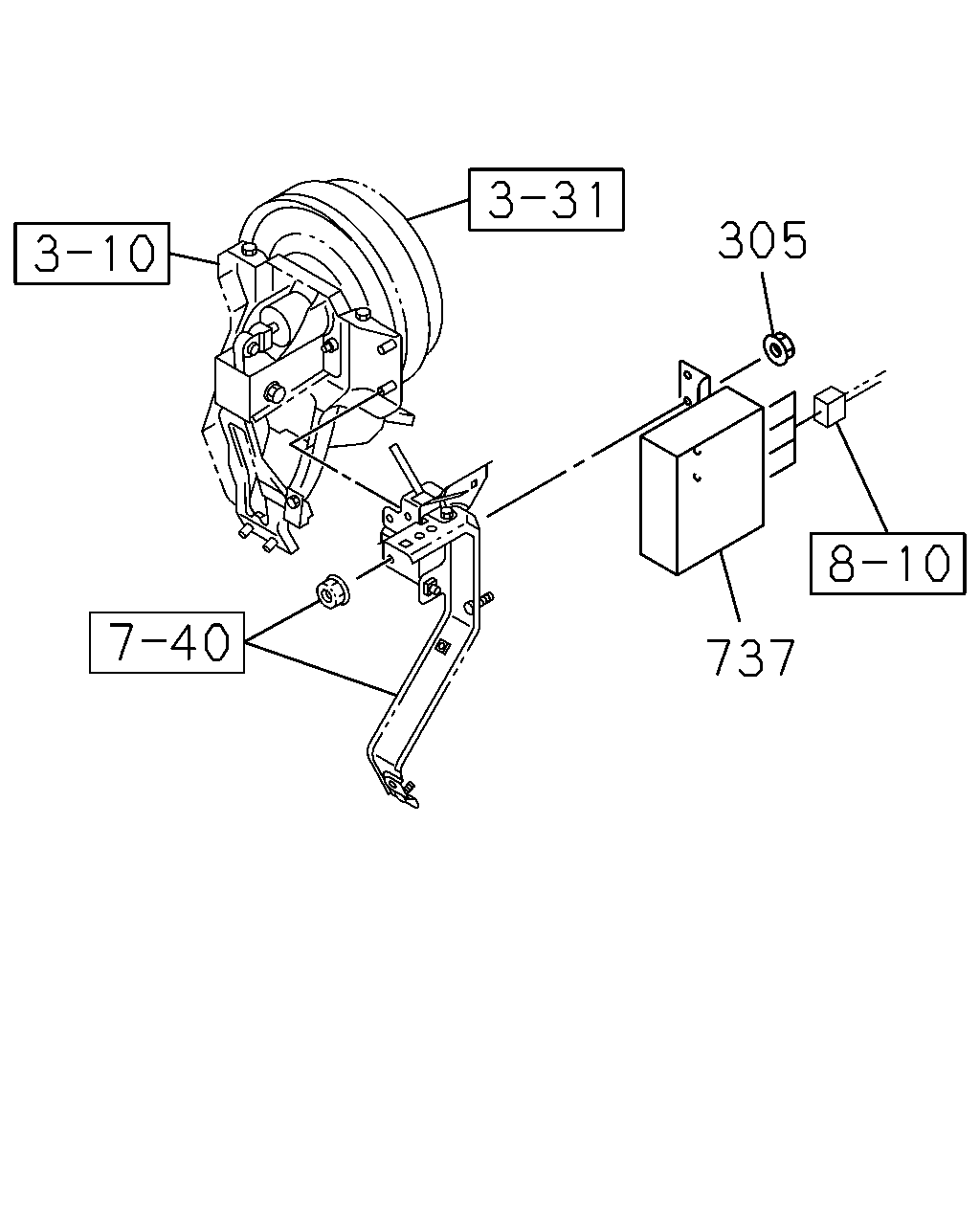

çizim 421441
305 737
BalonParca AdiParca NoAdetTipApplied Date A B
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 W/LK WASHER 		8-94279-050-0 02 1 1405- ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98067-712-5 01 1 1405- ●

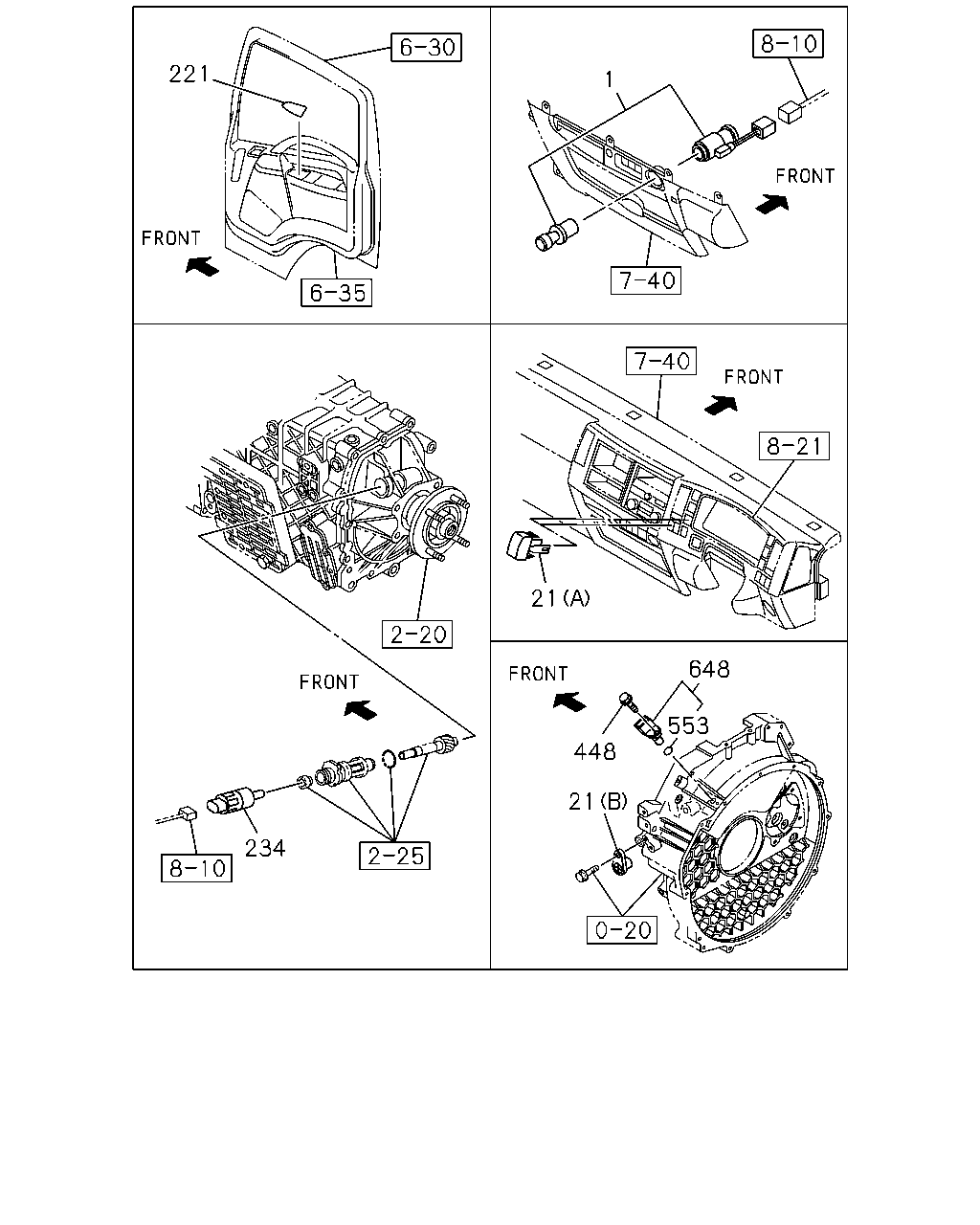

çizim 421649
221 1 21 234 648 553 448 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1405- ● ●
21 COVER; HOLE
(B) 		8-97101-974-0 01 1 1405- ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 02 1 1405- ● ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1405- ● ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1405- ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1405- ● ●
448 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 1405- ● ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1405- ● ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1405- ● ●
çizim 421989
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405- ● ●
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1405- ● ●
68 BOLT; BRKT
M6X12 FLANGE THA 		0-28450-612-0 01 1 1405- ● ●
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1405- ● ●
