◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#139582) — 19 parça
çizim 420994
1 2 110 81 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98021-251-4 01 1 1405- ●
1 METER COMPL; CLUSTER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98021-249-4 01 1 1405- ●
1 METER COMPL; CLUSTER
4HK1-TCS ENG<RJS> 		8-98021-249-4 01 1 1405- ●
2 PANEL; CLUSTER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF>,TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98054-432-0 01 1 1405- ●
2 PANEL; CLUSTER
4HK1-TCS ENG<RJS> 		8-98054-432-0 01 1 1405- ●
81 METER SUB ASM
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98073-680-0 01 1 1405- ●
81 METER SUB ASM
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98073-677-0 01 1 1405- ●
81 METER SUB ASM
4HK1-TCS ENG<RJS> 		8-98073-677-0 01 1 1405- ●
110 GLASS; CLUSTER METER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF>,TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98054-431-0 01 1 1405- ●
110 GLASS; CLUSTER METER
4HK1-TCS ENG<RJS> 		8-98054-431-0 01 1 1405- ●
480 COVER; METER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF>,TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BLACK 		8-98054-433-0 01 1 1405- ●
480 COVER; METER
4HK1-TCS ENG<RJS> BLACK 		8-98054-433-0 01 1 1405- ●

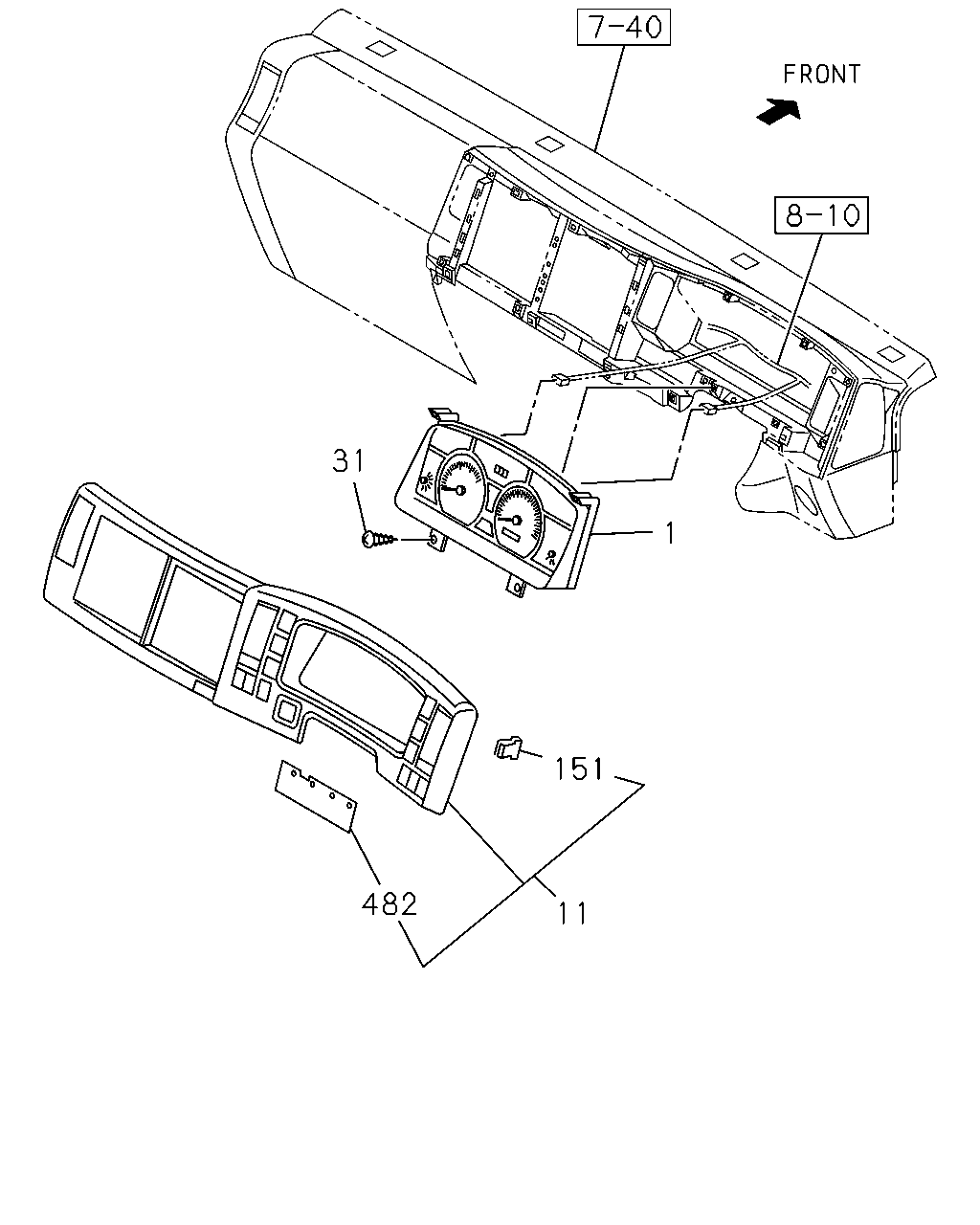

çizim 421884
151 1 31 482 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98021-251-4 01 1 1405- ●
1 METER COMPL; CLUSTER
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98021-249-4 01 1 1405- ●
1 METER COMPL; CLUSTER
4HK1-TCS ENG<RJS> 		8-98021-249-4 01 1 1405- ●
11 CLUSTER ASM; METER
THA 		8-97926-378-2 01 1 1405- ● ●
31 SCREW; METER,INST PANEL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1405- ● ●
151 CLIP; METER CLUSTER
THA 		8-97926-387-0 13 1 1405- ● ●
482 SEAL; CLUSTER METER
THA 		8-97926-388-0 01 1 1405- ● ●
