8-15 — FIXING PARTS; WIRING HARNESS (#139581) — 136 parça

16 16 530 16 16 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (E)	8-97101-436-0	01	1	1405-1410	●	●
16	CLIP; HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (E)	8-97101-436-0	01	1	1411-	●
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (E)	8-97101-436-0	01	1	1411-		●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1405-	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	1405-	●	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	1405-	●	●
16	CLIP; HARNESS (F) L=40.6 THA	8-97229-357-0	02	1	1405-	●	●
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1405-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (C)	8-98018-900-2	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (C)	8-98018-900-2	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (B)	8-98051-457-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (B)	8-98051-457-0	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (D)	8-98077-504-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (D)	8-98077-504-0	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (H)	8-98094-629-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (H)	8-98094-629-0	01	1	1405-		●
53	BRACKET; HARNESS (G)	8-98052-804-0	01	1	1405-	●	●
53	BRACKET; HARNESS (I)	8-98055-636-0	01	1	1405-	●	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	1405-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1405-	●	●
53	BRACKET; HARNESS EXC. COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	1405-	●	●
530	SEAL; HARNESS OD=32 BLACK	8-98031-126-0	01	1	1405-	●	●

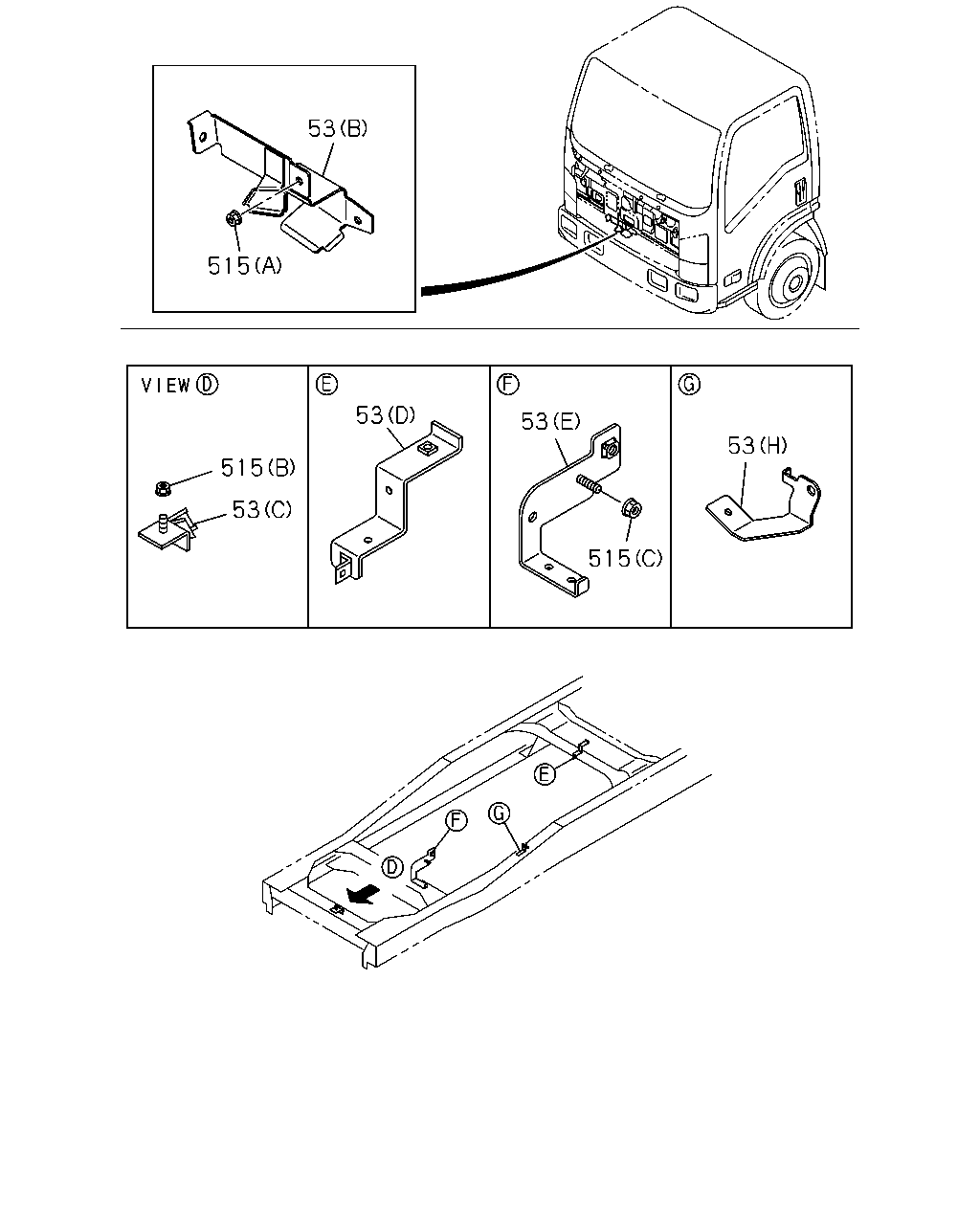

53 515 515 53 53 53 515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (C)	8-98018-900-2	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (C)	8-98018-900-2	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (B)	8-98051-457-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (B)	8-98051-457-0	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (D)	8-98077-504-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (D)	8-98077-504-0	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (H)	8-98094-629-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (H)	8-98094-629-0	01	1	1405-		●
53	BRACKET; HARNESS (G)	8-98052-804-0	01	1	1405-	●	●
53	BRACKET; HARNESS (I)	8-98055-636-0	01	1	1405-	●	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	1405-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1405-	●	●
53	BRACKET; HARNESS EXC. COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	1405-	●	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-110-0	01	1	1405-		●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (A) M6 FLANGE THA	0-91180-106-0	01	1	1405-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M6 FLANGE THA	0-91180-106-0	01	1	1405-		●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (B) M8 FLANGE	8-98040-024-0	01	1	1405-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (B) M8 FLANGE	8-98040-024-0	01	1	1405-		●

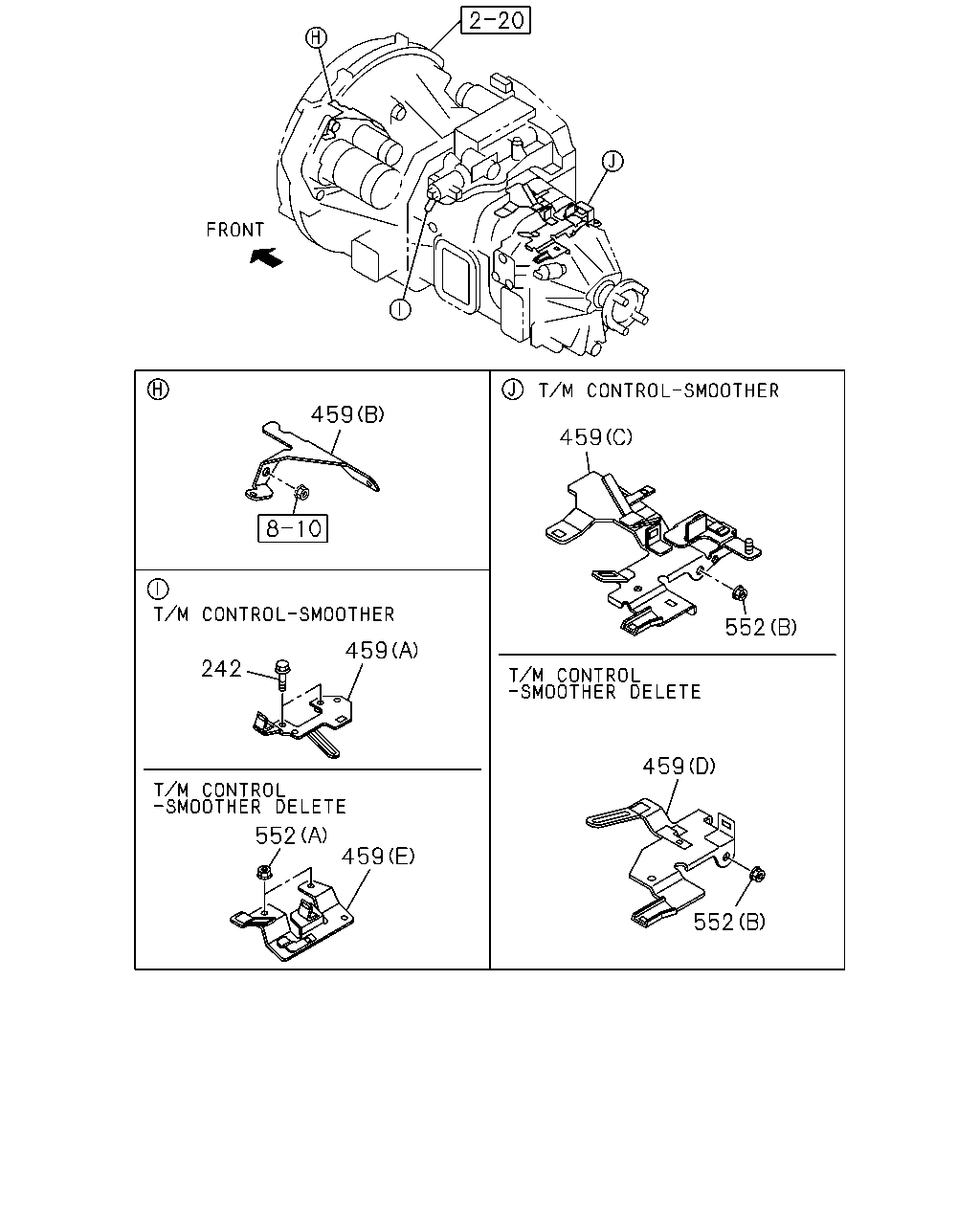

459 459 552 242 459 459 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
242	BOLT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> M8X35 FLANGE THA	0-28650-835-0	02	1	1405-	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-98018-899-1	01	1	1405-	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98030-988-2	01	1	1405-	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	8-98030-991-2	01	1	1405-	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (E)	8-98020-227-3	01	1	1405-	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCS ENG<RJS> (E)	8-98020-227-3	01	1	1405-		●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (D)	8-98196-974-0	01	1	1405-	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCS ENG<RJS> (D)	8-98196-974-0	01	1	1405-		●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> (B) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●
552	NUT; BRKT,HARNESS 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	0-91180-110-0	01	1	1405-		●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA	0-91180-108-0	02	1	1405-	●
552	NUT; BRKT,HARNESS 4HK1-TCS ENG<RJS> (A) M8 FLANGE THA	0-91180-108-0	02	1	1405-		●

516 150 313 139 480 529 304 480 377 377 386 386 139 24 515 577 294 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS (B) M10 FLANGE THA	0-91180-110-0	01	1	1405-1410	●	●
24	NUT; HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA	0-91180-110-0	01	1	1411-	●
24	NUT; HARNESS 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	0-91180-110-0	01	1	1411-		●
24	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	01	1	1405-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1405-	●	●
139	BOLT; BRKT EXC. COOLER WO/HEATER<C65> (B) SCREW T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1405-	●	●
150	BOLT; CLIP M6X10 FLANGE THA	0-28050-610-0	01	1	1405-	●	●
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	1405-	●	●
304	BOLT; ENG HARNESS CLIP M10X16 FLANGE THA	0-28151-016-0	01	1	1405-	●	●
313	BOLT; BRKT M6X16 FLANGE THA	0-28450-616-0	01	1	1405-	●	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1405-	●	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1405-	●	●
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1405-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1405-	●	●
480	BOLT; BRKT 4HK1-TCN ENG<RDQ> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1405-	●
480	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1405-		●
480	BOLT; BRKT 4HK1-TCN ENG<RDQ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	1405-	●
480	BOLT; BRKT 4HK1-TCS ENG<RJS> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	1405-		●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-110-0	01	1	1405-		●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (A) M6 FLANGE THA	0-91180-106-0	01	1	1405-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M6 FLANGE THA	0-91180-106-0	01	1	1405-		●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (B) M8 FLANGE	8-98040-024-0	01	1	1405-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (B) M8 FLANGE	8-98040-024-0	01	1	1405-		●
516	BOLT; HARNESS M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1405-	●	●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1405-	●	●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> (B) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M10 FLANGE THA	0-91180-110-0	01	1	1405-	●
552	NUT; BRKT,HARNESS 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	0-91180-110-0	01	1	1405-		●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA	0-91180-108-0	02	1	1405-	●
552	NUT; BRKT,HARNESS 4HK1-TCS ENG<RJS> (A) M8 FLANGE THA	0-91180-108-0	02	1	1405-		●
577	NUT; FUSE BOX M6 FLANGE THA	0-91180-106-0	02	1	1405-	●	●

483 22 483 48 483 483 48 48 16 22 102 102 488 16 14 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS L=150	8-97355-273-0	01	1	1405-	●	●
16	CLIP; HARNESS (E)	8-97101-436-0	01	1	1405-1410	●	●
16	CLIP; HARNESS 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (E)	8-97101-436-0	01	1	1411-	●
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (E)	8-97101-436-0	01	1	1411-		●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1405-	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	1405-	●	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	1405-	●	●
16	CLIP; HARNESS (F) L=40.6 THA	8-97229-357-0	02	1	1405-	●	●
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1405-	●	●
22	CLIP; ENG HARNESS (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1405-	●	●
22	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=140	5-09707-031-1	01	1	1405-	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG<RDQ> (C) L=450	1-09707-142-1	01	1	1405-	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (C) L=450	1-09707-142-1	01	1	1405-		●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG<RDQ> (A) ID=10 & 16.5	8-94424-440-0	01	1	1405-	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (A) ID=10 & 16.5	8-94424-440-0	01	1	1405-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) ID=14 L=47	5-09700-319-0	01	1	1405-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W> (B) ID=14 L=47	5-09700-319-0	01	1	1405-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	1405-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM<41W> (B) ID=14 L=47	5-09700-319-0	03	1	1405-		●
102	CLIP; BAND (A) L=140	5-09707-031-1	03	1	1405-	●	●
102	CLIP; BAND (B) L=170	5-09707-054-0	01	1	1405-	●	●
483	CLIP; ENG HARNESS (A) ID=14.5 L=40	1-09701-014-0	01	1	1405-	●	●
483	CLIP; ENG HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1405-	●	●
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	1405-	●	●
483	CLIP; ENG HARNESS (D) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1405-	●	●
483	CLIP; ENG HARNESS (D) ID=12	8-98170-218-0	01	1	1405-	●	●
488	CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1405-	●	●

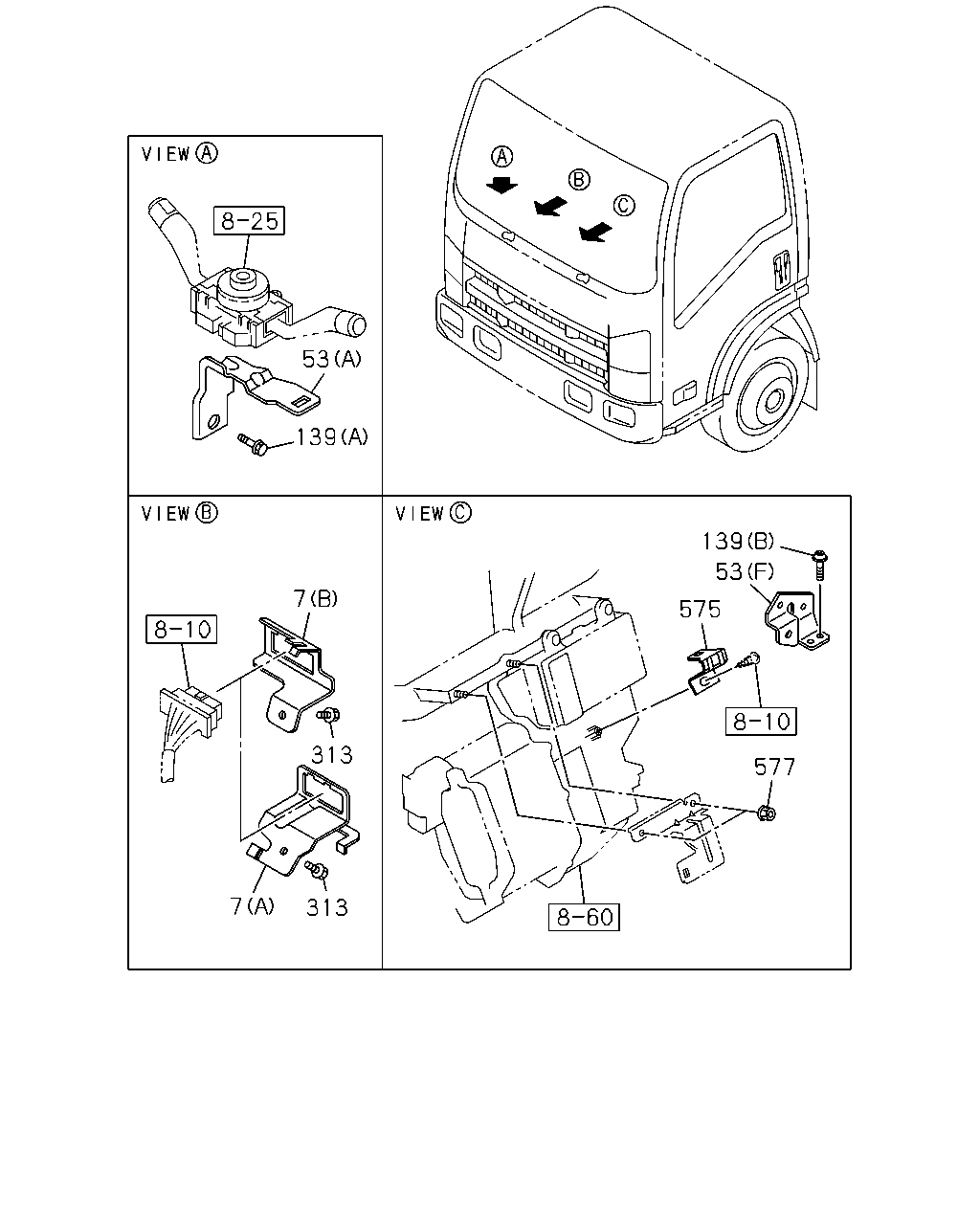

53 139 7 313 7 313 139 53 575 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-98114-514-0	01	1	1405-	●
7	BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-98043-070-1	01	1	1405-	●
7	BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (C)	8-98018-900-2	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (C)	8-98018-900-2	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (B)	8-98051-457-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (B)	8-98051-457-0	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (D)	8-98077-504-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (D)	8-98077-504-0	01	1	1405-		●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (H)	8-98094-629-0	01	1	1405-	●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (H)	8-98094-629-0	01	1	1405-		●
53	BRACKET; HARNESS (G)	8-98052-804-0	01	1	1405-	●	●
53	BRACKET; HARNESS (I)	8-98055-636-0	01	1	1405-	●	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	1405-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1405-	●	●
53	BRACKET; HARNESS EXC. COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	1405-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1405-	●	●
139	BOLT; BRKT EXC. COOLER WO/HEATER<C65> (B) SCREW T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1405-	●	●
313	BOLT; BRKT M6X16 FLANGE THA	0-28450-616-0	01	1	1405-	●	●
575	BRACKET; FUSE BOX	8-98042-656-2	01	1	1405-	●	●
577	NUT; FUSE BOX M6 FLANGE THA	0-91180-106-0	02	1	1405-	●	●
