◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#139576) — 10 parça

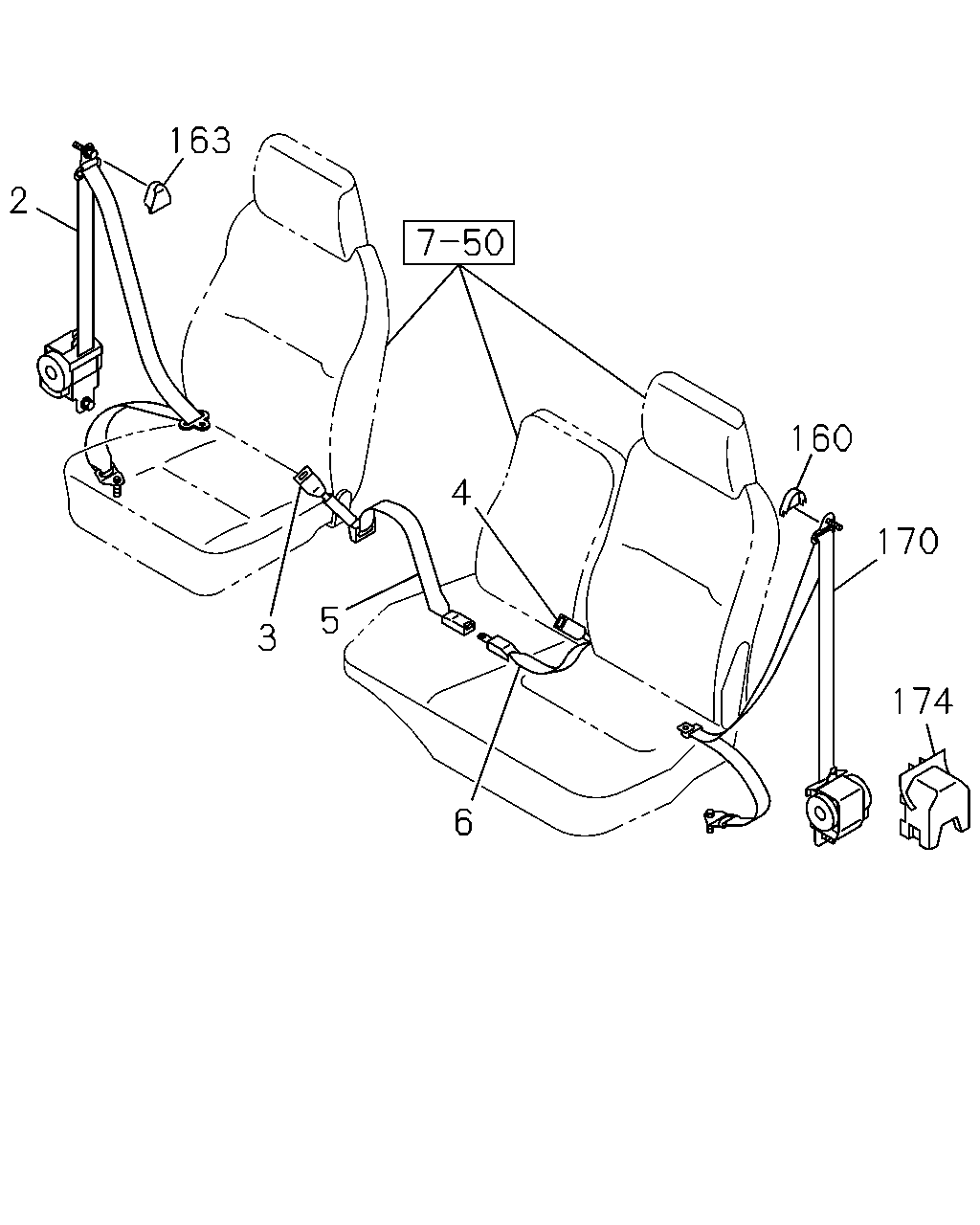

çizim 421960
160 174 170 6 4 5 3 2 163
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-503-0 01 1 1405- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-606-0 01 1 1405- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY THA 		8-97417-610-0 01 1 1405- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY THA 		8-97417-608-0 01 1 1405- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY THA 		8-97423-504-0 01 1 1405- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1405- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1405- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-503-0 01 1 1405- ● ●
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1405- ● ●
çizim 421962
166
BalonParca AdiParca NoAdetTipApplied Date A B
166 BOLT; SEAT BELT ANCHOR
M8X20 FLANGE THA 		0-28050-820-0 02 1 1405- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
